คำอธิบาย
| Brand | D-LINK |
| Model | DWR-M930DS |
| Standards | • 802.11b/g/n |
| Antennas | • 2x 5dBi external LTE antennas • 2x 5dBi external 2.4G antennas |
| Transmit/Receive | N/A |
| Frequency | • FDD LTE: B1/3/5/7/8/20/28 • TDD 38,40,41 • WCDMA:B1/5/8 |
| Range | N/A |
| Wireless Functions | • 64/128-bit WEP (Wired Equivalent Privacy) • Wireless ACL MAC address filtering • Wi-Fi Protected Setup (WPS) • WPA/WPA2/WPA3 wireless encryption |
| Processor Specs | N/A |
| CPU CORE COUNT | N/A |
| CPU nominal frequency | N/A |
| Size of RAM | N/A |
| LEDS | • YES |

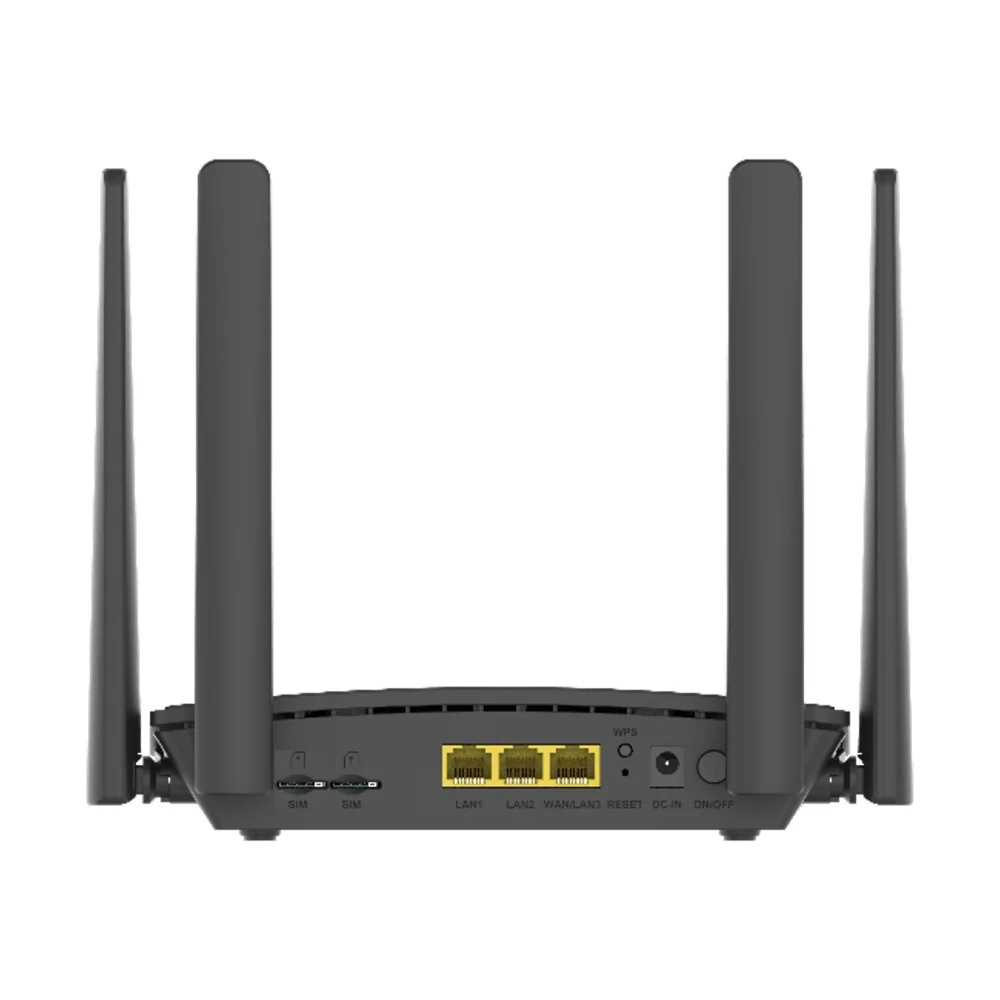

| Interface | • 1x 10/100 Fast Ethernet WAN/LAN port • 2x 10/100 Fast Ethernet LAN port • 2x Nano SIM card Slot |
| USB Interface | NONE |
| Button | • WPS button |
| Power Switch | • YES |
| Data Rate | • Data Rates : 2.4GHz up to 300Mbps • Wi-Fi Data Rates : HT20: up to 144 Mbps , HT40: up to 300 Mbps |
| Operation Mode | • Router Mode |
| Management | • Easy Installation and Management Web-based UI and Quick Setup Wizard for easy |
| Firewall | • Network Address Translation (NAT) • Stateful Packet Inspection (SPI) |
| VPN Support | • IPsec VPN pass through |
| IPv6 support | • YES |
| Features | • WAN fail over • Port forwarding • IPsec VPN pass through • QoS Flow Control • TR-069 remote management • DMZ • IGMP proxy and MLD for IPTV • DHCP server, DHCP client |
| OS compatibility | N/A |
| System Requirements | N/A |
| Power Supply | • Input: 100 ~ 240 V • Output: 12 V / 1A |
| Power Supply (PoE) | NONE |
| Power Consumption | N/A |
| Environment | Temperature • Operating: -10°C to 40°C • Storage: -40°C to 70 °C Humidity • Operating: 10% to 95% non-condensing • Storage: 10% to 95% non-condensing |
| Certification | • CE |
| Package Contents | N/A |
| Dimension | (W x D x H) : 22.20 x 14.70 x 4.20 cm |
| Net Weight | 0.24 KG |
