คำอธิบาย
| Brand | TP-LINK |

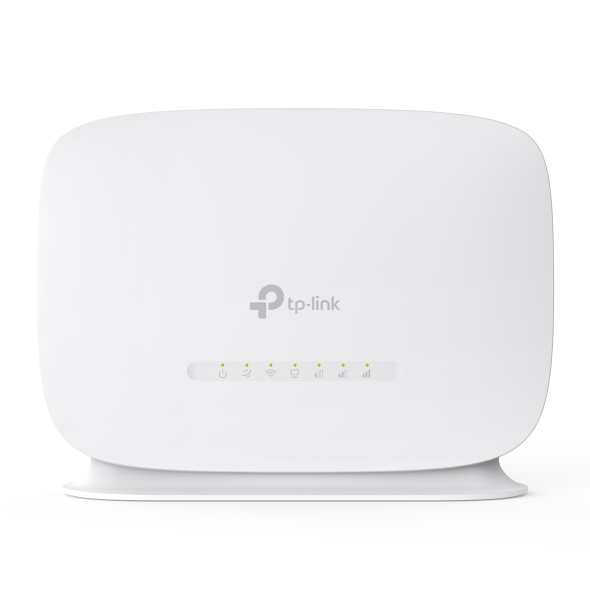

| Model | TL-MR105 |
| Standards | IEEE 802.11b/g/n |
| Antennas | 2× Internal 4G/3G Antennas 2× Internal Wi-Fi Antennas 2× External 4G/3G Antenna Ports |
| Transmit/Receive | < 20 dBm (2.4 GHz) |
| Frequency | 2.4 GHz |
| Range | N/A |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| Processor Specs | N/A |
| CPU CORE COUNT | N/A |
| CPU nominal frequency | N/A |
| Size of RAM | N/A |
| LEDS | N/A |
| Interface | 1x 10/100Mbps LAN Port 1x 10/100Mbps LAN/WAN Port 1x Nano SIM Card Slot |
| USB Interface | NONE |
| Button | Reset/WPS Button |
| Power Switch | NONE |
| Data Rate | 300 Mbps |
| Operation Mode | 3G/4G Router, Wireless Router |
| Management | Local Management, Remote Management |
| Firewall | IPv4 SPI Firewall, IP and MAC Address Binding |
| VPN Support | N/A |
| IPv6 support | YES |
| Features | WAN Type : Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) DHCP : Server, DHCP Client List, Address Reservation Port Forwarding : ALG, Virtual Server, Port Triggering, UPnP, DMZ Dynamic DNS : TP-Link, DynDns, NO-IP |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Nano SIM Card |
| Mounting | NONE |
| Power Supply | 9V/0.85A |
| Power Supply (PoE) | NONE |
| Power Consumption | N/A |
| Environment | Operating Temperature : 0°C~40°C (32°F ~104°F) Operating Humidity : 10%~90% non-condensing Storage Humidity : 5%~90% non-condensing |
| Certification | CE, RoHS |
| Package Contents | – 300 Mbps Wireless N 4G LTE TL-MR105 – 1.5m Power Adapter – RJ45 Ethernet Cable – Quick Installation Guide |
| Dimension | (W x D x H) : 17.40 x 13.00 x 6.00 cm |
| Net Weight | 0.53 KG |
