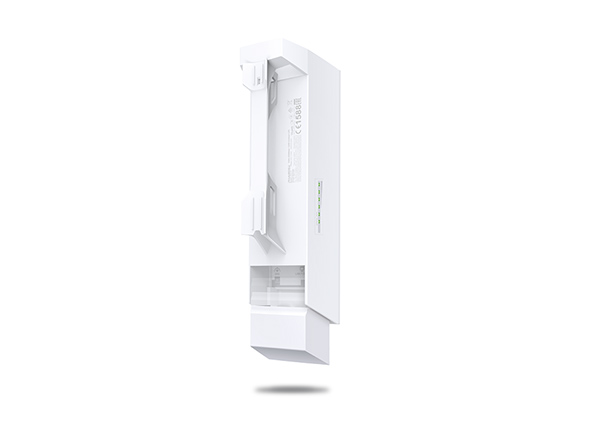

Access Point Outdoor TP-LINK (CPE210) Wireless N300 (2.4GHz) 9dBi

฿1,600.00

  • Wireless Standards : IEEE 802.11b/g/n (with Pharos MAXtream disabled)
  • Signal Rate : 2.4 GHz: 300 Mbps
  • Interface
    • 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
    • Grounding Terminal
  • Power Supply : Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
  • Mounting : Pole/Wall Mounting
  • Antenna Type : Built-in 9dBi 2×2 Dual-polarized Directional Antenna
  • System-level optimizations for more than 5km long range wireless transmission
  • TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
  • Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: A0091187 หมวดหมู่: , ,

คำอธิบาย

Brand TP-LINK
Model CPE210
Standards IEEE 802.11b/g/n (with Pharos MAXtream disabled)
Antennas Built-in 9dBi 2×2 Dual-polarized Directional Antenna
Beam Width: 65° (H-Plane) / 40° (E-Plane)
Note: For more details, please refer to datasheet
Transmit/Receive 25dBm/316mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.
Frequency 2.4~2.483GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
Processor Specs Qualcomm Atheros 560MHz CPU, MIPS 74Kc
LEDS Green
Interface 1 x 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 x Grounding Terminal
1 x Reset Button
Button 1 Reset Button
Memory 64MB DDR2 RAM, 8MB Flash
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Power Supply Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Power Consumption 5 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Environment Operating Temperature: -40℃~70℃ (-40℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
Certification CE, FCC, RoHS, IPX5

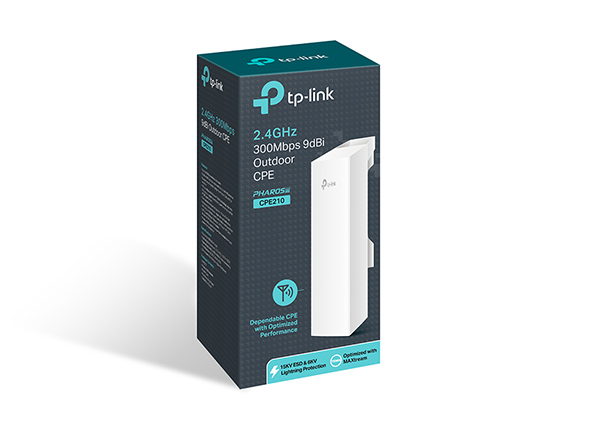

Package Contents Outdoor Wireless CPE
24V 0.25A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide
Outdoor ASA stabilized plastic material
IPX5 waterproof Certification
100-240VAC, 50/60Hz
24VDC, 1.0A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
15KV ESD Protection
6000V Lightning Protection
Dimension (W x D x H) : 7.90 x 22.40 x 6.00 cm
Net Weight 0.00 KG
Package Dimension (W x D x H) : 13.00 x 27.00 x 10.00 cm
Gross Weight 0.70 KG
Volume 3,510.00 cm3
