คำอธิบาย
| Brand | CISCO |
| Model | C1300-16T-2G |
| Network Interface | 16x 10/100/1000 ports 2x Gigabit SFP |
| USB Port | USB Type C port |
| Standards and Protocols | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3ae 10 Gbps Ethernet over fiber for LAN, IEEE 802.3an 10GBASE-T 10 Gbps Ethernet over copper twisted pair cable, IEEE 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP), IEEE 802.1Q/p VLAN, IEEE 802.1w Rapid STP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication |
| Switching Capacity | 36Gbps |
| MAC Address Table | 16K addresses |
| Jumbo Frame | Frame sizes up to 9000 bytes. The default MTU is 2000 bytes |
| Packet Buffer Memory | 1.5 MB |
| CPU | ARM dual-core |
| CPU Memory | 1.4 GHz |
| Flash Memory | 512 MB |
| LED Indicators | System, Link/Act , Speed |
| Management | Cisco Business mobile app Web user interface |
| VLAN | – Support for up to 4093 VLANs simultaneously – Port-based and 802.1Q tag-based VLANs, MAC-based VLAN, protocol-based VLAN, IP subnet-based VLAN – Management VLAN – Private VLAN with promiscuous, isolated, and community port – Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks – Guest VLAN, unauthenticated VLAN – Dynamic VLAN assignment via RADIUS server along with 802.1X client authentication – Customer premises equipment (CPE) VLAN – Auto surveillance VLAN (ASV) |
| Security | Secure Sockets Layer (SSL) , SSH Protocol , IEEE 802.1X (authenticator role) , STP loopback guard , Secure Core Technology (SCT) , Secure Sensitive Data (SSD) , Trustworthy systems , Port security , RADIUS , Storm control , DoS prevention , Multiple user privilege levels in CLI , ACLs |
| MTBF | 2,165,105 MTBF at 25°C (hours) |
| Fan Quantity | Fanless |
| Material | Metal |
| PoE | NONE |
| Power Supply | 110V=10.9W 220V=11.2W |
| Power Consumption | 11.2W |
| Environment | Operating temperature : 23° to 122°F (-5° to 50°C) 32° to 122°F (0° to 50°C) Storage temperature : -13° to 158°F (-25° to 70°C) Operating humidity : 10% to 90%, relative, noncondensing Storage humidity : 10% to 90%, relative, noncondensin |
| Certifications | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |

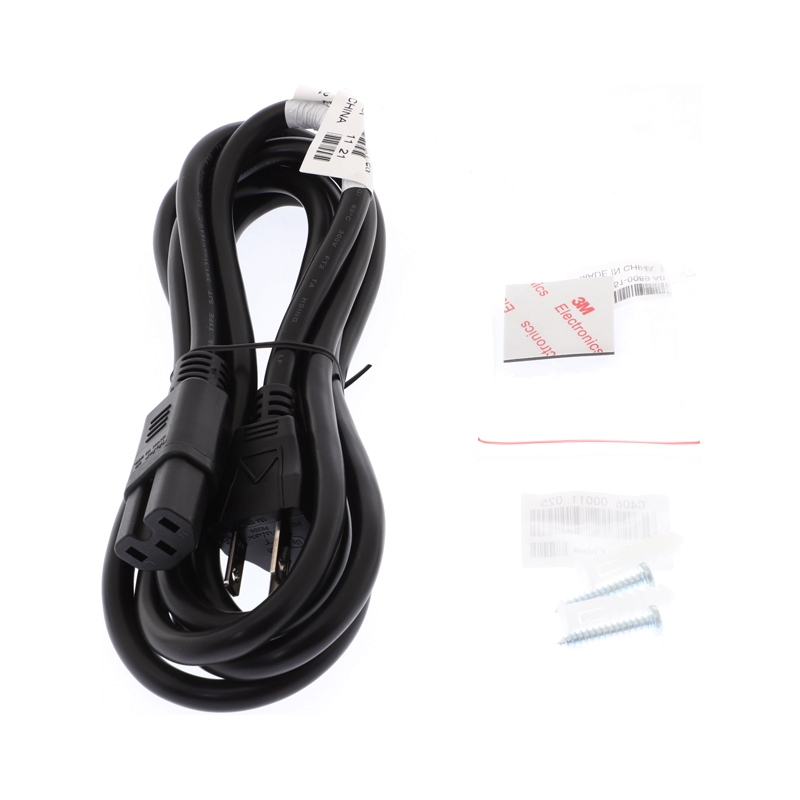

| Package Contents | – Cisco Catalyst 1300 Series Switch – Power cord (power adapter for select 8-port and 16-port SKUs) – Mounting kit – Pointer card |
| Dimension | (W x D x H) : 26.80 x 27.20 x 4.40 cm |
| Net Weight | 1.78 KG |
| Package Dimension | (W x D x H) : 10.00 x 39.00 x 40.00 cm |
| Gross Weight | 3.70 KG |
| Volume | 15,600.00 cm3 |
