คำอธิบาย
| Brand | CISCO |

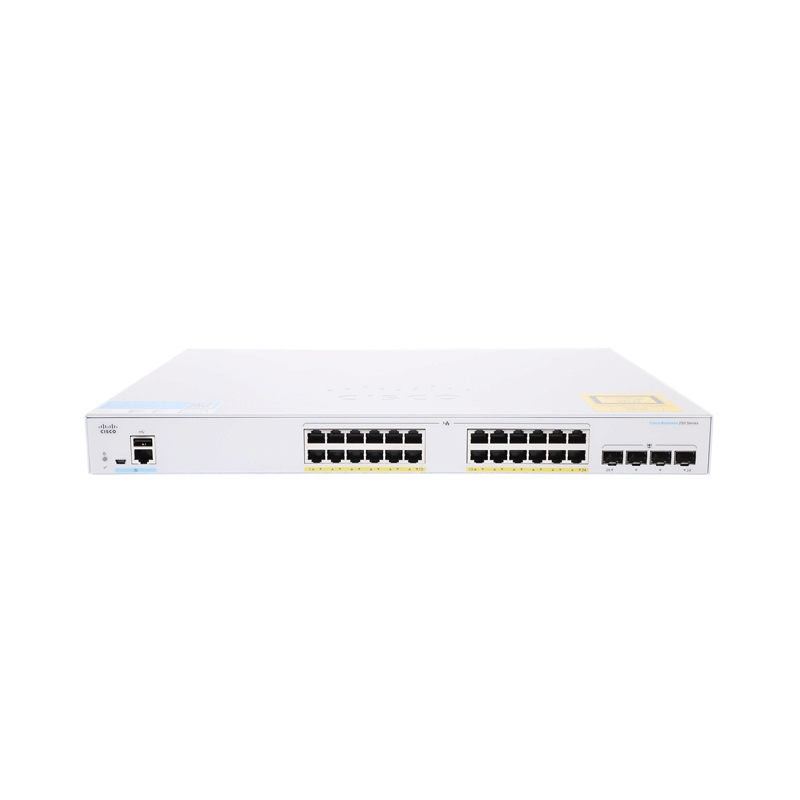

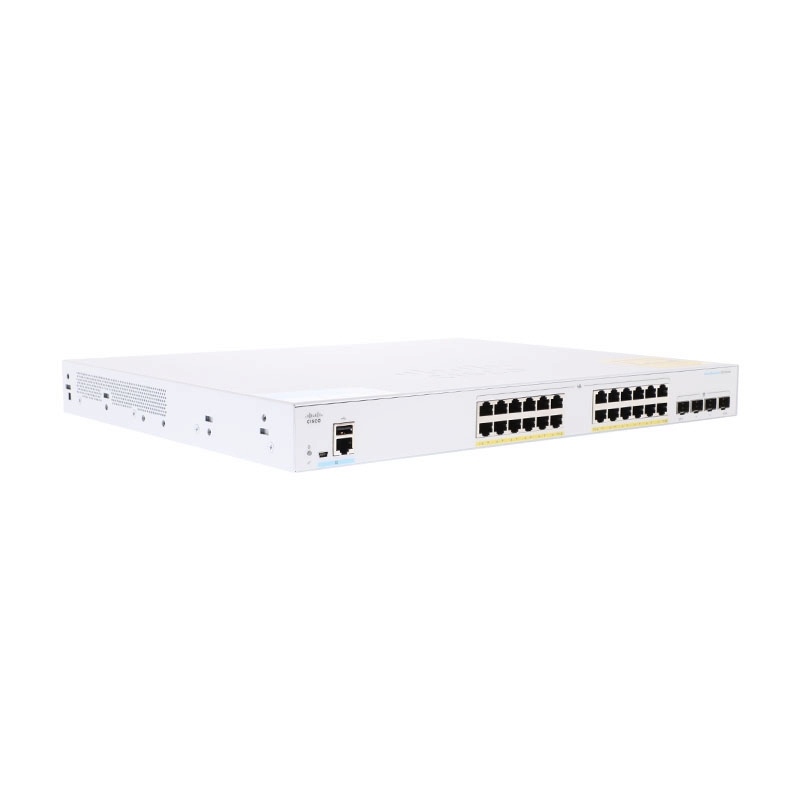

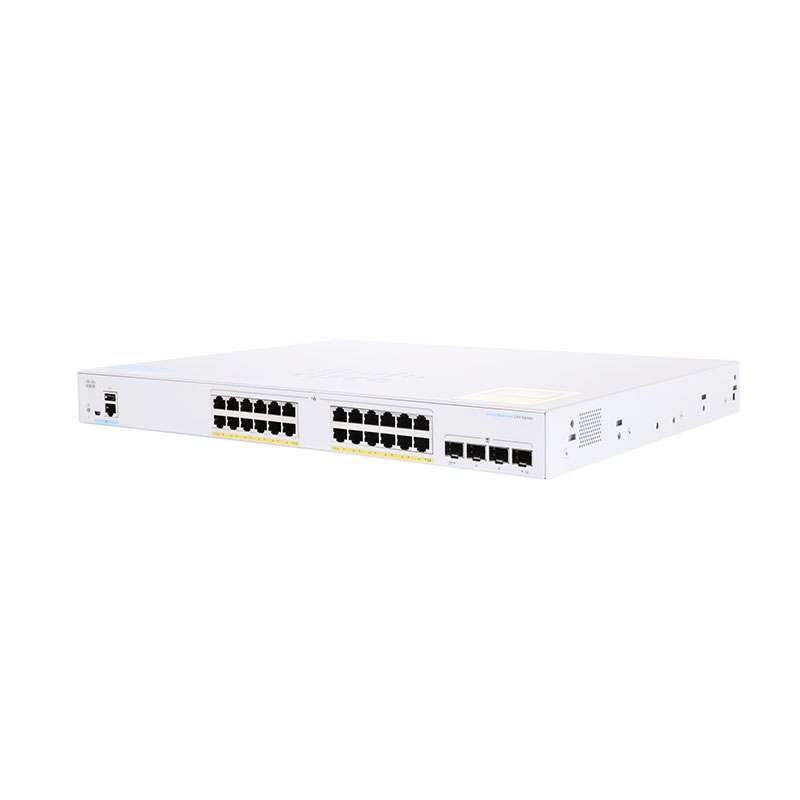

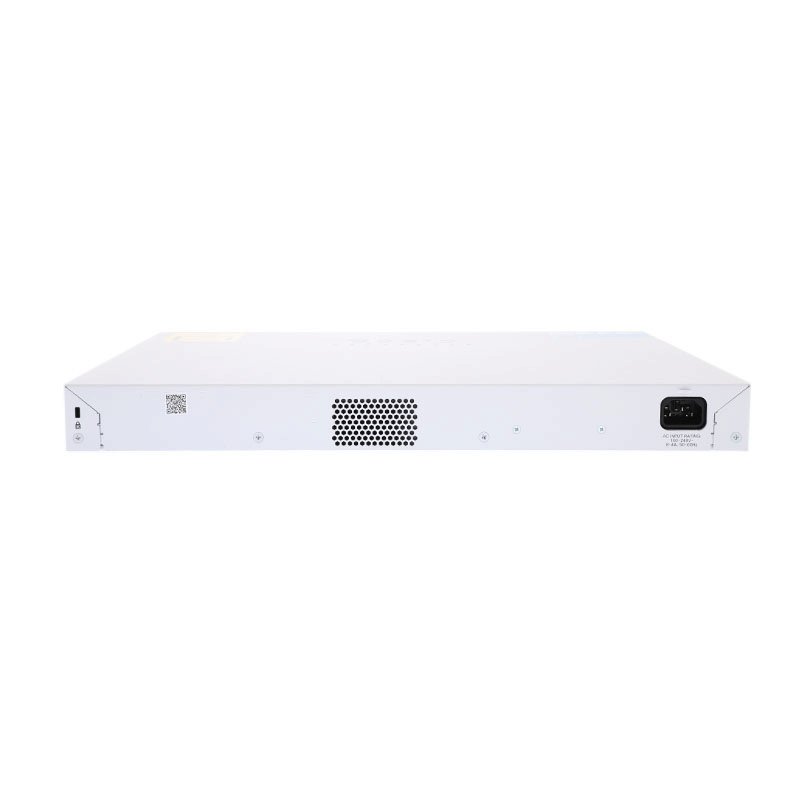

| Model | CBS350-24FP-4G-EU |
| Network Interface | 24 10/100/1000 PoE+ ports with 370W power budget 4 Gigabit SFP |
| USB Port | USB Type-A slot on the front panel of the switch for easy file and image management |
| Standards and Protocols | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3ae 10 Gbit/s Ethernet over fiber for LAN, IEEE 802.3an 10GBase-T 10 Gbit/s Ethernet over copper twisted pair cable, IEEE 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP), IEEE 802.1Q/p VLAN, IEEE 802.1w Rapid STP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, IEEE 802.1AB Link Layer Discovery Protocol, IEEE 802.3az Energy Efficient Ethernet, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 826, RFC 879, RFC 896, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 920, RFC 922, RFC 950, RFC 951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1157, RFC 1213, RFC 1215, RFC 1286, RFC 1350, RFC 1442, RFC 1451, RFC 1493, RFC 1533, RFC 1541, RFC 1542, RFC 1573, RFC 1624, RFC 1643, RFC 1700, RFC 1757, RFC 1867, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2030, RFC 2131, RFC 2132, RFC 2233, RFC 2576, RFC 2616, RFC 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 3164, RFC 3176, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 3416, RFC 4330 |
| Switching Capacity | Capacity in Millions of Packets per Second (mpps) (64-byte packets) 41.66 Switching Capacity in Gigabits per Second (Gbps) 56.0 |
| Transmission Method | Transmission Control Protocol/User Datagram Protocol (TCP/UDP) source and destination ports |
| MAC Address Table | 16K addresses |
| Forwarding Rate | Capacity in Millions of Packets per Second (mpps) (64-byte packets) 41.66 Switching Capacity in Gigabits per Second (Gbps) 56.0 |
| Jumbo Frame | Frame sizes up to 9K bytes. The default MTU is 2K bytes |
| Packet Buffer Memory | 1.5 MB |
| CPU | 800 MHz ARM |
| CPU Memory | 512 MB |
| Flash Memory | 256 MB |
| LED Indicators | System, Link/Act, PoE, Speed |
| Management | Cisco Business Dashboard
Support for embedded probe for Cisco Business Dashboard running on the switch. Eliminates the need to set up a separate hardware or virtual machine for the Cisco Business Dashboard Probe on site. Cisco Business mobile app Mobile app for Cisco Business Switch and Wireless products. Helps to set up a local network in minutes and provide easy management at your fingertips. Cisco Network Plug and Play (PnP) agent The Cisco Network Plug and Play solution provides a simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or for provisioning updates to an existing network. The solution provides a unified approach to provision Cisco routers, switches, and wireless devices with a near-zero-touch deployment experience Supports Cisco PnP Connect Web user interface Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS). Supports simple and advanced mode, configuration, wizards, customizable dashboard, system maintenance, monitoring, online help, and universal search SNMP SNMP versions 1, 2c, and 3 with support for traps, and SNMP version 3 User-based Security Model (USM) |
| VLAN | Support for up to 4,094 VLANs simultaneously
Port-based and 802.1Q tag-based VLANs; MAC-based VLAN; protocol-based VLAN; IP subnet-based VLAN Management VLAN Private VLAN with promiscuous, isolated, and community port Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks Guest VLAN, unauthenticated VLAN Dynamic VLAN assignment via RADIUS server along with 802.1x client authentication CPE VLAN |
| Security | Support for up to 1,024 rules
Drop or rate limit based on source and destination MAC, VLAN ID, IPv4 or IPv6 address, IPv6 flow label, protocol, port, Differentiated Services Code Point (DSCP)/IP precedence, Transmission Control Protocol/User Datagram Protocol (TCP/UDP) source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, IGMP packets, TCP flag; ACL can be applied on both ingress and egress sides Time-based ACLs supported |
| MTBF | MTBF at 25°C (hours) 698,220 |
| Fan Quantity | 1 |
| Material | Information on product-material-content laws and regulations |
| PoE | 370W 24 Ports |
| Power Supply | 100-240V 50-60 Hz, internal, universal: CBS350-8P-2G, CBS350-8FP-2G, CBS350-16T-2G, CBS350-16P-2G, CBS350-16FP-2G, CBS350-24T-4G, CBS350-24P-4G, CBS350-24FP-4G, CBS350-24S-4G, CBS350-48T-4G, CBS350-48P-4G, CBS350-48FP-4G, CBS350-24T-4X, CBS350-24P-4X, CBS350-24FP-4X, CBS350-48T-4X, CBS350-48P-4X, CBS350-48FP-4X, CBS350-8MGP-2X, CBS350-8MP-2X, CBS350-24MGP-4X, CBS350-12NP-4X, CBS350-24NGP-4X, CBS350-48NGP-4X, CBS350-8XT, CBS350-12XS, CBS350-12XT, CBS350-16XTS, CBS350-24XS, CBS350-24XT, CBS350-24XTS, CBS350-48XT-4X |
| Power Consumption | System Power Consumption 110V=46.60W 220V=46.35W Power Consumption (with PoE) 110V=449.7W 220V=438.3W Heat Dissipation (BTU/hr) 1,537.17 |
| Environment | Unit Dimensions 445 x 345 x 44 mm (17.5 x 13.59 x 1.73 in) Unit Weight 4.6 kg (10.14 lb) |
| Certifications | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |

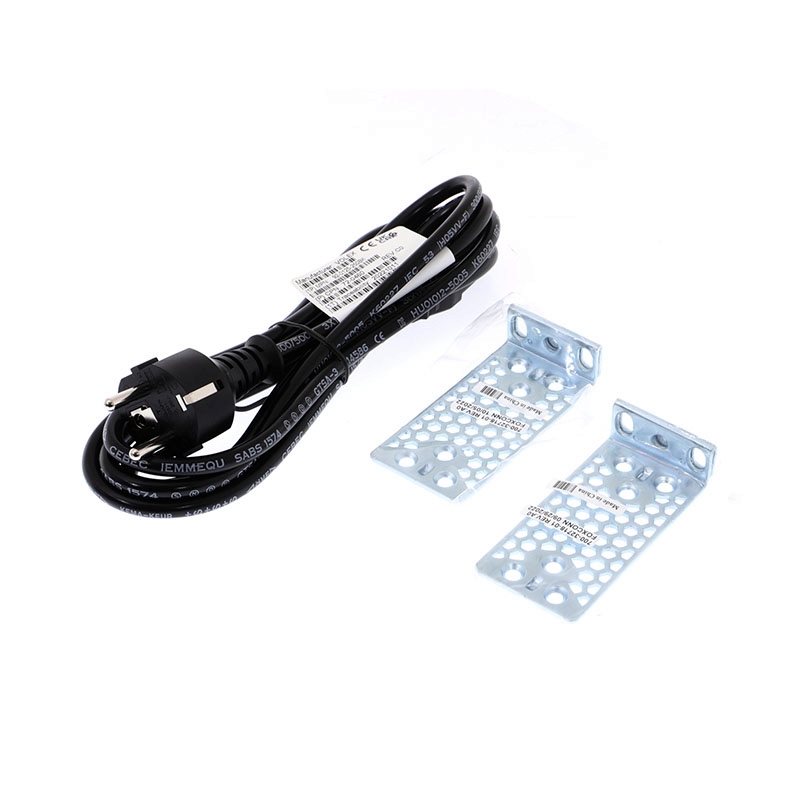

| Package Contents | Cisco Business 350 Series Managed Switch Power Cord (Power adapter for select 8-port and 16-port SKUs) Mounting Kit Quick Start Guide |
| Dimension | (W x D x H) : 44.50 x 34.50 x 4.40 cm |
| Net Weight | 4.60 KG |
| Package Dimension | (W x D x H) : 1.00 x 56.00 x 47.00 cm |
| Gross Weight | 6.50 KG |
| Volume | 2,632.00 cm3 |
