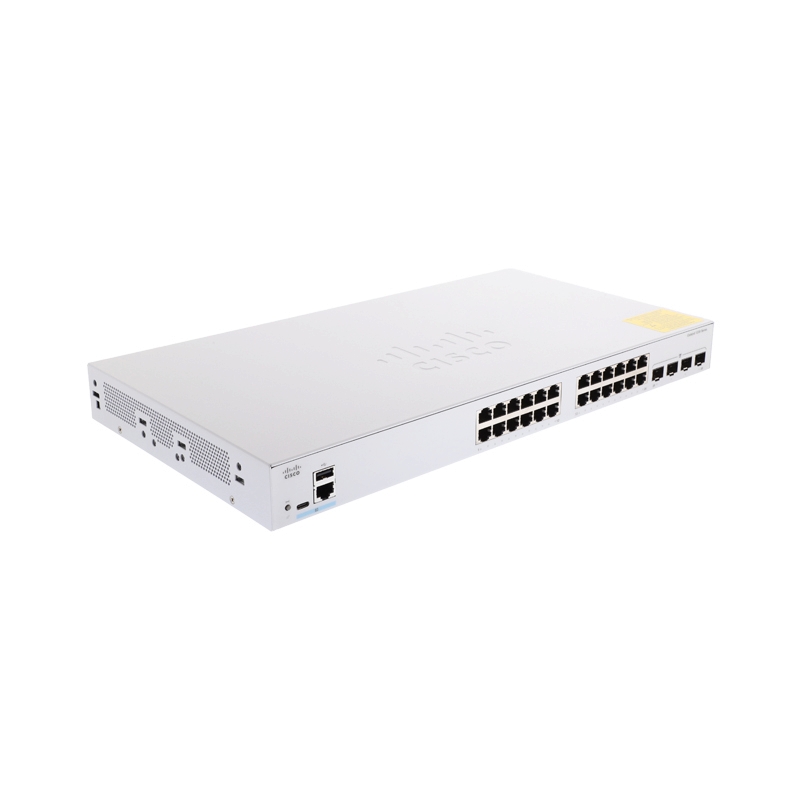

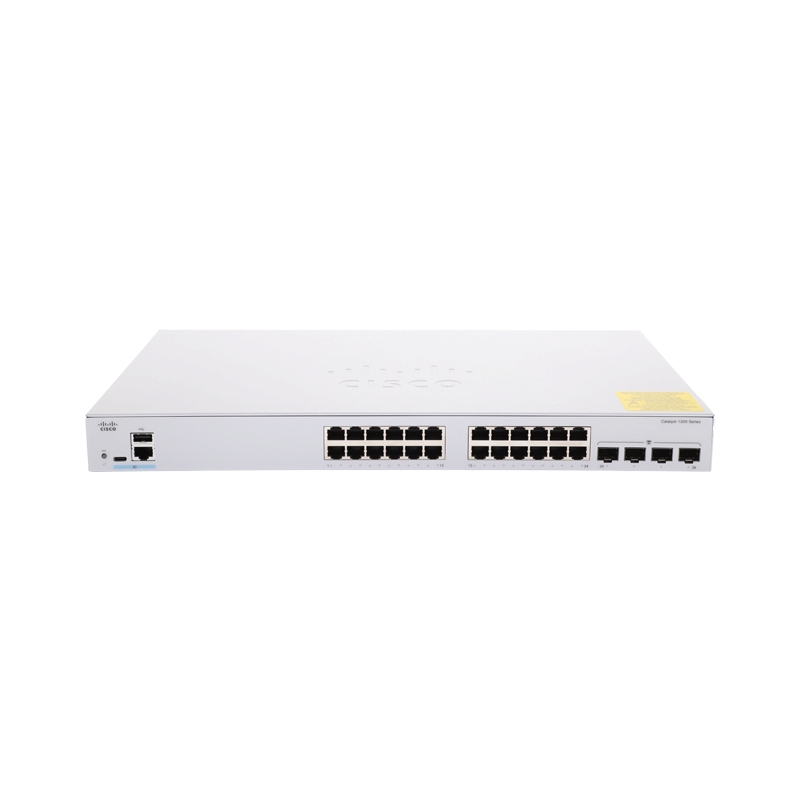

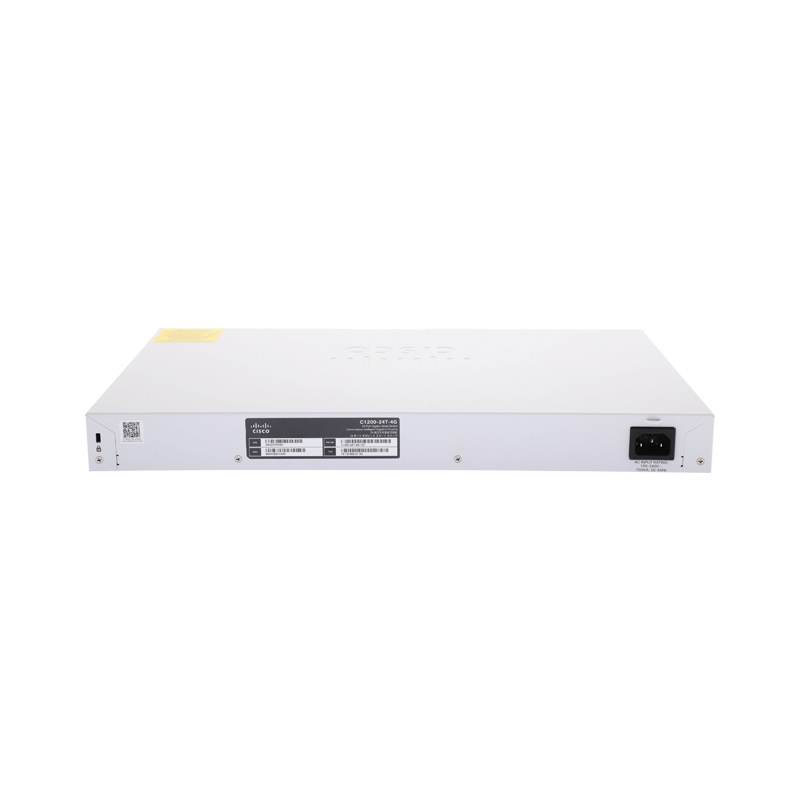

Gigabit Switching Hub 24 Port CISCOC1300-24T-4G (17”,+4 SFP)

฿22,890.00

  • Standards and Protocols : IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3ae 10 Gbps Ethernet over fiber for LAN, IEEE 802.3an 10GBASE-T 10 Gbps Ethernet over copper twisted pair cable, IEEE 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP), IEEE 802.1Q/p VLAN, IEEE 802.1w Rapid STP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication
  • Interface
    • 24x 10/100/1000 ports
    • 4x Gigabit SFP
    • USB Type C port
  • Switching Type : Advanced Layer 3
  • Switching Capacity : 56Gbps
  • Casing : Metal
  • Package Contents
    • Cisco Catalyst 1300 Series Switch
    • Power cord (power adapter for select 8-port and 16-port SKUs)
    • Mounting Kit
    • Pointer card

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: CISCOC1300-24T-4G หมวดหมู่:

คำอธิบาย

Brand CISCO
Model C1300-24T-4G
Network Interface 24x 10/100/1000 ports
4x Gigabit SFP
USB Port USB Type C port
Standards and Protocols IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3ae 10 Gbps Ethernet over fiber for LAN, IEEE 802.3an 10GBASE-T 10 Gbps Ethernet over copper twisted pair cable, IEEE 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP), IEEE 802.1Q/p VLAN, IEEE 802.1w Rapid STP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication
Switching Capacity 56Gbps
MAC Address Table 16K addresses
Jumbo Frame Frame sizes up to 9000 bytes. The default MTU is 2000 bytes
Packet Buffer Memory 1.5 MB
CPU ARM dual-core
CPU Memory 1.4 GHz
Flash Memory 512 MB
LED Indicators System, Link/Act , Speed
Management Cisco Business mobile app
Web user interface
VLAN – Support for up to 4093 VLANs simultaneously
– Port-based and 802.1Q tag-based VLANs, MAC-based VLAN, protocol-based VLAN, IP subnet-based VLAN
– Management VLAN
– Private VLAN with promiscuous, isolated, and community port
– Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks
– Guest VLAN, unauthenticated VLAN
– Dynamic VLAN assignment via RADIUS server along with 802.1X client authentication
– Customer premises equipment (CPE) VLAN
– Auto surveillance VLAN (ASV)
Security Secure Sockets Layer (SSL) , SSH Protocol , IEEE 802.1X (authenticator role) , STP loopback guard , Secure Core Technology (SCT) , Secure Sensitive Data (SSD) , Trustworthy systems , Port security , RADIUS , Storm control , DoS prevention , Multiple user privilege levels in CLI , ACLs
MTBF 2,026,793 MTBF at 25°C (hours)
Fan Quantity Fanless
Material Metal
PoE NONE
Power Supply 100-240V 50-60 Hz
Power Consumption 14.8W
Environment Operating temperature : 23° to 122°F (-5° to 50°C)
32° to 122°F (0° to 50°C)
Storage temperature : -13° to 158°F (-25° to 70°C)
Operating humidity : 10% to 90%, relative, noncondensing
Storage humidity : 10% to 90%, relative, noncondensing
Certifications UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

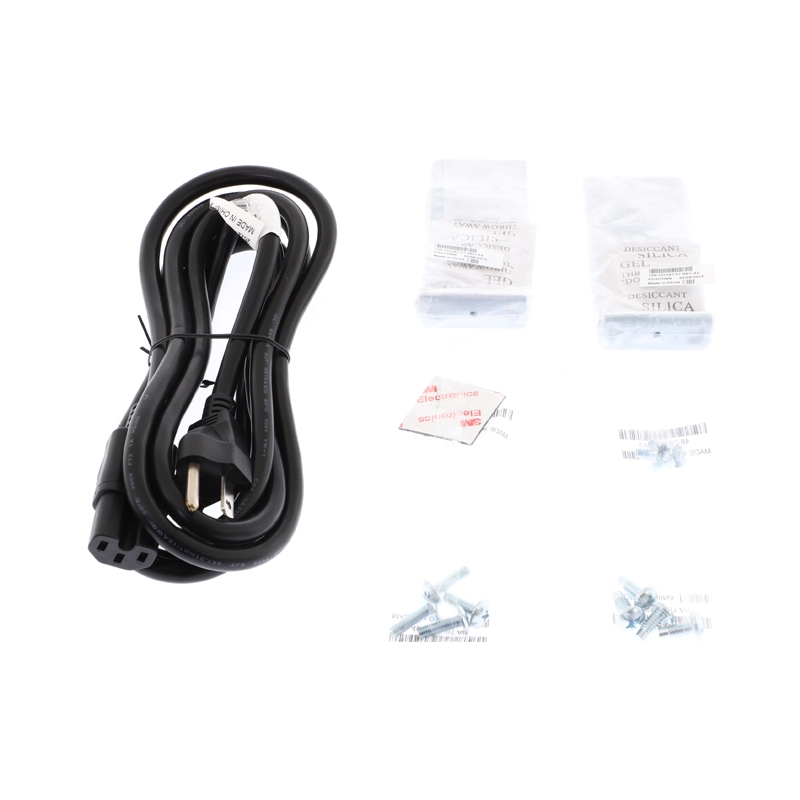

Package Contents – Cisco Catalyst 1300 Series Switch
– Power cord (power adapter for select 8-port and 16-port SKUs)
– Mounting kit
– Pointer card
