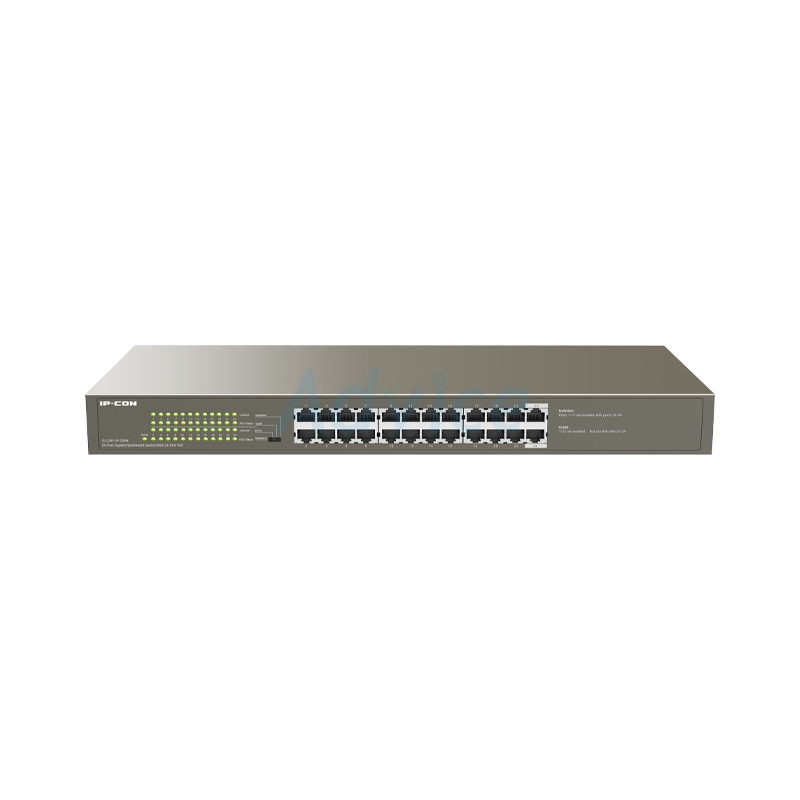

Gigabit Switching Hub 24 Port IP-COM G1124P-24-250W (17”,24 POE)

฿11,000.00

  • Standards and Protocols : IEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3x/IEEE 802.3af/IEEE 802.3at
  • Interface : 24x 10/100/1000Base-T ports(Data/Power)
  • Switching Type : Unmanaged
  • Switching Capacity : 48 Gbps
  • Casing : Metal
  • Package Contents
    • G1124P-24-250W
    • AC Power Cord
    • Pads
    • Screws
    • L-shaped bracket
    • Quick Installation Guide
  • 225W PoE power supply : Ports 1-24 comply with the IEEE802.3af and IEEE802.3at power supply standards. The entire switch offers a maximum PoE power output of 225W, whereas each ports offers a maximum PoE power output of 30W. The ports can be used to supply power to and exchange data with APs and IP cameras
  • 4 Network operation modes offered : Hardware DIP switch for selection among the Standard, CCTV, VLAN, and Isolation modes.Hardware DIP switch to isolate ports to prevent broadcast storm and defend against DHCP spoofing .

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: G1124P-24-250W หมวดหมู่:

คำอธิบาย

Brand IP-COM
Model G1124P-24-250W
Network Interface 24x 10/100/1000Base-T ports(Data/Power)
Standards and Protocols IEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3x/
IEEE 802.3af/IEEE 802.3at
Switching Capacity 48 Gbps
MAC Address Table 8K
Forwarding Rate 35.7Mpps
LED Indicators 24*Link/Act per device
24*PoE per device
1*Power per device
Features Standard: the switch functions as a common unmanaged switch and all the
ports of the switch can communicate with each other.
CCTV: the port cache is optimized and PoE ports 1-8 have higher priorities
over the other ports. All the ports of the switch can communicate with each
other.
VLAN: ports 1 to 22 are isolated from each other, but can communicate with
ports 23 and 24 (uplink ports) respectively.
mode can be used to isolate supervision network and wireless network to
make them not interfere with each other.
Material Metal
PoE 1-24: IEEE 802.3af/at PoE ports
maximum power output of the switch: 225W
Power Supply AC: 100-240V – 50/60Hz
Power Consumption In full configuration:<250W
PoE Max Power Supply:225W
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certifications FCC, CE, RoHS
Package Contents G1124P-24-250W
AC Power Cord
Dimension (W x D x H) : 44.00 x 17.80 x 4.40 cm
Net Weight 3.03 KG
Package Dimension (W x D x H) : 29.00 x 24.00 x 8.05 cm
Gross Weight 2.63 KG
Volume 5,602.80 cm3
