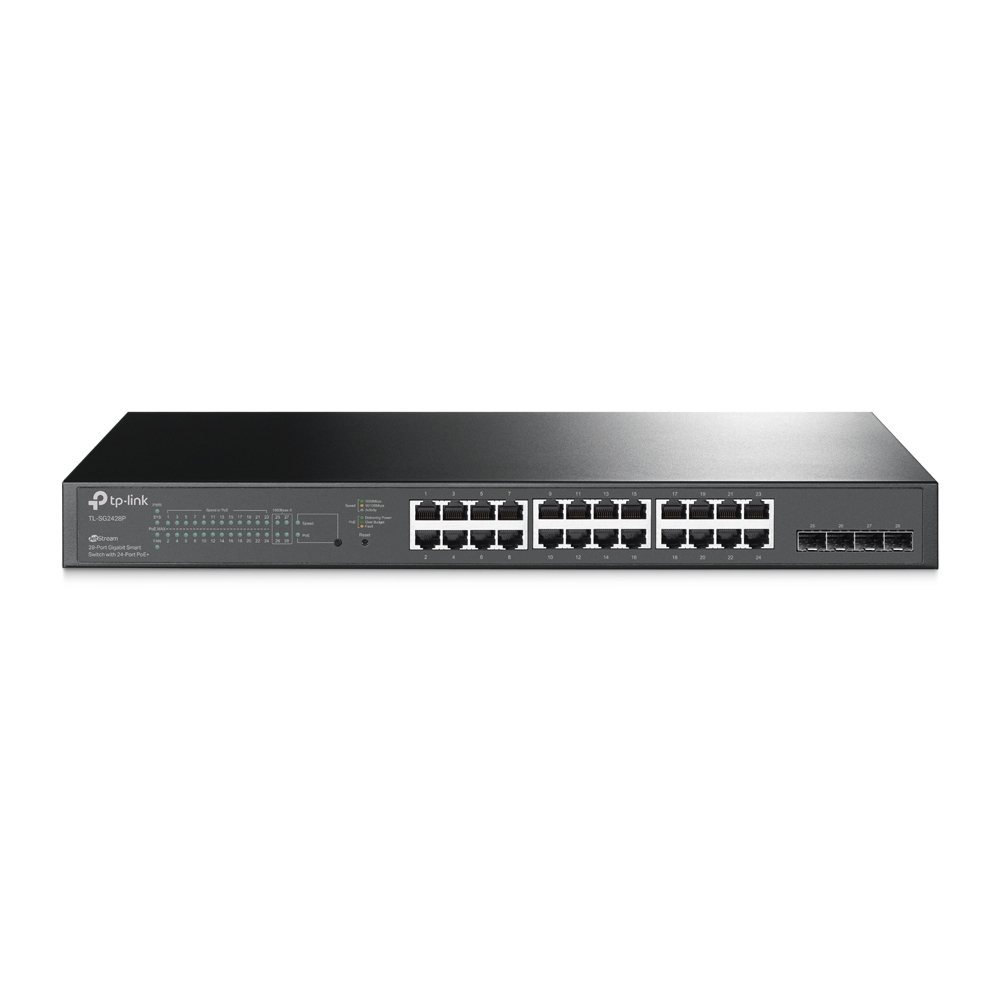

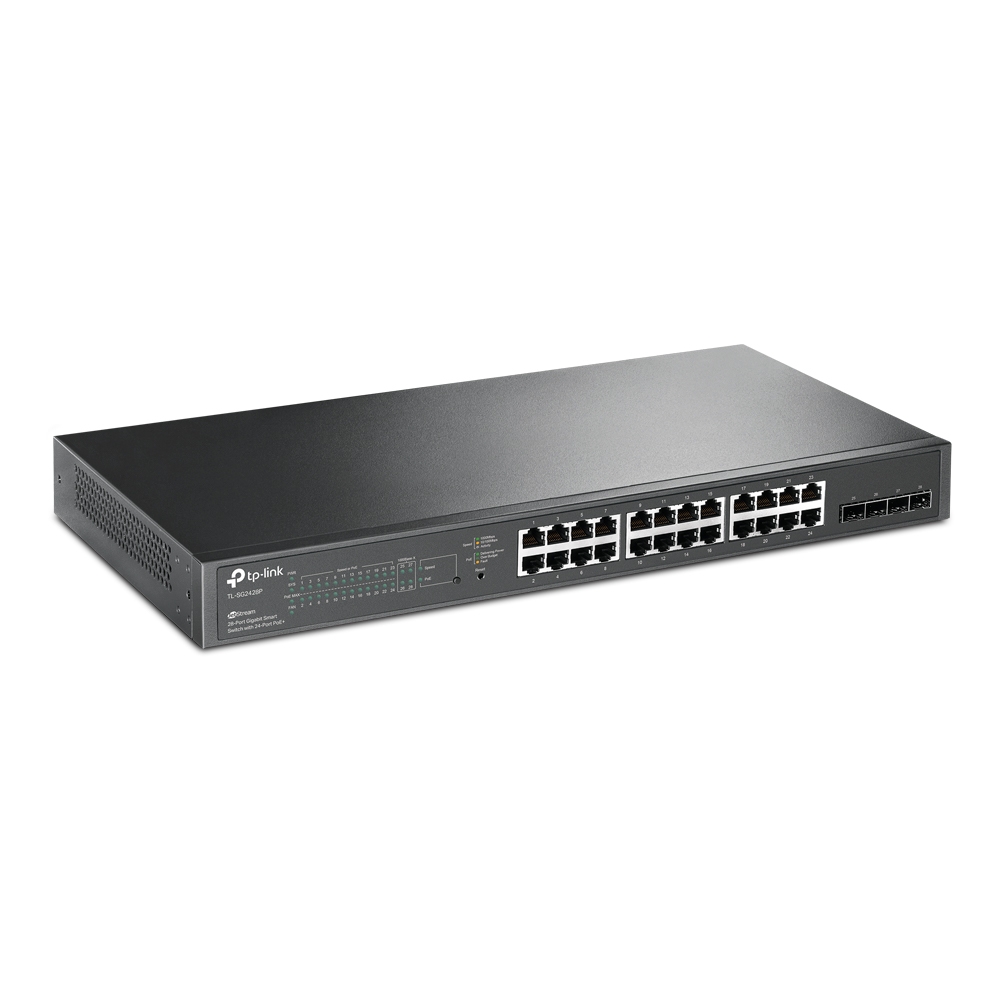

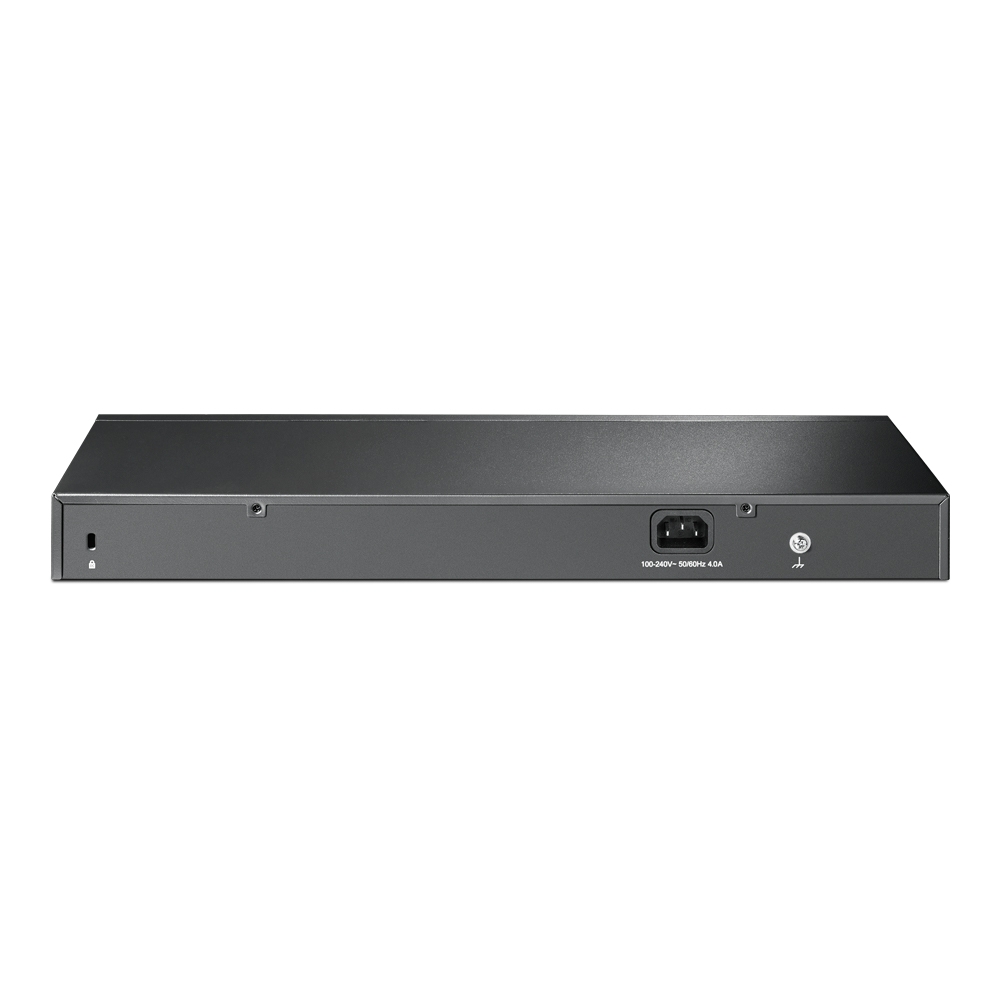

Gigabit Switching Hub 24 Port TP-LINK TL-SG2428P (18,24 POE,+4 SFP)

฿10,350.00

  • Standards and Protocols : IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x , IEEE802.3at
  • Interface
    • 24× 10/100/1000 Mbps RJ45 PoE Ports (PoE Power Budget 250 W)
    • 4× Gigabit SFP Slots
  • Switching Type : Layer 2 switching
  • Switching Capacity : 56Gbps
  • Casing : Steel
  • Package Contents
    • TL-SG2428P
    • Power Cord
    • Rack mount kit
    • Rubber Feet
    • Quick start guide
  • Full Gigabit Ports: 24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Static Routing: Helps route internal traffic for more efficient use of network resources.
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
  • IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: A0133563 หมวดหมู่: ,

คำอธิบาย

Brand TP-LINK
Model TL-SG2428P
Network Interface 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
4× Gigabit SFP Slots
USB Port None
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Switching Capacity N/A
Transmission Method N/A
MAC Address Table 8K
Forwarding Rate 41.7 Mpps
Jumbo Frame 9 KB
Packet Buffer Memory 4.1 Mbit
Switch Fabric N/A
Buffer Architecture N/A
Throughput N/A
Backup Bandwidth 56 Gbps
Backbound Bandwidth N/A
CPU N/A
CPU Memory N/A
Flash Memory N/A
LED Indicators N/A
Management Omada App
Centralized Management
Cloud Access
VLAN • VLAN Group
– Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN
• Protocol VLAN
• GVRP
• Voice VLAN
Security • AAA
• 802.1X
– Port based authentication
– MAC (Host) based authentication
– Authentication Method includes PAP/EAP-MD5
– MAB
– Guest VLAN
– Support Radius authentication and
accountability
• IP/IPv6-MAC Binding
– 512 Binding Entries
– DHCP Snooping
– DHCPv6 Snooping
– ARP Inspection
– ND Detection
• IP Source Guard
– 253 Entries
– Source IP+Source MAC
• IPv6 Source Guard
– 183 Entries
– Source IPv6 Address+Source MAC
• DoS Defend
• Static/Dynamic/Permanent Port Security
– Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
– kbps/ratio control mode
• Port Isolation
• Secure web management through HTTPS with
SSLv3/TLS 1.2
• Secure Command Line Interface (CLI)
management with SSHv1/SSHv2
• IP/Port/MAC based access control
MTBF N/A
Fan Quantity 2
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
1000BASE-X: MMF, SMF
PoE Standard: 802.3at/af compliant
PoE+ Ports: 24 Ports
Power Supply 250 W
Power Consumption 32.1 W (110 V/ 60 Hz with no PD connected)
308.6 W (110 V/ 60 Hz with 250 W PD connected)
Environment Operating Temperature: 0–50 ℃ (32–122 ℉);
Storage Temperature: -40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Certifications CE, FCC, RoHS
Package Contents Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Dimension (W x D x H) : 4.40 x 2.20 x 4.40 cm
Net Weight 3.22 KG
Package Dimension (W x D x H) : 10.00 x 52.00 x 33.00 cm
Gross Weight 3.90 KG
Volume 17,160.00 cm3
