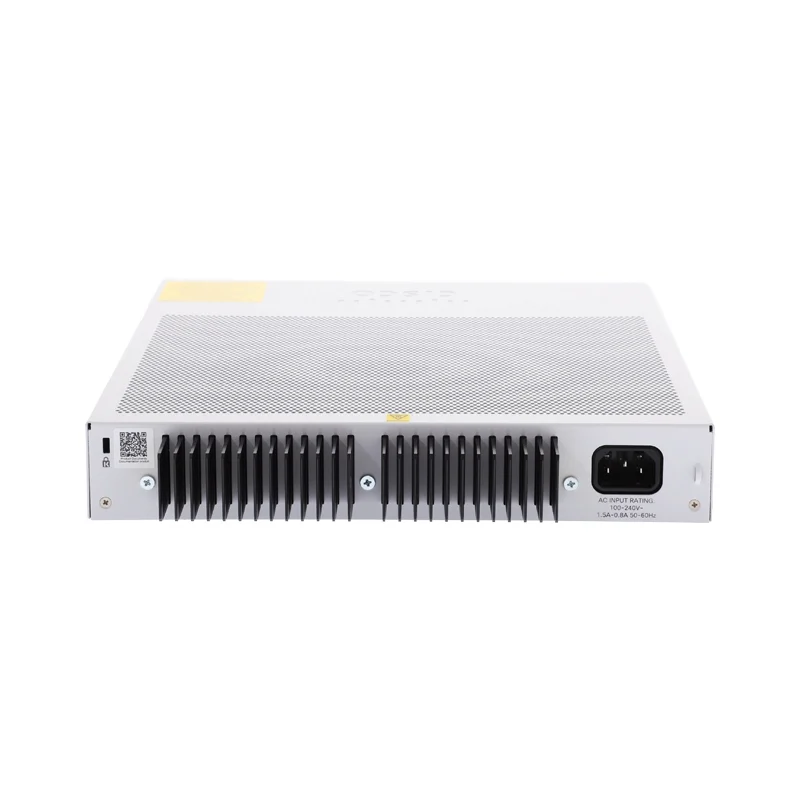

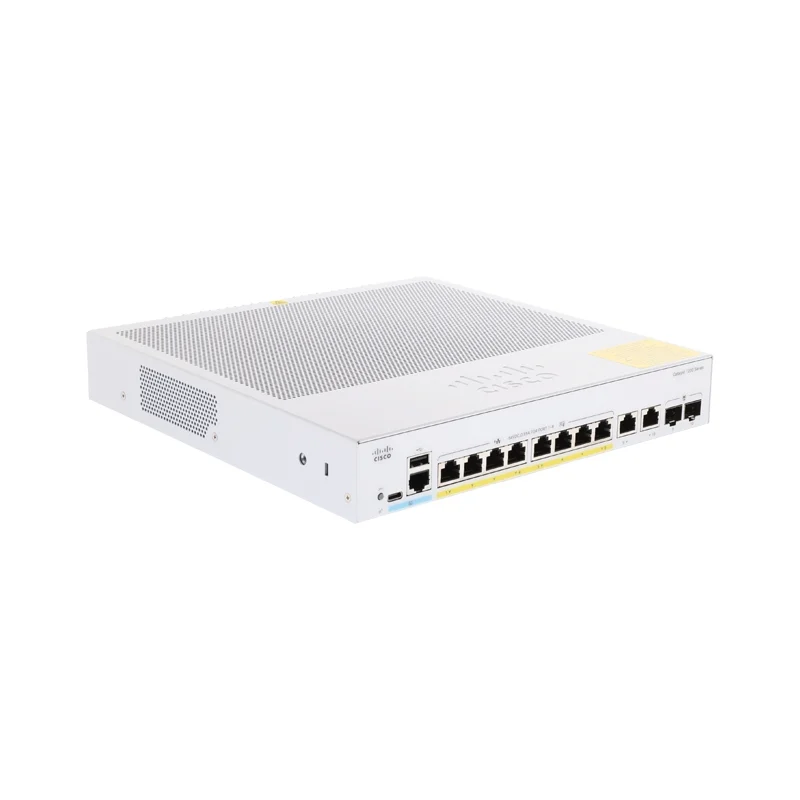

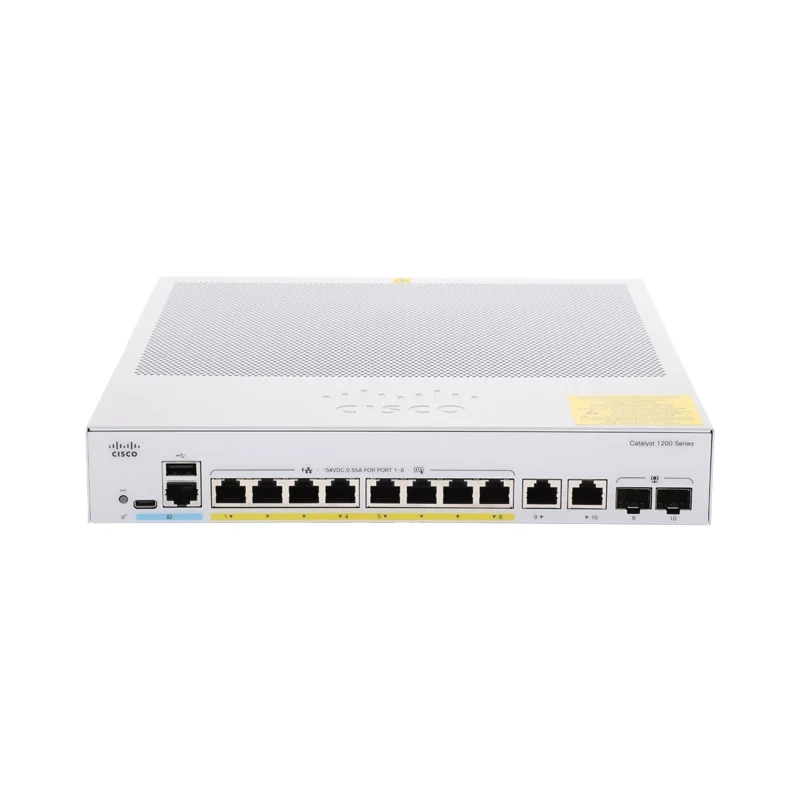

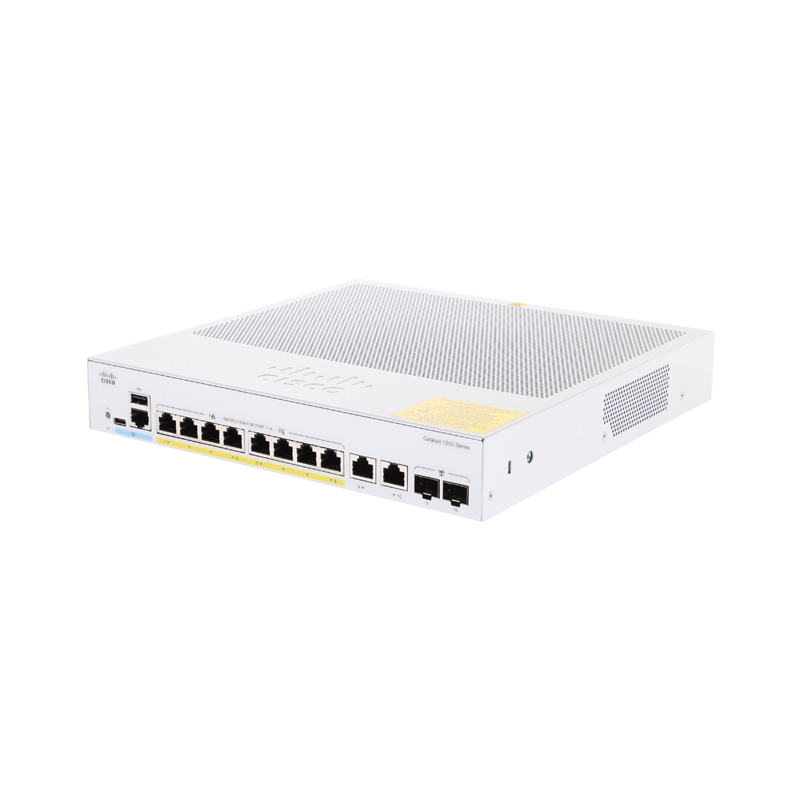

Gigabit Switching Hub 8 Port CISCO C1200-8FP-2G (6”,8POE)

฿12,090.00

  • Standards and Protocols : IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.3 ad LACP, IEEE 802.1D (STP), IEEE 802.1Q/p VLAN, IEEE 802.1w RSTP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at
  • Interface
    • 8x 10/100/1000 Mpbs (PoE+ ports with 120W power budget)
    • 2x Gigabit copper/SFP combo ports
    • USB Type C port
  • Switching Type : Layer 2
  • Switching Capacity : 20Gbps
  • Casing : Metal
  • Package Contents
    • Cisco Catalyst 1200 Series Switch
    • Power cord (power adapter for select 8-port and 16-port SKUs)
    • Mounting Kit
    • Pointer card

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: C1200-8FP-2G หมวดหมู่:

คำอธิบาย

Brand CISCO
Model C1200-8FP-2G
Network Interface 8x 10/100/1000 PoE+ ports with 120W power budget
2x Gigabit copper/SFP combo ports
USB Port USB Type C port
Standards and Protocols IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.3 ad LACP, IEEE 802.1D (STP), IEEE 802.1Q/p VLAN, IEEE 802.1w RSTP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at
Switching Capacity 20.0Gbps
MAC Address Table 8K addresses
Jumbo Frame Frame sizes up to 9000 bytes. The default MTU is 2000 bytes
Packet Buffer Memory 1.5 MB
CPU Dual-core ARM
CPU Memory 1.4 GHz
Flash Memory 512 MB
LED Indicators System, Link/Act, PoE, Speed
Management Cisco Business mobile app
Web user interface
VLAN – Support for up to 255 active VLANs simultaneously
– Port-based and 802.1Q tag-based VLANs
– Management VLAN
– Guest VLAN
– Auto Surveillance VLAN (ASV)
Security Secure Sockets Layer (SSL) , SSH Protocol , IEEE 802.1X (authenticator role) , STP loopback guard , Secure Core Technology (SCT) , Secure Sensitive Data (SSD) , Trustworthy systems , Port security , RADIUS , Storm control , DoS prevention , Multiple user privilege levels in CLI , ACLs
MTBF 1,706,649 MTBF at 25°C (hours)
Fan Quantity Fanless
Material Metal
PoE 120W
Power Supply 110V=145.44W

220V=141.80W


Power Consumption System power consumption : 14.33W
Power consumption (with PoE) : 141.80W
Environment Operating temperature : 23° to 122°F (-5° to 50°C)
Storage temperature : -13° to 158°F (-25° to 70°C)
Operating humidity : 10% to 90%, relative, noncondensing
Storage humidity : 10% to 90%, relative, noncondensing
Certifications UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

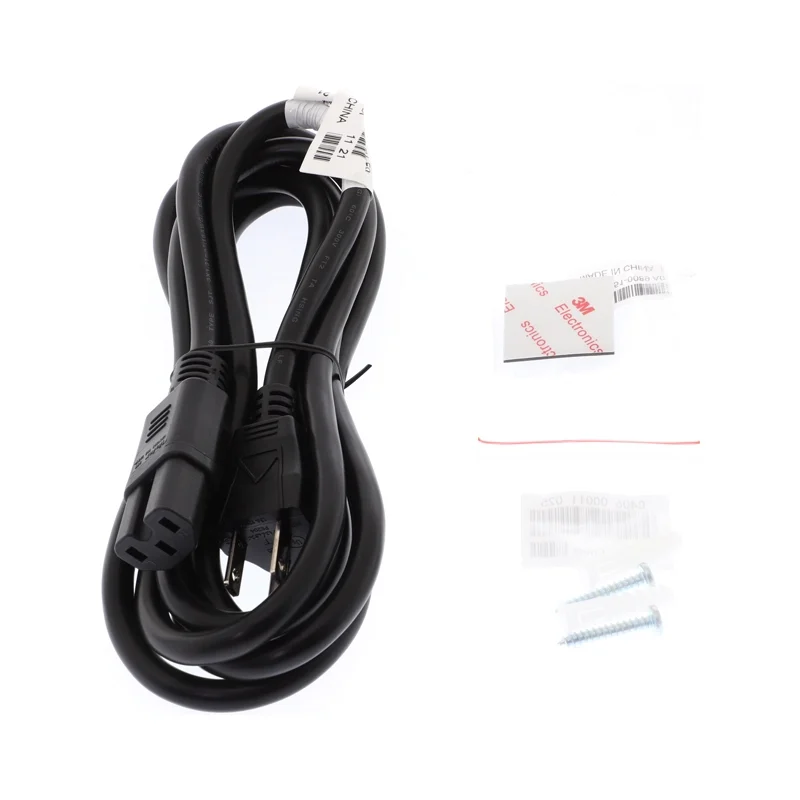

Package Contents – Cisco Catalyst 1200 Series Switch
– Power cord (power adapter for select 8-port and 16-port SKUs)
– Mounting kit
– Pointer card
Dimension (W x D x H) : 26.80 x 18.50 x 4.40 cm
Net Weight 1.53 KG
