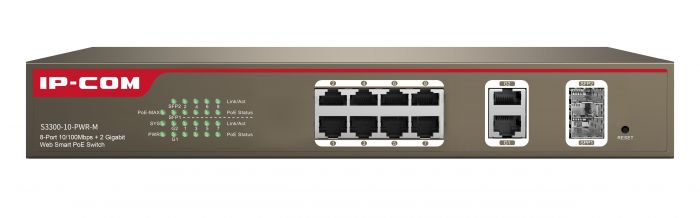

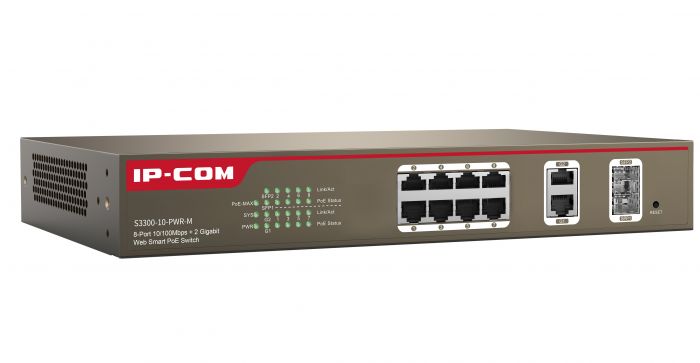

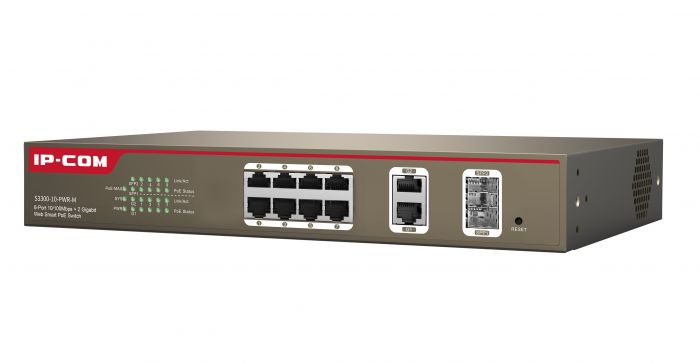

Gigabit Switching Hub 8 Port IP-COM S3300-10-PWR-M (11″,8 POE,+2 Gigabit,+2 SFP)

฿4,890.00

  • Standards and Protocols : EEE 802.3? IEEE 802.3u?IEEE 802.3z?IEEE 802.3ab?IEEE 802.3x?IEEE 802.1D?IEEE 802.1W?IEEE 802.1Q?
    IEEE 802.3af?IEEE 802.3at
  • Interface
    • 8x 10/100Mbps RJ45 Ports(Data/PoE)
    • 2x 10/100/1000Mbps RJ45 Ports
    • 2x 100/1000Mbps SFP Slot
  • Switching Type : L2 Managed Switch
  • Switching Capacity : 56 Gbps
  • Casing : Metal
  • Package Contents
    • S3300-10-PWR-M
    • AC Power Cord
    • Footpads
    • UserManual
    • Screws
    • L-shaped brackets
  • 250 Meters Transmission : With 8-pin and the professional network extension technology, the transmission distance of power and data can be up to 250 meters,which can work in place of network extender or some optical fiber to expand the network without additional cos
  • Outstanding PoE Power Supply : Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. Itprovides 40W maximum PoE output a single port and 123W the whole device, which can power the high-power device. Various interface types (1000Mbps RJ45 ports, SFP uplink ports and 10/100Mbps PoE ports) meet the 100M and Gigabit Ethernet transition seamlessly

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: S3300-10-PWR-M หมวดหมู่:

คำอธิบาย

Brand IP-COM
Model S3300-10-PWR-M
Network Interface 8x 10/100Mbps RJ45 Ports(Data/PoE)
2x 10/100/1000Mbps RJ45 Ports
2x 100/1000Mbps SFP Slot
Standards and Protocols IEEE 802.3? IEEE 802.3u?IEEE 802.3z?IEEE 802.3ab?
IEEE 802.3x?IEEE 802.1D?IEEE 802.1W?IEEE 802.1Q?
IEEE 802.3af?IEEE 802.3at
Switching Capacity 5.6 Gbps
MAC Address Table 4K
Throughput 4.22Mpps
Management Support SNMP v1/v2 and WEB-based management
Material Metal
PoE Port 1 to Port 8 support standard IEEE802.3at/af
power( maximum power for each port is 38W)?
PoE power type is end-span(12+, 36- and 45+, 78- line pair)
Power Supply AC?100-240V? 50/60Hz
Power Consumption in full configuration?<150W
Power Supply?123W
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certifications FCC?CE?RoHS
Package Contents S3300-10-PWR-M
AC Power Cord
Dimension (W x D x H) : 29.40 x 17.80 x 4.40 cm
Net Weight 2.30 KG
Package Dimension (W x D x H) : 29.00 x 40.00 x 8.00 cm
Gross Weight 2.30 KG
Volume 9,280.00 cm3
