คำอธิบาย
Brand | TP-LINK |
Model | TL-SG1008MP |
Network Interface | 8 x 10/100/1000Mbps RJ45 Ports (PoE) AUTO Negotiation/AUTO MDI/MDIX |
Transmission Method | Store-And-Forward |
MAC Address Table | 4K |
Packet Buffer Memory | 1.5Mbits |
Backbound Bandwidth | 16Gbps |
Features | Compatible With IEEE 802.3af/at Compliant power devices (PD) Port Priority Function MAC Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control |
Fan Quantity | 1 |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
PoE | Standard: 802.3at/af (30W) PoE+ Ports: 8 Ports Total PoE Budget: 126W |
Power Supply | 100-240VAC, 50/60Hz |
Power Consumption | 9.9W (no PD load) 144.4W (with 124W PD load) |
Environment | Operating Temperature : 0℃~40℃ (32℉~104℉) Storage Temperature : -40℃~70℃ (-40℉~158℉) Operating Humidity : 10%~90% non-condensing Storage Humidity : 5%~90% non-condensing |
Certifications | FCC, RoHS |

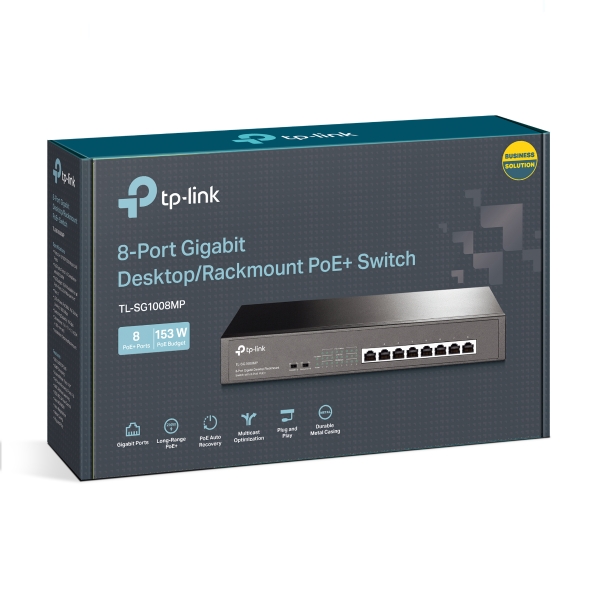

Package Contents | TL-SG1008MP Power Cord Installation Guide Rackmount Kit Rubber Feet |
Package Dimension | (W x D x H) : 25.00 x 40.00 x 9.00 cm |
Gross Weight | 2.18 KG |
Volume | 9,000.00 cm3 |
