คำอธิบาย
| Brand | TP-LINK |

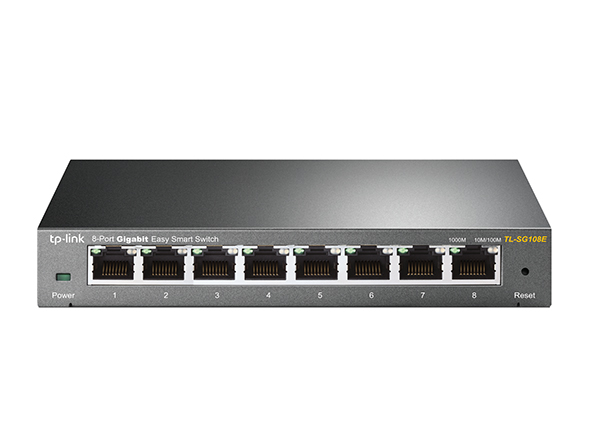

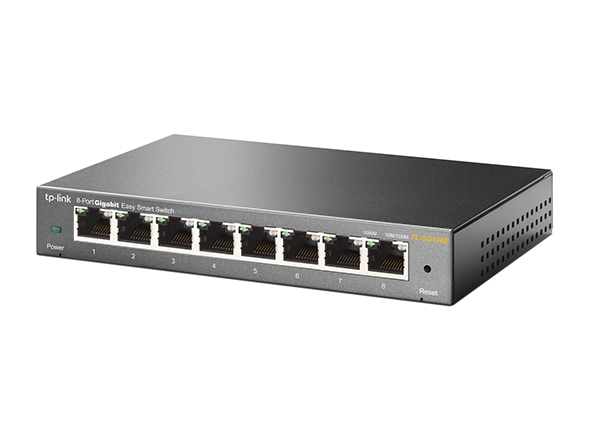

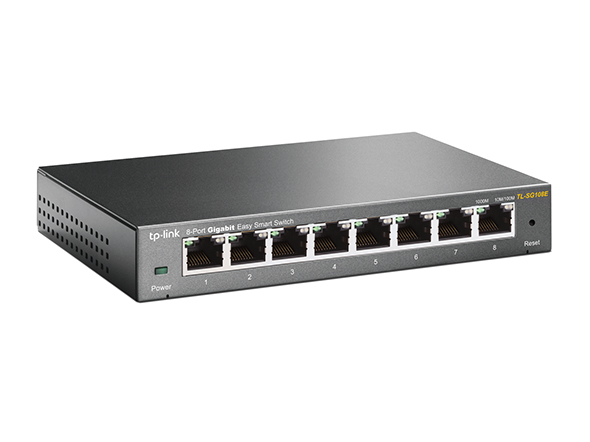

| Model | TL-SG108E |
| Network Interface | 8 x 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Switching Capacity | 16Gbps |
| Transmission Method | Store-And-Forward |
| MAC Address Table | 4K |
| Forwarding Rate | 11.9Mpps |
| Jumbo Frame | 15KB |
| Packet Buffer Memory | 1.5Mb |
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Features | L2 Features : IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention |
| Fan Quantity | Fanless |
| Network Media | 10BASE-T : UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX : UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T : UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Power Supply | External Power Adapter (Output : 9VDC/0.6A) |
| Power Consumption | Maximum : 4.48W (220V/50Hz) |
| Environment | Operating Temperature : 0℃~40℃ (32℉~104℉) Storage Temperature : -40℃~70℃ (-40℉~158℉) Operating Humidity : 10%~90% non-condensing Storage Humidity : 5%~90% non-condensing |
| Certifications | FCC, CE, RoHS |
| Package Contents | TL-SG108E Power Cord Installation Guide Rubber Feet |
| Package Dimension | (W x D x H) : 11.00 x 19.00 x 11.00 cm |
| Gross Weight | 0.67 KG |
| Volume | 2,299.00 cm3 |
