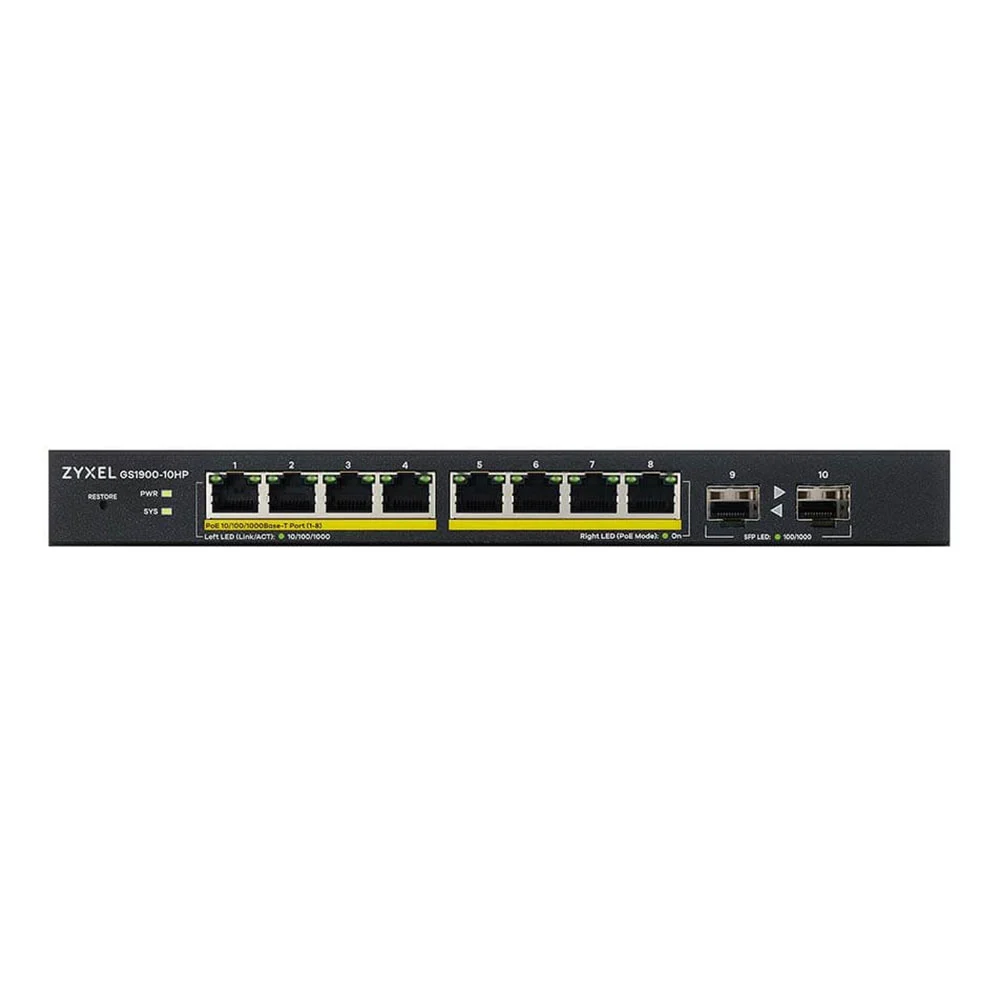

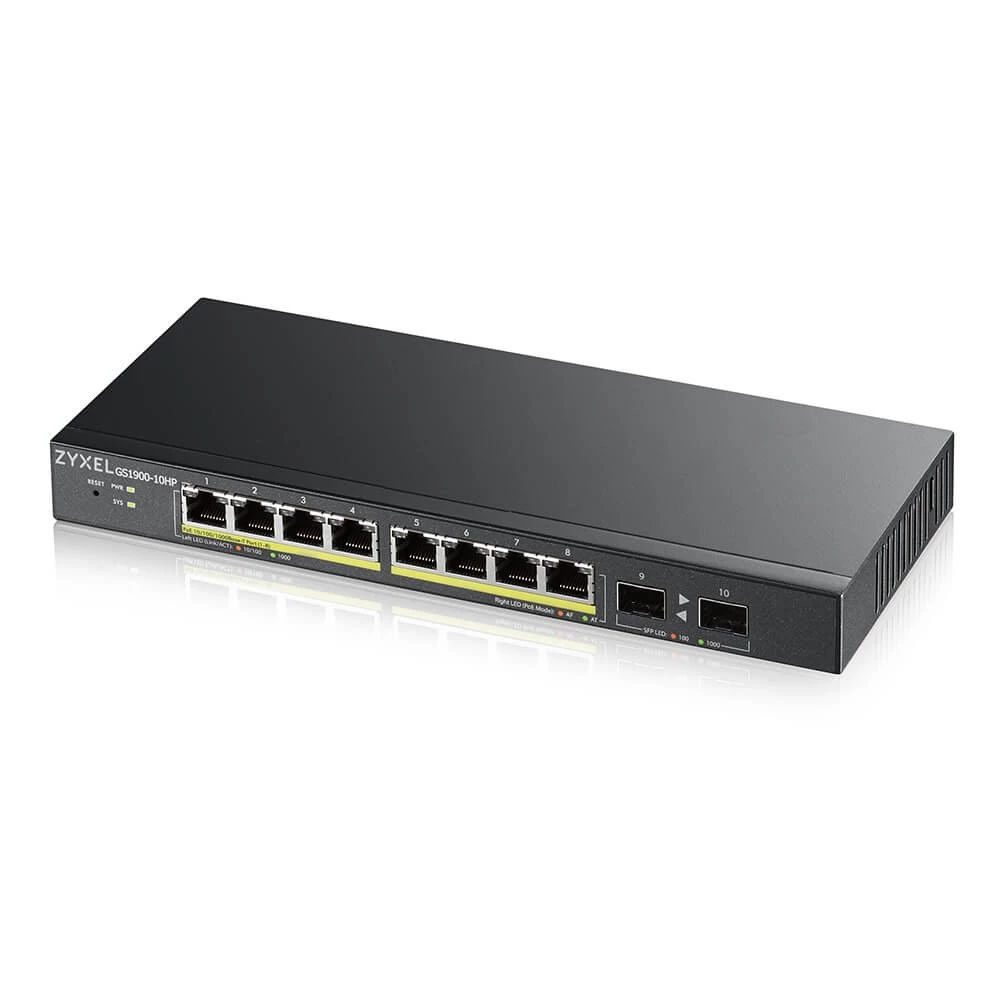

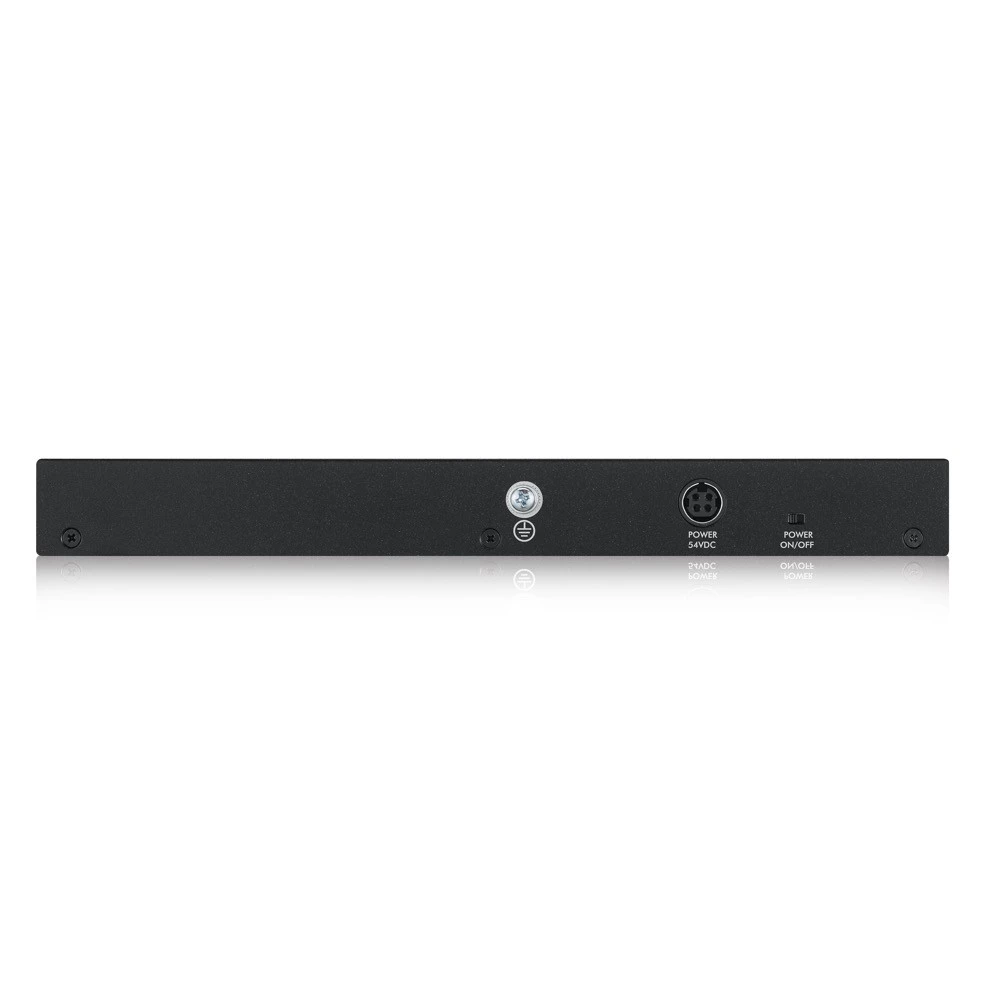

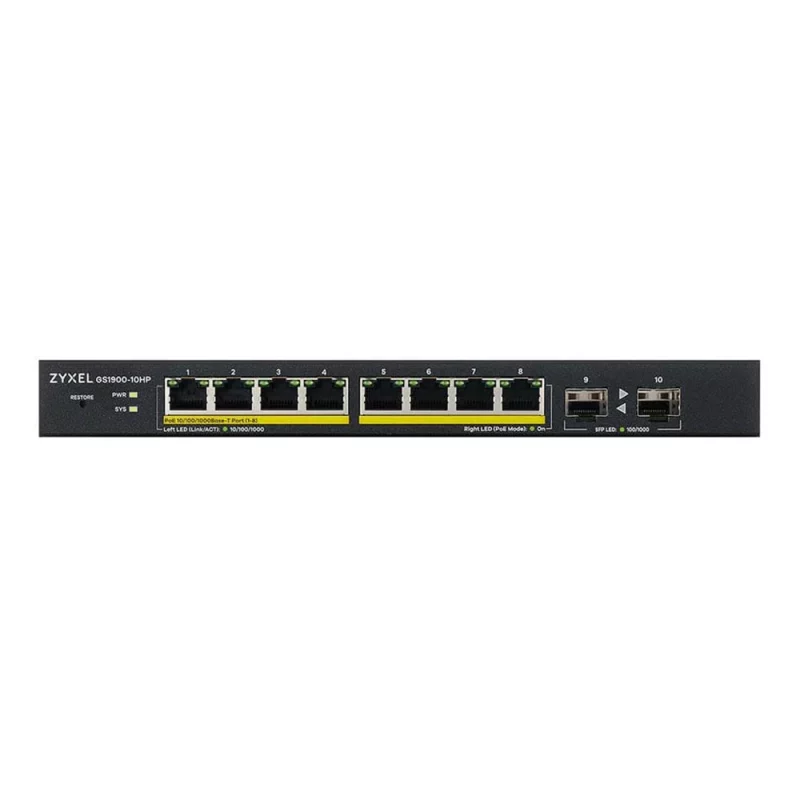

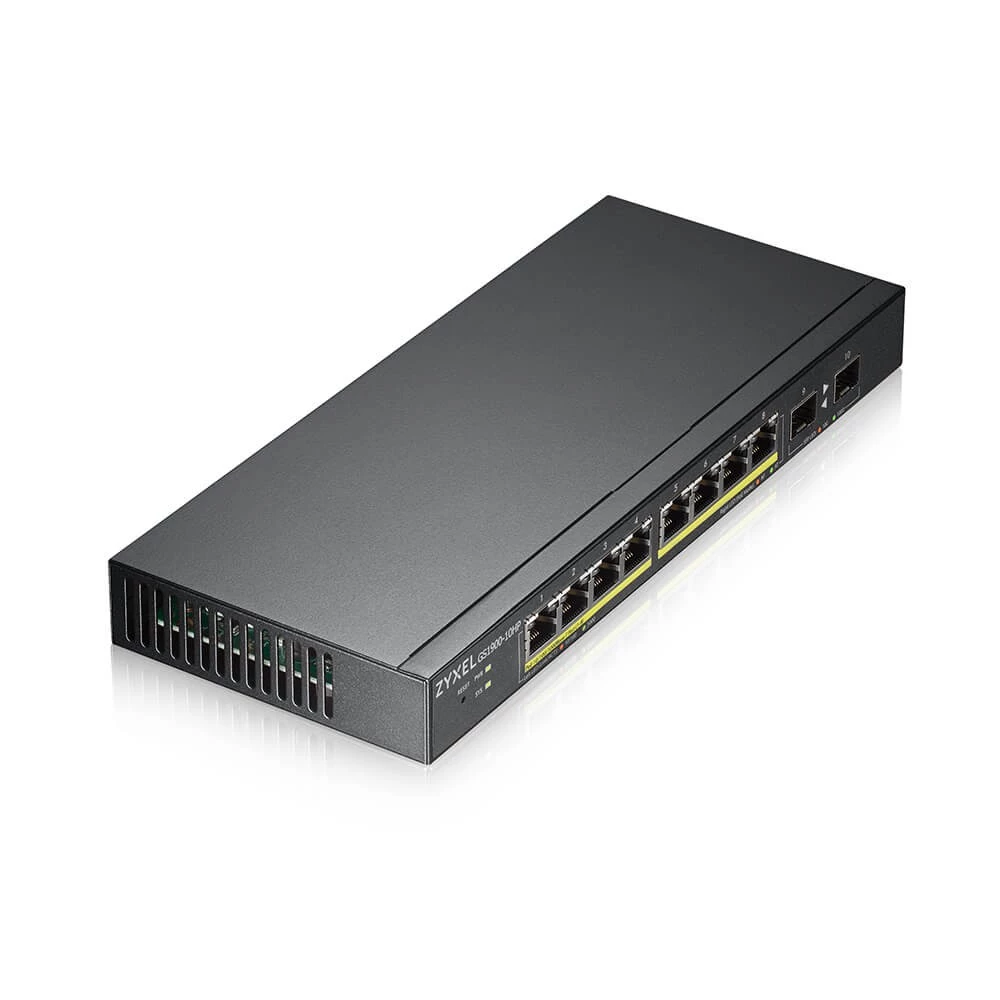

Gigabit Switching Hub 8 Port ZYXEL GS1900-10HP (10”,8 POE,+2 SFP)

฿4,899.00

  • Standards and Protocols : IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
  • Interface
    • 8× 10/100/1000 Mbps RJ45 Ports (8 PoE ports Power Budget 77 W)
    • 2× 100/1000 Mbps SFP Slots
  • Switching Type : Layer 2 switching
  • Switching Capacity : 20Gbps
  • Casing : Metal
  • Package Contents
    • GS1900-10HP
    • Power Adaoter
    • Quick start guide
  • การจัดการและใช้งานง่าย
  • ประสิทธิภาพเครือข่ายด้วย Zyxel One Network
  • การบำรุงรักษาที่ไม่ยุ่งยาก
  • ติดตั้งได้หลากหลายแบบ
  • การทำงานเงียบ
  • เพิ่มพลังให้อุปกรณ์มากขึ้นด้วย Intelligent PoE+

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: A0149991 หมวดหมู่: ,

คำอธิบาย

Brand ZYXEL
Model (GS1900-10HP) 8 Port POE + 2 Port SFP (10”)
Network Interface • 8 x GbE PoE RJ-45 ports
• 2 x GbE SFP slots
Standards and Protocols • IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Ethernet
• IEEE 802.3ab (1000BASE-T)
Ethernet
• IEEE 802.3x flow control
• IEEE 802.3az EEE support
• IEEE 802.1p CoS support
• IEEE 802.3af PoE
(GS1900-8HP/10HP/24HP/48HP)
• IEEE 802.3at PoE plus
(GS1900-8HP/10HP/24HP/48HP)
• IEEE 802.1D Spanning Tree
Protocol (STP)
• IEEE 802.1w Rapid Spanning Tree
Protocol (RSTP)
• IEEE 802.1s Multiple Spanning Tree
Protocol (MSTP)
• Full-duplex and half duplex
operation with IEEE 802.3x flow
control and backpressure
• Store and forward
• Auto MDI/MID-X
Switching Capacity 20 Gbps
MAC Address Table 8 K
Forwarding Rate 14.88 Mpps
Jumbo Frame 9 K
Packet Buffer Memory 525 K
LED Indicators PWR
SYS
LNK/ACT
POE
Management • Web interface
• Remote firmware upgrade by Web
• Configuration saving and
retrieving
• New for V2.40 Firmware upgrade
via SNMP
• DHCP client
• Daylight saving
• NTP
• Port mirroring
• Scheduled PoE
• New for V2.40 PoE default
consumption mode
• New for V2.40 Time range group
for scheduled PoE
VLAN • Port-based VLAN
• IEEE 802.1Q VLAN tagging
• IEEE 802.3ad LACP
• Guest VLAN
• Voice VLAN
Security • IEEE 802.1x
• Port security
• Layer 2 MAC filtering
• Static MAC forwarding
• RADIUS
• TACACS+
• SSL
• Management VLAN
• CPU defense engine
• DoS prevention
Features Standard Compliance
• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Ethernet
• IEEE 802.3ab (1000BASE-T)
Ethernet
• IEEE 802.3x flow control
• IEEE 802.3az EEE support
• IEEE 802.1p CoS support
• IEEE 802.3af PoE
(GS1900-8HP/10HP/24HP/48HP)
• IEEE 802.3at PoE plus
(GS1900-8HP/10HP/24HP/48HP)
• IEEE 802.1D Spanning Tree
Protocol (STP)
• IEEE 802.1w Rapid Spanning Tree
Protocol (RSTP)
• IEEE 802.1s Multiple Spanning Tree
Protocol (MSTP)
• Full-duplex and half duplex
operation with IEEE 802.3x flow
control and backpressure
• Store and forward
• Auto MDI/MID-X
Resilience and Availability
• IEEE 802.1D Spanning Tree
Protocol (STP)
• IEEE 802.1w Rapid Spanning Tree
Protocol (RSTP)
• IEEE 802.1s Multiple Spanning Tree
Protocol (MSTP)
• IEEE 802.3ad LACP
• Dual configuration files
• Dual images
Traffic Management and
QoS
• Port-based VLAN
• IEEE 802.1Q VLAN tagging
• IEEE 802.3ad LACP
• Guest VLAN
• Voice VLAN
• Storm control
• IEEE 802.1p priority queues per
port
• IEEE 802.1p Queuing method
(scheduler)
• Input priority mapping
• Rate limiting per port (ingress/
egress)
• IEEE 802.3x flow control
Class of Service (CoS)
• IEEE 802.1p class of service (SPQ,
WRR)
• Port-based CoS
• IP TOS precedence
Security
• IEEE 802.1x
• Port security
• Layer 2 MAC filtering
• Static MAC forwarding
• RADIUS
• TACACS+
• SSL
• Management VLAN
• CPU defense engine
• DoS prevention
Layer 2 Multicast
• IGMP snooping (v1, v2, v3)
IPv6 Management
• IPv6 over Ethernet (RFC 2464)
• Dual-stack (RFC 4213)
• ICMPv6 (RFC 4884)
• Neighbor discovery (RFC 4861)
• Auto configuration
• Static IPv6 address and prefix
length
• Static IPv6 default gateway
• IPv6 duplicate address detection
Manageability
• SNMP v1, v2, v3
• RMON (1, 2, 3, 9)
• ICMP echo/echo reply
• Syslog
• IEEE 802.1AB LLDP
• IEEE 802.1AB LLDP-MED
Device Management
• Web interface
• Remote firmware upgrade by Web
• Configuration saving and
retrieving
• New for V2.40 Firmware upgrade
via SNMP
• DHCP client
• Daylight saving
• NTP
• Port mirroring
• Scheduled PoE
• New for V2.40 PoE default
consumption mode
• New for V2.40 Time range group
for scheduled PoE
MIB
• RFC 1213 MIB II
• RFC 2819 RMON (group 1, 2, 3, 9)
• RFC 1215 generic traps
• RFC 1493 bridge
• Zyxel private common MIB
Certifications
• EMC
? CE, FCC, C-Tick, Class A
(GS1900-24/24HP/48/48HP)
? CE, FCC, C-Tick, Class B
(GS1900-8/8HP/10HP/16/24E)
? BSMI CNS13438
• Safety
? LVD EN60950-1
? BSMI CNS14336-1
? CB IEC60950-1
(GS1900-8HP/10HP/16/24E/24)
• RoHS compliant
Zyxel One Network
ZON Utility
• Discovery of Zyxel switches, APs
and gateways
• Centralized and batch
configurations
? IP configuration
? IP renew
? Device factory reset
? Device reboot
? Device locating
? Web GUI access
? Firmware upgrade
? Password configuration
? One-click quick association
with Zyxel AP Configurator
(ZAC)
MTBF 801,113 hr
PoE 77 watt
Power Supply 100 – 240 V AC, 50/60 Hz
Power Consumption 96.2 watt
Environment Operating temperature 0°C to 50°C/
32°F to 122°F
Storage temperature -40°C to 70°C/
-40°F to 158°F
Operating humidity 10% to 95%
(non-condensing)
Storage humidity 10% to 95%
(non-condensing)
Heat dissipation
(BTU/hr) 65.472
Certifications • EMC
? CE, FCC, C-Tick, Class B
(GS1900-8/8HP/10HP/16/24E)
? BSMI CNS13438
• Safety
? LVD EN60950-1
? BSMI CNS14336-1
? CB IEC60950-1
(GS1900-8HP/10HP/16/24E/24)
• RoHS compliant
Package Contents • Power cord
• Power adapter
• Wall mount kit
Dimension (W x D x H) : 10.40 x 25.00 x 2.70 cm
Net Weight 1.59 KG
Package Dimension (W x D x H) : 22.70 x 30.20 x 6.40 cm
Gross Weight 3.37 KG
Volume 4,387.46 cm3
