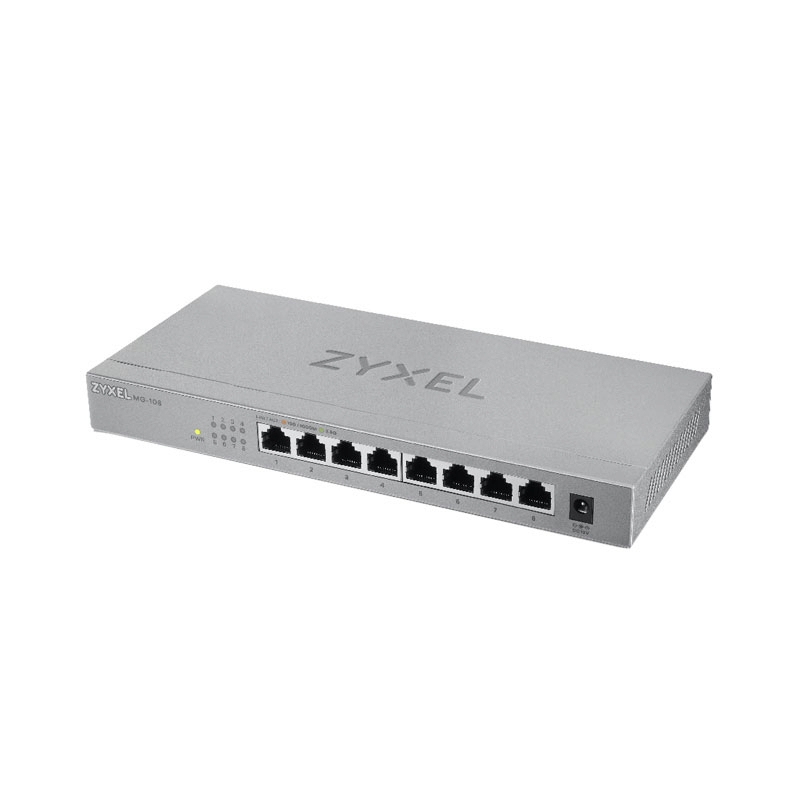

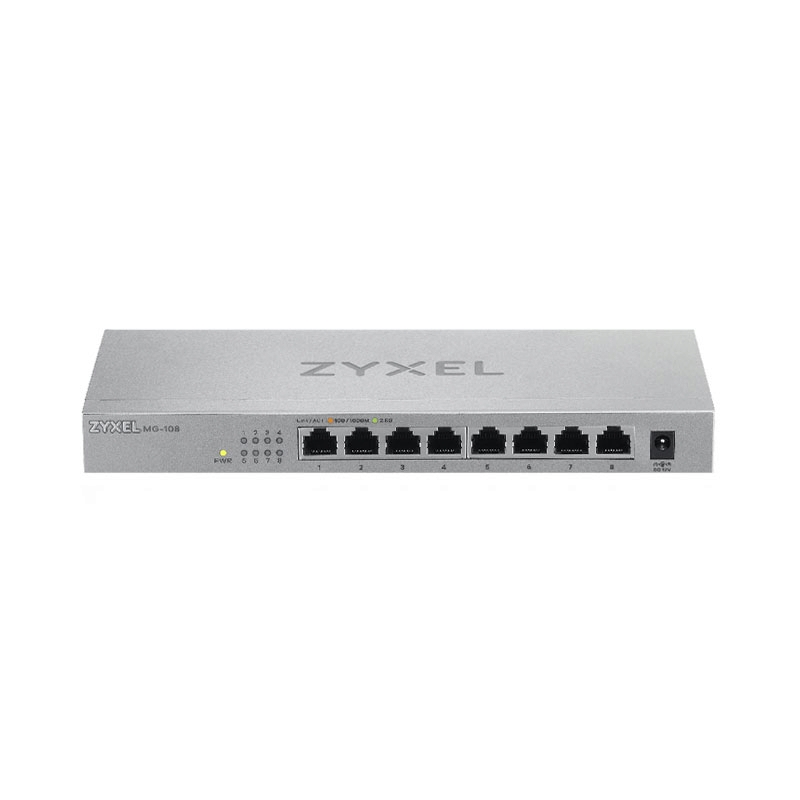

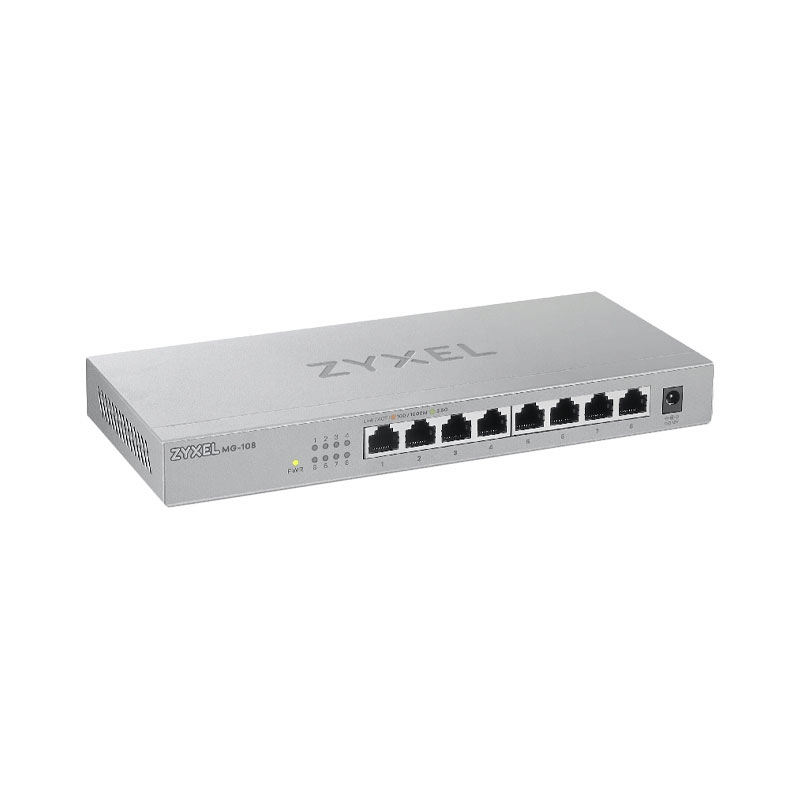

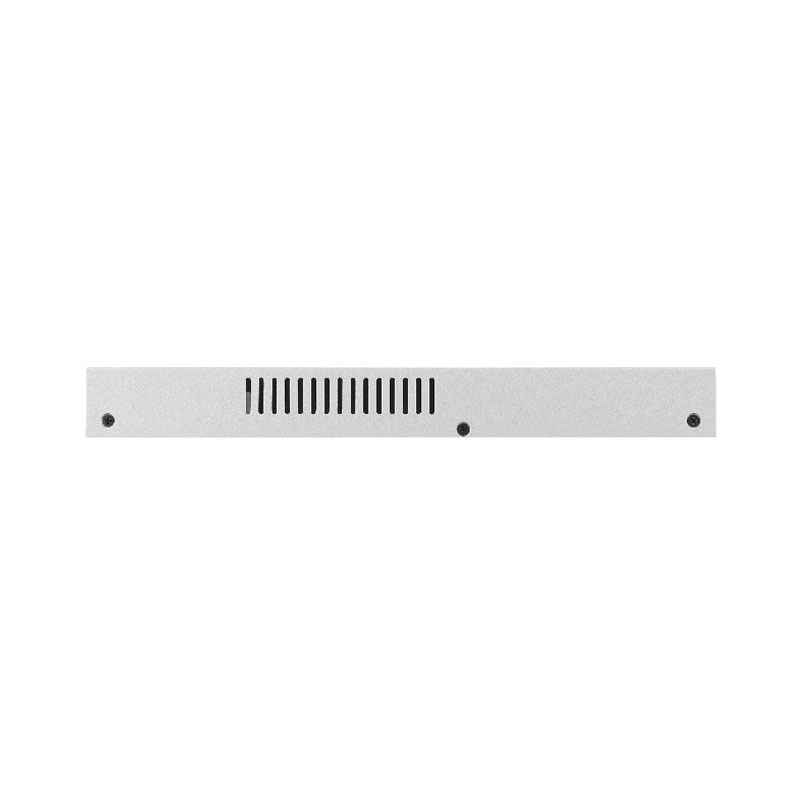

| Brand | ZYXEL |
| Model | MG-108 |
| Network Interface | Eight RJ-45 100/1000/2500 Mbps Ethernet ports with auto MDI/MDIX support |
| Standards and Protocols | IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE802.3ab 1000BASE-T IEEE 802.3bz 2.5GBASE-T IEEE 802.3x full duplex operation and flow control IEEE 802.1p QoS IEEE 802.3 Nway auto-negotiation |
| Switching Capacity | 40 Gbps |
| MAC Address Table | 16 K |
| Forwarding Rate | 29.8 Mpps |
| Jumbo Frame | up to 12 KB |
| Packet Buffer Memory | 12Mb |
| LED Indicators | PWR: Power
Per port: Link/Activity Amber: 100/1000 Mbps Green: 2.5 Gbps |
| Power Supply | AC-to-DC external power adapter
Input: 100 – 240V AC, 50/60 Hz Output: 12V DC/1.5A |
| Power Consumption | 12.24 watt max. |
| Environment | Operating Environment
Temperature: 0°C to 40°C (32°F to 104°F) Humidity: 10% to 90% (Non-condensing) Storage Environment Temperature: -40°C to 70°C (-40°F to 158°F) Humidity: 5% to 95% (Non-condensing) |
| Certifications | CE, EAC, FCC, BSMI Class B |
| Package Contents | Switch
Power adapter Quick Start Guide Safety warning and DoC |
| Dimension | (W x D x H) : 24.00 x 10.60 x 2.60 cm |
| Net Weight | 0.64 KG |
| Package Dimension | (W x D x H) : 25.60 x 13.20 x 7.80 cm |
| Gross Weight | 1.12 KG |
| Volume | 2,635.78 cm3 |
