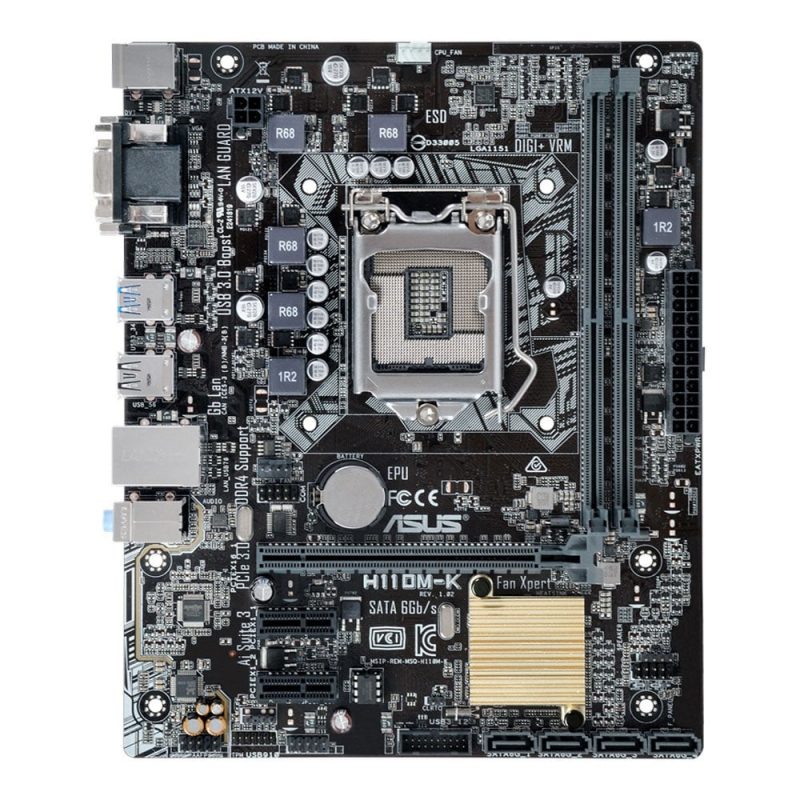

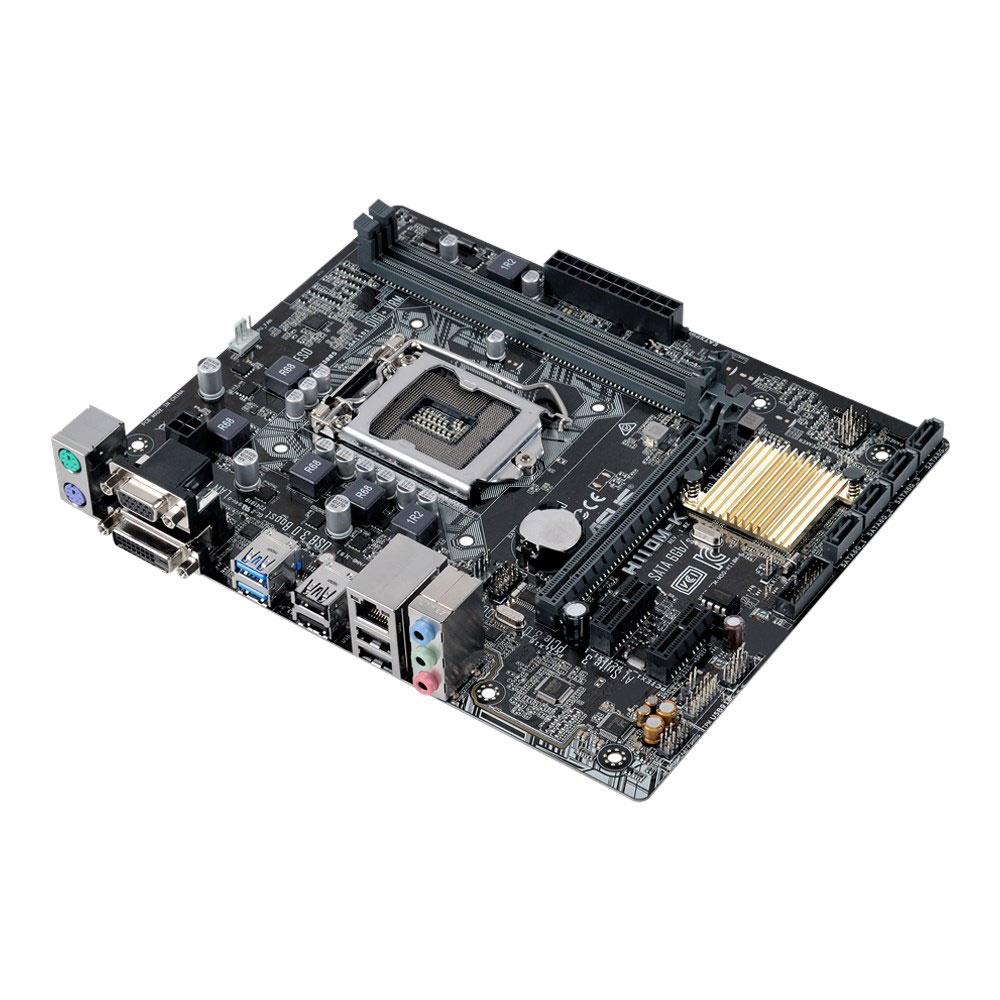

MAINBOARD (1151) ASUS H110M-K DDR4

฿2,550.00

  • Support CPU : 6th / 7th Gen Intel Core Processors, Pentium Gold and Celeron Processors
  • From Factor : Micro ATX
  • Chipset : Intel H110 Chipset
  • Memory Channel : Dual Channel DDR4 2DIMM
  • Memory Support : up to 2400
  • Memory MAX : 32GB
  • M.2 Slot : 0 slot
  • SATA III 6G : 4 ports
  • PCIe 3.0×16 : 1 slot
  • Lan Port : 1 Gigabit LAN
  • 5X Protection II – Advanced hardware safeguards for all-round protection
  • Epic gaming audio with LED-illuminated shielding
  • Media-acclaimed UEFI BIOS with EZ Flash 3

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: A0088258 หมวดหมู่: ,

คำอธิบาย

Brand ASUS
Model H110M-K
CPU Support Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0

* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

CPU Brand Intel
Socket 1151
Chipset Intel H110
Memory Support 2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)

* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor.
* Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.

Maximum Memory Bus 2400
Graphics Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : DVI-D/RGB ports
– Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
– Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Multi Graphic Support N/A
Audio Realtek® ALC887 8-Channel High Definition Audio CODEC
– Supports : Jack-detection, Front Panel Jack-retasking Audio Feature :
– LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path. – Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
– Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
– Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
Expansion Slots 1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
2 x PCIe 2.0 x1
Maximum PCIe Version PCIe 3.0
Storage 4 x SATA 6Gb/s port(s), gray
M.2 Storage Type Support None
M.2 Slot None
USB Intel® H110 chipset :
6 x USB 2.0/1.1 port(s) (4 at back panel, black, Type-A, 2 at mid-board) Intel® H110 chipset : 4 x USB 3.0/2.0 port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
Internal I/O Connectors 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x 14-1 pin TPM connector

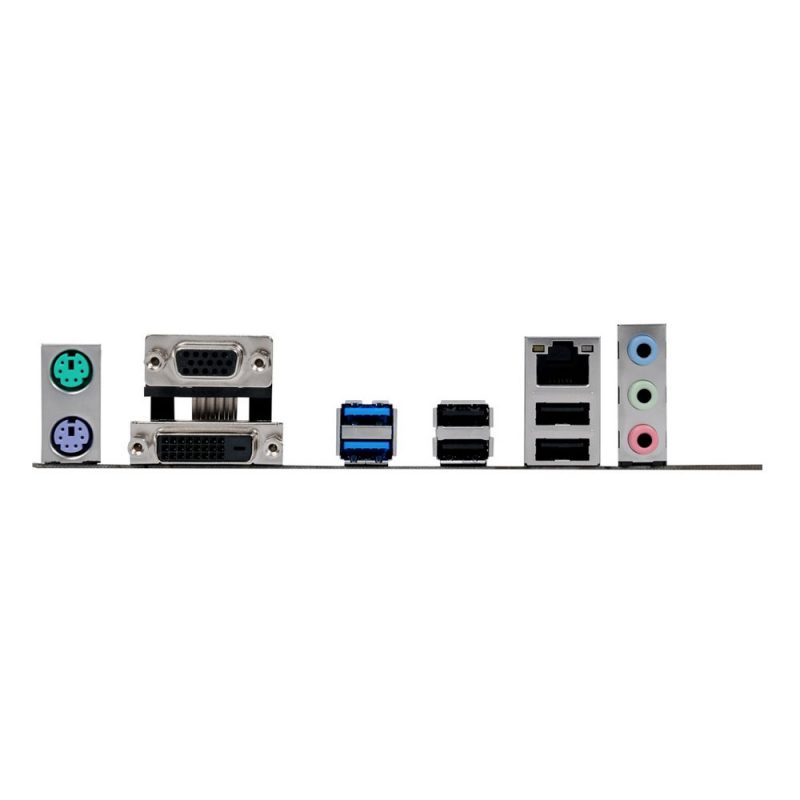

Back Panel Connectors 1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.0 (blue) Type-A
4 x USB 2.0
3 x Audio jack(s)
LAN Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
Wireless Data Network None
Form Factor Micro ATX
H/W Monitoring N/A
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Special Features ASUS 5X Protection II :
– ASUS LANGuard – 2.5X higher surge tolerance
– ASUS Overvoltage Protection – World-class circuit-protecting power design
– ASUS DIGI+ VRM – 5 Phase digital power design
– ASUS DRAM Overcurrent Protection – Prevents damage from short circuits
– ASUS Stainless-Steel Back I/O – 3X corrosion-resistance for greater durability
ASUS EPU :
– EPU
ASUS Exclusive Features :
– AI Suite 3
– Ai Charger
– Anti-Surge
– USB 3.0 Boost
– Disk Unlocker
– Mobo Connect
– PC Cleaner
ASUS Quiet Thermal Solution :
– Stylish Fanless Design Heat-sink solution
– ASUS Fan Xpert
ASUS EZ DIY :
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
– Push Notice
ASUS Q-Design :
– ASUS Q-Slot
– ASUS Q-DIMM
Media Streamer
Software Features N/A
Operating System Support Windows® 10 , 64bit
Windows® 8.1 , 64bit
Windows® 7 , 32bit/64bit *

* Please refer to ASUS website and download “Windows® 7 installation guide” and “ASUS EZ installer” to install Windows® 7.

Package Contents N/A
Package Dimension (W x D x H) : 23.00 x 25.00 x 6.00 cm
Gross Weight 0.70 KG
Volume 3,450.00 cm3
