คำอธิบาย
| Brand | GIGABYTE |

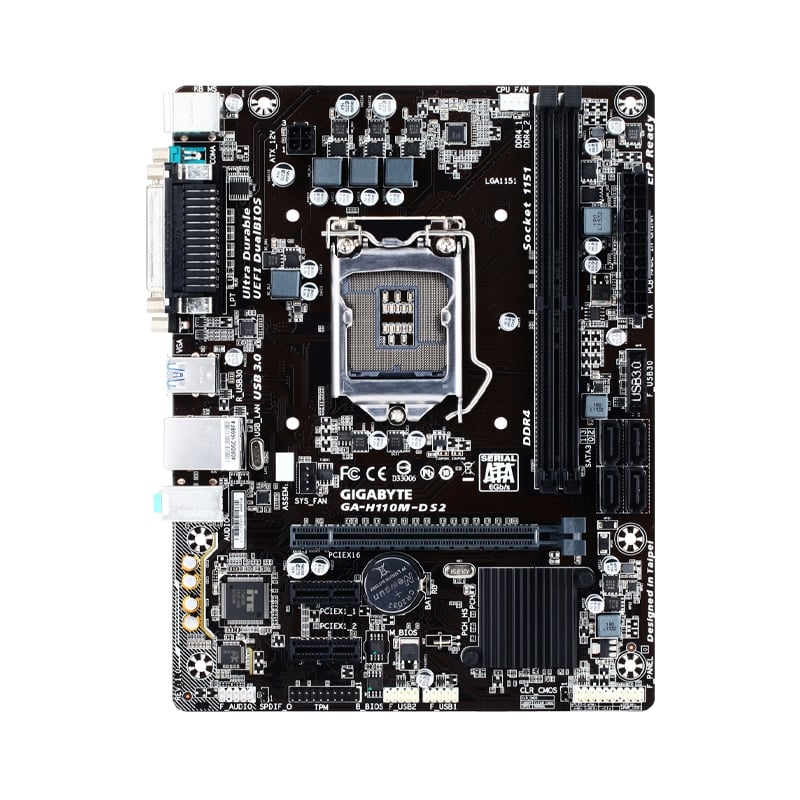

| Model | GA-H110M-DS2 (rev. 1.3) |
| CPU Support | Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package * For 7th Generation Intel® Core™ processors support need to update the latest BIOS. L3 cache varies with CPU (Please refer “CPU Support List” for more information.) |
| CPU Brand | Intel |
| Socket | 1151 |
| Chipset | Intel H110 |
| Memory Support | 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture (Please refer “Memory Support List” for more information.) |
| Maximum Memory Bus | 32 GB |
| Graphics | Integrated Graphics Processor – Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz Maximum shared memory of 1024 MB |
| Multi Graphic Support | None |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots |
| Maximum PCIe Version | PCIe 3.0 |
| Storage | Chipset: 4 x SATA 6Gb/s connectors |
| M.2 Storage Type Support | None |
| M.2 Slot | None |
| USB | Chipset: 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header 1 x Clear CMOS jumper |
| Back Panel Connectors | 1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x parallel port 1 x serial port 1 x D-Sub port 2 x USB 3.0/2.0 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In) |
| LAN | Realtek® GbE LAN chip (1000/100 Mbit) |
| Wireless Data Network | None |
| Form Factor | Micro ATX |
| H/W Monitoring | System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU/System overheating warning CPU/System fan fail warning CPU/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. |
| BIOS | 2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Special Features | Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash |
| Software Features | Norton® Internet Security (OEM version) cFosSpeed |
| Operating System Support | Windows® 10 64-bit (for 7th Generation Intel® Processors) Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors) * Please download the “Windows USB Installation Tool” from GIGABYTE’s website and install it before installing Windows 7. |
| Package Contents | N/A |
| Package Dimension | (W x D x H) : 23.50 x 27.00 x 5.00 cm |
| Gross Weight | 0.60 KG |
| Volume | 3,172.50 cm3 |
