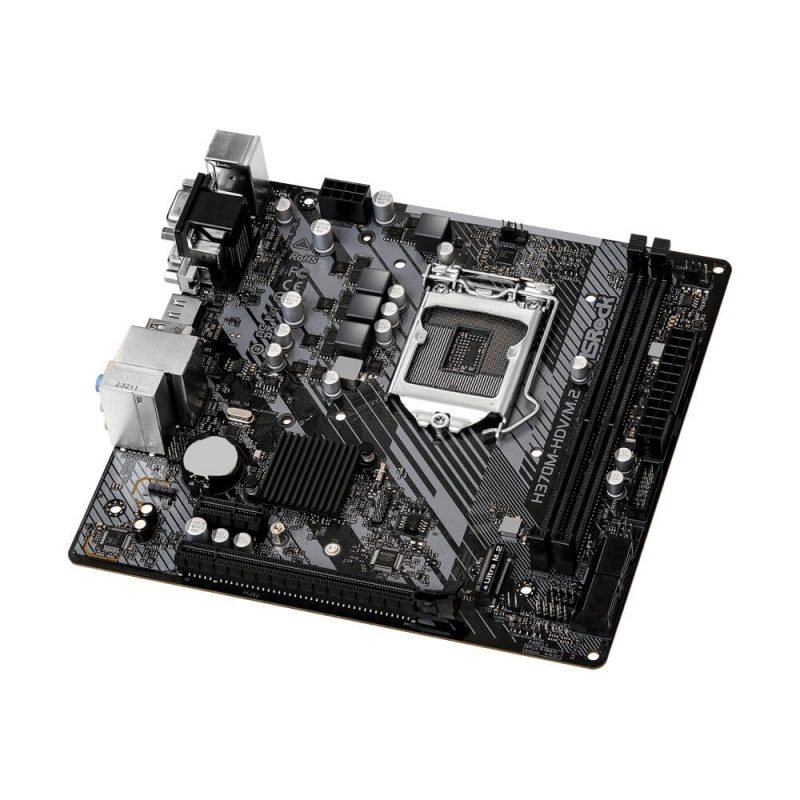

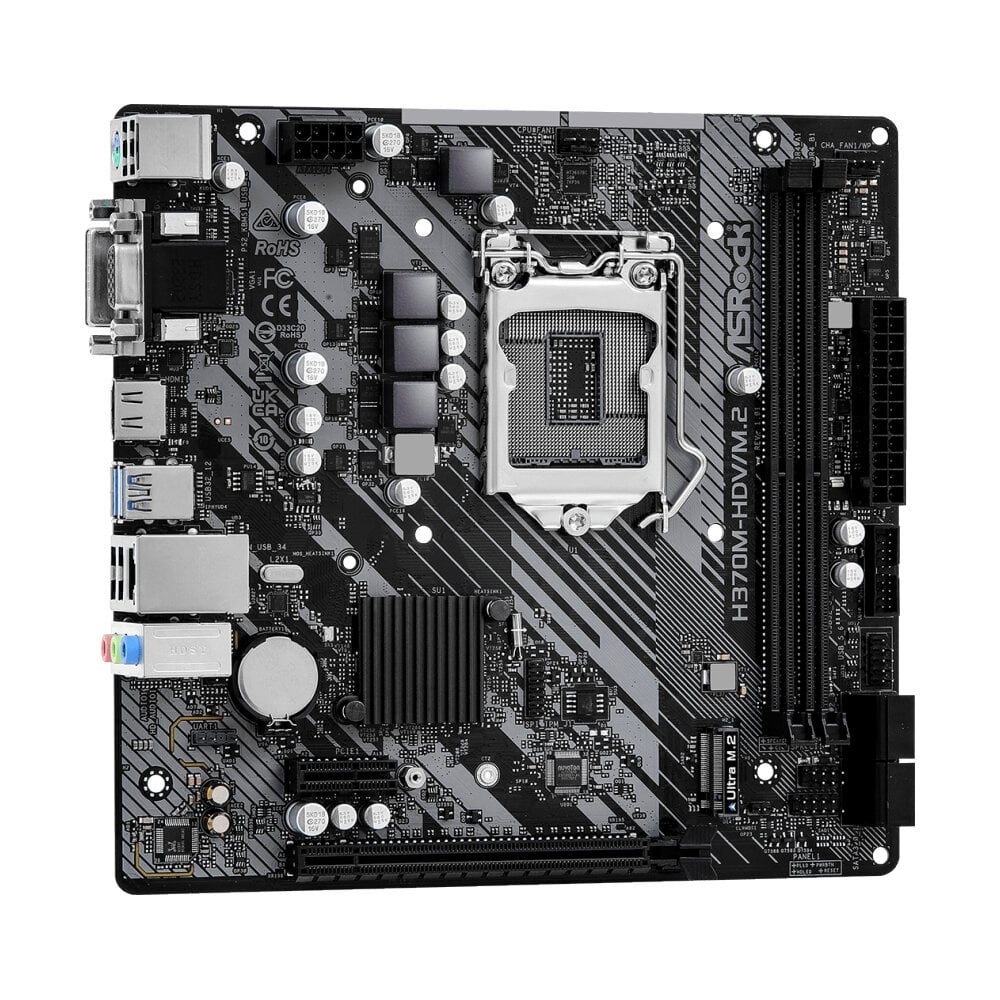

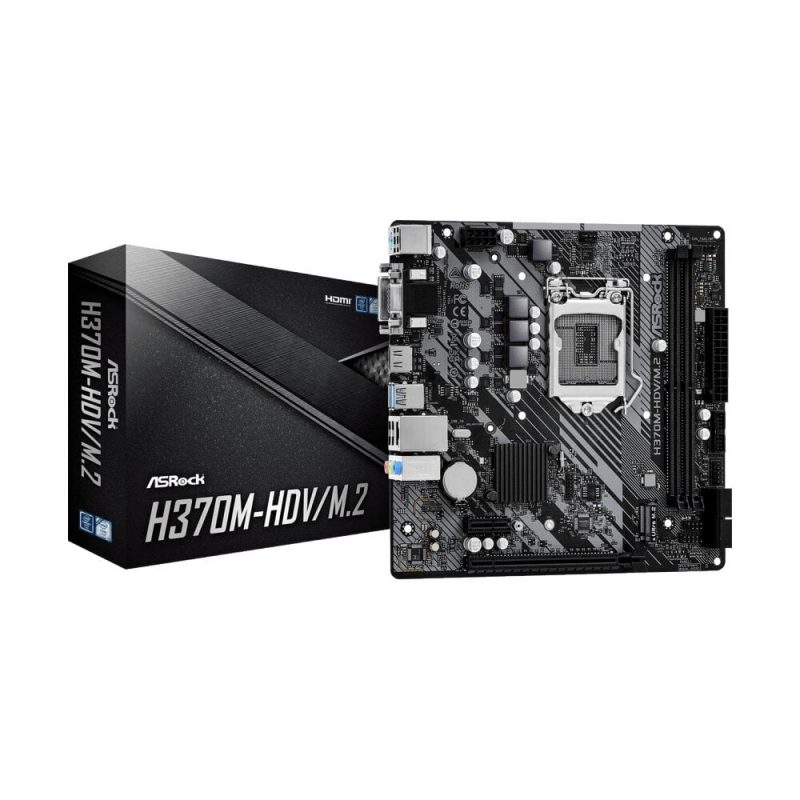

MAINBOARD (1151V2) ASROCK H370M-HDV/M.2 DDR4

฿2,190.00

  • Support CPU : 9th / 8th Gen Intel Core Processors
  • Form Factor : Micro ATX
  • Chipset : Intel H370 Chipset
  • Memory Channel : Dual Channel DDR4 2DIMM
  • Memory Support : up to 2666
  • Memory MAX : 64GB
  • M.2 Slot : 1 slot
  • SATA III 6G : 4 ports
  • PCIe 3.0×16 : 1 slot
  • Lan Port : 1 Gigabit LAN
  • 4 Power Phase
  • Realtek ALC897 7.1 CH HD Audio Codec
  • Supports ASRock Auto Driver Installer

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: A0164505 หมวดหมู่: ,

คำอธิบาย

Brand ASROCK
Model H370M-HDV/M.2 (DDR4)
CPU Support Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
Supports CPU up to 95W
Supports Intel® Turbo Boost 2.0 Technology
CPU Brand Intel
Socket 1151V2
Chipset  Intel H370
Memory Support Dual Channel DDR4 Memory Technology
2 x DDR4 DIMM Slots
Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
Max. capacity of system memory: 64GB
Supports Intel® Extreme Memory Profile (XMP) 2.0
Maximum Memory Bus 2666
Graphics 1 x HDMI 1.4, supports HDCP 2.2, 4K Ultra HD (UHD) playback and max. resolution up to 4K 30Hz
1 x DVI-D, supports HDCP 2.2 and max. resolution up to Full HD (1920×1200) 60Hz
1 x D-Sub, supports max. resolution up to Full HD (1920×1200) 60Hz

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Multi Graphic Support N/A
Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Expansion Slots CPU:
1 x PCIe 3.0 x16 Slot (PCIE2), supports x16 mode*

Chipset:
1 x PCIe 3.0 x1 Slot (PCIE1)

*Supports NVMe SSD as boot disks
Maximum PCIe Version PCIe 3.0
Storage Chipset:
1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*

4 x SATA3 6.0 Gb/s Connectors

*Supports NVMe SSD as boot disks

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
M.2 Storage Type Support NVMe, SATA
M.2 Slot 1
USB 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
6 x USB 2.0 (4 Rear, 2 Front)

*All USB ports support ESD Protection
Internal I/O Connectors 1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)*
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

*CPU_FAN1 supports the fan power up to 1A (12W).

**CHA_FAN1/WP supports the fan power up to 2A (24W).
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
Back Panel Connectors 1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
4 x USB 2.0 Ports
2 x USB 3.2 Gen1 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone
LAN Gigabit LAN 10/100/1000 Mb/s
Realtek 8111H
Wireless Data Network None
Form Factor Micro ATX
H/W Monitoring N/A
BIOS 128Mb AMI UEFI Legal BIOS with multilingual GUI support
Special Features Rock-Solid Durability
– 4 Power Phase

EZ Update
– ASRock Auto Driver Installer
Software Features Software
– ASRock Motherboard Utility (A-Tuning)

UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.
Operating System Support Microsoft Windows® 10 64-bit / 11 64-bit
Package Contents 1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 Socket
Package Dimension (W x D x H) : 23.50 x 27.50 x 5.50 cm
Gross Weight 0.66 KG
Volume 3,554.38 cm3
