คำอธิบาย
| Brand | ASUS |

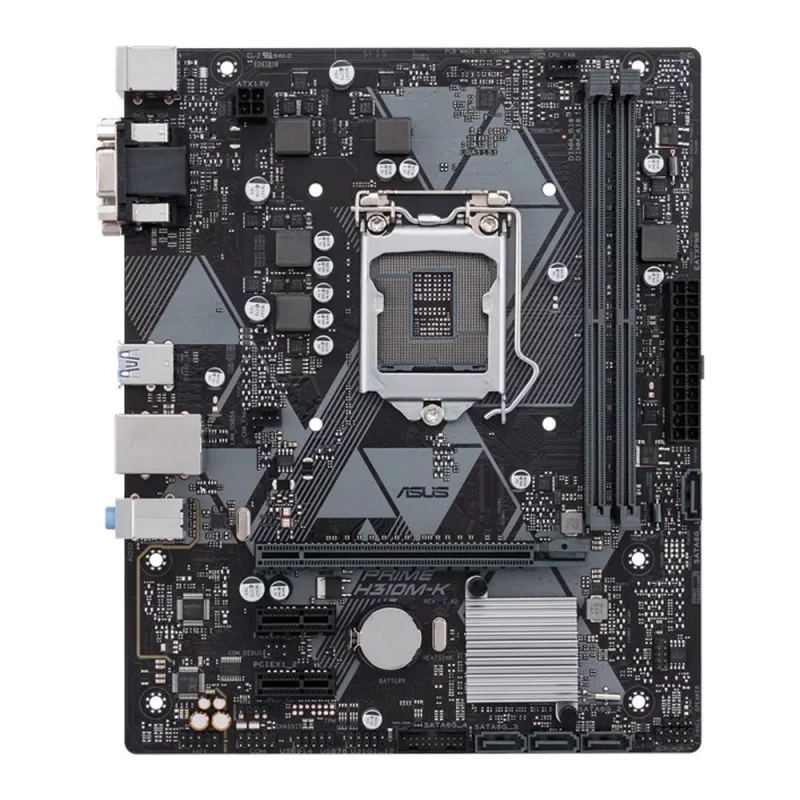

| Model | PRIME H310M-K |
| CPU Support | Intel® Socket 1151 for 9th / 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. |
| CPU Brand | Intel |
| Socket | 1151 V2 |
| Chipset | Intel H310 |
| Memory Support | 2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Maximum Memory Bus | 2666 |
| Graphics | Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : DVI-D/D-Sub ports – Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz – Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB (for iGPU exclusively) Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ |
| Multi Graphic Support | N/A |
| Audio | Realtek® ALC887 8-Channel High Definition Audio CODEC – Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : – Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals – Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| Expansion Slots | 1 x PCIe 3.0/2.0 x16 (x16 mode, gray) 2 x PCIe 2.0 x1 |
| Maximum PCIe Version | PCIe 3.0 |
| Storage | 4 x SATA 6Gb/s port(s), gray, |
| M.2 Storage Type Support | None |
| M.2 Slot | None |
| USB | Intel® H310 Chipset : 4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board) Intel® H310 Chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board) |
| Internal I/O Connectors | 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector |
| Back Panel Connectors | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 1 (blue) Type-A, up to 5Gbps 2 x USB 2.0 3 x Audio jack(s) |
| LAN | Realtek® RTL8111H, 1 x Gigabit LAN |
| Wireless Data Network | None |
| Form Factor | mATX Form Factor 8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm ) |
| H/W Monitoring | N/A |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information |
| Special Features | ASUS 5X Protection III : – ASUS SafeSlot Core: Fortified PCIe Slot prevents damage – ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! – ASUS Overvoltage Protection: World-class circuit-protecting power design – ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! – ASUS DIGI+ VRM: 4 Phase digital power design ASUS OptiMem： – Optimem (Improved DDR4 stability) ASUS EPU : – EPU ASUS Exclusive Features : – AI Suite 3 – Ai Charger – PC Cleaner – File Transfer ASUS Quiet Thermal Solution : – Stylish Fanless Design Heat-sink solution – ASUS Fan Xpert ASUS EZ DIY : – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode ASUS Q-Design : – ASUS Q-DIMM |
| Software Features | N/A |
| Operating System Support | Windows® 10 64-bit |
| Package Contents | N/A |
| Dimension | (W x D x H) : 18.50 x 22.60 x 3.70 cm |
| Net Weight | 0.39 KG |
| Package Dimension | (W x D x H) : 22.70 x 24.70 x 5.10 cm |
| Gross Weight | 0.69 KG |
| Volume | 2,859.52 cm3 |
