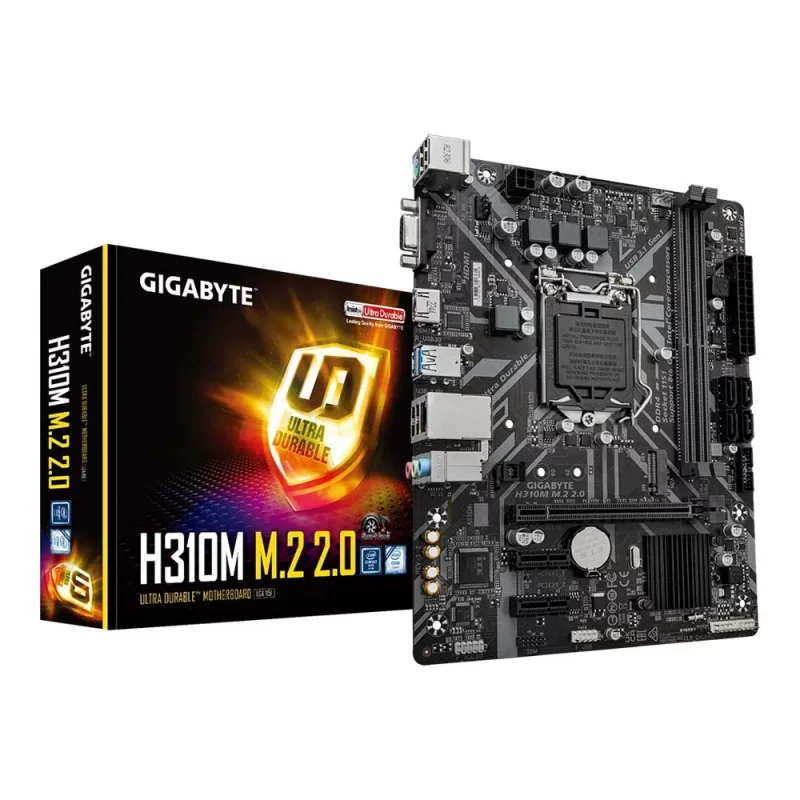

MAINBOARD (1151V2) GIGABYTE H310M M.2 2.0 DDR4 (REV. 1.2)

฿2,490.00

  • Support CPU : 9th and 8th Generation Intel® Core™ i9/i7/i5/i3/Pentium/Celeron processors
  • Chipset : Intel H310 Chipset
  • From Factor : Micro ATX
  • Memory Channel : Dual Channel DDR4 2DIMM
  • Memory Support : up to 2666
  • Memory MAX : 32GB
  • M.2 Slot : 1 slot
  • SATA III 6G : 4 ports
  • PCIe 3.0×16 : 1 slot
  • Lan Port : 1 Gigabit LAN
  • 8-Channel HD Audio with High Quality Audio Capacitors
  • Ultra-Fast M.2 with PCIe Gen2 X2 & SATA interface
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • CEC 2019 Ready, Save Power With a Simple Click
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • All new GIGABYTE™ APP Center, simple and easy use
  • Anti-Sulfur Resistors Design

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: A0154626 หมวดหมู่: ,

คำอธิบาย

Brand GIGABYTE
Model H310M M.2 2.0
CPU Support
  1. Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
  2. L3 cache varies with CPU

(Please refer “CPU Support List” for more information.)
CPU Brand Intel
Socket 1151V2
Chipset Intel H310 Express Chipset
Memory Support
  1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
  2. Dual channel memory architecture
  3. Support for DDR4 2666/2400/2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
    * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core™ i9/i7/i5 processor.

(Please refer “Memory Support List” for more information.)
Maximum Memory Bus 2666
Graphics Integrated Graphics Processor-Intel® HD Graphics support:

  1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
  2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.2.

Maximum shared memory of 1 GB
Multi Graphic Support N/A
Audio
  1. Realtek® Audio codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Expansion Slots 1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)

2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
Maximum PCIe Version PCIe 3.0
Storage Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x2 SSD support)

4 x SATA 6Gb/s connectors
M.2 Storage Type Support NVMe
M.2 Slot 1
USB 2 x USB 3.1 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x USB 3.1 Gen 1 header (Internal I/O)
1 x USB 2.0/1.1 header (Internal I/O)
Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
Back Panel Connectors 1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.1 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
LAN Realtek® GbE LAN chip (10/100/1000 Mbit)
Wireless Data Network None
Form Factor Micro ATX
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control

    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Special Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    AutoGreen
    Cloud Station
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    Platform Power Management
    Smart Backup
    Smart Keyboard
    System Information Viewer
    USB Blocker
  2. Support for Q-Flash
  3. Support for Xpress Install
Software Features Norton® Internet Security (OEM version)
Realtek® 8118 Gaming LAN Bandwidth Control Utility
Operating System Support Support for Windows 10 64-bit
Package Contents N/A
Package Dimension (W x D x H) : 27.00 x 23.50 x 5.20 cm
Gross Weight 0.63 KG
Volume 3,299.40 cm3
