คำอธิบาย
| Brand | ASROCK |

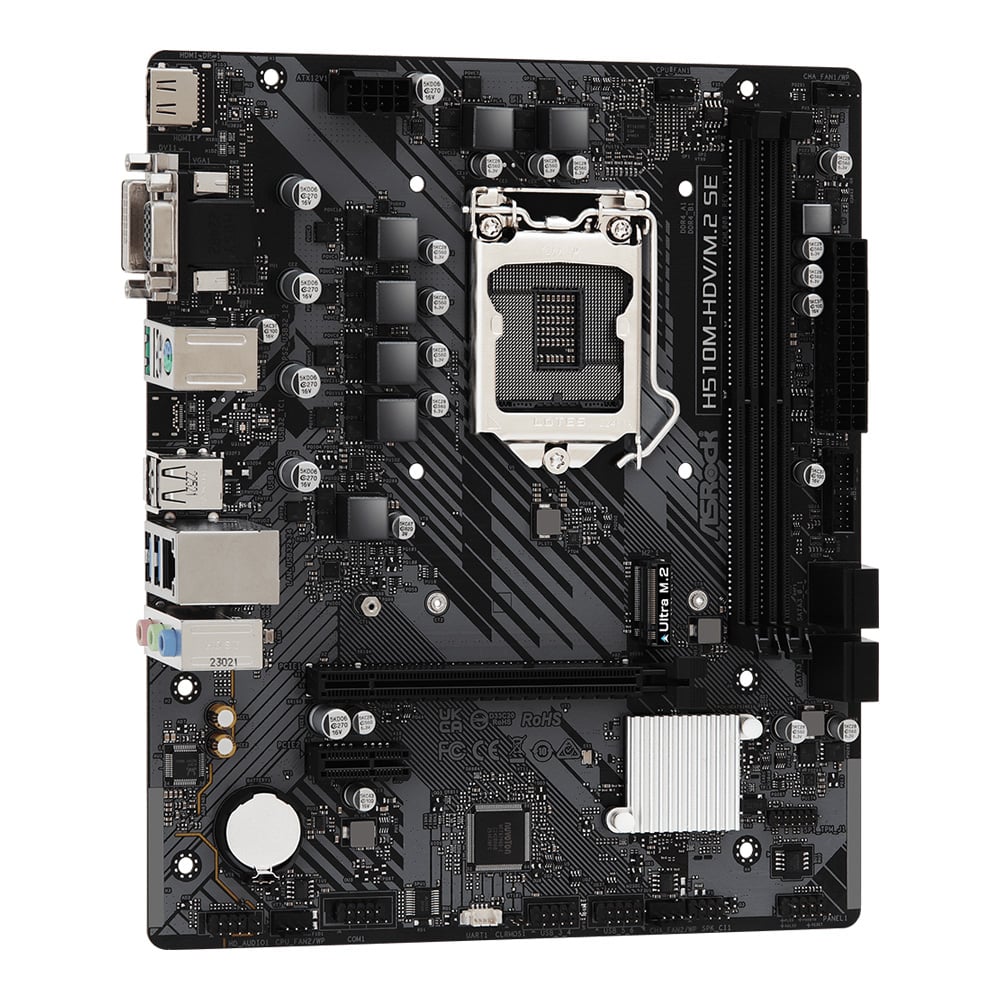

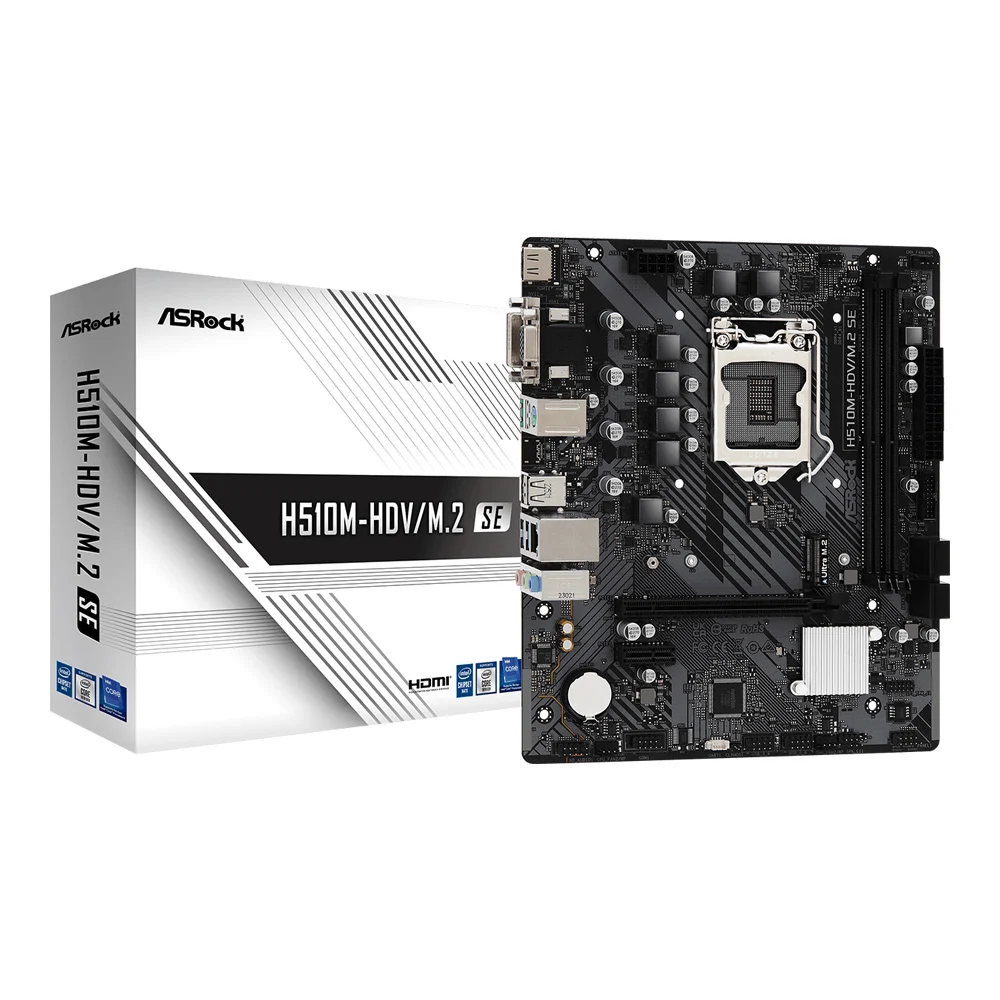

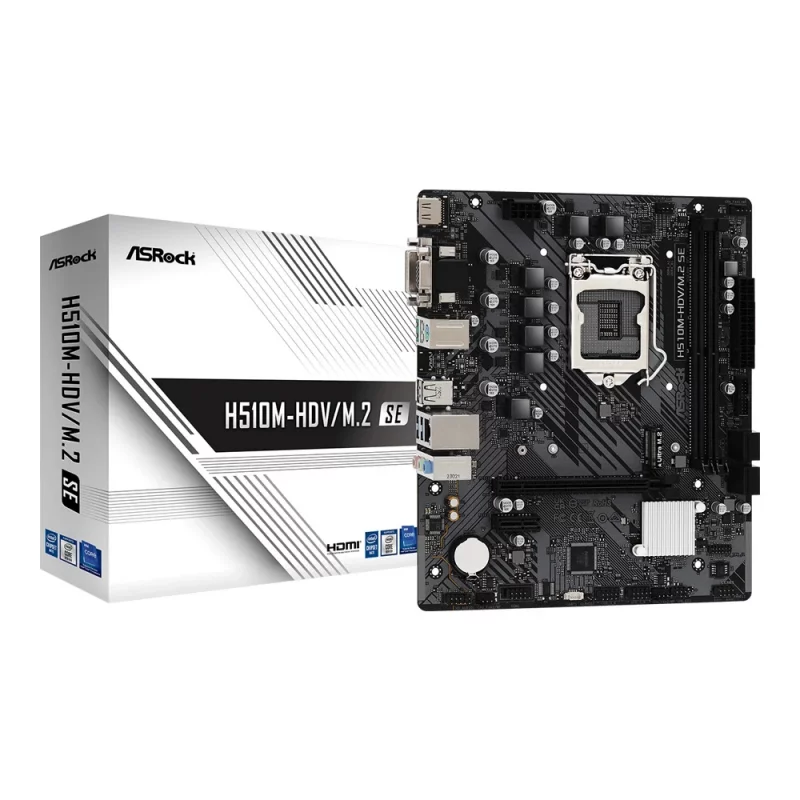

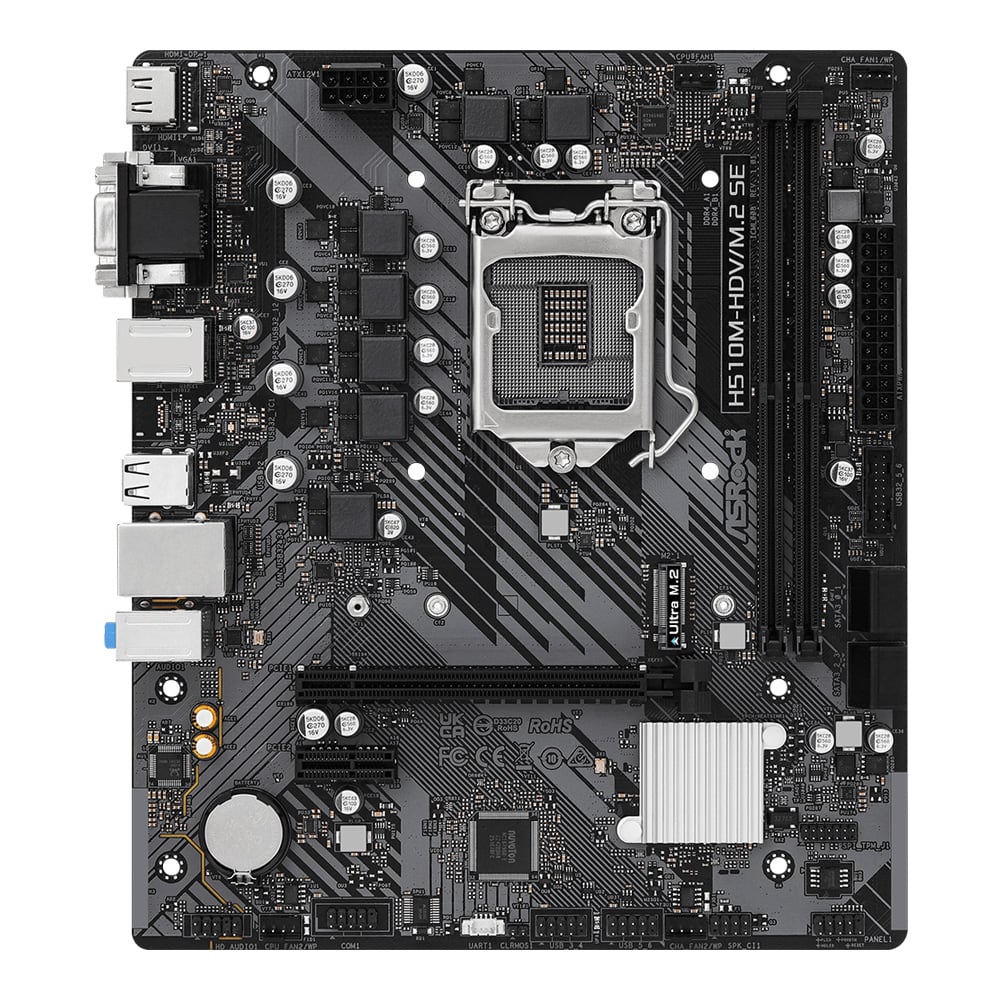

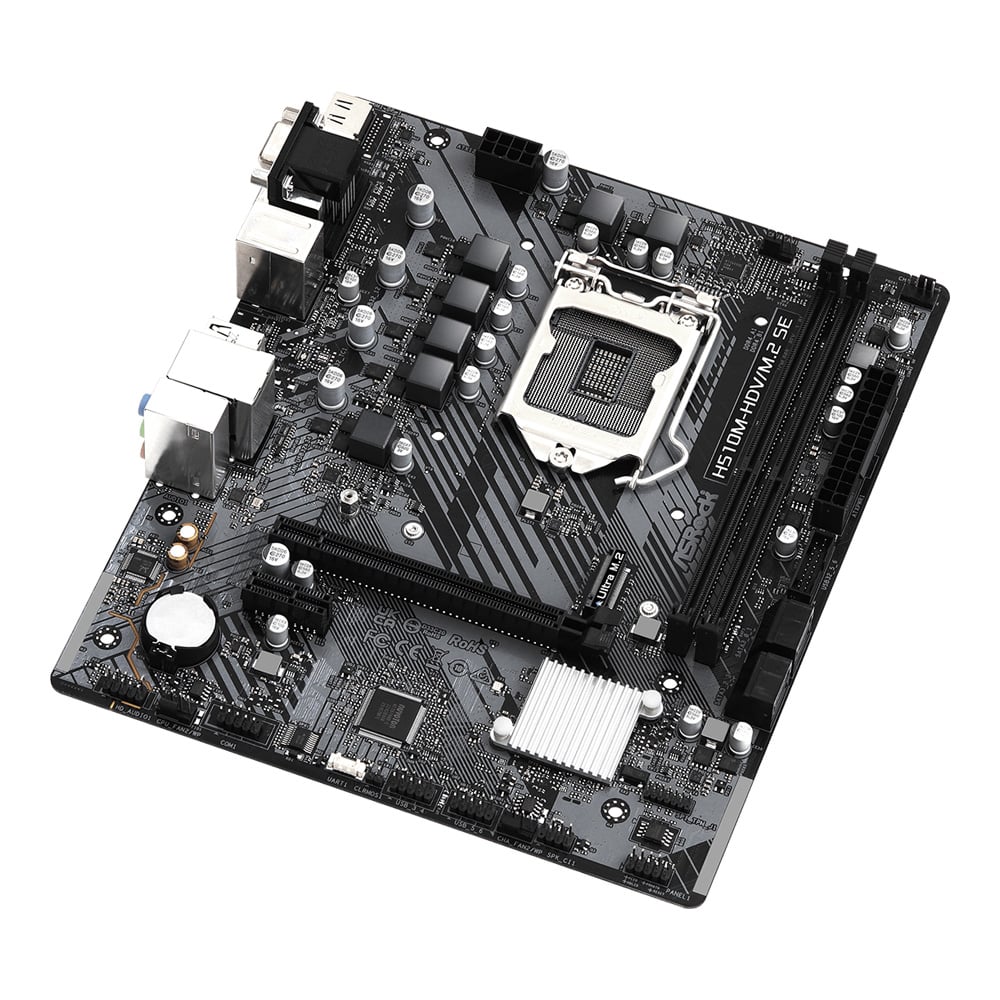

| Model | H510M-HDV/M.2 SE (DDR4) |
| CPU Support | Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200) Supports Intel® Turbo Boost Max 3.0 Technology |
| CPU Brand | Intel |
| Socket | 1200 |
| Chipset | Intel® H470 |
| Memory Support | – Dual Channel DDR4 Memory Technology – 2 x DDR4 DIMM Slots – Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory* – Supports ECC UDIMM memory modules (operate in non-ECC mode) – Max. capacity of system memory: 64GB – Supports Intel® Extreme Memory Profile (XMP) 2.0 – 15μ Gold Contact in DIMM Slots *Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium® and Celeron® support DDR4 up to 2666. |
| Maximum Memory Bus | 2933 |
| Graphics | – 1 x HDMI Intel® 11th Gen Processors support HDMI 2.0, HDCP 2.3 and max. resolution up to 4K 60Hz Intel® 10th Gen Processors support HDMI 1.4, HDCP 2.3 and max. resolution up to 4K 30Hz – 1 x DVI-D, supports HDCP 2.3 and max. resolution up to Full HD (1920×1200) 60Hz – 1 x D-Sub, supports max. resolution up to Full HD (1920×1200) 60Hz *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. |
| Multi Graphic Support | N/A |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Expansion Slots | Intel® 11th Gen & 10th Gen Processors: – 1 x PCIe 4.0 x16 Slot (PCIE1)* Intel® 11th Gen Processors support PCIe 4.0 x16 Intel® 10th Gen Processors support PCIe 3.0 x16 Intel® H470 Chipset: *Supports NVMe SSD as boot disks |
| Maximum PCIe Version | PCIe 4.0 |
| Storage | Chipset: – 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* – 4 x SATA3 6.0 Gb/s Connectors *Supports Intel® Optane™ Technology |
| M.2 Storage Type Support | NVMe / SATA |
| M.2 Slot | 1 |
| USB | 6 x USB 3.2 Gen1 (4 Rear, 2 Front) 6 x USB 2.0 (2 Rear, 4 Front) *All USB ports support ESD Protection |
| Internal I/O Connectors | – 1 x COM Port Header – 1 x SPI TPM Header – 1 x Chassis Intrusion and Speaker Header – 1 x CPU Fan Connector (4-pin)* – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** – 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) *CPU_FAN1 supports the fan power up to 1A (12W). **CPU_FAN2/WP supports the fan power up to 2A (24W). ***CHA_FAN1~2/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use. |

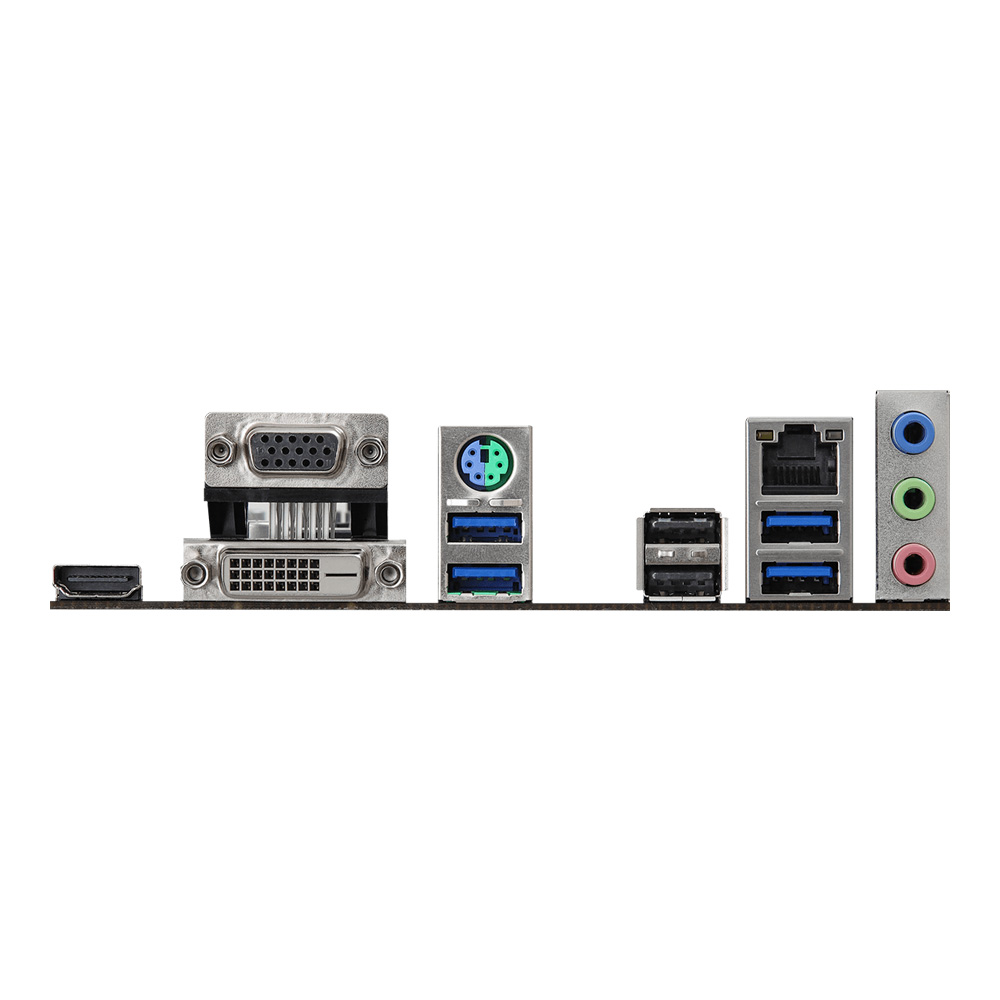

| Back Panel Connectors | – 1 x PS/2 Mouse/Keyboard Port – 1 x D-Sub Port – 1 x DVI-D Port – 1 x HDMI Port – 2 x USB 2.0 Ports – 4 x USB 3.2 Gen1 Ports – 1 x RJ-45 LAN Port – HD Audio Jacks: Line in / Front Speaker / Microphone |
| LAN | Gigabit LAN 10/100/1000 Mb/s Realtek 8111H |
| Wireless Data Network | None |
| Form Factor | Micro ATX |
| H/W Monitoring | N/A |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
| Special Features | Rock-Solid Durability – 5 Power Phase EZ Update |
| Software Features | Software – ASRock Motherboard Utility (A-Tuning) – ASRock XFast LAN UEFI *These utilities can be downloaded from ASRock Live Update & APP Shop. |
| Operating System Support | Microsoft® Windows® 10 64-bit / 11 64-bit |

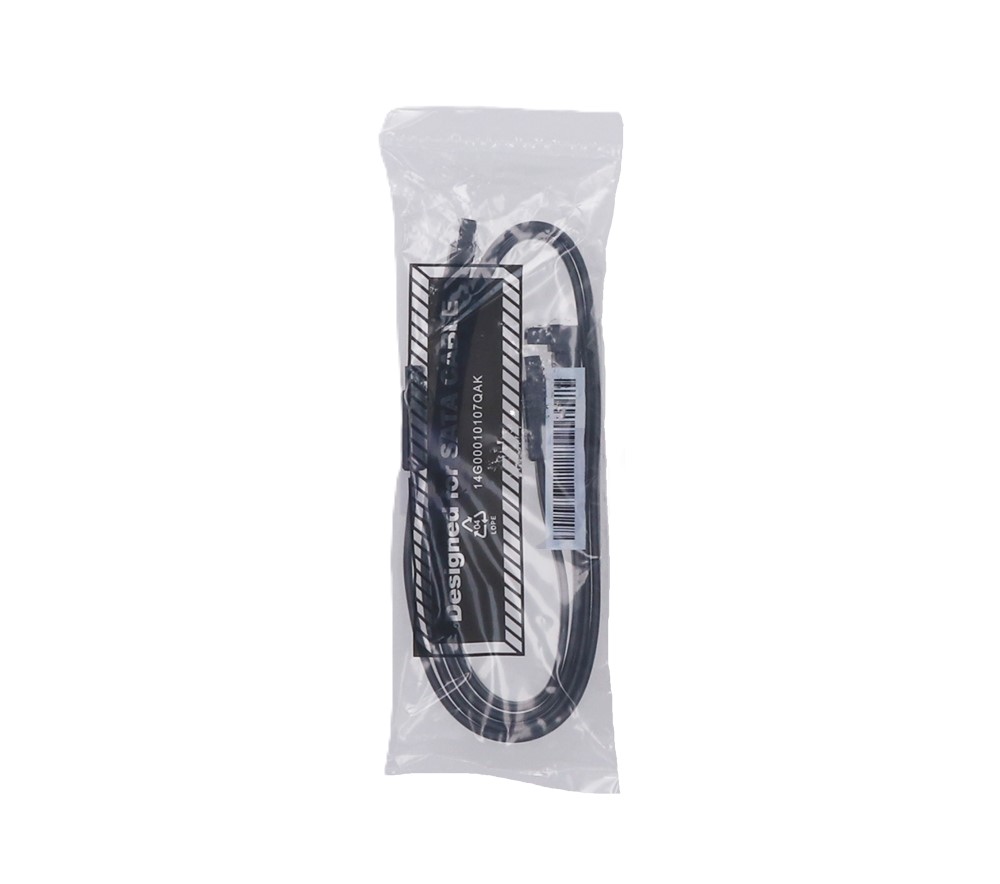

| Package Contents | 1 x User Manual 1 x I/O Shield 2 x SATA Data Cables 1 x Screw for M.2 Socket |
| RAID | – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Package Dimension | (W x D x H) : 28.00 x 24.00 x 6.00 cm |
| Gross Weight | 0.73 KG |
| Volume | 4,032.00 cm3 |
