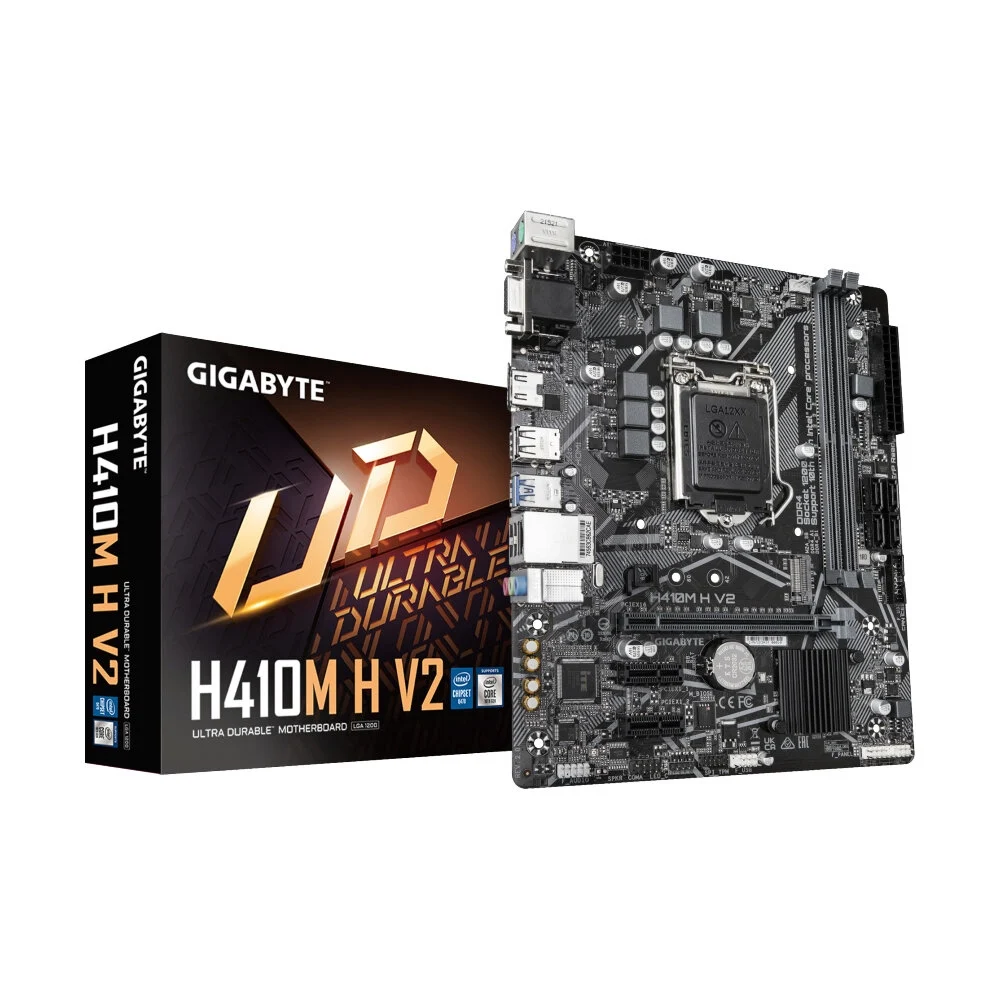

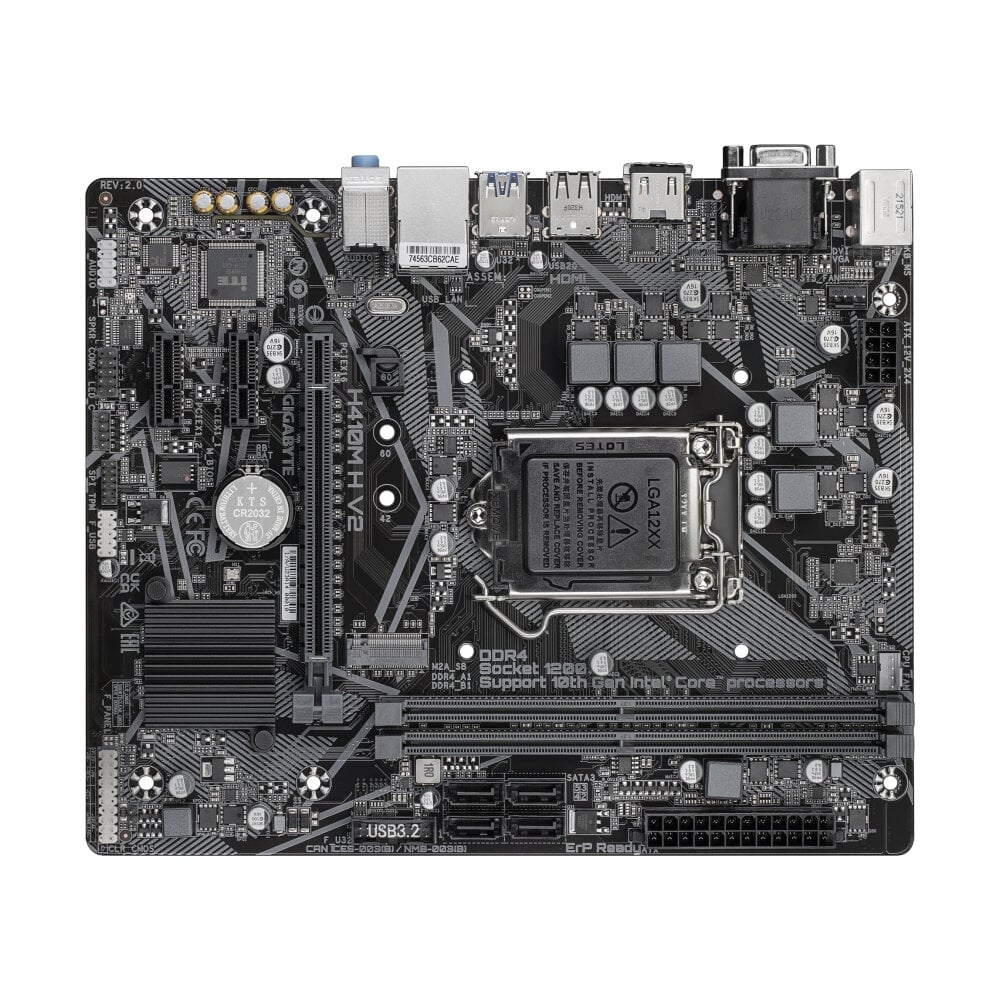

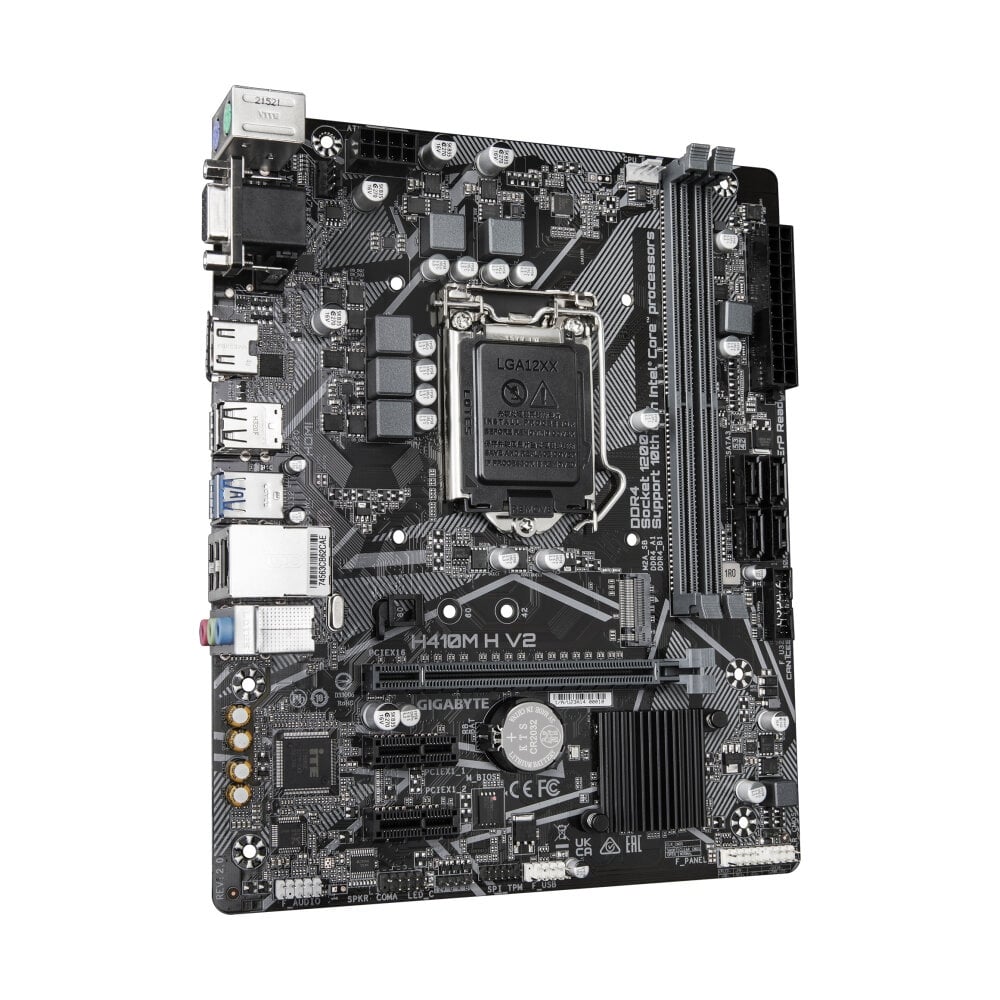

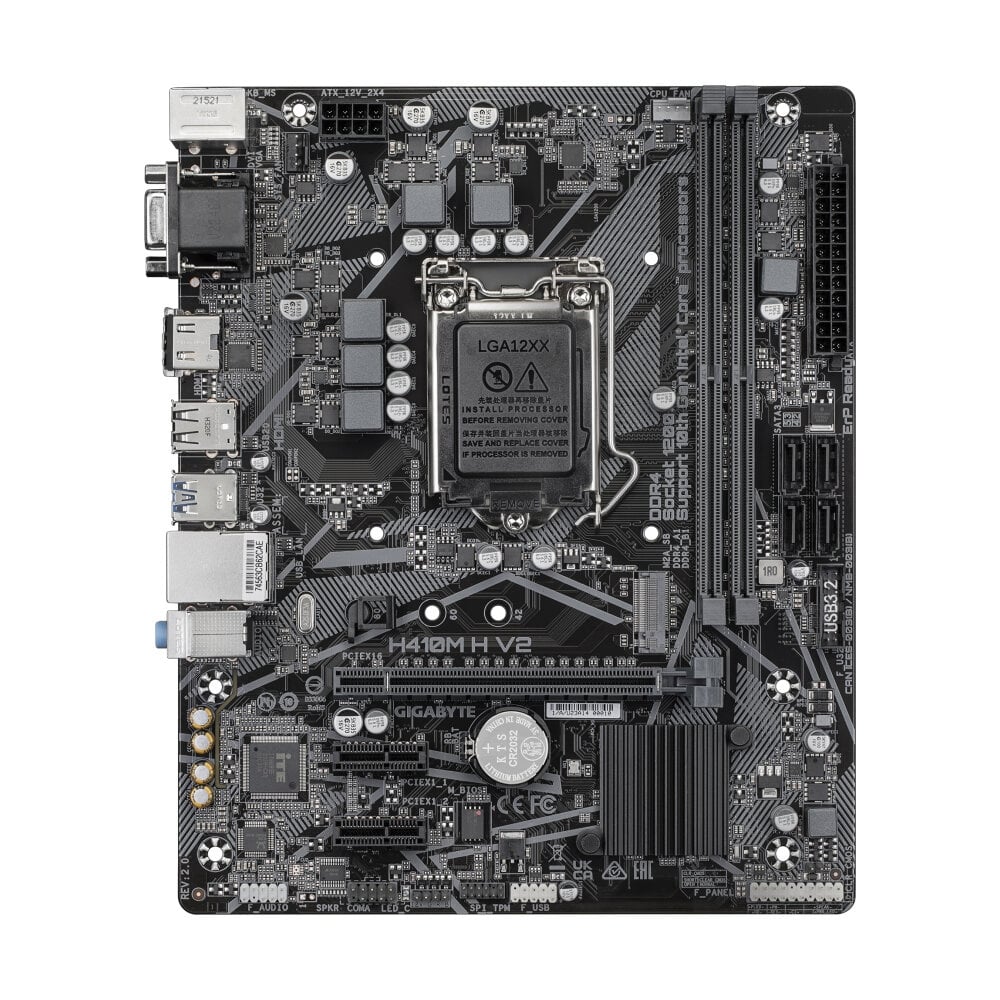

MAINBOARD (1200) GIGABYTE H410M H V2 DDR4 (REV. 2.1)

฿2,550.00

  • Support CPU : 10th Gen Intel Core Processors, Pentium Gold and Celeron Processors
  • Form Factor : Micro ATX
  • Chipset : Intel Q470 Chipset
  • Memory Channel : Dual Channel DDR4 2DIMM
  • Memory Support : up to 2933
  • Memory MAX : 64GB
  • M.2 Slot : 1 slot
  • SATA III 6G : 4 ports
  • PCIe 3.0×16 : 1 slot
  • Lan Port : 1 Gigabit LAN
  • 8-Channel HD Audio with High Quality Audio Capacitors
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: A0163477 หมวดหมู่: ,

คำอธิบาย

Brand GIGABYTE
Model H410M-H V2 Rev2.1 (DDR4)
CPU Support 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors / Intel® Celeron® processors
L3 cache varies with CPU

(Please refer “CPU Support List” for more information.)
CPU Brand Intel
Socket 1200
Chipset Intel Q470
Memory Support 10th Generation Intel® Core™ i9/i7 Processors:
– Support for DDR4 2933/2666/2400/2133 MT/s memory modules

10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® Processors:
– Support for DDR4 2666/2400/2133 MT/s memory modules

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
Maximum Memory Bus 2933
Graphics Integrated Graphics Processor-Intel® HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
* The D-Sub port is only available with the 10th Generation processors.

1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.

(Graphics specifications may vary depending on CPU support.)
Multi Graphic Support N/A
Audio Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Expansion Slots CPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

Chipset:
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Maximum PCIe Version PCIe 3.0
Storage Chipset
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
4 x SATA 6Gb/s connectors

RAID 0 and RAID 1 support for NVMe SSD storage devices

* Supported with an additional PCIe to M.2 NVMe SSD adapter card.
RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices
M.2 Storage Type Support NVME, SATA
M.2 Slot 1
USB Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper

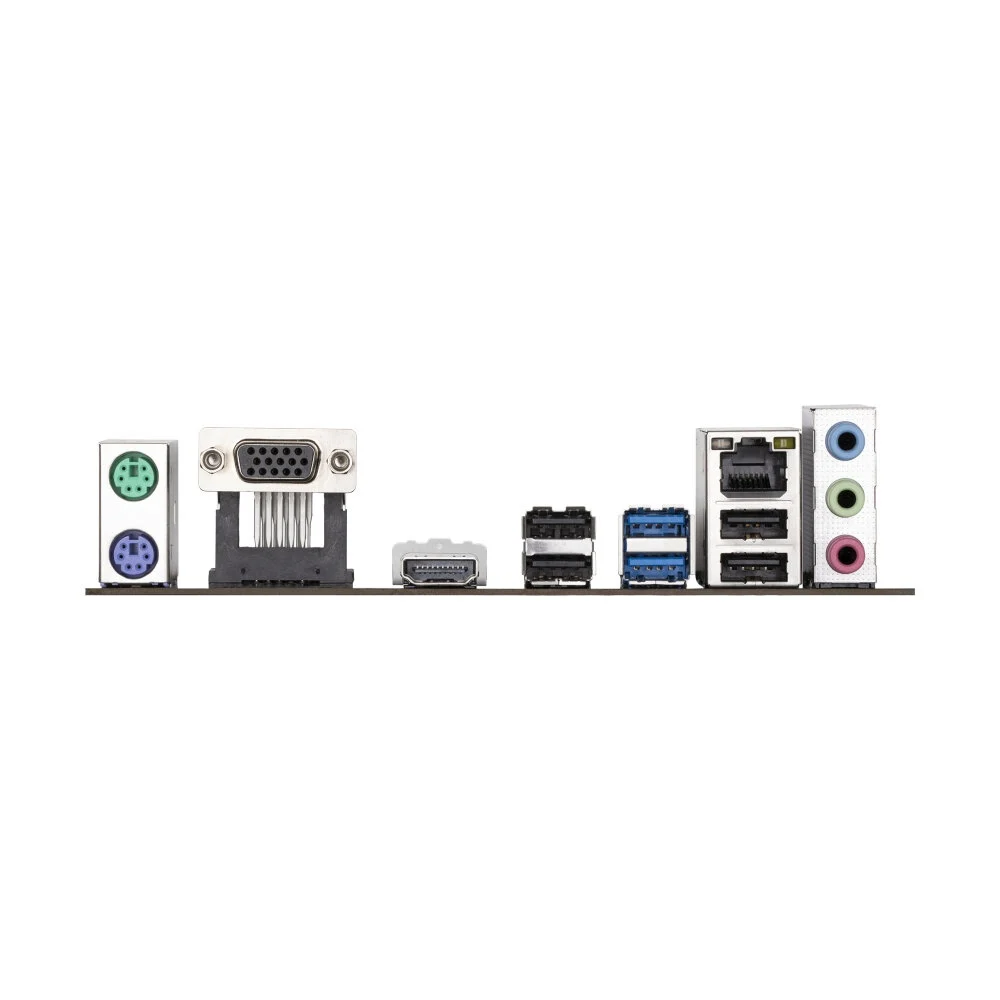

Back Panel Connectors 1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
LAN Gigabit Ethernet Chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Data Network None
Form Factor Micro ATX
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Special Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
Smart Backup
System Information Viewer

Support for Q-Flash
Software Features Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System Support Support for Windows 11 64-bit
Support for Windows 10 64-bit
Package Contents N/A
Package Dimension (W x D x H) : 23.00 x 26.50 x 5.00 cm
Gross Weight 0.66 KG
Volume 3,047.50 cm3
