คำอธิบาย
Brand | LONGWELL |
Model | H410-VH (DDR4) |
CPU Support | Support for 10th and 11th Generation Intel® Core™ i9 processors Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package |
CPU Brand | Intel |
Socket | 1200 |
Chipset | Intel H410 |
Memory Support | Memory Support 2 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules |
Maximum Memory Bus | 2666 |
Graphics | N/A |
Multi Graphic Support | N/A |
Audio | Audio Realtek® ALC897 codec High Definition Audio |
Expansion Slots | 1 x PCI Express x16 slot Gen 3.0 2 x PCI Express x1 slot |
Maximum PCIe Version | PCIe 3.0 |
Storage | 1 x M.2 3 x SATA 6Gb/s connectors |
M.2 Storage Type Support | NVMe |
M.2 Slot | 1 |
USB | 1 x USB 3.0 header 2 x USB 2.0 headers 2 x USB 2.0 ports 2 x USB 3.0 ports |
Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.0 header 2 x USB 2.0 headers 1 x UART headers 1 x Clear CMOS jumper |

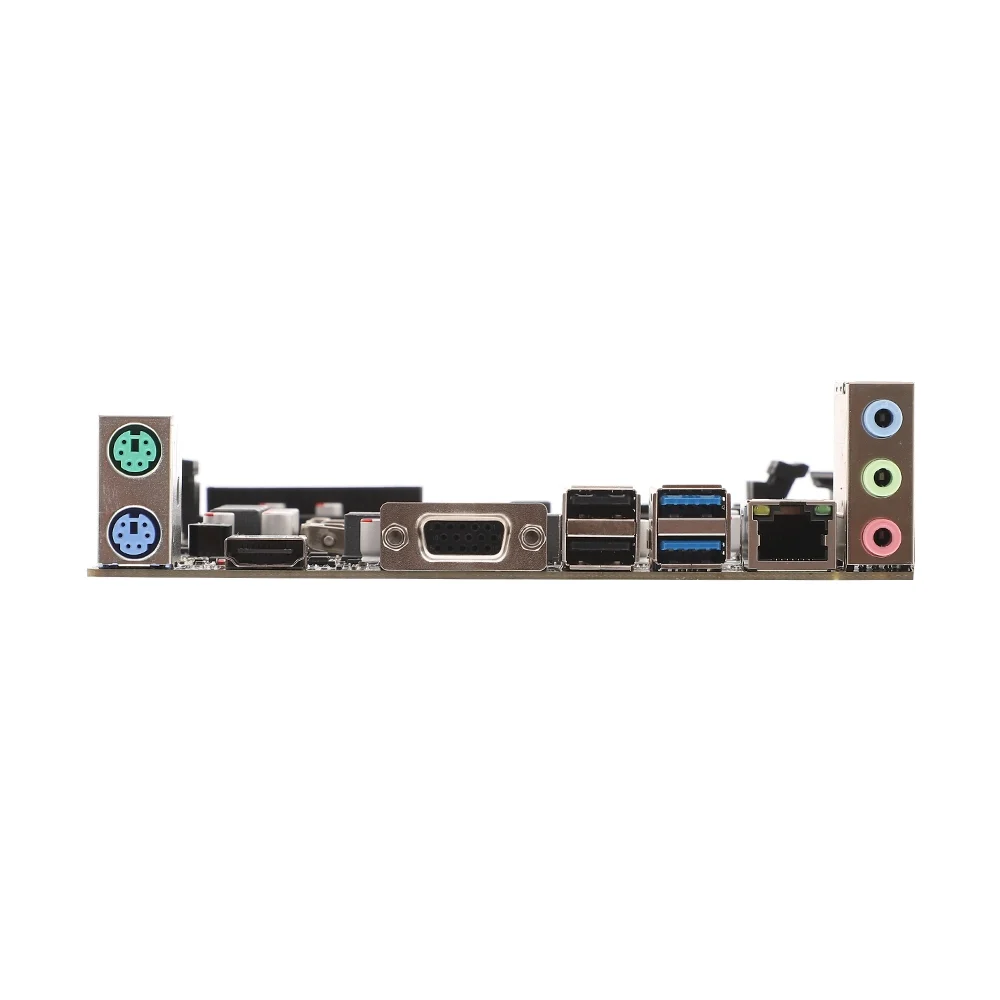

Back Panel Connectors | 2 x PS.2 keyboard/mouse port 1 x HDMI port 1 x VGA port 2 x USB 2.0 ports 2 x USB 3.0 ports 1 x Lan port 3 x audio connector |
LAN | Realtek® RTL8111H 10/100/1000 Mb/s auto negotiation Half/Full duplex capability |
Wireless Data Network | None |
Form Factor | Micro ATX |
H/W Monitoring | N/A |
BIOS | N/A |
Special Features | Boot Mode Support UEFI mode |
Software Features | N/A |
Operating System Support | Win 10-11 |
Package Contents | N/A |
Package Dimension | (W x D x H) : 23.00 x 27.50 x 5.00 cm |
Gross Weight | 0.71 KG |
Volume | 3,162.50 cm3 |
