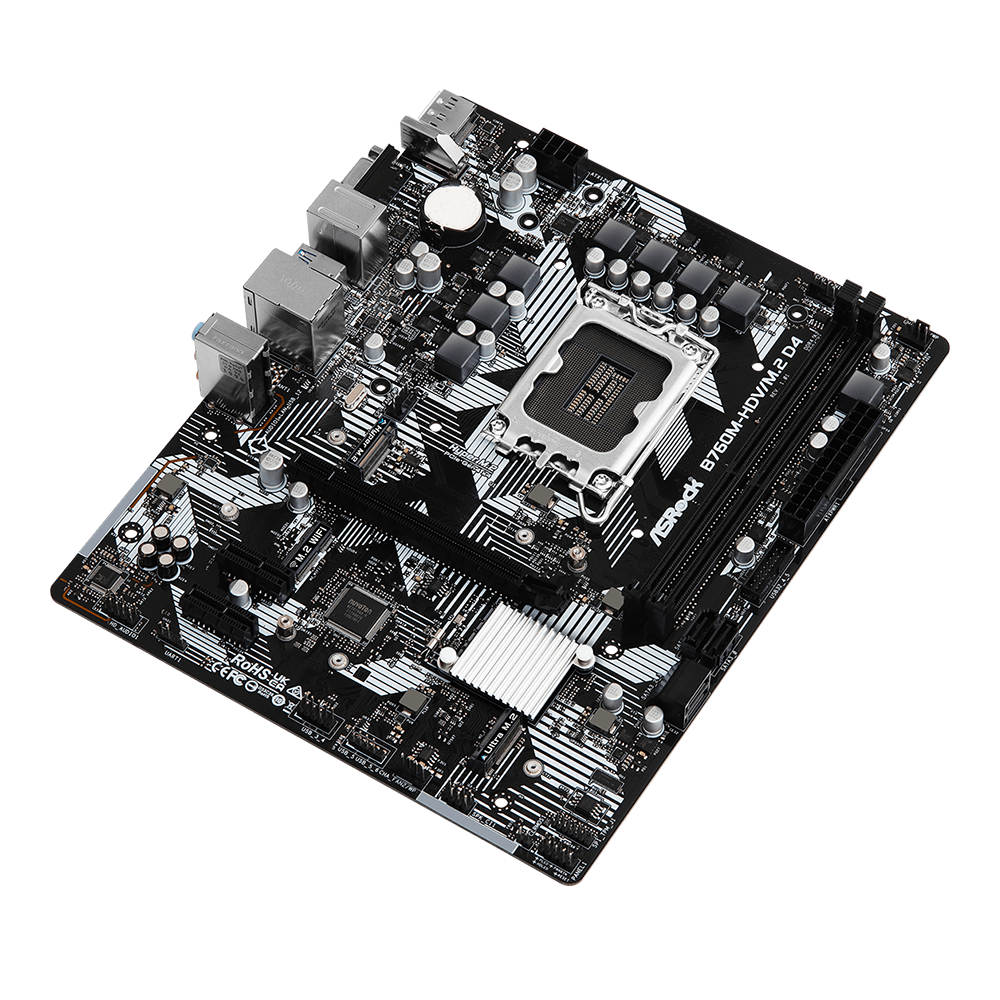

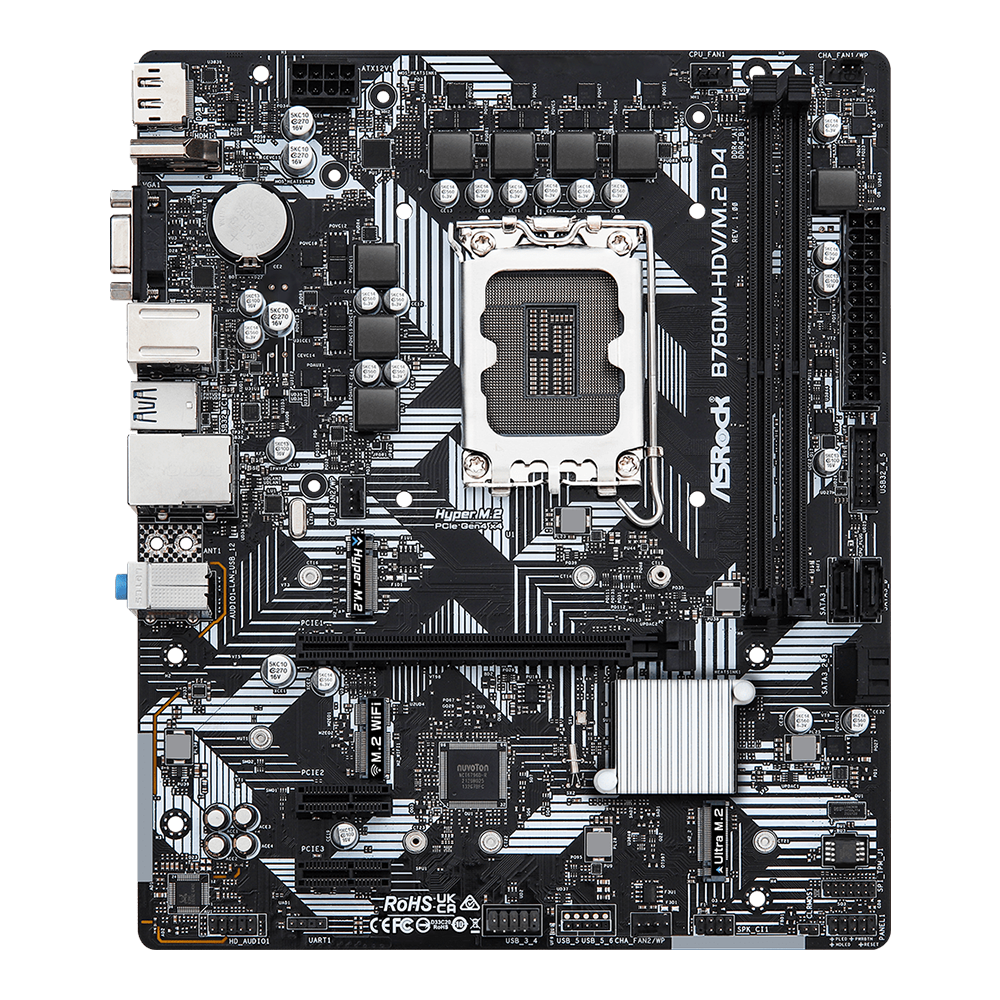

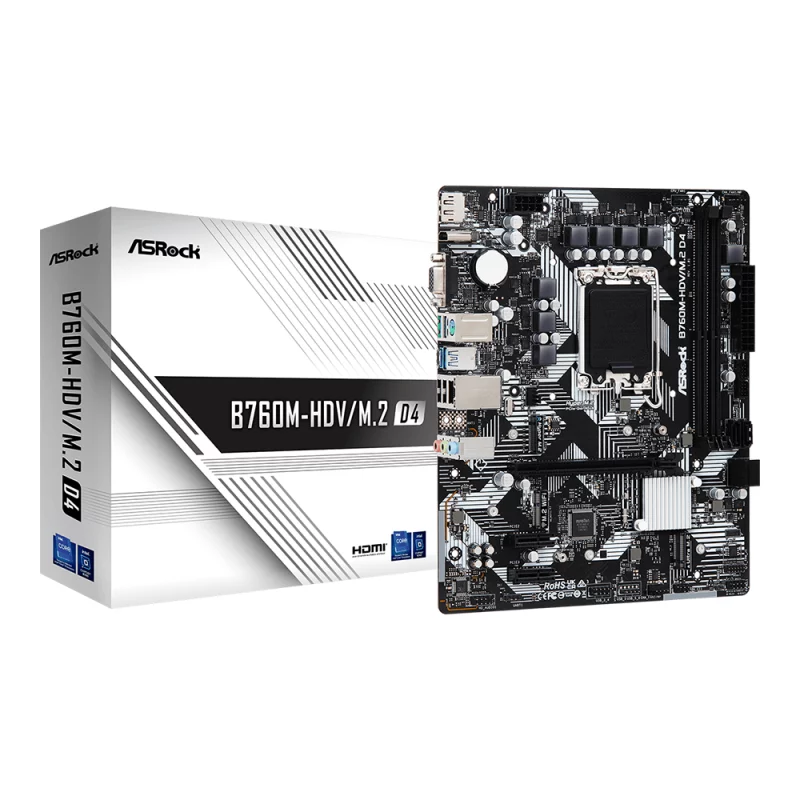

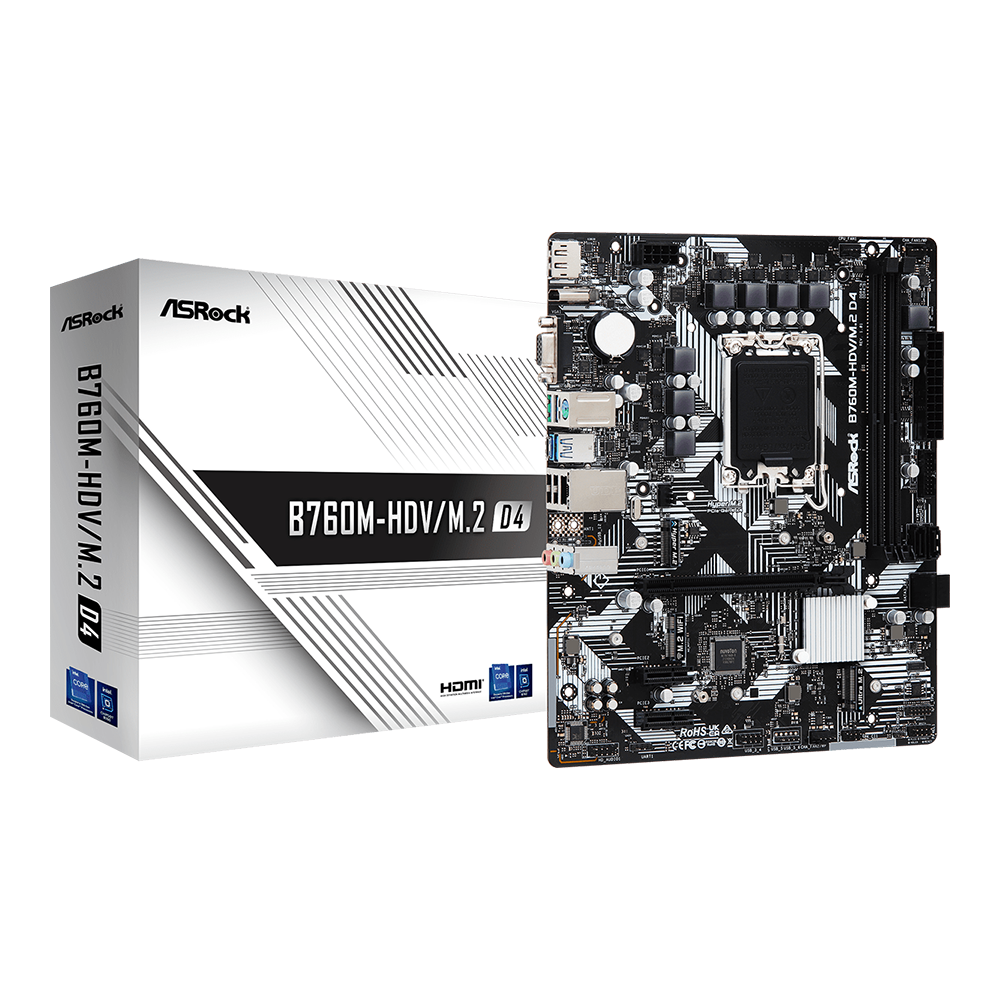

คำอธิบาย
| Brand | ASROCK |
| Model | B760M-HDV/M.2 DDR4 |
| CPU Support | – Supports 13th Gen & 12th Gen Intel® CoreTM Processors (LGA1700) – Supports Intel® Hybrid Technology – Supports Intel® Turbo Boost Max 3.0 Technology – Supports Intel® Thermal Velocity Boost (TVB) – Supports Intel® Adaptive Boost Technology (ABT) |
| CPU Brand | INTEL |
| Socket | 1700 |
| Chipset | Intel® Chipset B760 |
| Memory Support | – Dual Channel DDR4 Memory Technology – 2 x DDR4 DIMM Slots – Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)* 1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively. 1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively. – Supports ECC UDIMM memory modules (operate in non-ECC mode) – Max. capacity of system memory: 64GB – Supports Intel® Extreme Memory Profile (XMP) 2.0 * Please refer to Memory Support List on ASRock’s website for more information. (http://www.asrock.com/) |
| Maximum Memory Bus | 5333 |
| Graphics | * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. – Intel® Xe Graphics Architecture (Gen 12) – 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz – 1 x D-Sub, supports max. resolution up to Full HD (1920×1080) 60Hz |
| Multi Graphic Support | N/A |
| Audio | 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) |
| Expansion Slots | CPU: – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module * Supports NVMe SSD as boot disks |
| Maximum PCIe Version | PCIe 4.0 |
| Storage | CPU: – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: – 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* – 4 x SATA3 6.0 Gb/s Connectors** * Supports Intel® Volume Management Device (VMD) * Supports NVMe SSD as boot disks ** If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled. |
| M.2 Storage Type Support | NVMe |
| M.2 Slot | 2 |
| USB | – 1 x USB 3.2 Gen1 Type-C (Rear) – 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) – 5 x USB 2.0 (2 Rear, 3 Front) * All USB ports support ESD Protection |
| Internal I/O Connectors | – 1 x SPI TPM Header – 1 x Chassis Intrusion and Speaker Header – 1 x CPU Fan Connector (4-pin)* – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** – 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) * CPU_FAN1 supports the fan power up to 1A (12W). ** CPU_FAN2/WP supports the fan power up to 2A (24W). *** CHA_FAN1~2/WP support the fan power up to 2A (24W). *** CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use |

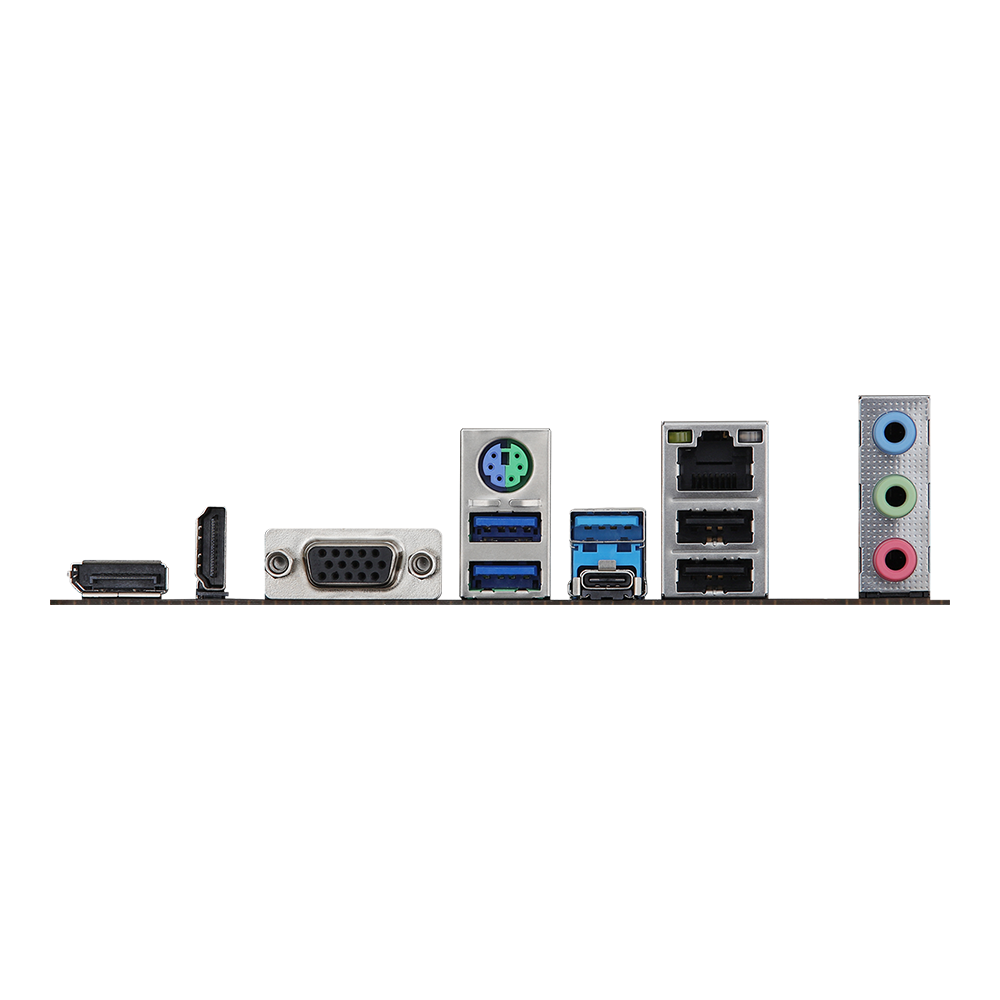

| Back Panel Connectors | – 2 x Antenna Mounting Points – 1 x PS/2 Mouse/Keyboard Port – 1 x D-Sub Port – 1 x HDMI Port – 1 x DisplayPort 1.4 – 1 x USB 3.2 Gen1 Type-C Port – 3 x USB 3.2 Gen1 Type-A Ports – 2 x USB 2.0 Ports – 1 x RJ-45 LAN Port – HD Audio Jacks: Line in / Front Speaker / Microphone |
| LAN | Gigabit LAN 10/100/1000 Mb/s Realtek 8111H |
| Wireless Data Network | None |
| Form Factor | Micro ATX |
| H/W Monitoring | N/A |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
| Special Features | Rock-Solid Durability – 5+1+1 Power Phase EZ Update – ASRock Auto Driver Installer |
| Software Features | Software – ASRock Motherboard Utility (A-Tuning) – ASRock XFast LAN * These utilities can be downloaded from ASRock Live Update & APP Shop. UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Auto Driver Installer – ASRock Instant Flash – ASRock Easy RAID Installer |
| Operating System Support | 128Mb AMI UEFI Legal BIOS with GUI support |

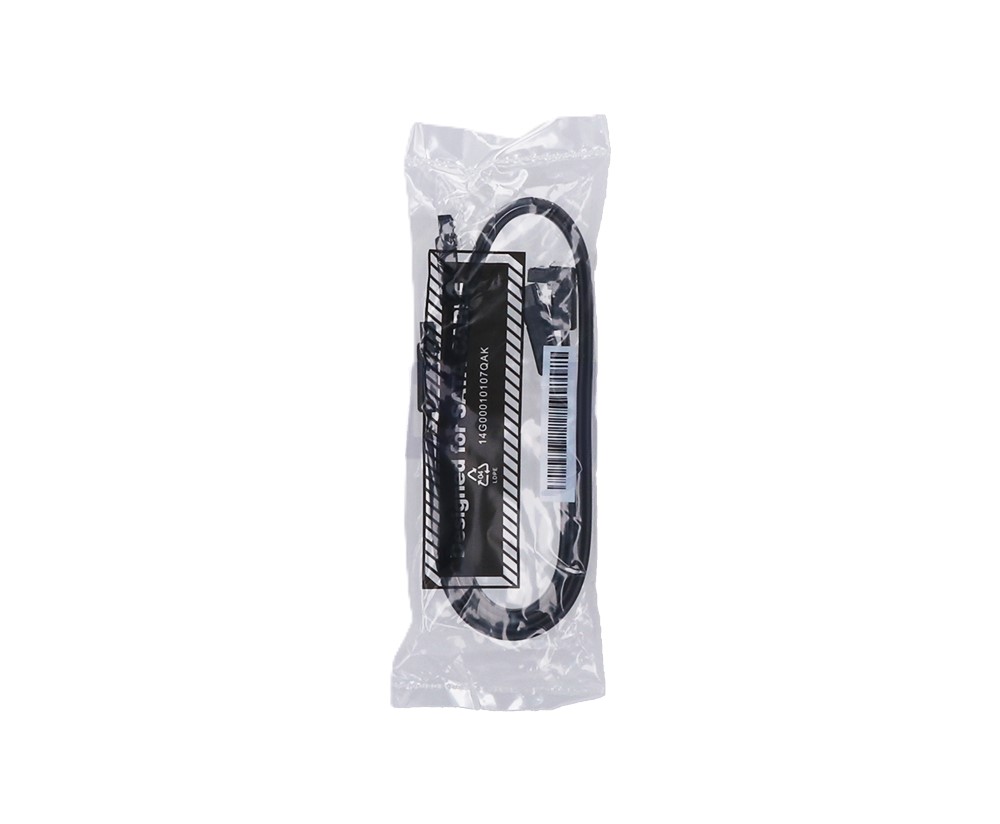

| Package Contents | – 1 x User Manual – 1 x I/O Shield – 2 x SATA Data Cables – 3 x Screws for M.2 Sockets |
| Package Dimension | (W x D x H) : 24.00 x 28.00 x 6.00 cm |
| Gross Weight | 0.70 KG |
| Volume | 4,032.00 cm3 |
