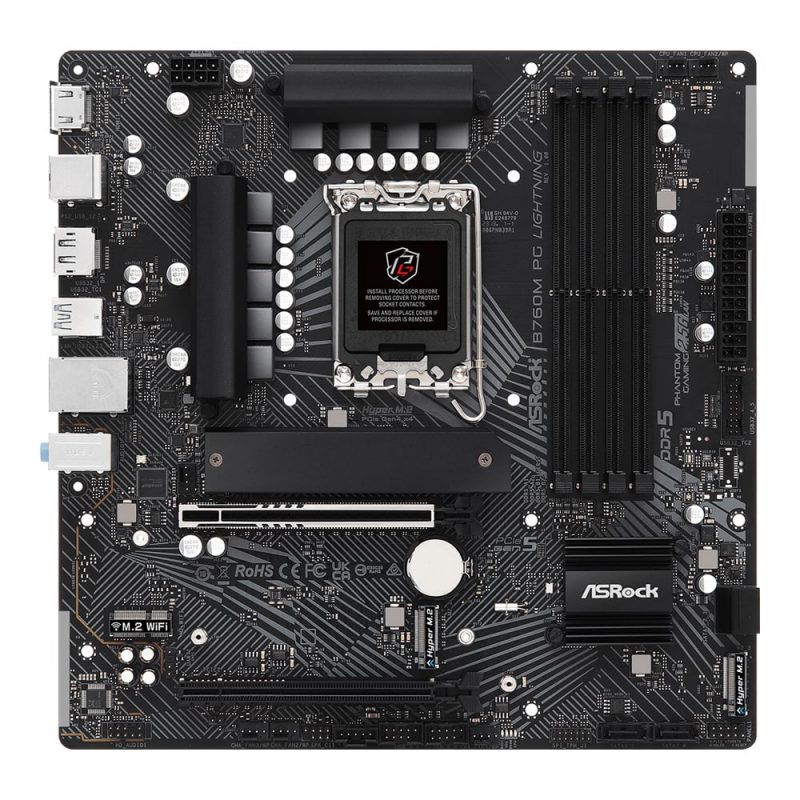

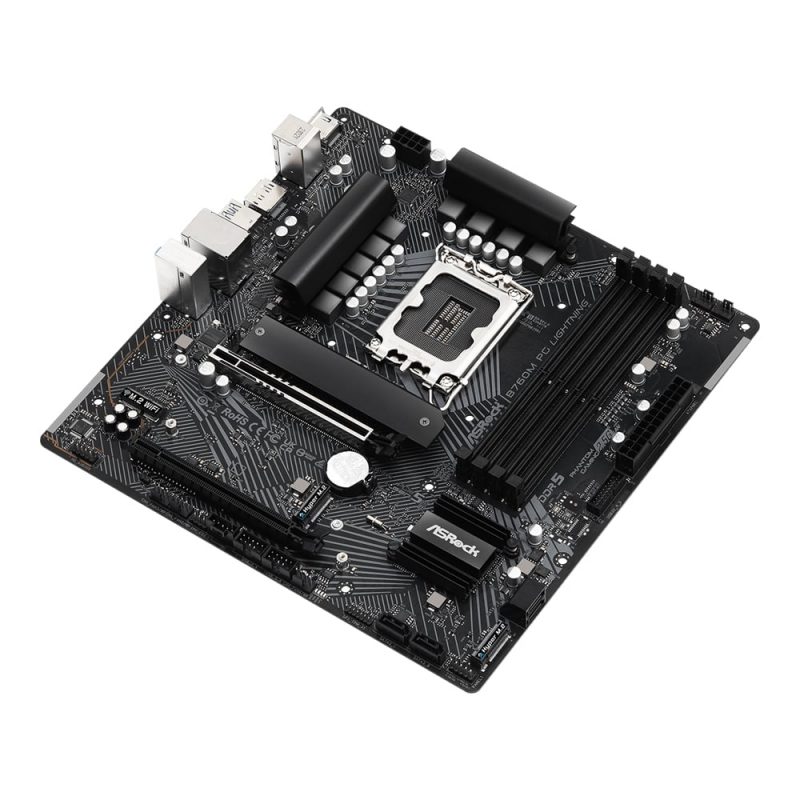

MAINBOARD (1700) ASROCK B760M PG LIGHTNING DDR5

฿3,450.00

  • Support CPU : 14th /13th /12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
  • Chipset : Intel B760 Chipset
  • Form Factor : Micro ATX
  • Memory Channel : Dual Channel DDR5 4DIMM
  • Memory Support : up to 7200(O.C.)
  • Memory MAX : 192GB
  • M.2 Slot : 3 slots
  • SATA III 6G : 4 ports
  • PCIe 5.0×16 : 1 slot
  • Lan Port : 2.5 Gigabit (Dragon RTL8125BG)
  • Supports ASRock Auto Driver Installer

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: A0153230 หมวดหมู่: ,

คำอธิบาย

Brand ASROCK
Model B760M PG LIGHTNING (DDR5)
CPU Support Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
Supports Intel® Hybrid Technology
Supports Intel® Turbo Boost Max 3.0 Technology
Supports Intel® Thermal Velocity Boost (TVB)
Supports Intel® Adaptive Boost Technology (ABT)
CPU Brand Intel
Socket 1700
Chipset Intel B760
Memory Support Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
Max. capacity of system memory: 192GB
Supports Intel® Extreme Memory Profile (XMP) 3.0

*1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.
1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.
2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.

Maximum Memory Bus 7200
Graphics Intel® Xe Graphics Architecture (Gen 12)
1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Multi Graphic Support Supports AMD CrossFire
Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio
Expansion Slots CPU:
1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:
1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

– Supports AMD CrossFire™

*Supports NVMe SSD as boot disks

Maximum PCIe Version PCIe 5.0
Storage CPU:
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

4 x SATA3 6.0 Gb/s Connectors

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

*Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks

M.2 Storage Type Support NVMe
M.2 Slot 3
USB 1 x USB 3.2 Gen1 Type-C (Rear)
5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
6 x USB 2.0 (2 Rear, 4 Front)

*All USB ports support ESD Protection

Internal I/O Connectors 1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)*
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector
1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
*CPU_FAN1 supports the fan power up to 1A (12W).

**CPU_FAN2/WP supports the fan power up to 2A (24W).
***CHA_FAN1~4/WP support the fan power up to 2A (24W).
CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

Back Panel Connectors 2 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C Port
3 x USB 3.2 Gen1 Type-A Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone
LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Phantom Gaming LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control
Wireless Data Network None
Form Factor Micro ATX
H/W Monitoring N/A
BIOS 128Mb AMI UEFI Legal BIOS with GUI support
Special Features Superb Productivity
PCIe Gen5 (Graphics)
Dual Channel DDR5

Rock-Solid Durability
7+1+1 Power Phase, 50A Dr.MOS for VCore+GT

Ultrafast Connectivity
2.5G LAN EZ Update
ASRock Auto Driver Installer

EZ Troubleshooter
ASRock Post Status Checker

Software Features Software
ASRock Motherboard Utility (Phantom Gaming Tuning)
ASRock Phantom Gaming LAN Software*

UEFI
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Auto Driver Installer
ASRock Instant Flash
ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.

Operating System Support Microsoft® Windows® 10 64-bit / 11 64-bit
Package Contents 1 x User Manual
1 x I/O Shield

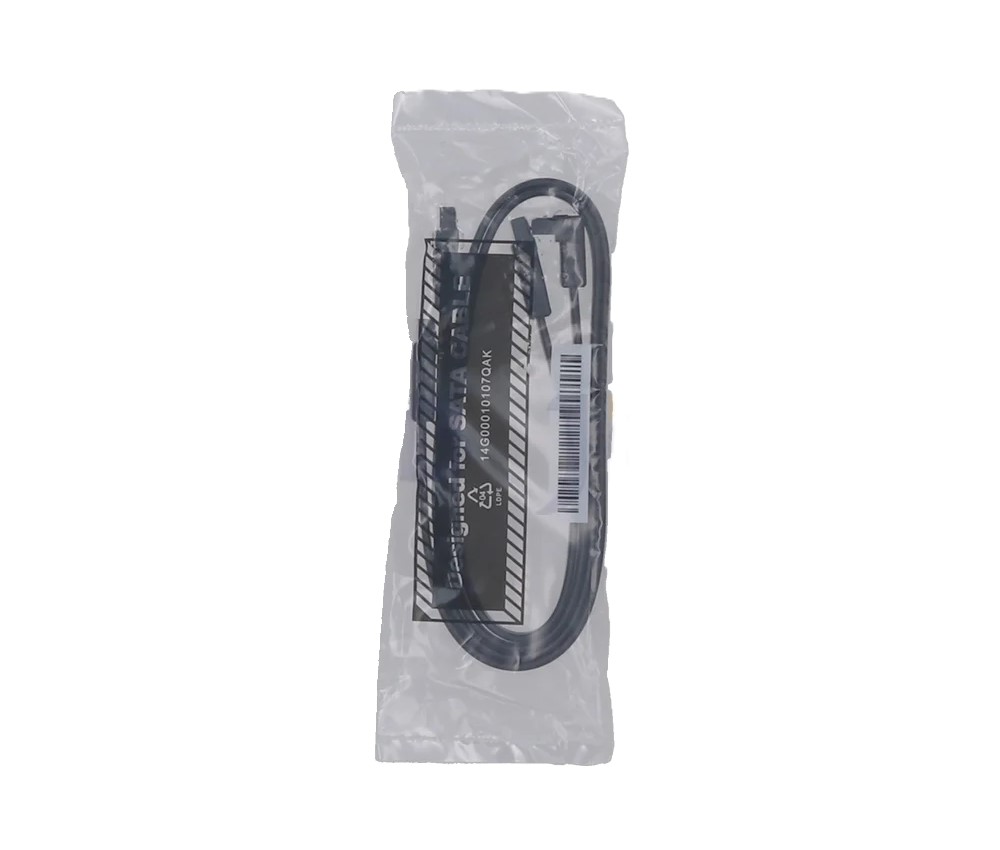

2 x SATA Data Cables
4 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket
RAID
Package Dimension (W x D x H) : 26.00 x 28.00 x 6.00 cm
Gross Weight 1.40 KG
Volume 4,368.00 cm3
