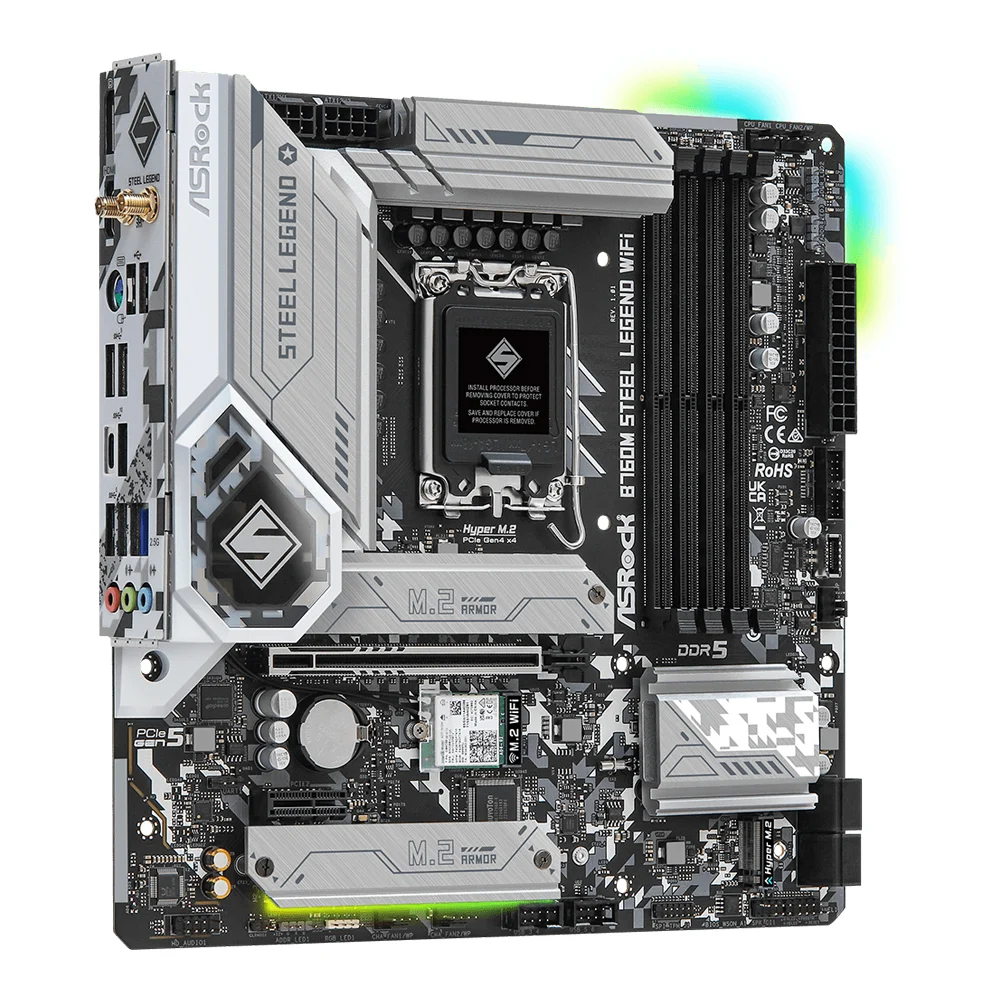

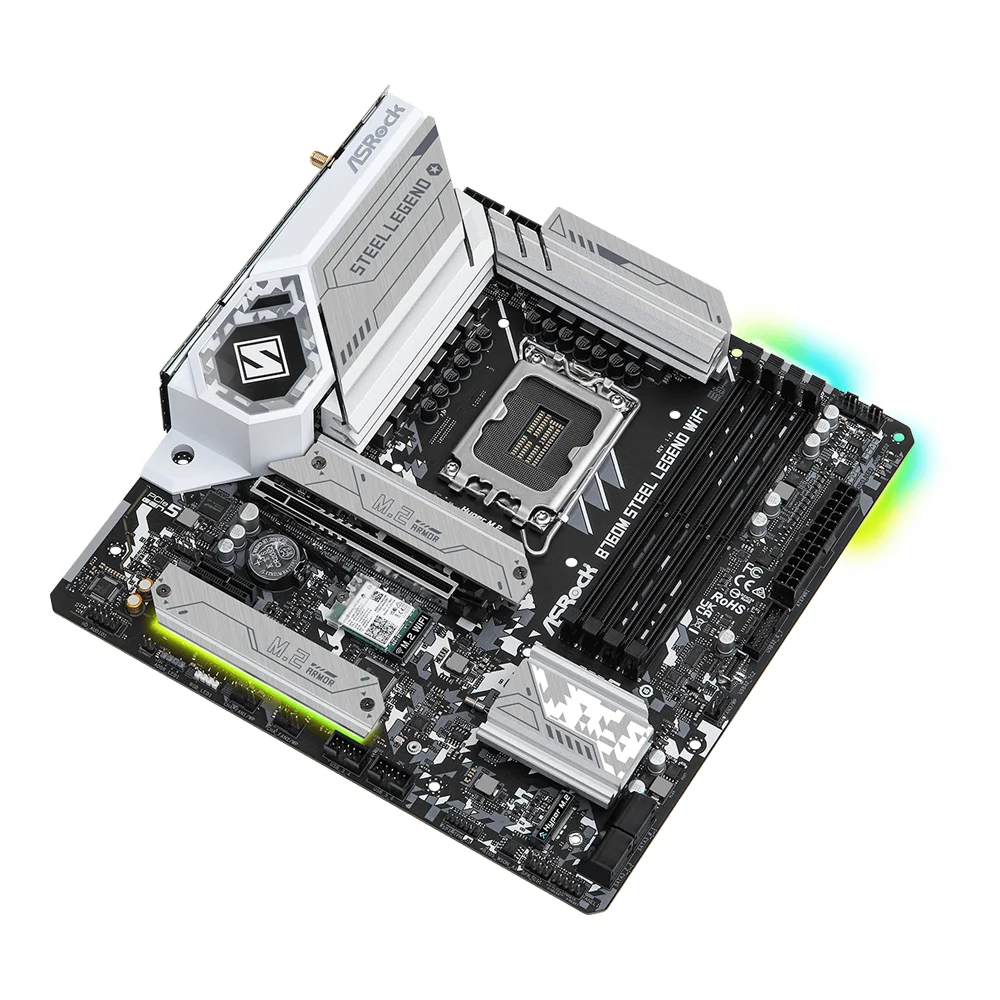

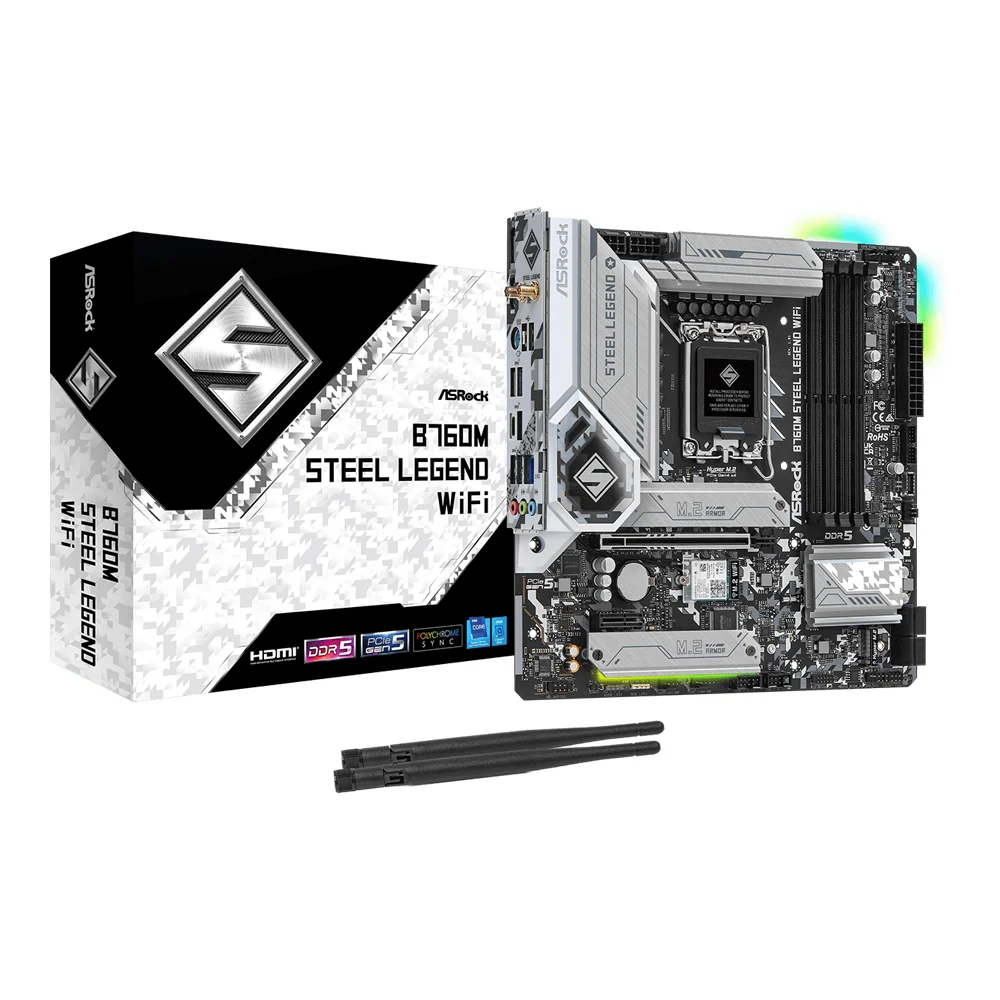

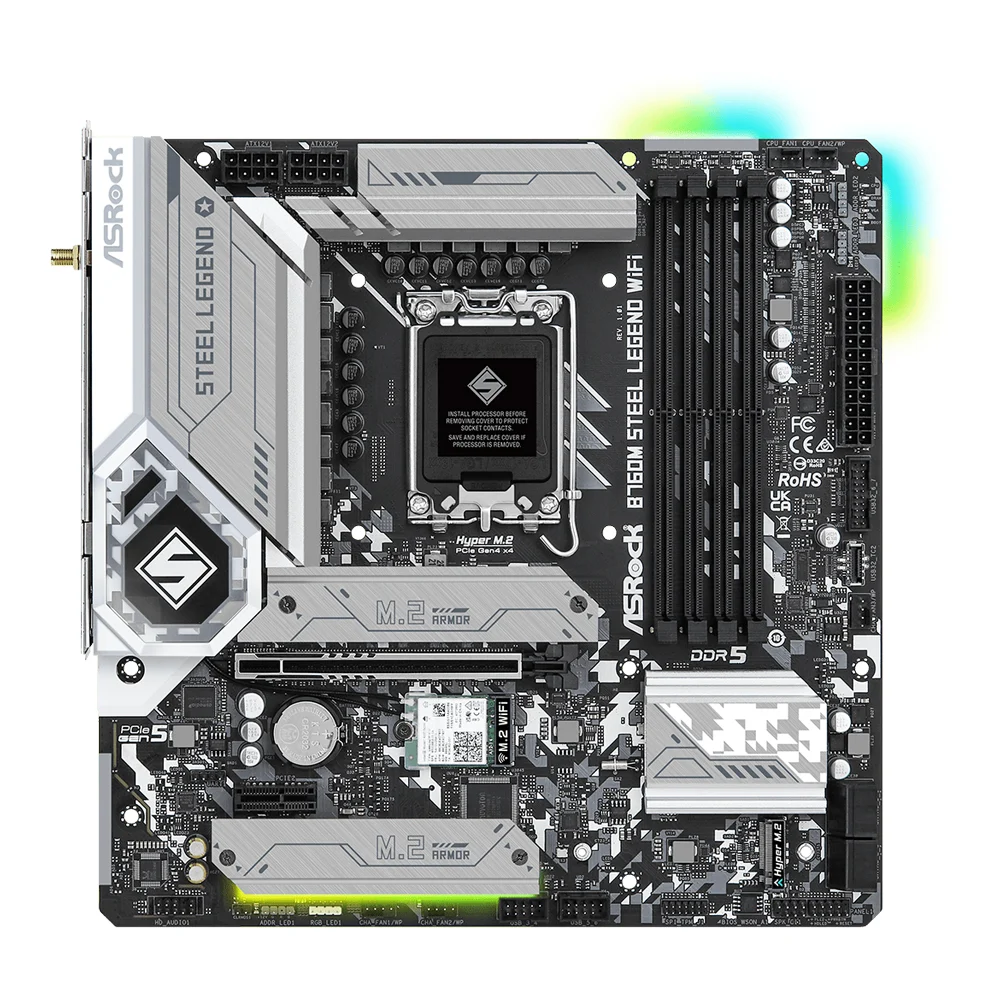

MAINBOARD (1700) ASROCK B760M STEEL LEGEND WIFI DDR5

*1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.
1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.
2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.

_{*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.}

Chipset:
– 1 x PCIe 4.0 x1 Slot (PCIE2)*
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)

_{*Supports NVMe SSD as boot disks}

Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 4 x SATA3 6.0 Gb/s Connectors

_{*Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks}

_{* All USB ports support ESD Protection}

_{*Supports in total up to 12V/3A, 36W LED Strip}

_{**Support in total up to 5V/3A, 15W LED Strip}

_{***CPU_FAN1 supports the fan power up to 1A (12W).}

_{****CPU_FAN2/WP supports the fan power up to 2A (24W).}

_{*****CHA_FAN1~3/WP support the fan power up to 2A (24W).
CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.}

Supports Dragon 2.5G LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User Friendly UI
– Visual Network Usage Statistics
– Optimized Default Setting for Game, Browser, and Streaming Modes
– User Customized Priority Control

_{*Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.}

Rock-Solid Durability
– 12+1+1 Power Phase, 50A Dr.MOS for VCore+GT

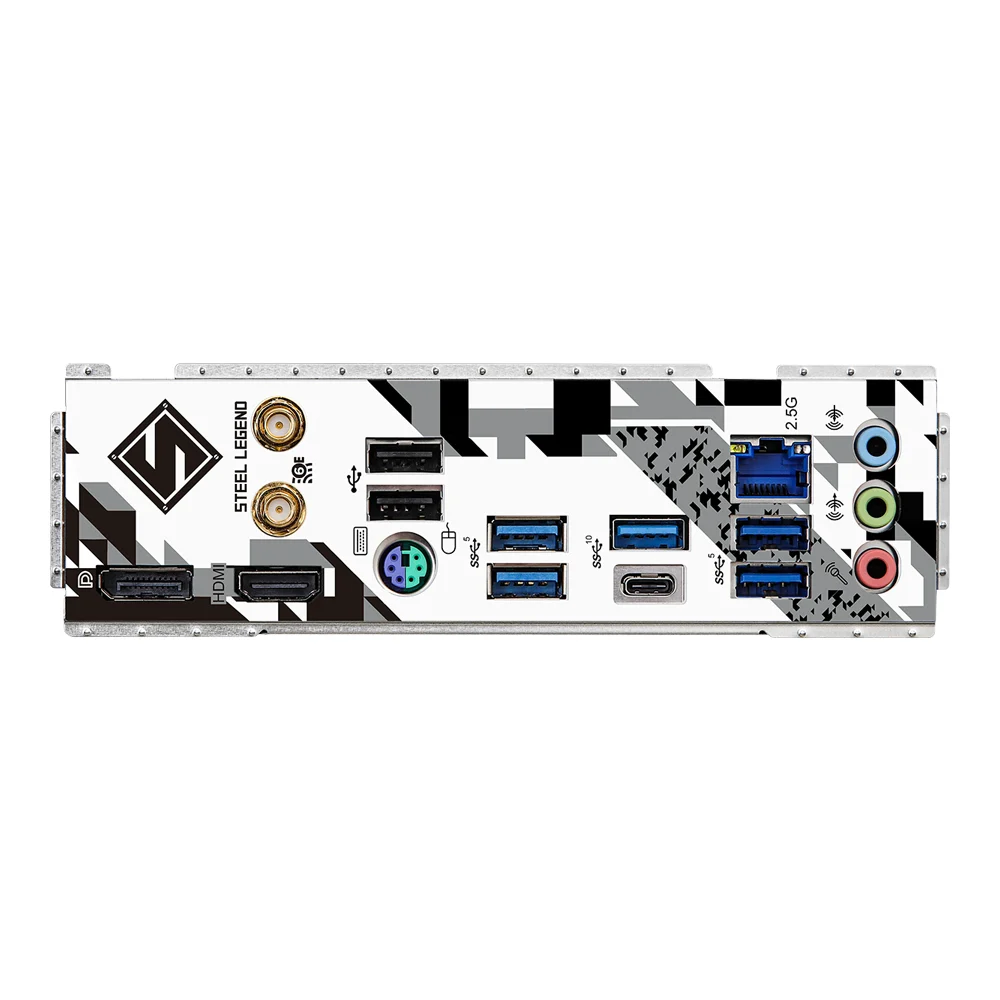

– Flexible Integrated I/O Shield
– Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) for VCore

Ultrafast Connectivity
– 2.5G LAN, 802.11ax Wi-Fi 6E Module

EZ Update
– ASRock Auto Driver Installer

EZ Troubleshooter
– ASRock Post Status Checker

UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash
– ASRock Easy RAID Installer

_{*These utilities can be downloaded from ASRock Live Update & APP Shop.}
