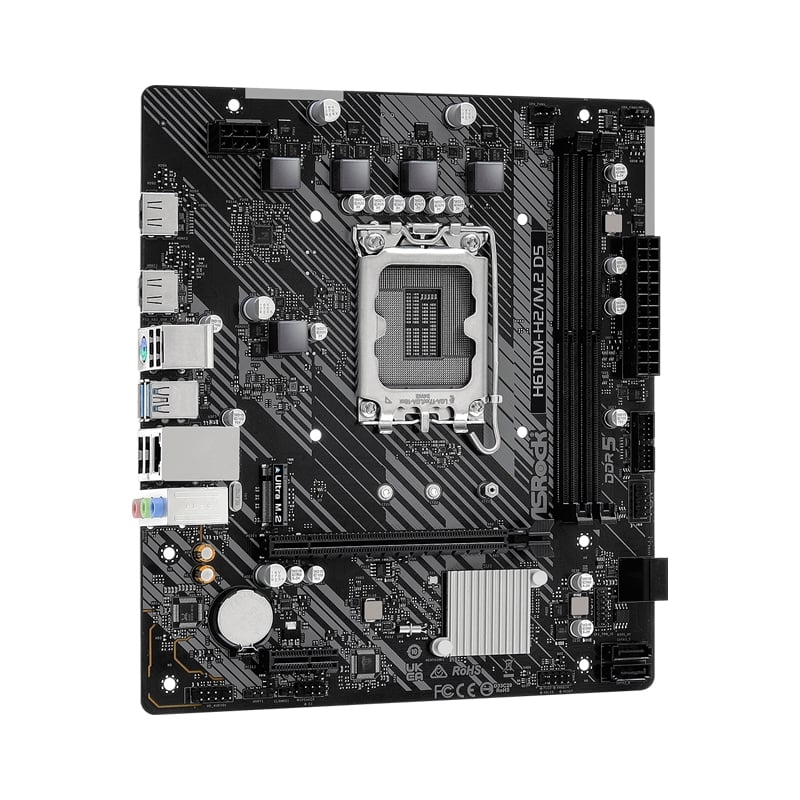

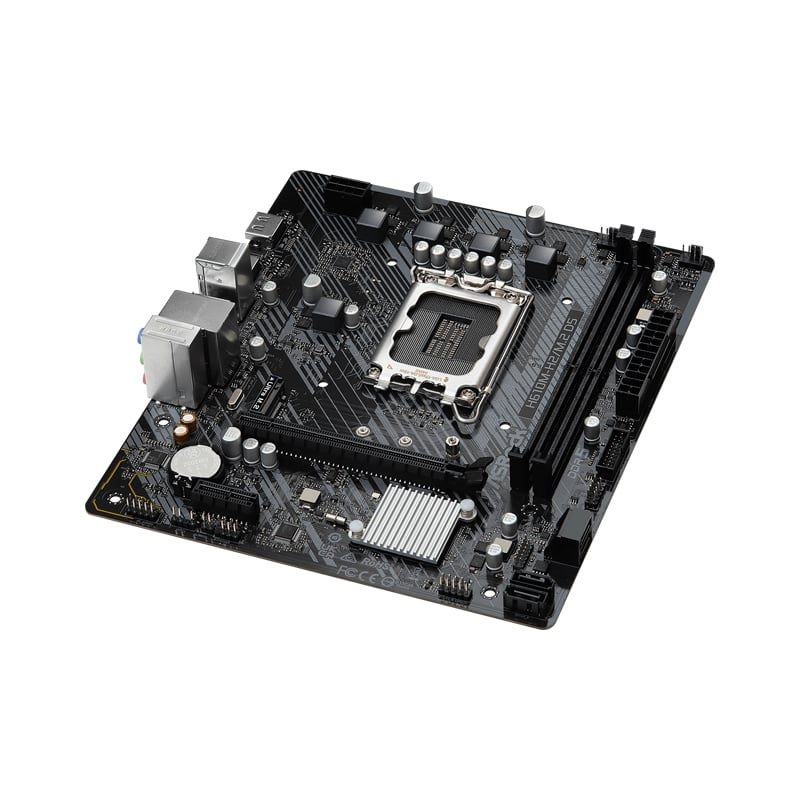

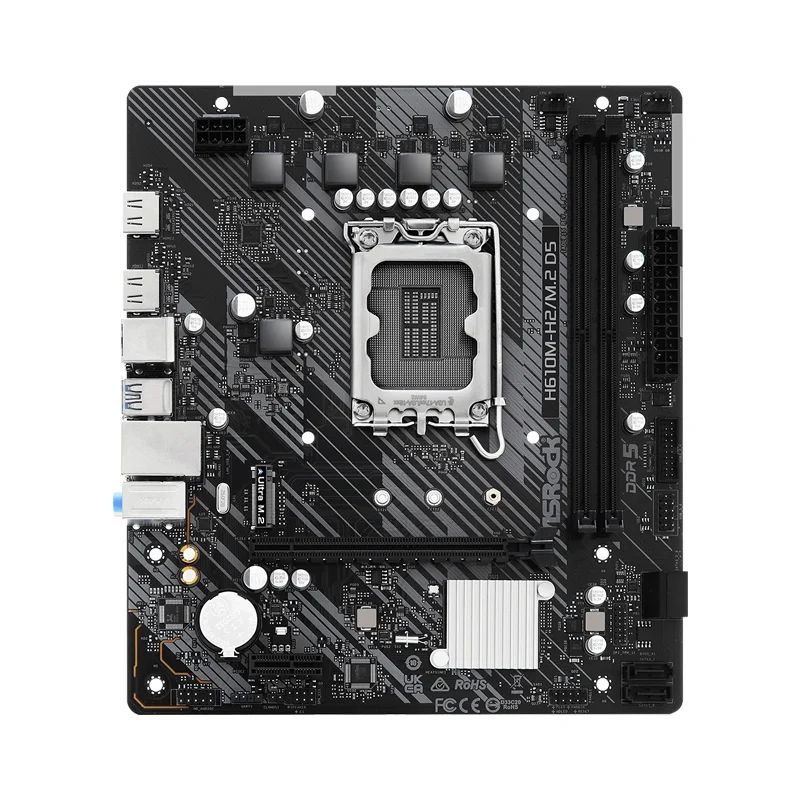

MAINBOARD (1700) ASROCK H610M-H2/M.2 DDR5

฿2,650.00

  • Support CPU : 14th, 13th & 12th Gen Intel Core Processors
  • From Factor : Micro ATX
  • Chipset : Intel H610 Chipset
  • Memory Channel : Dual Channel DDR5 2DIMM
  • Memory Support : up to 6400(O.C.)*
  • Memory MAX : 96GB
  • M.2 Slot : 1 slot
  • SATA III 6G : 4 ports
  • PCIe 4.0×16 : 1 slot
  • Lan Port : 1 Gigabit LAN
  • Graphics Output Options: 2 HDMI
  • Supports Intel Extreme Memory Profile (XMP) 3.0
  • 3+1+1 Phase Power Design
  • Supports ASRock Auto Driver Installer

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: A0155351 หมวดหมู่: ,

คำอธิบาย

Brand ASROCK
Model H610M-H2/M.2(DDR5)
CPU Support Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
Supports Intel® Hybrid Technology
Supports Intel® Turbo Boost Max 3.0 Technology
CPU Brand Intel
Socket 1700
Chipset Intel H610
Memory Support Dual Channel DDR5 Memory Technology
2 x DDR5 DIMM Slots
13th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 5600*
12th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 4800*
Max. capacity of system memory: 96GB
Supports Intel® Extreme Memory Profile (XMP) 3.0

*Actual support may vary by CPU
Maximum Memory Bus 6400
Graphics Intel® Xe Graphics Architecture (Gen 12)
2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Multi Graphic Support None
Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Expansion Slots CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:
– 1 x PCIe 3.0 x1 Slot (PCIE2)*

*Supports NVMe SSD as boot disks
Maximum PCIe Version PCIe 4.0
Storage Chipset:
– 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
– 4 x SATA3 6.0 Gb/s Connectors

*Supports NVMe SSD as boot disks
M.2 Storage Type Support NVMe
M.2 Slot 1
USB 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
6 x USB 2.0 (4 Rear, 2 Front)
1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

*All USB ports support ESD Protection
Internal I/O Connectors 1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)*
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

*CPU_FAN1 supports the fan power up to 1A (12W).

**CHA_FAN1/WP supports the fan power up to 2A (24W).
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in us

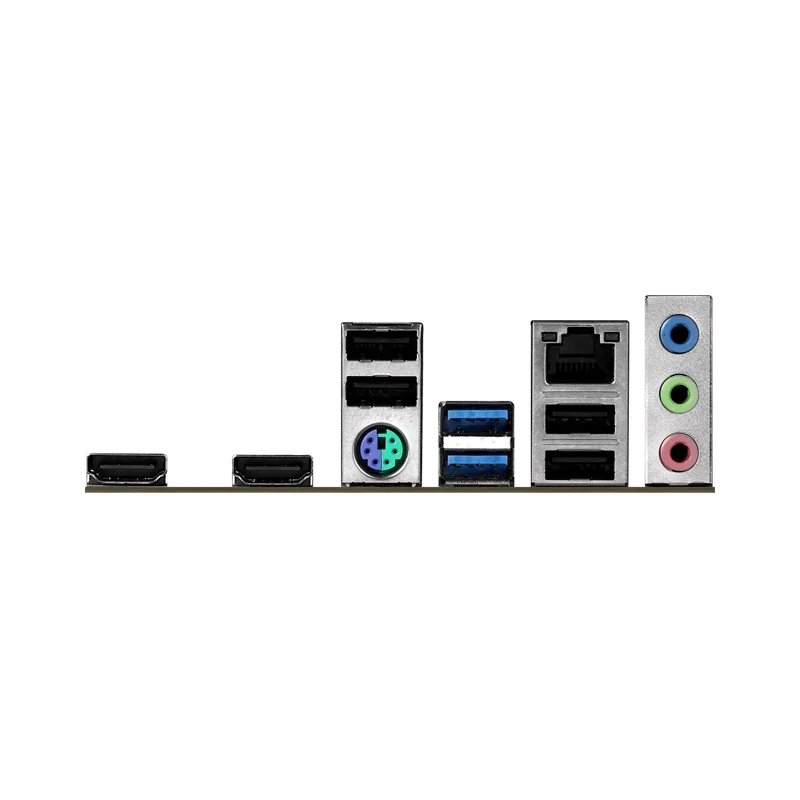

Back Panel Connectors 1 x PS/2 Mouse/Keyboard Port
2 x HDMI Ports
2 x USB 3.2 Gen1 Type-A Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone
LAN Gigabit LAN 10/100/1000 Mb/s
Realtek 8111H
Wireless Data Network None
Form Factor Micro ATX
H/W Monitoring N/A
BIOS 128Mb AMI UEFI Legal BIOS with GUI support
Special Features Superb Productivity
– Dual Channel DDR5

Rock-Solid Durability
– 3+1+1 Power Phase

EZ Update
– ASRock Auto Driver Installer
Software Features Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock XFast LAN

UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.
Operating System Support Microsoft® Windows® 10 64-bit / 11 64-bit

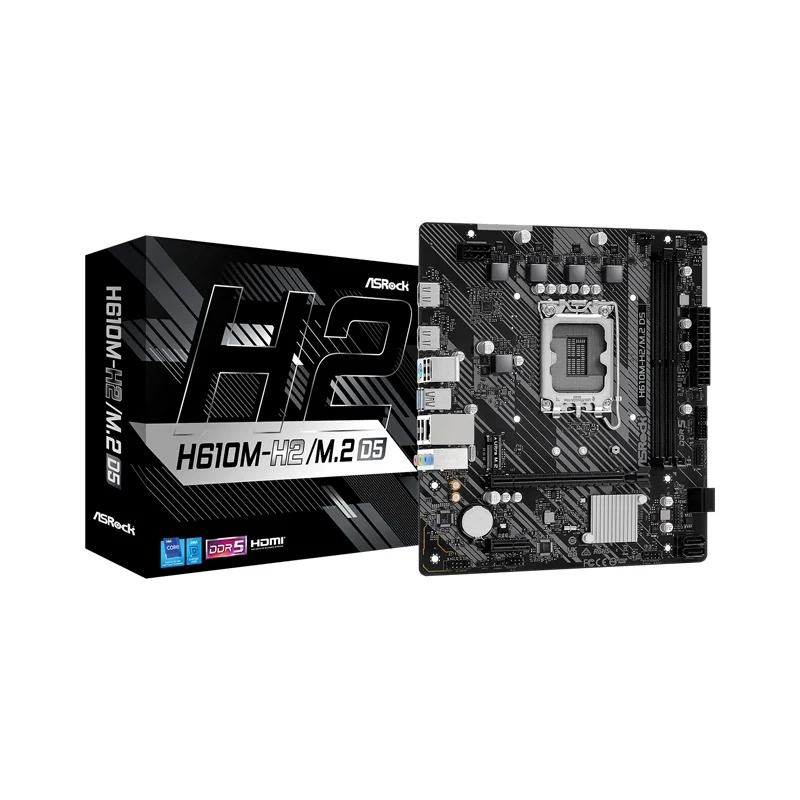

Package Contents 1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 Socket
Package Dimension (W x D x H) : 27.50 x 24.00 x 5.50 cm
Gross Weight 0.68 KG
Volume 3,630.00 cm3
