คำอธิบาย
| Brand | ASROCK |

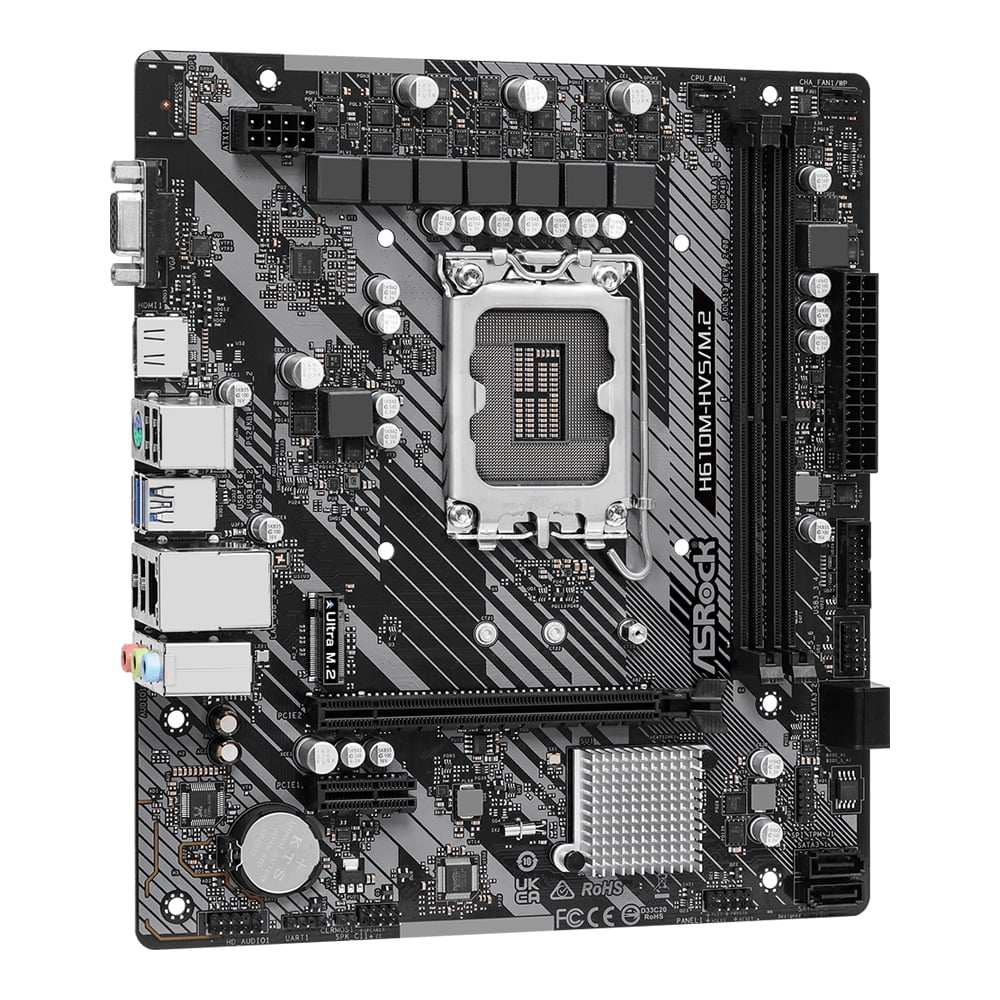

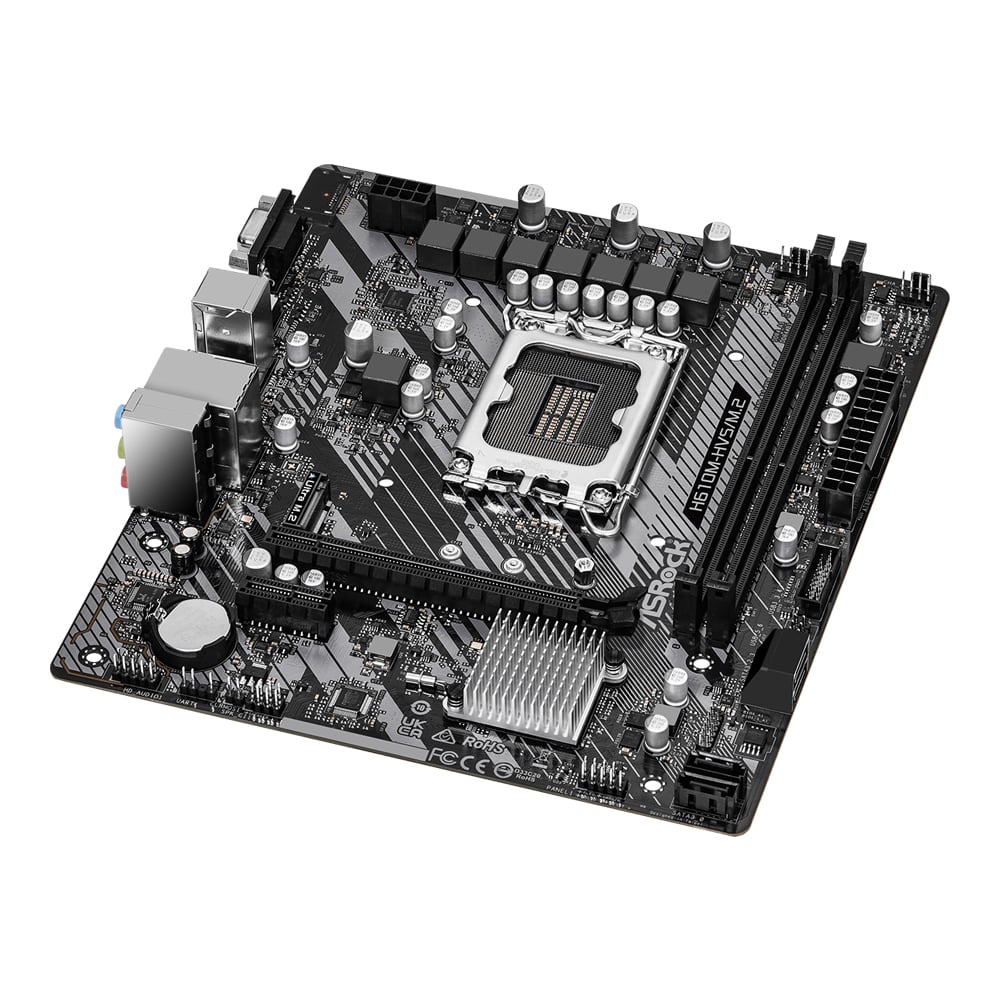

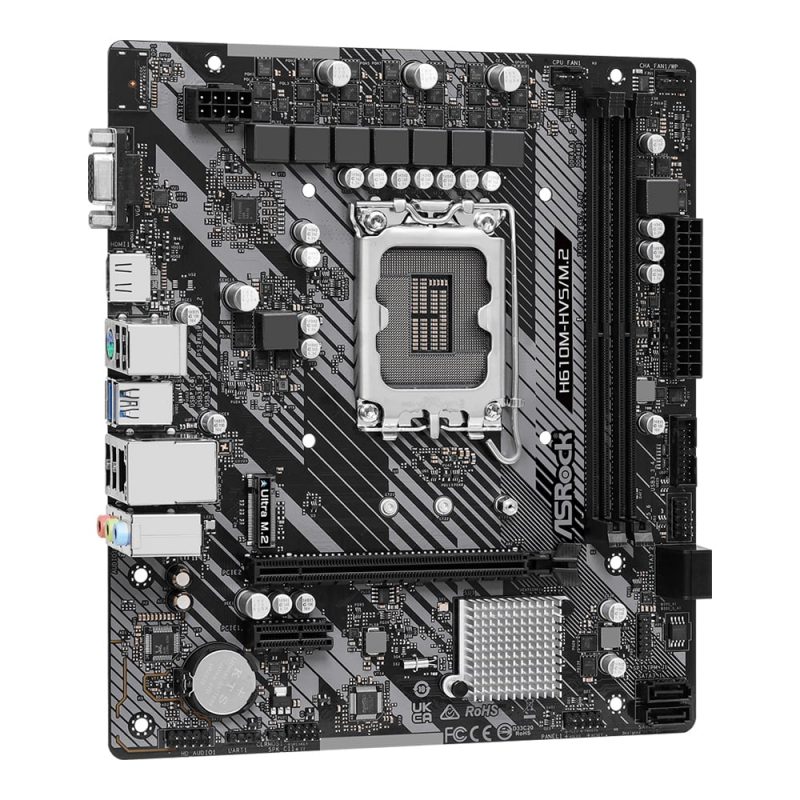

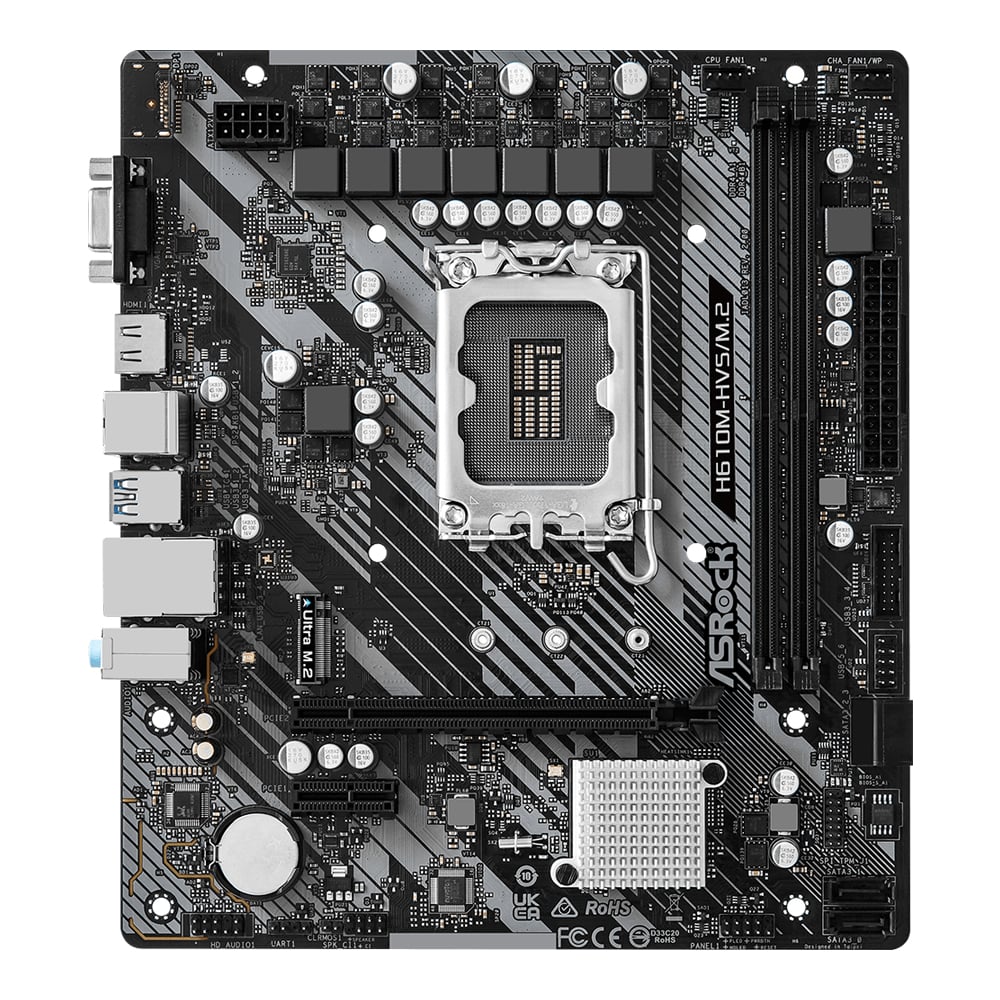

| Model | H610M-HVS/M.2 R2.0 |
| CPU Support | Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) 6+1+1 Power Phase design Supports Intel® Hybrid Technology Supports Intel® Turbo Boost Max 3.0 Technology |
| CPU Brand | Intel |
| Socket | 1700 |
| Chipset | Intel H610 |
| Memory Support | Dual Channel DDR4 Memory Technology 2 x DDR4 DIMM Slots Supports DDR4 non-ECC, un-buffered memory up to 3200 Supports ECC UDIMM memory modules (operate in non-ECC mode) Max. capacity of system memory: 64GB Supports Intel® Extreme Memory Profile (XMP) 2.0 |
| Maximum Memory Bus | 3200 MHz |
| Graphics | Intel® Xe Graphics Architecture (Gen 12) Dual graphics output: support HDMI and D-Sub ports by independent display controllers Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60Hz Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. |
| Multi Graphic Support | Dual graphics output : support HDMI and D-Sub ports by independent display controllers |
| Audio | 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec) Supports Surge Protection |
| Expansion Slots | CPU: 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode* Chipset: *Supports NVMe SSD as boot disks |
| Maximum PCIe Version | PCIe 4.0 |
| Storage | Chipset: 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode* 4 x SATA3 6.0 Gb/s Connectors *Supports NVMe SSD as boot disks |
| M.2 Storage Type Support | NVMe |
| M.2 Slot | 1 |
| USB | 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) 4 x USB 2.0 Ports (Supports ESD Protection) 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Internal I/O Connectors | 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. |
| Back Panel Connectors | 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x HDMI Port 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) 4 x USB 2.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
| LAN | PCIE x1 Gigabit LAN 10/100/1000 Mb/s 1 x Realtek RTL8111H Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE |
| Wireless Data Network | None |
| Form Factor | Micro ATX |
| H/W Monitoring | Fan Tachometer : CPU, Chassis/Water Pump Fans Quiet Fan (Auto adjust chassis fan speed by CPU temperature) : CPU, Chassis/Water Pump Fans Fan Multi-Speed Control : CPU, Chassis/Water Pump Fans CASE OPEN detection Voltage monitoring : CPU Vcore, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, VCCSA, +1.05V PROC, +12V, +5V, +3.3V |
| BIOS | N/A |
| Special Features | ASRock Super Alloy – Premium Power Choke – Sapphire Black PCB – High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3x4) |
| Software Features | Software ASRock Motherboard Utility (A-Tuning) ASRock XFast LAN UEFI |
| Operating System Support | Microsoft Windows 10 64-bit / 11 64-bit |
| Package Contents | Quick Installation Guide, Support CD, I/O Shield 2 x SATA Data Cables 1 x Screw for M.2 Socket |
| Package Dimension | (W x D x H) : 24.00 x 28.00 x 5.50 cm |
| Gross Weight | 0.80 KG |
| Volume | 3,696.00 cm3 |
