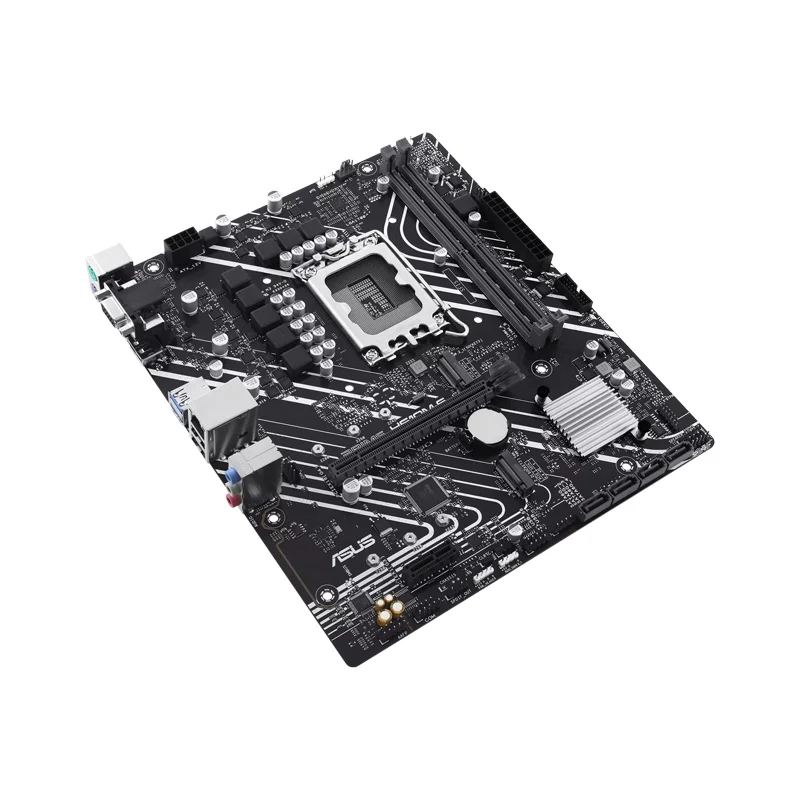

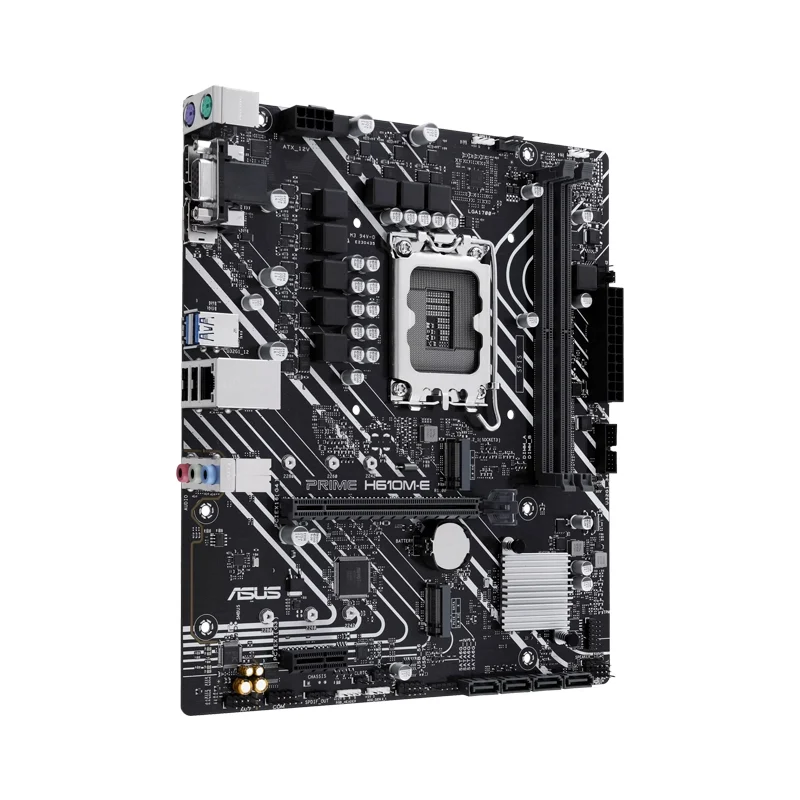

MAINBOARD (1700) ASUS H610M-E DDR5

฿3,190.00

  • Support CPU : 14th/13th/12th Gen Intel Core Processors Pentium Gold and Celeron Processors
  • From Factor : Micro ATX
  • Chipset : Intel H610 Chipset
  • Memory Channel : Dual Channel DDR5 2DIMM
  • Memory Support : up to 5600
  • Memory MAX : 96GB
  • M.2 Slot : 2 slots
  • SATA III 6G : 4 ports
  • PCIe 4.0×16 : 1 slot
  • Lan Port : 1 Gigabit LAN
  • Comprehensive cooling : PCH heatsink and Fan Xpert 2+
  • Ultrafast Connectivity : 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
  • Aura Sync RGB Lighting : Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: A0155434 หมวดหมู่: ,

คำอธิบาย

Brand ASUS
Model H610M-E (DDR5)
CPU Support Intel® Socket LGA1700 for 14th / 13th / 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
CPU Brand Intel
Socket 1700
Chipset Intel H610
Memory Support 2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

* Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Bus 5600
Graphics 1 x DisplayPort**
1 x VGA port
1 x HDMITM port***

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMITM2.1.
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback

Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Realtek 7.1 Surround Sound High Definition Audio CODEC*

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback

Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots Intel® 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot

Intel® H610 Chipset
1 x PCIe 3.0 x1 slot
Maximum PCIe Version PCIe 4.0
Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® H610 Chipset
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)

4 x SATA 6Gb/s ports
M.2 Storage Type Support NVMe
M.2 Slot 2
USB Rear USB (Total 4 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 5 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
Internal I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 1(5G)  header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports

Miscellaneous
1 x Aura RGB header
3 x Addressable Gen 2  headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x COM Port header
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

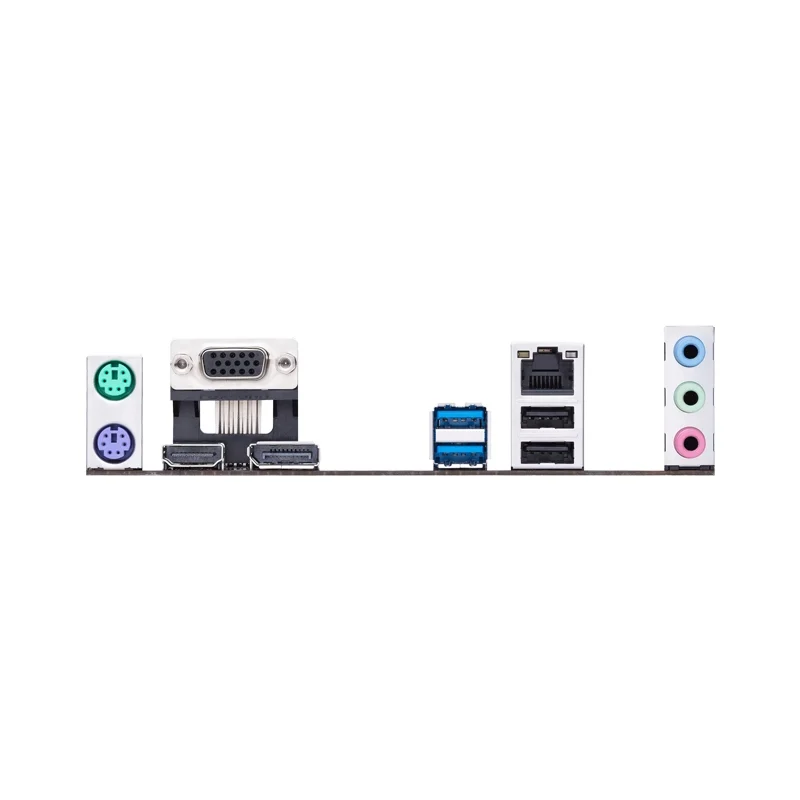

Back Panel Connectors 2 x USB 3.2 Gen 1(5G)  ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMITM port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
LAN 1 x Realtek 1Gb Ethernet
Wireless Data Network None
Form Factor Micro ATX
H/W Monitoring N/A
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Special Features ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core
– Stainless-Steel Back I/O

ASUS Q-Design
– Q-DIMM
– Q-Slot
– Q-LED Core

ASUS Thermal Solution
– Aluminum heatsink design

Aura Sync
– Aura RGB header
– Addressable Gen 2 RGB headers
Software Features ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 2+
– Two-Way AI Noise Cancellation

AI Suite 3
– Performance And Power Saving Utility

EPU
DIGI+ VRM
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS

ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
Operating System Support Windows® 11 64-bit, Windows® 10 64-bit
Package Contents 2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 SSD screw package
1 x User guide
Package Dimension (W x D x H) : 26.00 x 27.50 x 5.00 cm
Gross Weight 0.80 KG
Volume 3,575.00 cm3
