คำอธิบาย
Brand | ASUS |

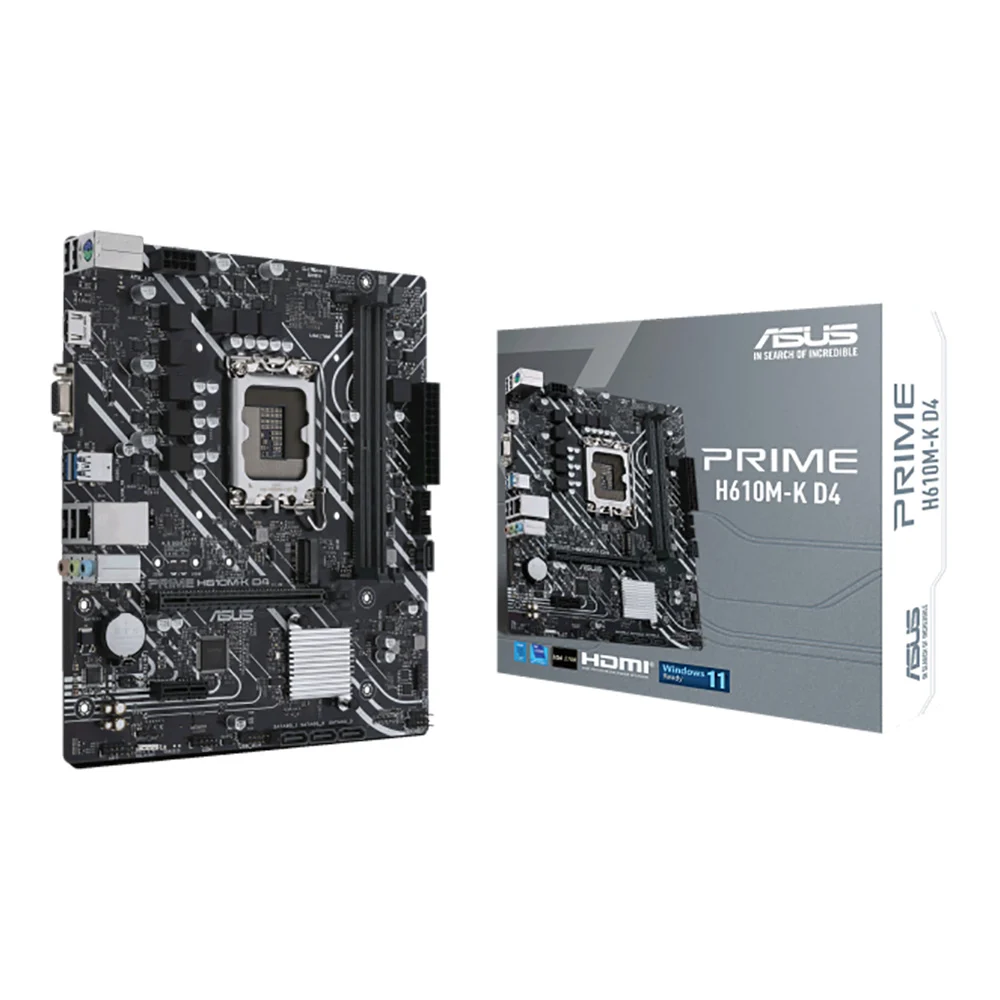

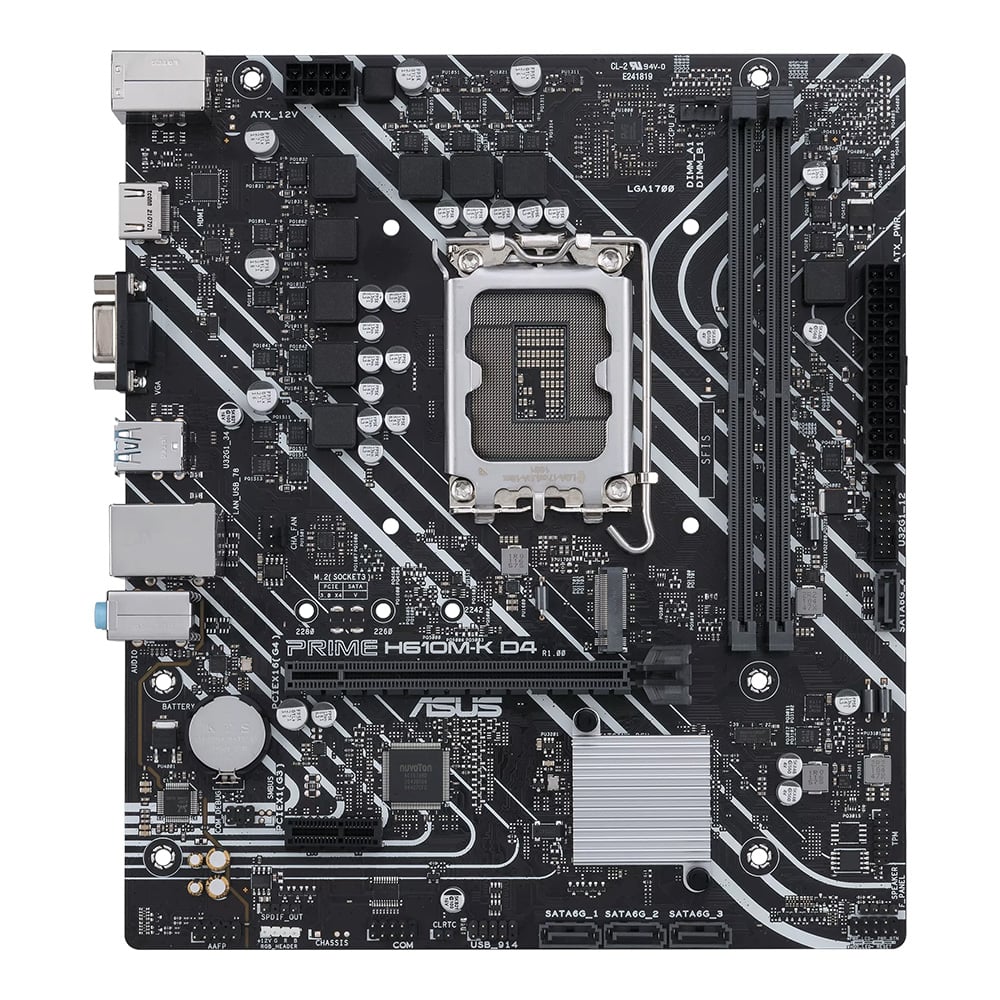

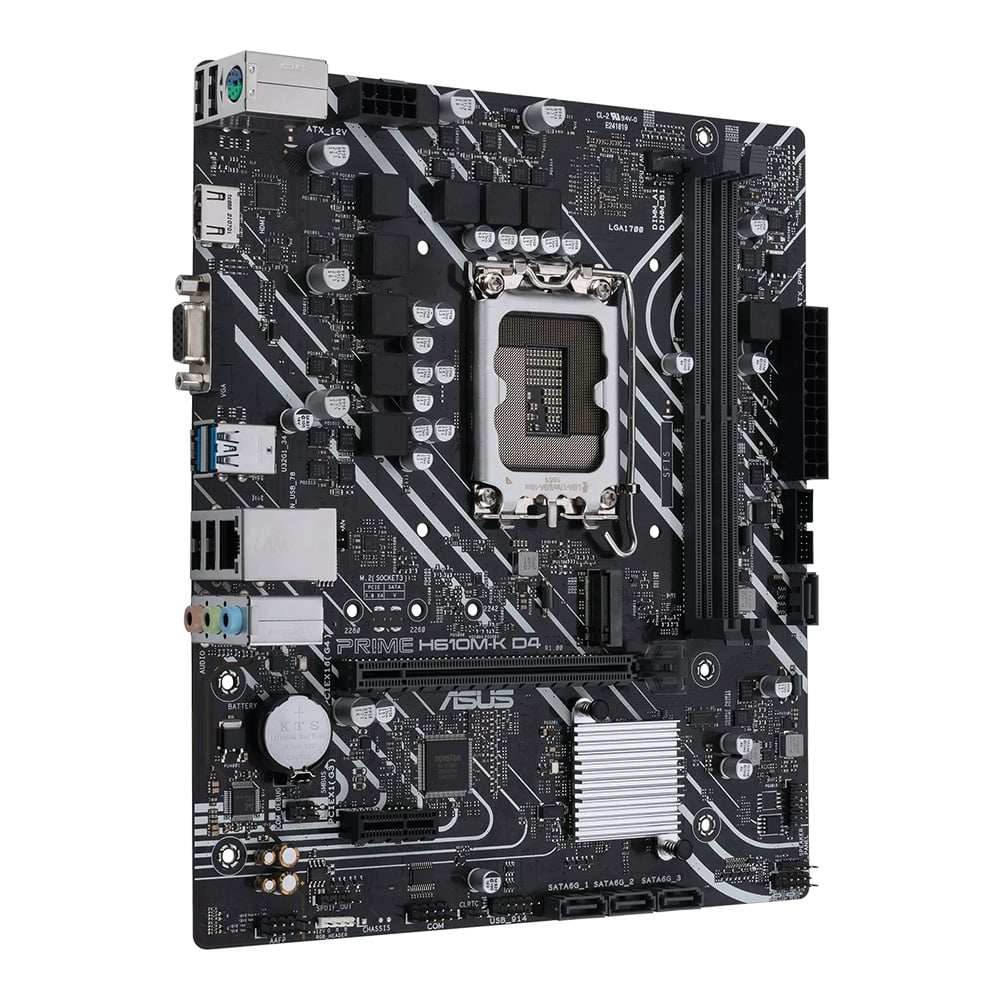

Model | PRIME H610M-K D4 |
CPU Support | Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. |
CPU Brand | Intel |
Socket | 1700 |
Chipset | Intel H610 |
Memory Support | 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. |
Maximum Memory Bus | 3200 |
Graphics | 1 x D-Sub port 1 x HDMI® port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. |
Multi Graphic Support | None |
Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
Expansion Slots | Intel® 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel® H610 Chipset |
Maximum PCIe Version | PCIe 4.0 |
Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel® H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used. |
M.2 Storage Type Support | NVMe |
M.2 Slot | 1 |
USB | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 4 ports) |
Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related Storage related USB Miscellaneous |

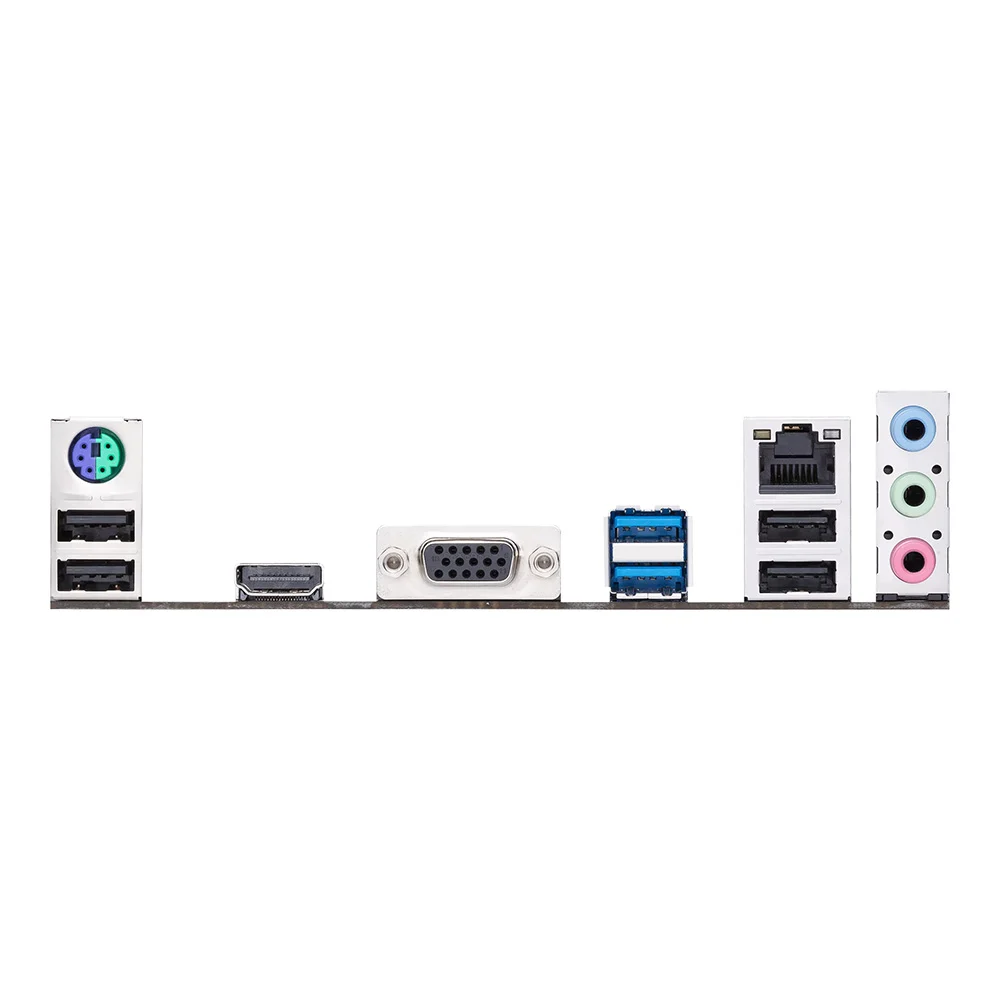

Back Panel Connectors | 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x D-Sub port 1 x HDMI® port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
LAN | 1 x Realtek 1Gb Ethernet |
Wireless Data Network | None |
Form Factor | Micro ATX |
H/W Monitoring | N/A |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
Special Features | ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core – Stainless-Steel Back I/O ASUS Q-Design ASUS Thermal Solution ASUS Lighting Control |
Software Features | ASUS Exclusive Software Armoury Crate AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS |
Operating System Support | Windows 11 64-bit, Windows 10 64-bit |

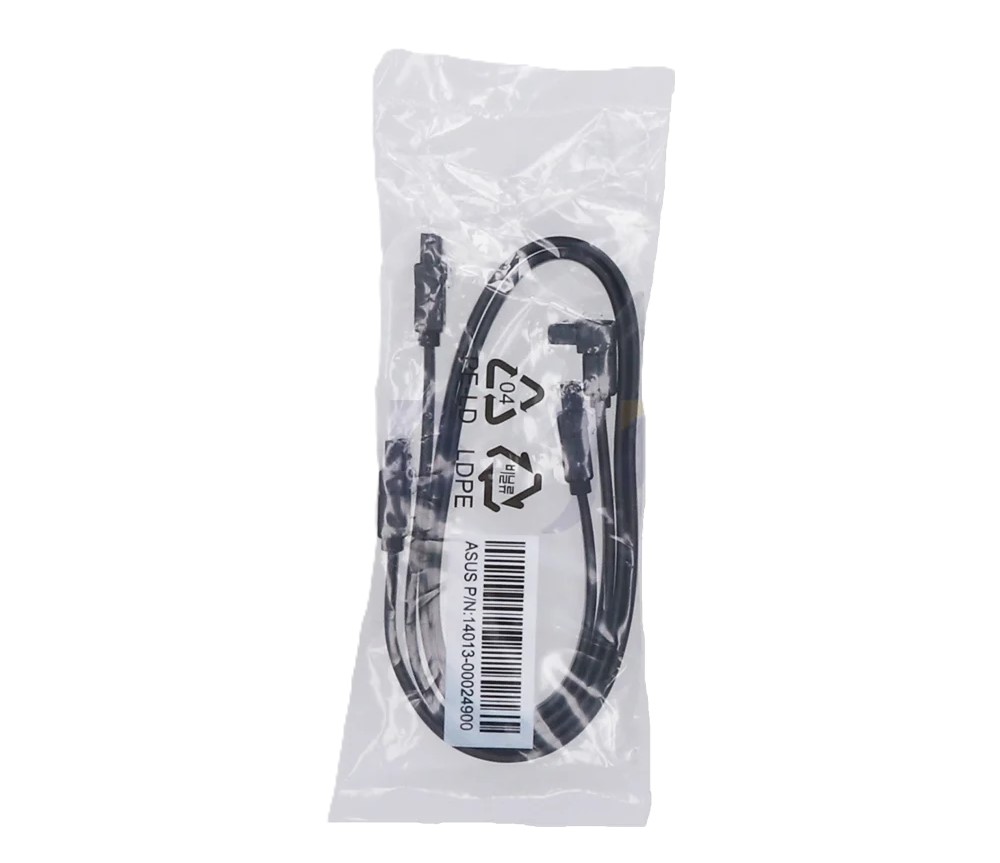

Package Contents | 2 x SATA 6Gb/s cables 1 x I/O Shield 1 x M.2 ANCHOR 1 x Support DVD 1 x User Guide |
Dimension | (W x D x H) : 20.30 x 23.40 x 3.70 cm |
Net Weight | 0.47 KG |
Package Dimension | (W x D x H) : 26.40 x 26.90 x 5.20 cm |
Gross Weight | 0.85 KG |
Volume | 3,692.83 cm3 |
