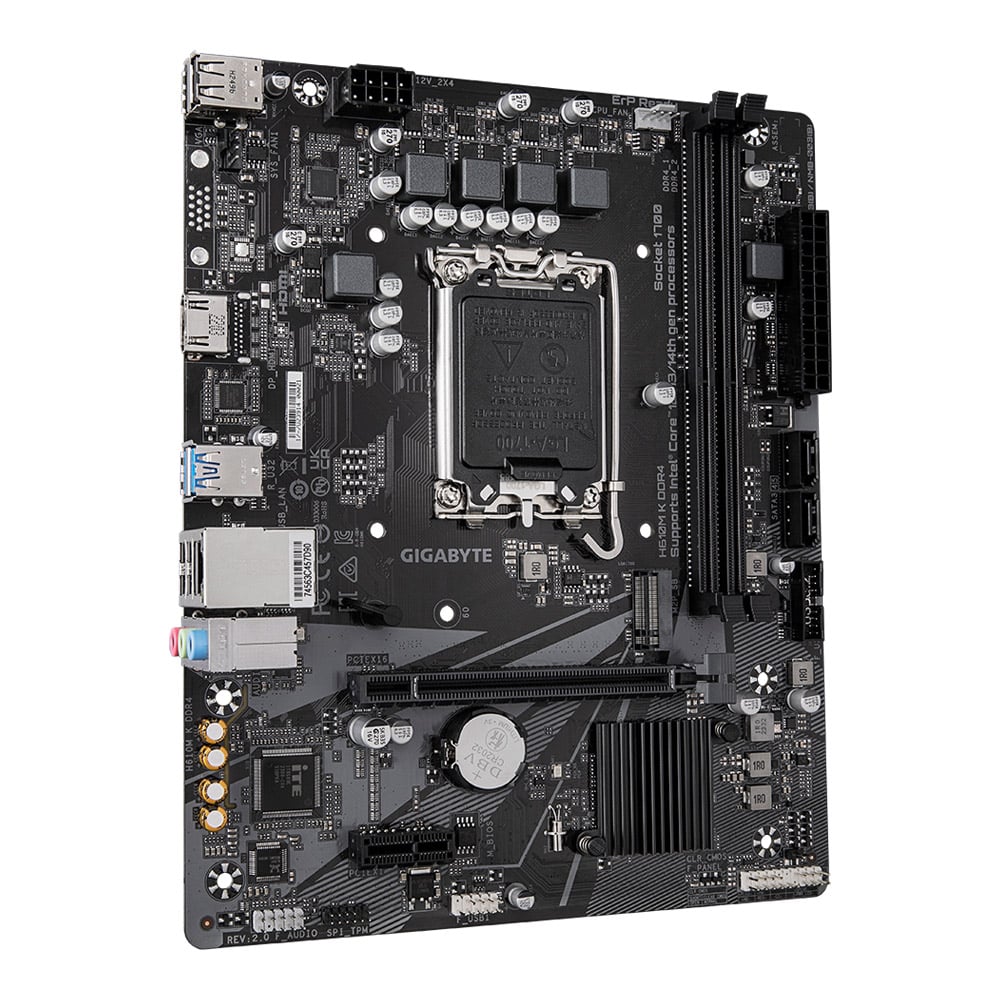

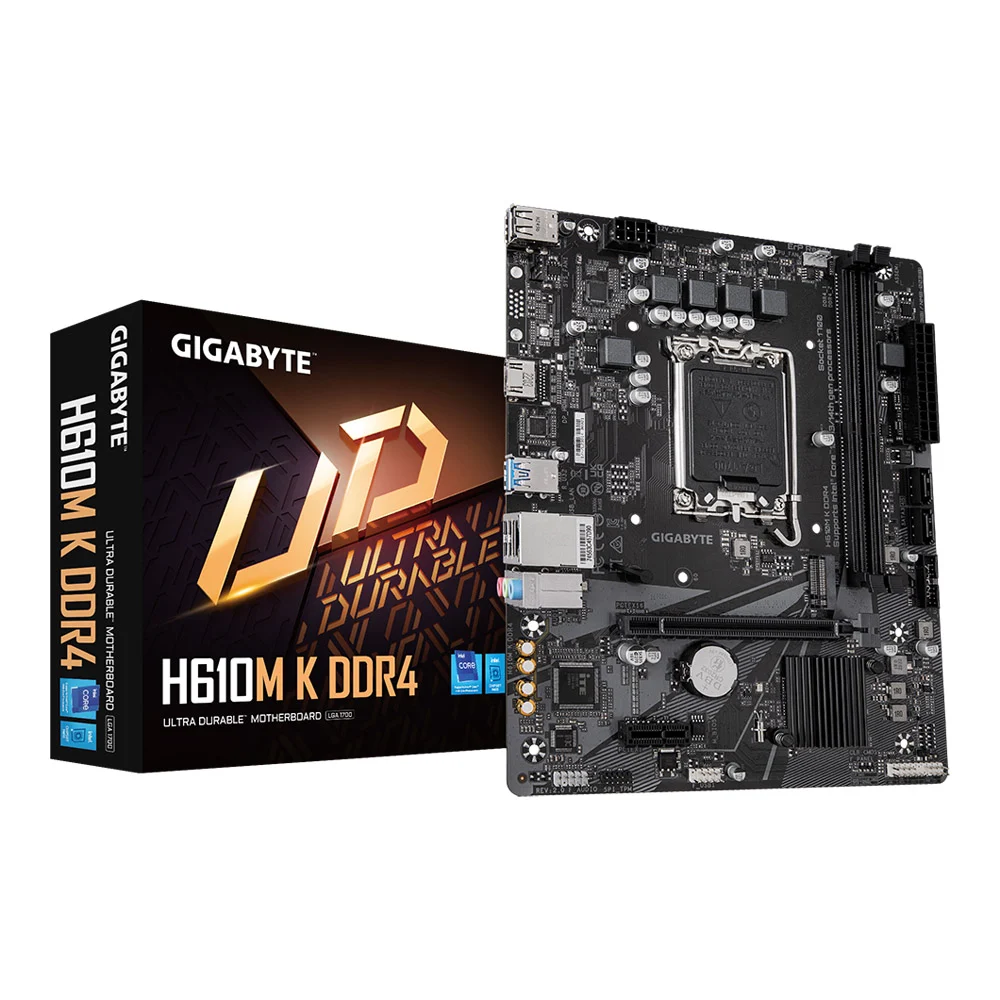

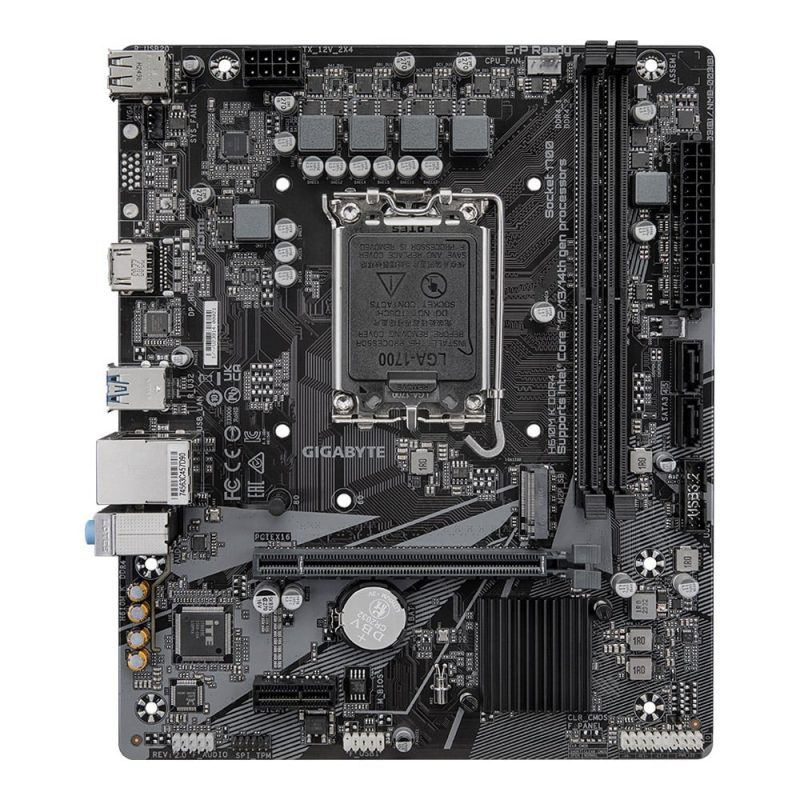

MAINBOARD (1700) GIGABYTE H610M K DDR4 (REV. 2.0)

฿2,290.00

  • Support CPU : 14th /13th /12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
  • From Factor : Micro ATX
  • Chipset : Intel H610 Chipset
  • Memory Channel : Dual Channel DDR4 2DIMM
  • Memory Support : up to 3200
  • Memory MAX : 64GB
  • M.2 Slot : 1 slot
  • SATA III 6G : 2 ports
  • PCIe 4.0×16 : 1 slot
  • Lan Port : 1 Gigabit LAN
  • High Quality Audio Capacitors and Audio Noise Guard
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: A0157330 หมวดหมู่: ,

คำอธิบาย

Brand GIGABYTE
Model H610M K Rev2.0 (DDR4)
CPU Support LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU

* Please refer to “CPU Support List” for more information.
CPU Brand Intel
Socket 1700
Chipset Intel H610
Memory Support
  1. Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
  2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
Maximum Memory Bus 3200
Graphics Integrated Graphics Processor-Intel® HD Graphics support:

1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)
Multi Graphic Support N/A
Audio Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Expansion Slots CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Maximum PCIe Version PCIe 4.0
Storage Chipset:
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
2 x SATA 6Gb/s connectors
M.2 Storage Type Support NVMe
M.2 Slot 1
USB 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)/li>
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)/li>
Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x Clear CMOS jumper

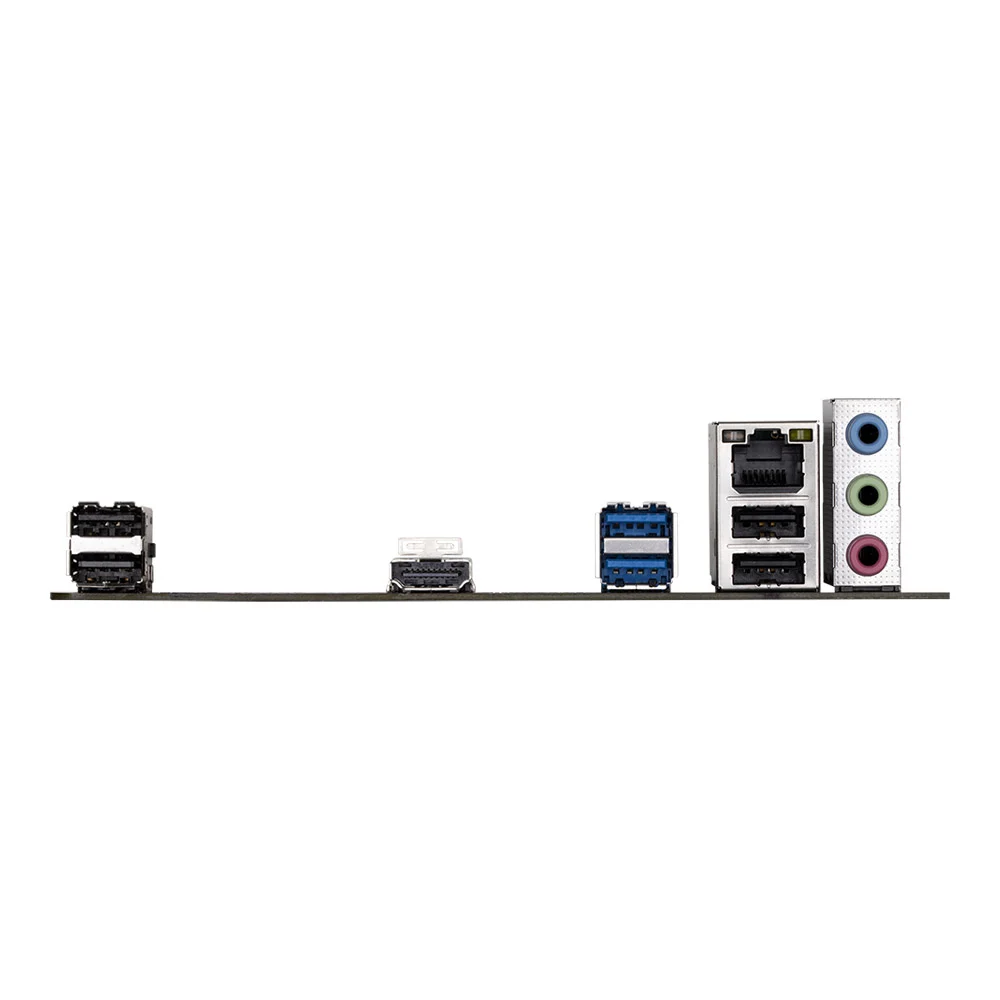

Back Panel Connectors 1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
LAN Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Wireless Data Network None
Form Factor Micro ATX
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control

* Whether the fan speed control function is supported will depend on the fan you install
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Special Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash
Software Features Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System Support Support for Windows 11 64-bit
Support for Windows 10 64-bit
Package Contents N/A
Package Dimension (W x D x H) : 23.50 x 27.00 x 5.00 cm
Gross Weight 0.60 KG
Volume 3,172.50 cm3
