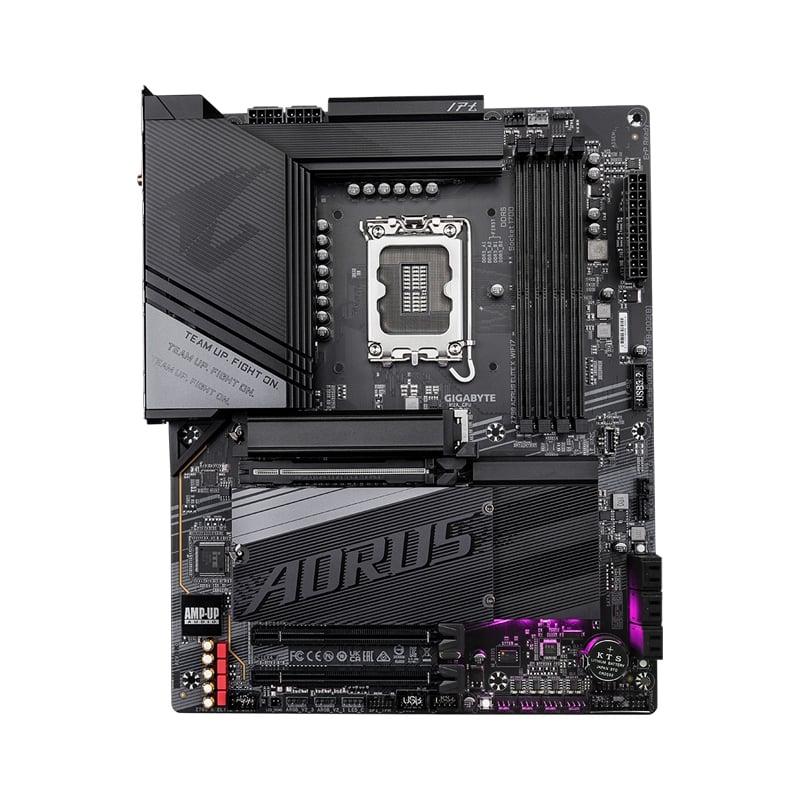

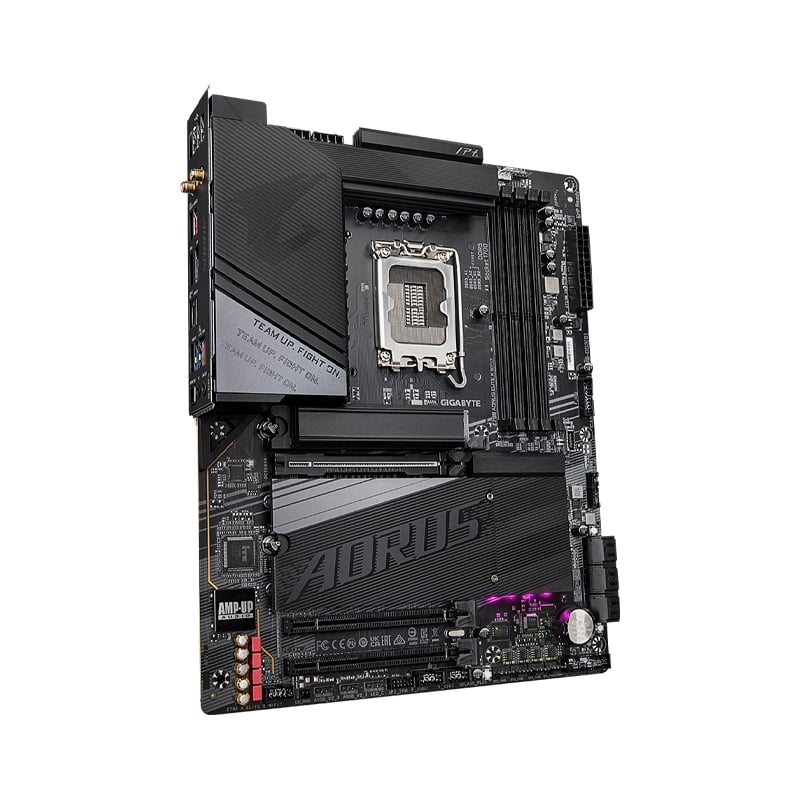

MAINBOARD (1700) GIGABYTE Z790 AORUS ELITE X WIFI7 DDR5 (REV. 1.2)

฿10,350.00

  • Support CPU : 14th /13th /12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
  • From Factor : ATX
  • Chipset : Intel Z790 Chipset
  • Memory Channel : Dual Channel DDR5 4DIMM
  • Memory Support : up to 8266(O.C.)
  • Memory MAX : 192GB
  • M.2 Slot : 4 slots
  • SATA III 6G : 6 ports
  • PCIe 5.0×16 : 1 slot
  • Lan Port : 2.5 Gigabit LAN
  • Wireless : Wi-Fi 7
  • Digital twin 16+1+2 phases VRM solution
  • Dual Channel DDR5 : 4*DIMMs with XMP 3.0 memory module support
  • Efficient Overall Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
  • Precision Audio : ALC1220 & Audiophile Grade Capacitors

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

สินค้าหมดแล้ว

รหัสสินค้า: A0155978 หมวดหมู่: ,

คำอธิบาย

Brand GIGABYTE
Model Z790 AORUS ELITE X WIFI7 DDR5 (REV 1.2)
CPU Support LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
L3 cache varies with CPU

* Please refer to “CPU Support List” for more information.
CPU Brand Intel
Socket 1700
Chipset Intel Z790
Memory Support – Support for DDR5
8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules

– 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
– Dual channel memory architecture
– Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
– Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
– Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)
Maximum Memory Bus 8266
Graphics Integrated Graphics Processor-Intel® HD Graphics support:
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.

– 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)
Multi Graphic Support N/A
Audio Realtek® ALC1220-VB CODEC
* The back panel line out jack supports DSD audio.

High Definition Audio 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure

7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Expansion Slots CPU:
– 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed,be sure to install it in the PCIEX16 slot.

Chipset:
– 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/PCIEX4_2)
Maximum PCIe Version PCIe 5.0
Storage CPU:
– 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:
– 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
– 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)

– 6 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
* Refer to “2-8 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
M.2 Storage Type Support NVMe, SATA
M.2 Slot 4
USB Chipset:
– 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
– 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
– 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
– 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:
– 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset button
1 x Q-Flash Plus button
1 x Clear CMOS button
1 x reset jumper
1 x Clear CMOS jumper

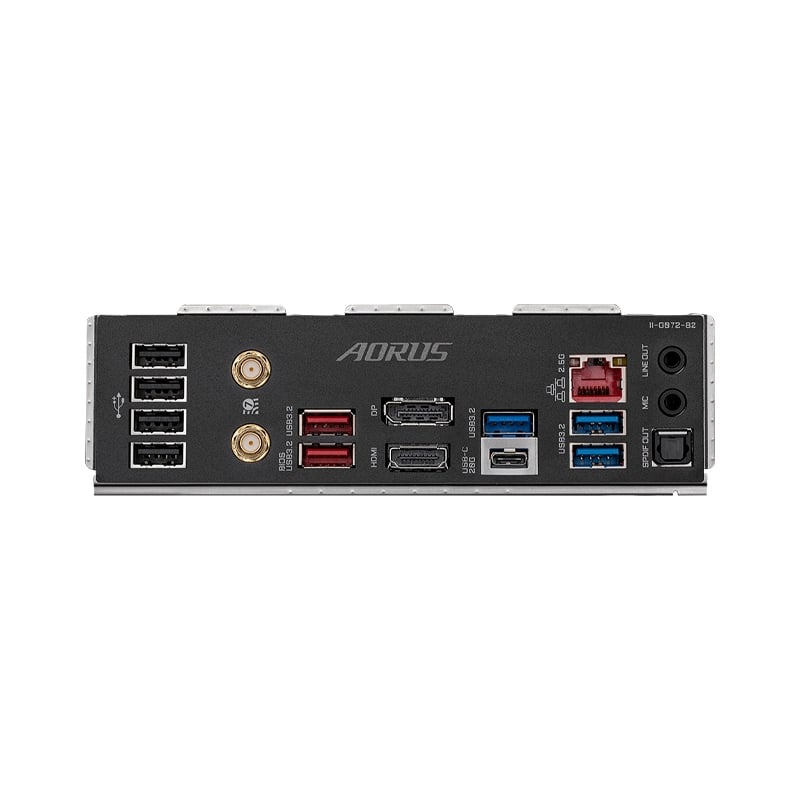

Back Panel Connectors 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R) jk
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
LAN Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Data Network Intel® Wi-Fi 7 BE200
– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.3
– Support for 11be 320MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

Note:
Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10)
Wi-Fi 7 channels on 6GHz band availability depends on individual country’s regulations.
Form Factor ATX
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Software Features Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System Support Support for Windows 11 64-bit
Package Contents N/A
Package Dimension (W x D x H) : 27.00 x 33.50 x 7.50 cm
Gross Weight 2.20 KG
Volume 6,783.75 cm3
