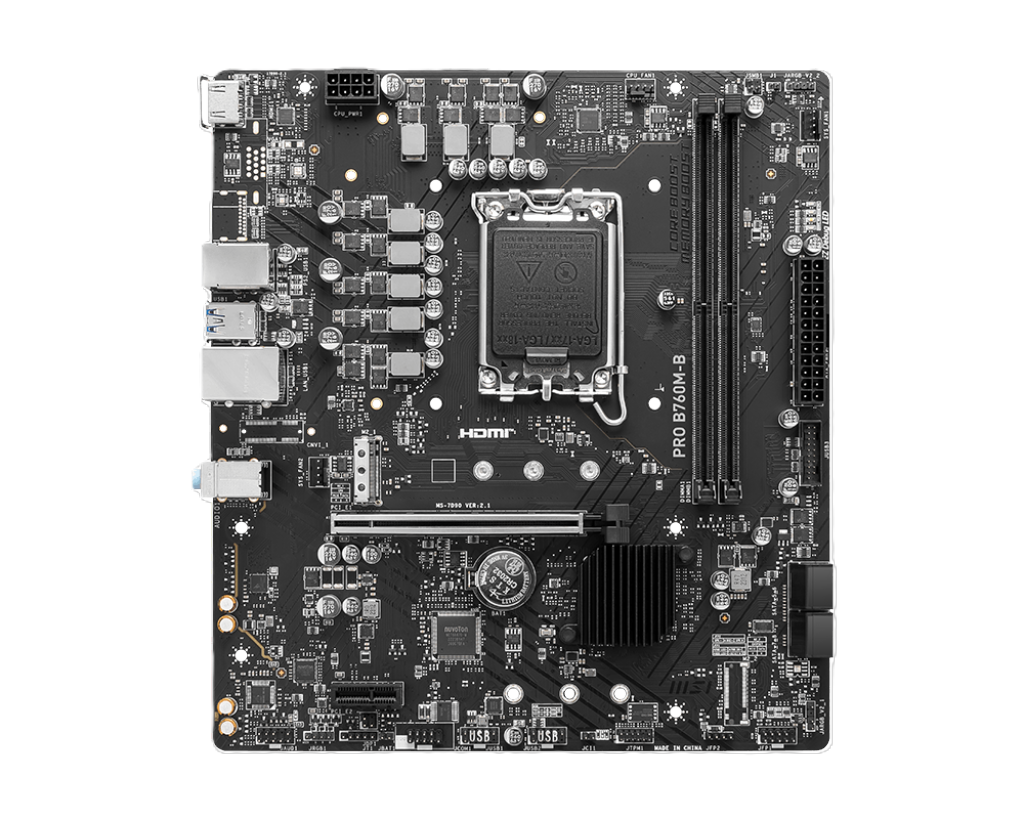

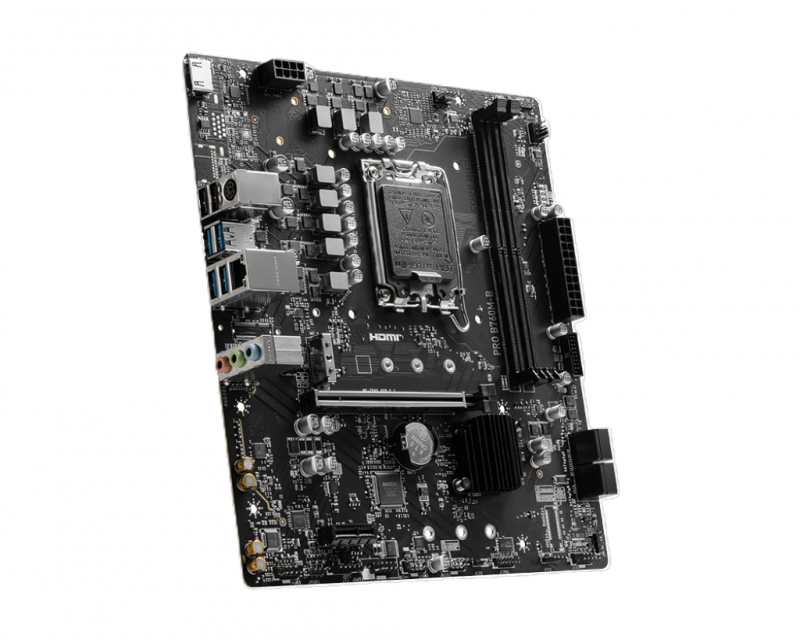

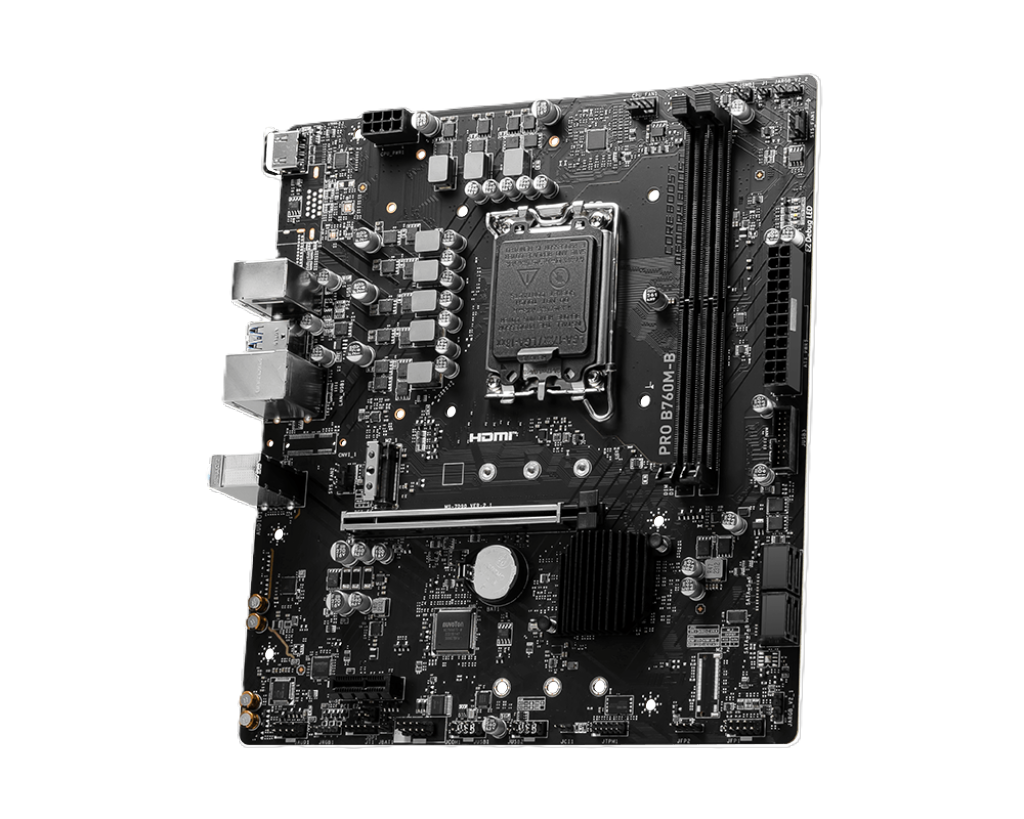

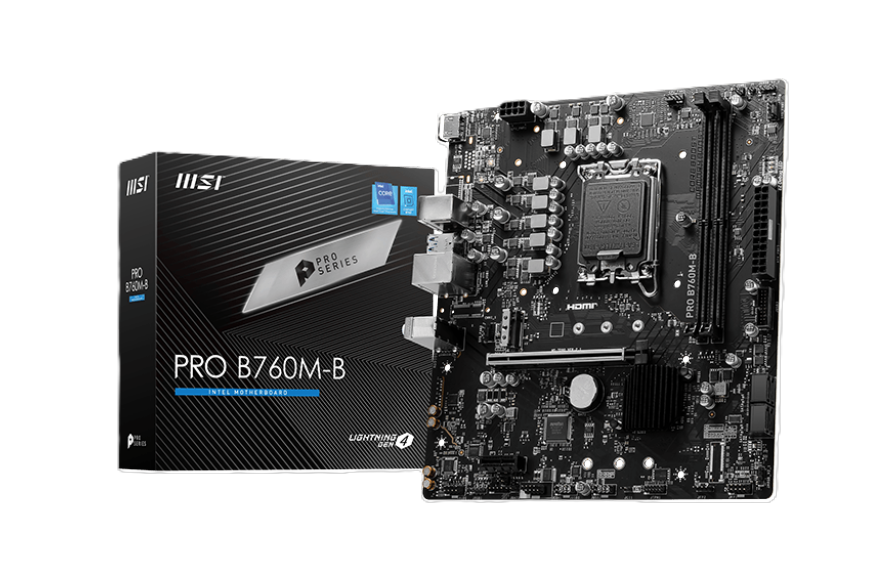

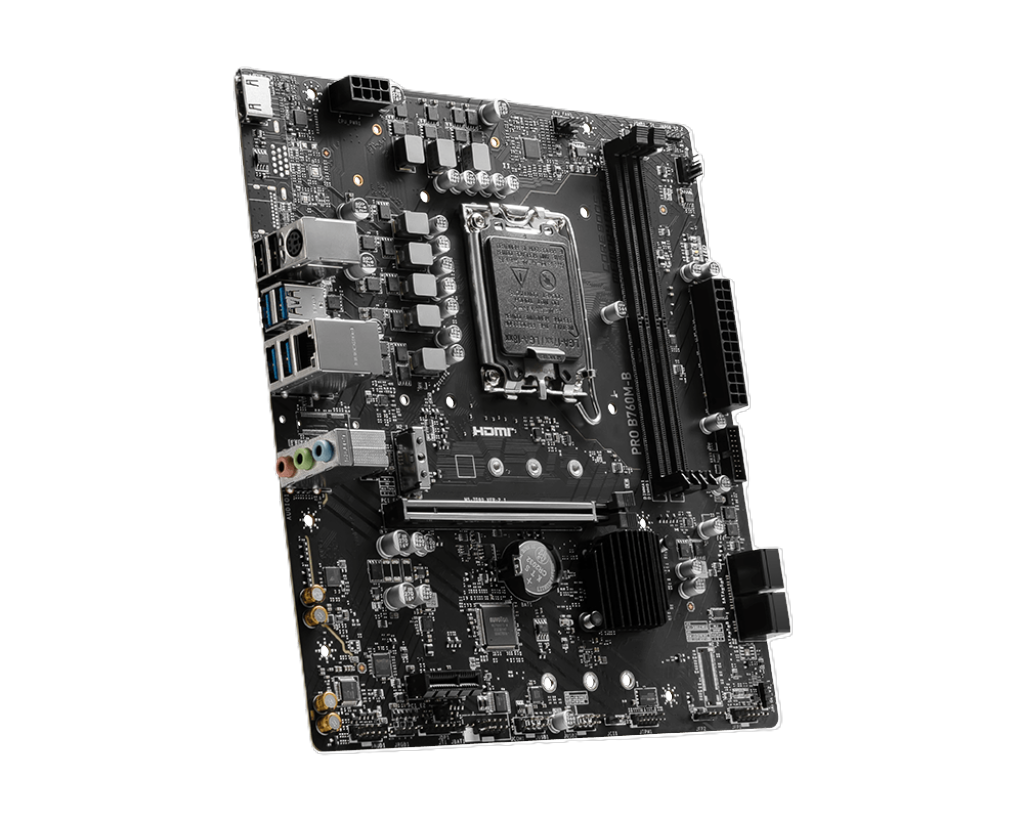

MAINBOARD (1700) MSI PRO B760M-B DDR5

฿3,090.00

  • Support CPU : 14th /13th /12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
  • Form Factor : Micro ATX
  • Chipset : Intel B760 Chipset
  • Memory Channel : Dual Channel DDR5 2DIMM
  • Memory Support : up to 6400(O.C.)
  • Memory MAX : 128GB
  • M.2 Slot : 1 slot
  • SATA III 6G : 4 ports
  • PCIe 4.0×16 : 1 slot
  • Lan Port : 2.5 Gigabit LAN
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost : Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • AUDIO BOOST : Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Steel Armor : Protecting VGA cards against bending and EMI for better performance, stability and strength

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: A0159082 หมวดหมู่: ,

คำอธิบาย

Brand MSI
Model PRO B760M-B (DDR5)
CPU Support Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700
CPU Brand Intel
Socket 1700
Chipset Intel B760
Memory Support 2x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)

Max. overclocking frequency:
• 1DPC 1R Max speed up to 6400+ MHz
• 1DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Maximum Memory Bus 6400
Graphics 1x HDMI™
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Multi Graphic Support N/A
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Expansion Slots 1 x PCI-E x16 slot
1 x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
Maximum PCIe Version PCIe 4.0
Storage 1 x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

4 x SATA 6G

* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
M.2 Storage Type Support NVMe
M.2 Slot 1
USB 2 x USB 2.0 (Rear)
4 x USB 2.0 (Front)
4 x USB 5Gbps Type A (Rear)
2 x USB 5Gbps Type A (Front)
Internal I/O Connectors 1 x Power Connector(ATX_PWR)
1 x Power Connector(CPU_PWR)
1 x CPU Fan
2 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Com Port (JCOM)
2 x Addressable V2 RGB LED connector (JARGB_V2)
1 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
4 x USB 2.0 ports
2 x USB 5Gbps Type A ports

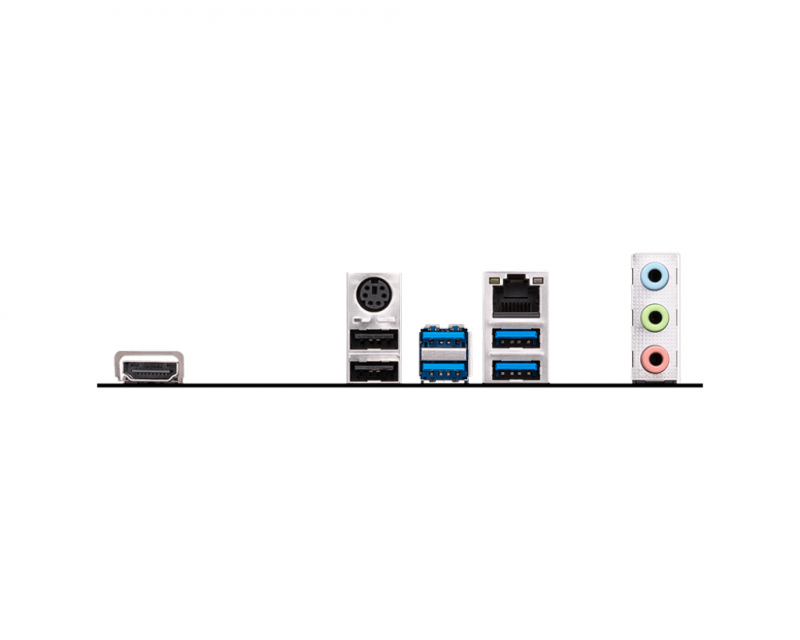

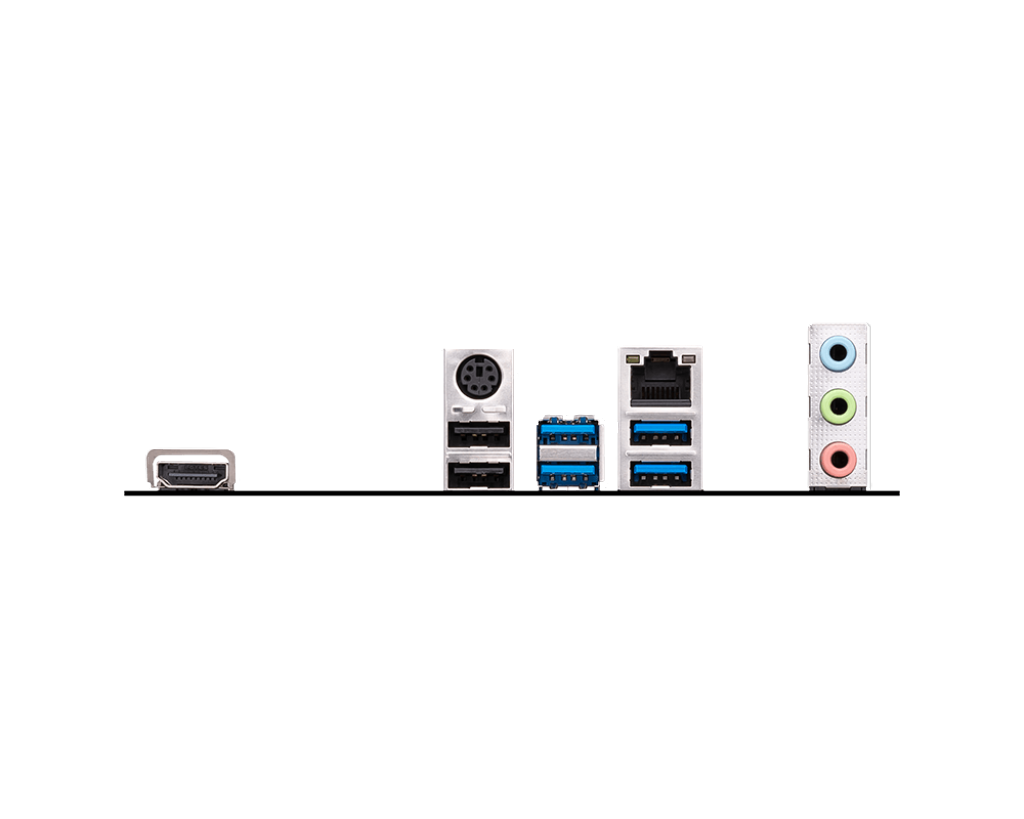

Back Panel Connectors 1 x HDMI™
1 x Keyboard / Mouse
1 x 2.5G LAN
1 x Audio Connectors
2 x USB 2.0
4 x USB 3.2 Gen 1 5Gbps (Type-A)
LAN Realtek® RTL8125B 2.5Gbps LAN
Wireless Data Network None
Form Factor Micro ATX
H/W Monitoring N/A
BIOS N/A
Special Features 4x EZ Debug LED
Software Features N/A
Operating System Support Support for Windows® 11 64-bit, Windows® 10 64-bit
Package Contents N/A
