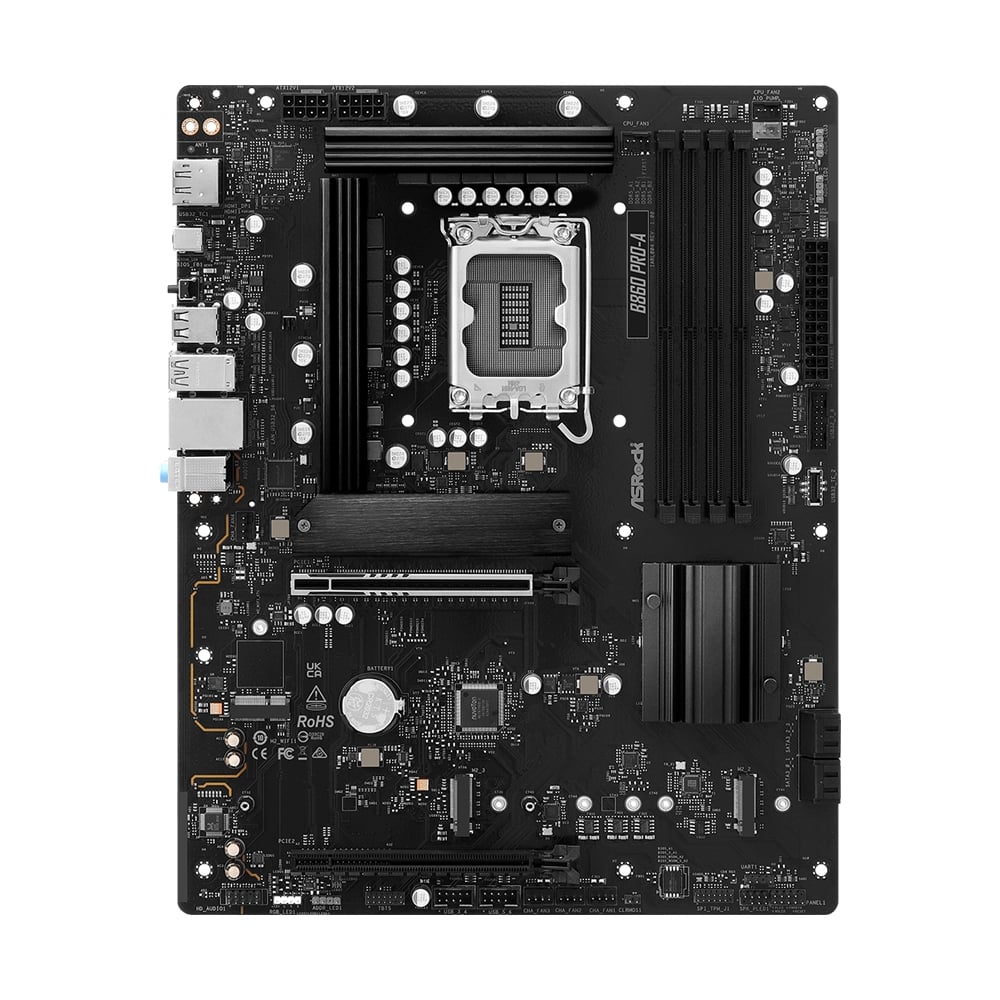

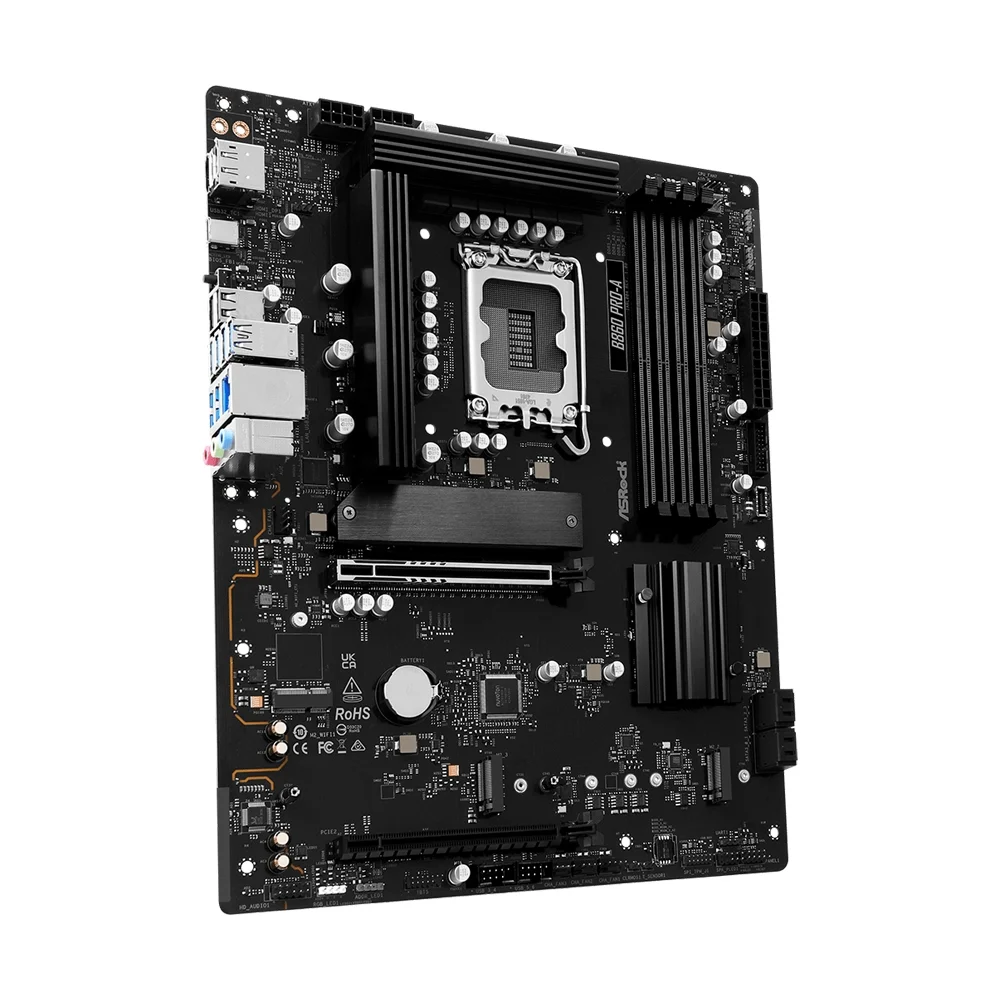

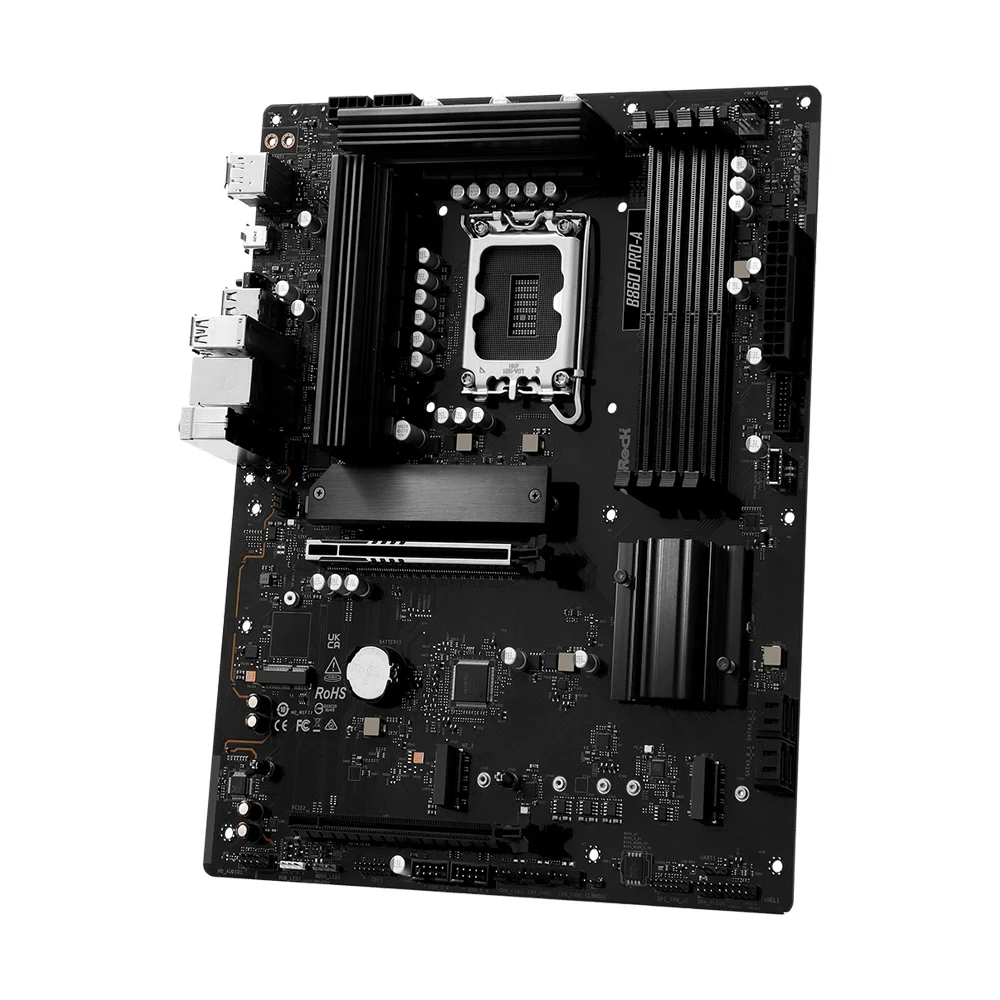

MAINBOARD (1851) ASROCK B860 PRO-A DDR5

฿6,710.00

  • Support CPU : Intel Core Ultra Processors (Series 2)
  • Form Factor : ATX
  • Chipset : Intel B860 Chipset
  • Memory Channel : Dual Channel DDR5 4DIMM
  • Memory Support : up to 8666(O.C.)
  • Memory MAX : 256GB
  • M.2 Slot : 3 slots
  • SATA III 6G : 4 ports
  • PCIe 5.0×16 : 1 slot
  • Lan Port : 2.5 Gigabit LAN
  • 10+1+1+1+1 Power Phase, Dr.MOS for VCore+GT+SA
  • Realtek ALC897 7.1 CH HD Audio Codec
  • Supports BIOS Flashback

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: A0166578 หมวดหมู่: ,

คำอธิบาย

Brand ASROCK
Model B860 PRO-A (DDR5)
CPU Support Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
Supports Intel® Hybrid Technology
Supports Intel® Turbo Boost Max 3.0 Technology
Supports Intel® Thermal Velocity Boost (TVB)
Supports Intel® Adaptive Boost Technology (ABT)
Integrated NPU for dedicated AI acceleration
CPU Brand Intel
Socket 1851
Chipset B860
Memory Support – Dual Channel DDR5 Memory Technology
– 4 x DDR5 DIMM Slots
– Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC)*
– Supports Clocked Unbuffered DIMM (CUDIMM)
– Max. capacity of system memory: 256GB
– Supports Intel® Extreme Memory Profile (XMP) 3.0x

* 1DPC 1R Up to 8666+ MHz (OC), 5600 MHz Natively.
1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively.
2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively.
2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively.
Maximum Memory Bus 8666
Graphics – Intel® Xe LPG Graphics Architecture
– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

* Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Multi Graphic Support N/A
Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Expansion Slots CPU:
– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:
– 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

* Supports NVMe SSD as boot disks
Maximum PCIe Version PCIe 5.0
Storage CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*

Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

– 4 x SATA3 6.0 Gb/s Connectors

* Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks



RAID
– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
M.2 Storage Type Support NVMe
M.2 Slot 3
USB CPU:
– 1 x USB 3.2 Gen2x2 Type-C (Rear) Chipset:
– 1 x USB 3.2 Gen1 Type-C (Front)
– 8 x USB 3.2 Gen1 (6 Rear, 2 Front)
– 6 x USB 2.0 (2 Rear, 4 Front)

* All USB ports support ESD Protection
Internal I/O Connectors 1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
1 x 24 pin ATX Power Connector
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header

* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
CPU_FAN2, CHA_FAN1~4 and AIO_PUMP support the fan power up to 3A (36W).
CPU_FAN2, CHA_FAN1~4 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.

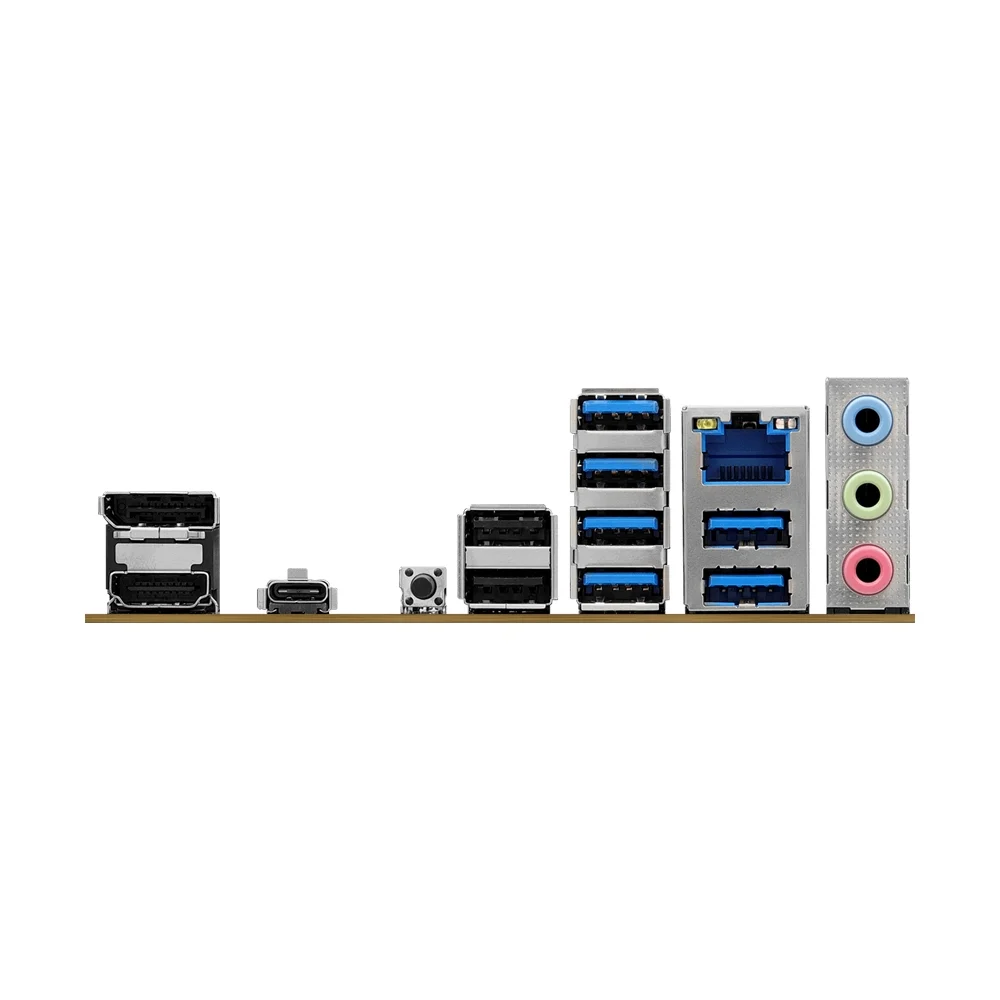

Back Panel Connectors 2 x Antenna Mounting Points
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
6 x USB 3.2 Gen1 Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone
LAN – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Dragon 2.5G LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User Friendly UI
– Visual Network Usage Statistics
– Optimized Default Setting for Game, Browser, and Streaming Modes
– User Customized Priority Control
Wireless Data Network None
Form Factor ATX
H/W Monitoring N/A
BIOS 256Mb AMI UEFI Legal BIOS with GUI support
Special Features Superb Productivity
– PCIe Gen5 (Graphics, M.2)
– Dual Channel DDR5

Rock-Solid Durability
– 10+1+1+1+1 Power Phase, Dr.MOS for VCore+GT+SA

Ultrafast Connectivity
– 2.5G LAN

EZ Update
– BIOS Flashback Button
– ASRock Auto Driver Installer

EZ Troubleshooter
– ASRock Post Status Checker
Software Features Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock Dragon 2.5G LAN Software
– ASRock Polychrome SYNC*

UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.
Operating System Support Microsoft Windows® 11 64-bit

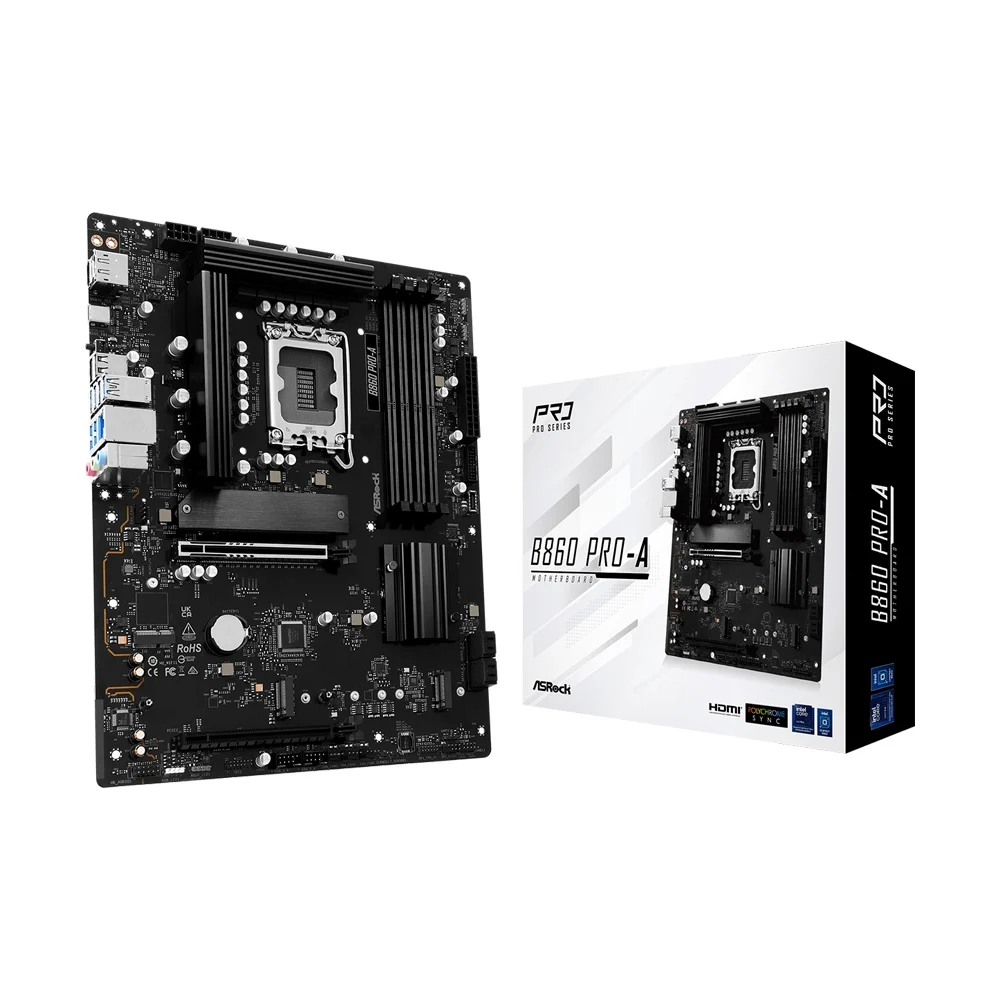

Package Contents 1 x I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 Socket
