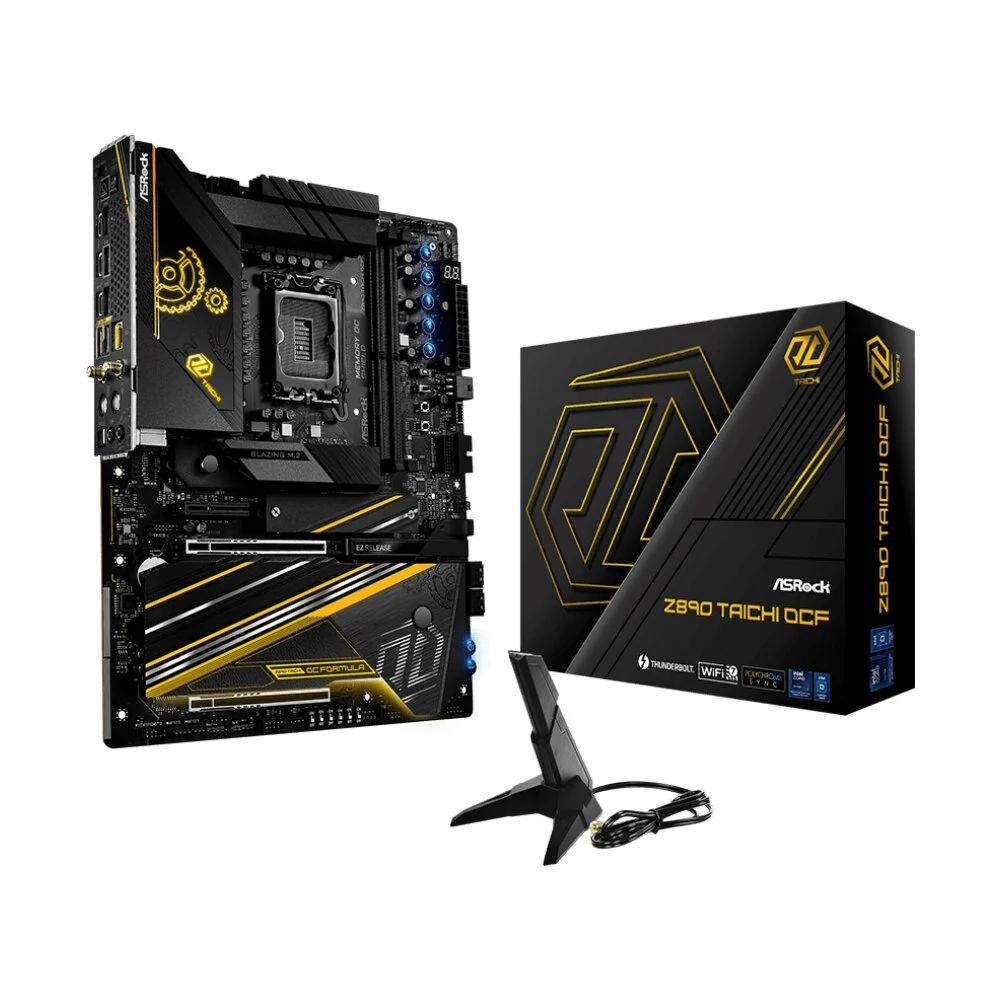

MAINBOARD (1851) ASROCK Z890 TAICHI OCF DDR5

฿18,590.00

  • Support CPU : Intel Core Ultra Processors (Series 2)
  • Form Factor : ATX
  • Chipset : Intel Z890 Chipset
  • Memory Channel : Dual Channel DDR5 2DIMM
  • Memory Support : up to 12527(O.C.)
  • Memory MAX : 128GB
  • M.2 Slot : 6 slots
  • SATA III 6G : 4 ports
  • PCIe 5.0×16 : 1 slot
  • Lan Port : 5 Gigabit LAN
  • Wireless : Wi-Fi 7
  • 22+1+2+1+1 Power Phase, 110A SPS for VCore
  • Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
  • Supports BIOS Flashback, Memory OC Shield, 20K Caps with 1000uF Capacitance
  • Professional Overclocking Toolkit

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: A0164827 หมวดหมู่: ,

คำอธิบาย

Brand ASROCK
Model Z890 TAICHI OCF (DDR5)
CPU Support Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM)
Supports Intel® Hybrid Technology
Supports Intel® Turbo Boost Max 3.0 Technology
Supports Intel® Thermal Velocity Boost (TVB)
Supports Intel® Adaptive Boost Technology (ABT)
Integrated NPU for dedicated AI acceleration
Supports ASRock Hyper BCLK Engine
CPU Brand Intel
Socket 1851
Chipset Intel Z890
Memory Support Dual Channel DDR5 Memory Technology
2 x DDR5 DIMM Slots

Supports DDR5 non-ECC, un-buffered memory up to 12527MHz+(OC)*

Supports Clocked Unbuffered DIMM (CUDIMM)
Max. capacity of system memory: 128GB
Supports Intel® Extreme Memory Profile (XMP) 3.0x

*1DPC 1R Up to 12527+ MHz (OC), 6400 MHz Natively.
*1DPC 2R Up to 6800+ MHz (OC), 6400 MHz Natively.
Maximum Memory Bus 12527
Graphics – Intel® Xe LPG Graphics Architecture
– 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz*

* Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Supports two 4K displays or one 8K display
Only the CPU’s embedded graphics can be displayed through Thunderbolt™ ports.
If you want to display to a Thunderbolt™ monitor, please use CPU models with embedded graphics.
Multi Graphic Support Supports AMD CrossFire
Audio 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
Nahimic Audio
Expansion Slots CPU:
– 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode*
– 1 x PCIe 5.0 x16 Slot (PCIE3), supports x8 mode*

Chipset:
– 1 x PCIe 4.0 x4 Slot (PCIE1), supports x4 mode*
– 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
– Supports AMD CrossFire™
– 15μ Gold Contact in VGA PCIe Slots (PCIE2 and PCIE3)

* PCIE3 supports PCIe riser cards to extend one x8 slot to x4/x4 slots.

Supports NVMe SSD as boot disks
Maximum PCIe Version PCIe 5.0
Storage CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
– 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
– 1 x Hyper M.2 Socket (M2_6, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode

* ASMedia ASM1061: 4 x SATA3 6.0 Gb/s Connectors

Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks
M.2 Storage Type Support NVMe, SATA
M.2 Slot 6
USB CPU:
– 2 x Thunderbolt™ 4 Type-C (Rear)

Chipset:
– 2 x USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front)
– 4 x USB 3.2 Gen2 Type-A (Rear)
– 5 x USB 3.2 Gen1 (1 Rear, 4 Front)
– 3 x USB 2.0 (Front)

* All USB ports support ESD Protection
Internal I/O Connectors 2 x Thermistor Cable Headers
1 x Power LED and Speaker Header
4 x Addressable LED Headers*
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)**
4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x 6 pin Graphics 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector (15μ Gold Audio Connector)
2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
1 x Heater Header
1 x ElmorLabs OCP Header
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button with LED
1 x Retry Button
1 x Safe Boot Button
V-Probe™: 11-set of onboard voltage measurement points laid
Rapid OC Buttons: +/- buttons to adjust OC frequency
6 x OC Switches
1 x Slow Mode Switch
1 x LN2 Mode Switch
1 x NickShih’s OC Profile 1 Button with LED
1 x NickShih’s OC Profile 2 Button with LED
1 x NickShih’s OC Profile 3 Button with LED

* Support in total up to 5V/3A, 15W LED Strip
** CPU_FAN1 supports the fan power up to 1A (12W).
CPU_FAN2, CHA_FAN1~4 and AIO_PUMP support the fan power up to 3A (36W).
CPU_FAN2, CHA_FAN1~4 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
Back Panel Connectors 2 x Antenna Ports
1 x PS/2 Keyboard Port
1 x PS/2 Mouse Port
1 x Optical SPDIF Out Port
2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)*
1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)**
1 x USB 3.2 Gen1 Port
1 x RJ-45 LAN Port
1 x Clear CMOS Button
1 x BIOS Flashback Button
1 x BIOS Selection Switch
1 x Line Out Jack (Gold Audio Jack)
1 x Microphone Input Jack (Gold Audio Jack)

* Supports USB PD 3.0 up to 5V@3A (15W) charging
** USB32_45 support Ultra USB Power.
LAN 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s
Realtek RTL8126
Wireless Data Network 802.11be 2×2 Wi-Fi 7 Module
Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
Supports 2.4GHz/5GHz/6GHz* frequency band
Supports 320MHz channel bandwidth with 6GHz* frequency band
1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth 5.4
Supports MU-MIMO

* Wi-Fi 7 (6GHz band) will be supported by Microsoft Windows® 11.
The availability will depend on the different regulation status of each country and region.
It will be activated (for supported countries) through Windows® Update and software updates once available.
Form Factor ATX
H/W Monitoring N/A
BIOS 2 x 256Mb AMI UEFI Legal BIOS with GUI support
Special Features Superb Productivity
– PCIe Gen5 (Graphics, M.2)
– Dual Channel DDR5
– Thunderbolt™ 4 Type-C Ports (40 Gb/s)
– 6 x M.2 Sockets

Rock-Solid Durability
– Server-Grade Low-Loss PCB
– 22+1+2+1+1 Power Phase, 110A SPS for VCore with Enlarged Heatsink Armor
– Memory OC Shield
– Flexible Integrated I/O Shield
– 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)

Ultrafast Connectivity
– 5G LAN, 802.11be Wi-Fi 7 Module

Professional Overclocking
– ASRock Hyper BCLK Engine
– 6 x OC Profiles
– Heater
– ElmorLabs OC Panel

EZ Update
– BIOS Flashback Button
– ASRock Auto Driver Installer
Software Features Software
– ASRock Formula Drive
– ASRock Polychrome SYNC*

UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.
Operating System Support Microsoft Windows® 11 64-bit
Package Contents 4 x SATA Data Cables
1 x ASRock WiFi 2.4/5/6 GHz Antenna
1 x ARGB Splitter Cable
2 x Thermistor Cables
1 x Screw for M.2 Socket
1 x Standoff for M.2 Socket
Package Dimension (W x D x H) : 27.50 x 34.50 x 8.20 cm
Gross Weight 2.93 KG
Volume 7,779.75 cm3
