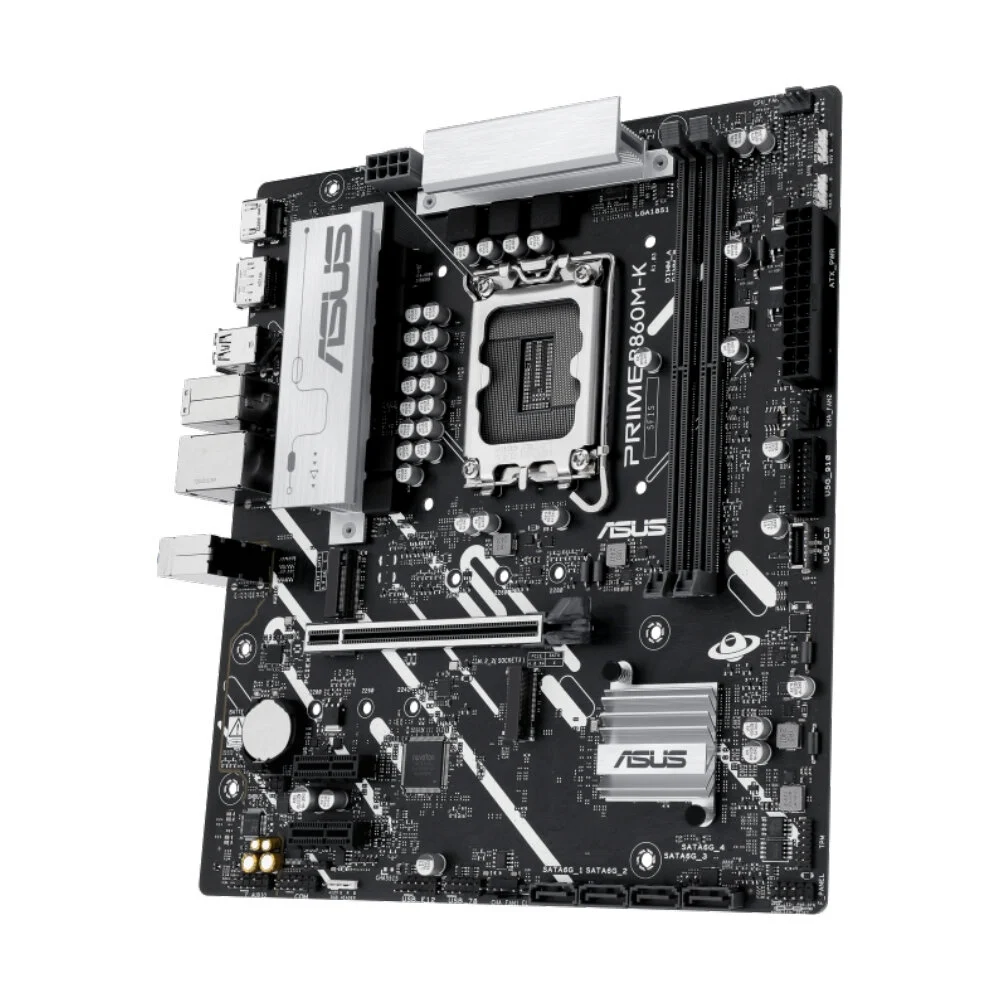

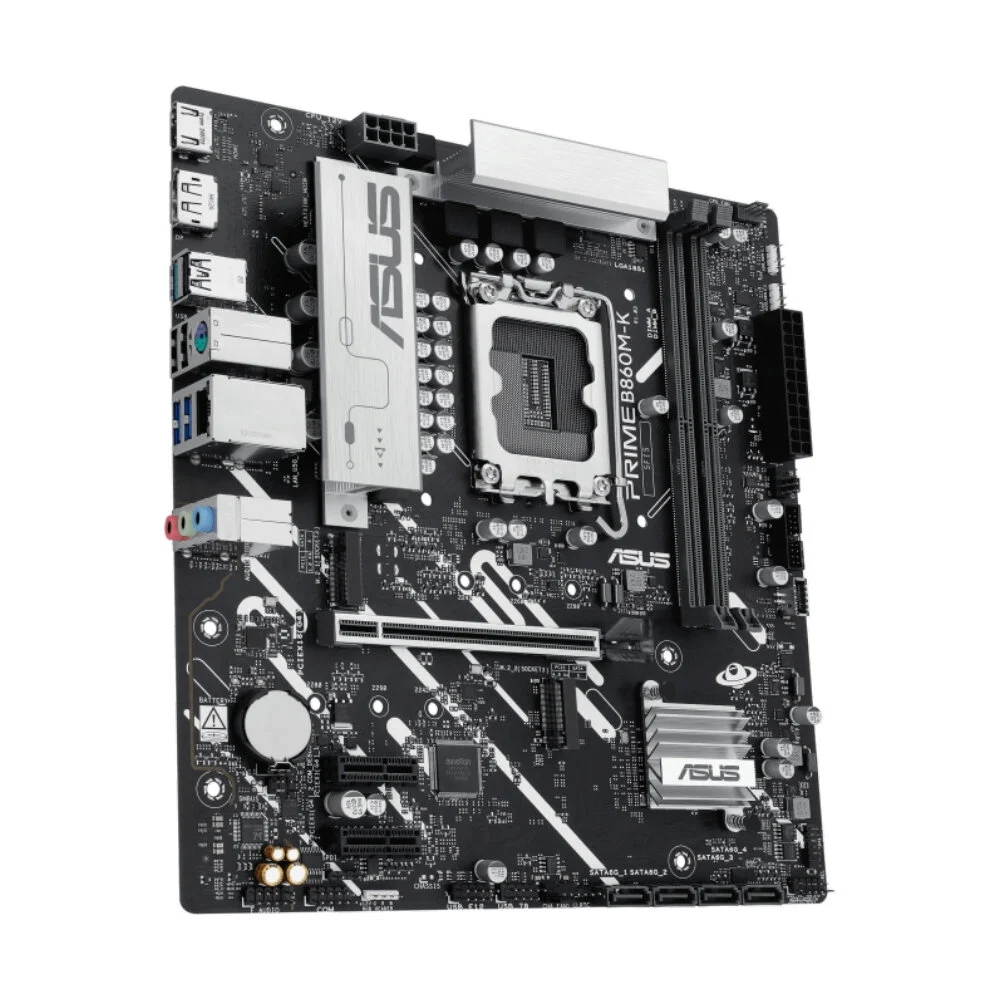

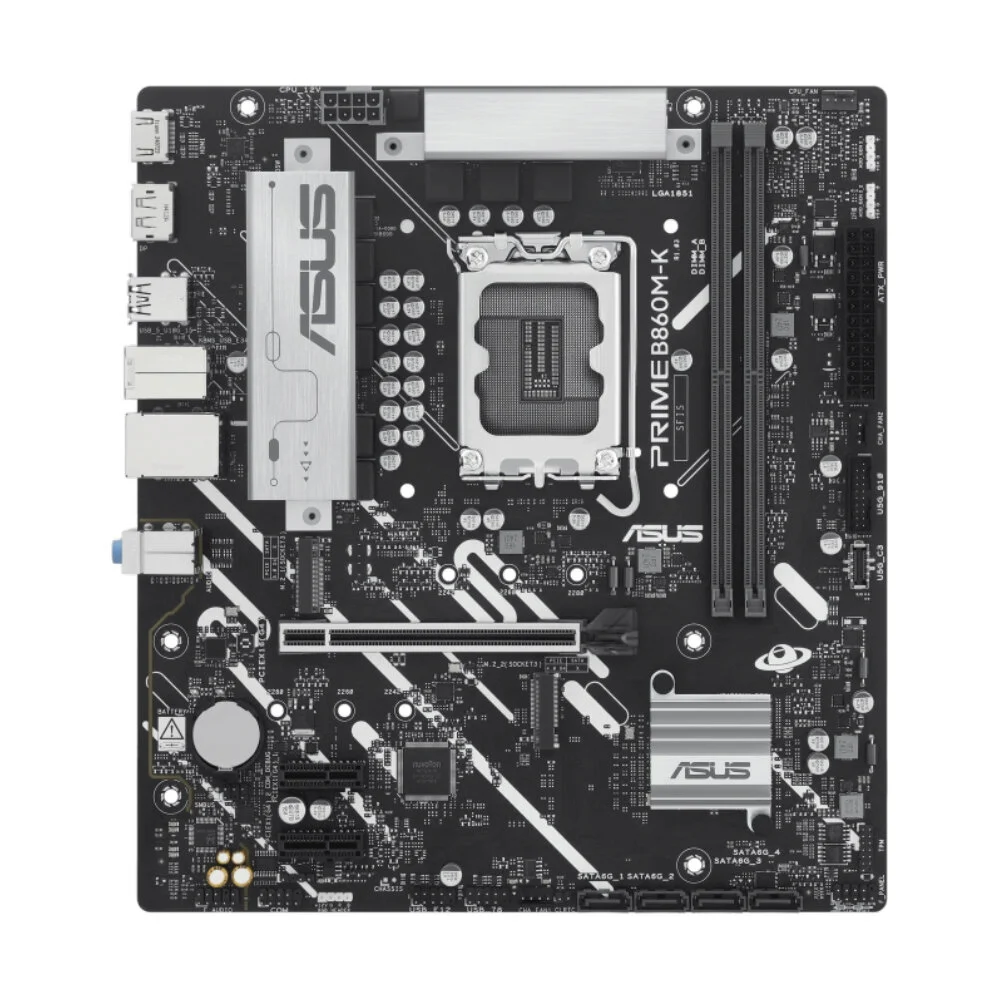

MAINBOARD (1851) ASUS PRIME B860M-K-CSM DDR5

฿7,490.00

  • Support CPU : Intel Core Ultra Processors (Series 2)
  • Form Factor : Micro ATX
  • Chipset : Intel B560 Chipset
  • Memory Channel : Dual Channel DDR5 2DIMM
  • Memory Support : up to 8800(O.C.)
  • Memory MAX : 128GB
  • M.2 Slot : 2 slots
  • SATA III 6G : 4 ports
  • PCIe 4.0×16 : 1 slot
  • Lan Port : 2.5 Gigabit LAN
  • ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2).
  • Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options
  • PRIME B860M-K-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
  • It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: A0165451 หมวดหมู่: ,

คำอธิบาย

Brand ASUS
Model PRIME B860M-K-CSM (DDR5)
CPU Support Supports Intel® Core™ Ultra Processors (Series 2), LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
CPU Brand Intel
Socket 1851
Chipset Intel B860
Memory Support 2 x DIMM slots, max. 128GB, DDR5
Supports up to 8800+MT/s (OC),  Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Maximum Memory Bus 8800
Graphics 1 x DisplayPort**
1 x HDMI™ port***

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***  Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors’ or graphic cards’ resolution.
Multi Graphic Support N/A
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback

Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 4.0 x16 slot

Intel® B860 Chipset
2 x PCIe 4.0 x1 slots

– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Maximum PCIe Version PCIe 4.0
Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® Core™ Ultra Processors (Series 2) *
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

Intel® B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
M.2 Storage Type Support NVMe
M.2 Slot 2
USB Rear USB (Total 6 ports)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
3 x USB 2.0 ports (3 x Type-A)**

Front USB (Total 7 ports)
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports**

* USB Type-C® power delivery output: max. 5V/3A.
** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Internal I/O Connectors Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers

Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector

Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 5Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous
2 x Addressable Gen2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front Panel System header

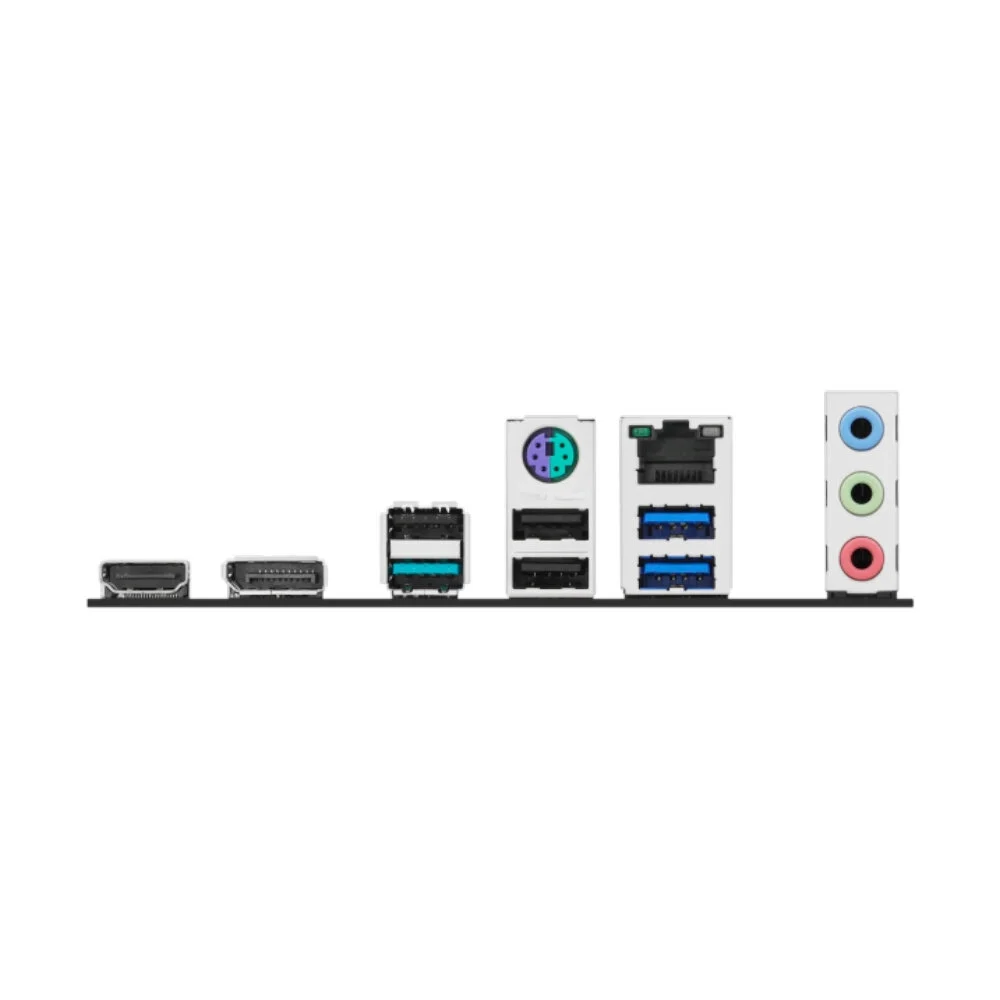

Back Panel Connectors 1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
3 x USB 2.0 ports (3 x Type-A)
1 x DisplayPort
1 x HDMITM port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
LAN 1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Wireless Data Network None
Form Factor Micro ATX
H/W Monitoring N/A
BIOS 256(128+128) Mb Flash ROM, UEFI AMI BIOS
Special Features ASUS 5X PROTECTION III
– DIGI+VRM
– LANGuard
– Overvoltage protection
– SafeSlot Core+
– Stainless-steel back I/O

ASUS Q-Design
– Q-Dashboard
– Q-DIMM
– Q-LED Core
– Q-Slot

ASUS Thermal Solution
– VRM heatsink design

ASUS EZ DIY
– ProCool

Aura Sync
– Aura RGB header
– Addressable Gen2 headers
Software Features ASUS Exclusive Software
Armoury Crate
– Aura Sync
– Fan Xpert 2+
– Power Saving
ASUS AI Advisor
ASUS DriverHub
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)

UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
Operating System Support Windows 11(22H2 & later), Windows 10 64-bit(21H2 & later)

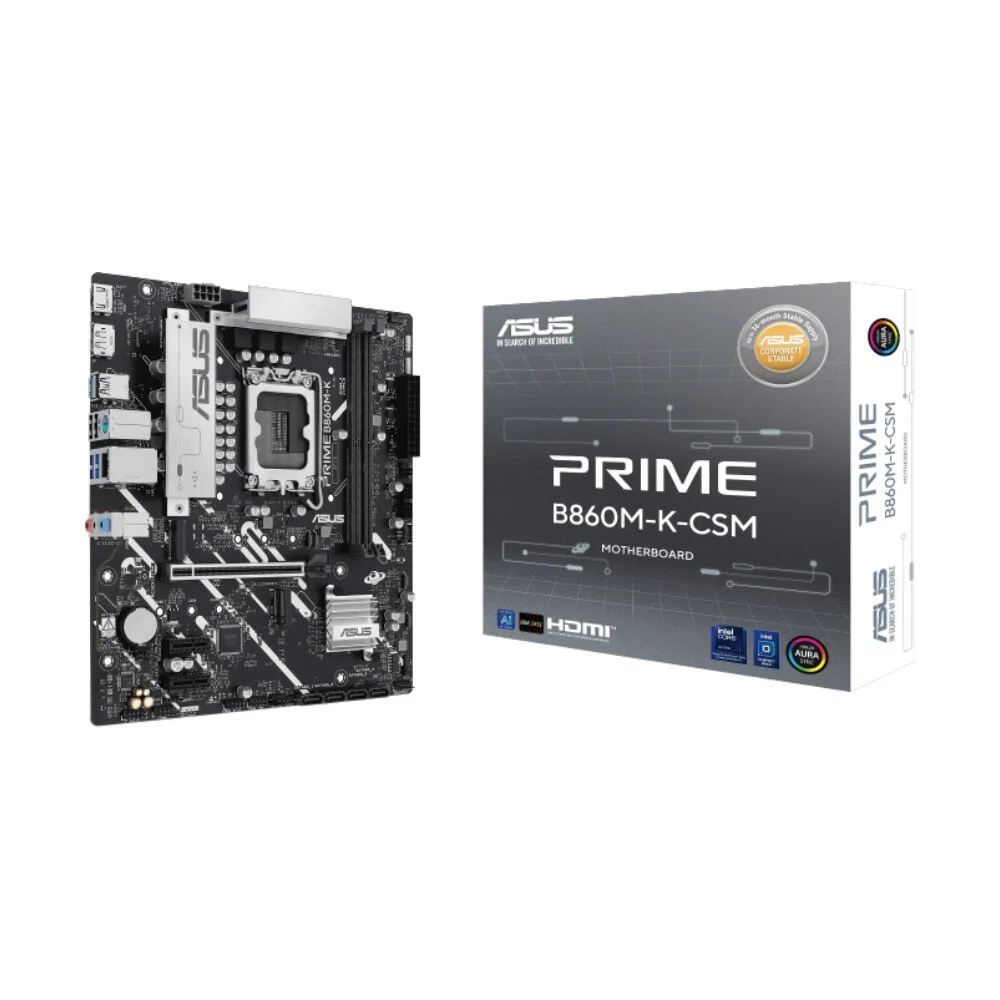

Package Contents 2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 anchor package
1 x Quick start guide
1 x ACC Express activation key card
Package Dimension (W x D x H) : 26.00 x 27.00 x 5.00 cm
Gross Weight 0.97 KG
Volume 3,510.00 cm3
