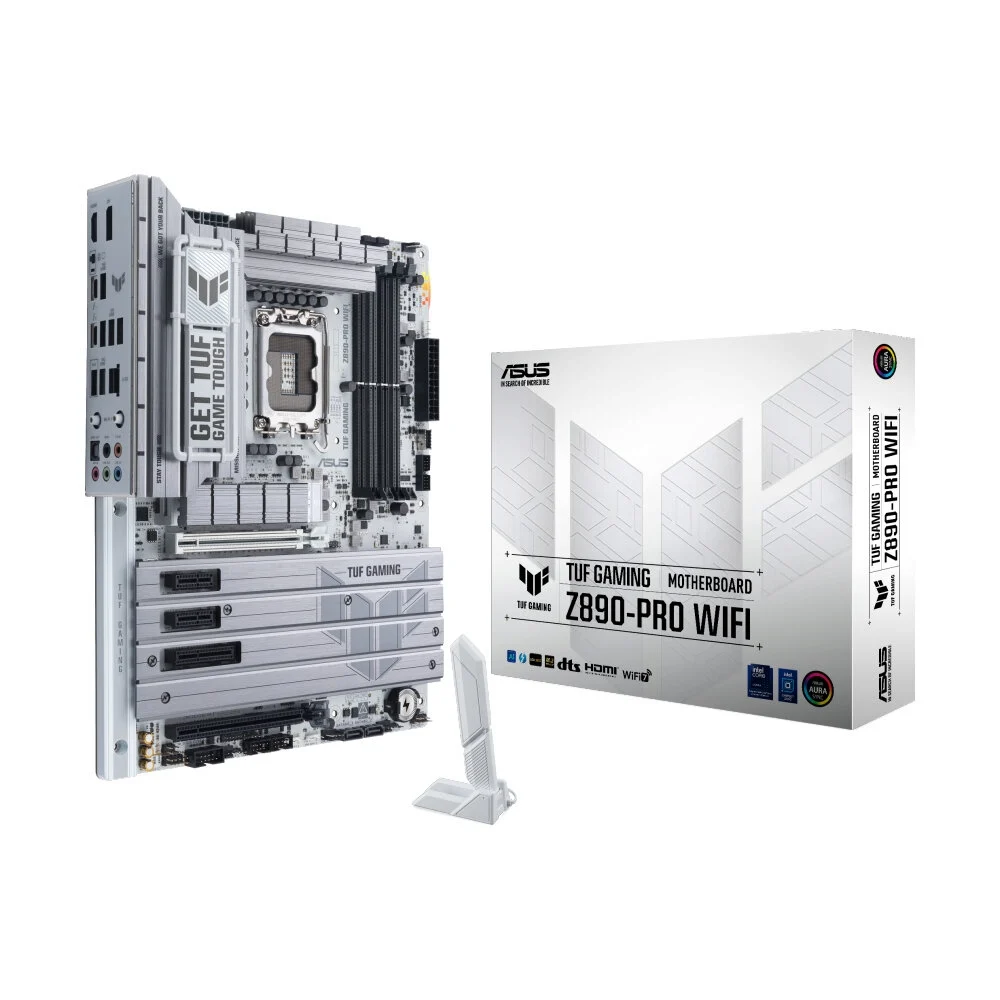

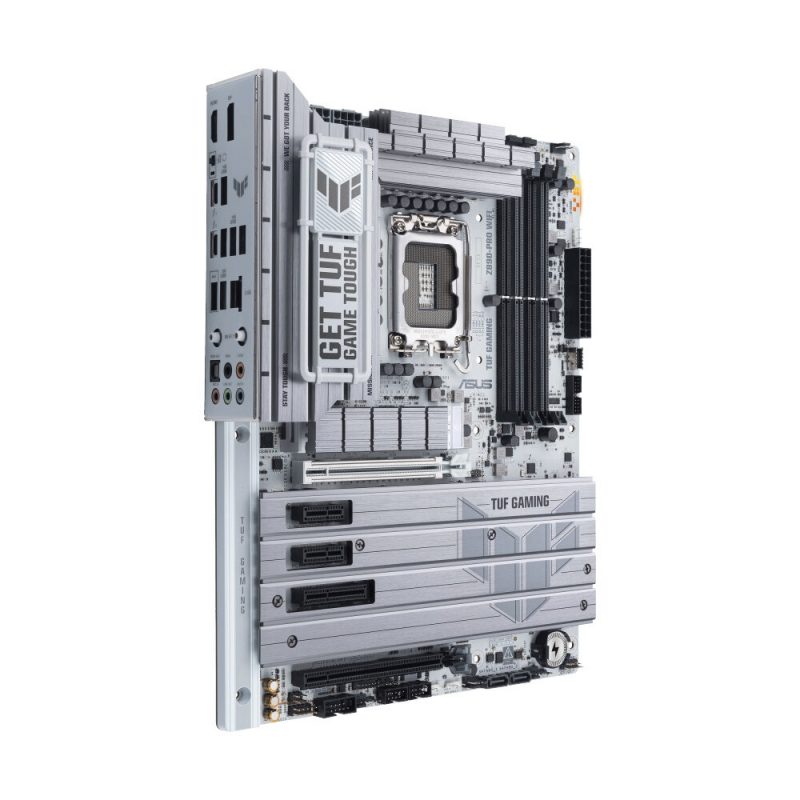

MAINBOARD (1851) ASUS TUF GAMING Z890-PRO WIFI DDR5

฿15,550.00

  • Support CPU : Intel Core Ultra Processors (Series 2)
  • Form Factor : ATX
  • Chipset : Intel Z890 Chipset
  • Memory Channel : Dual Channel DDR5 4DIMM
  • Memory Support : up to 8600(O.C.)
  • Memory MAX : 192GB
  • M.2 Slot : 4 slot
  • SATA III 6G : 4 ports
  • PCIe 5.0×16 : 1 slot
  • Lan Port : 2.5 Gigabit LAN
  • Wireless : Wi-Fi 7
  • ASUS TUF GAMING Z890-PRO WIFI takes all the essential elements of the latest Intel® Core™ Ultra Processors (Series 2) processors and combines them with game-ready features and proven durability.
  • Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming.
  • TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail.
  • This platform delivers the power and connectivity that advanced AI PC applications demand.

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: A0163717 หมวดหมู่: ,

คำอธิบาย

Brand ASUS
Model TUF GAMING Z890-PRO WIFI DDR5
CPU Support Support Intel® Core™ Ultra Processors (Series 2), LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
CPU Brand Intel
Socket 1851
Chipset Intel Z890
Memory Support 4 x DIMM slots, max. 192GB, DDR5
Support up to 8600+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Maximum Memory Bus 8600
Graphics 1 x DisplayPort**
1 x HDMI™ port***
2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs****

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** In ThunderboltTM 4  mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.
***** In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.
****** VGA resolution support depends on processors’ or graphic cards’ resolution.
Multi Graphic Support N/A
Audio Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
– Impedance sense for front and rear headphone outputs
– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
– Supports up to 32-Bit/192 kHz playback*

Audio Features
– Audio Shielding
– Rear optical S/PDIF out port
– Premium audio capacitors
– Dedicated audio PCB layers
– Audio cover
– Unique de-pop circuit

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Expansion Slots Intel® Core™ Ultra Processors(Series 2)*
1 x PCIe 5.0 x16 slot

Intel® Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x4 slot
2 x PCIe 4.0 x1 slots

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Maximum PCIe Version PCIe 5.0
Storage Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors(Series 2)*
M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

Intel® Z890 Chipset
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5.
M.2 Storage Type Support NVMe, SATA
M.2 Slot 4
USB Rear USB (Total 8 ports)
2 x Thunderbolt™ 4 ports (2 x USB Type-C®)
6 x USB 10Gbps ports (6 x Type-A)

Front USB (Total 7 ports)
1 x USB 20Gbps (supports USB Type-C® with up to 30W PD/PPS Fast-charge )*
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

* USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
Internal I/O Connectors Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers

Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors

Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 20Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header

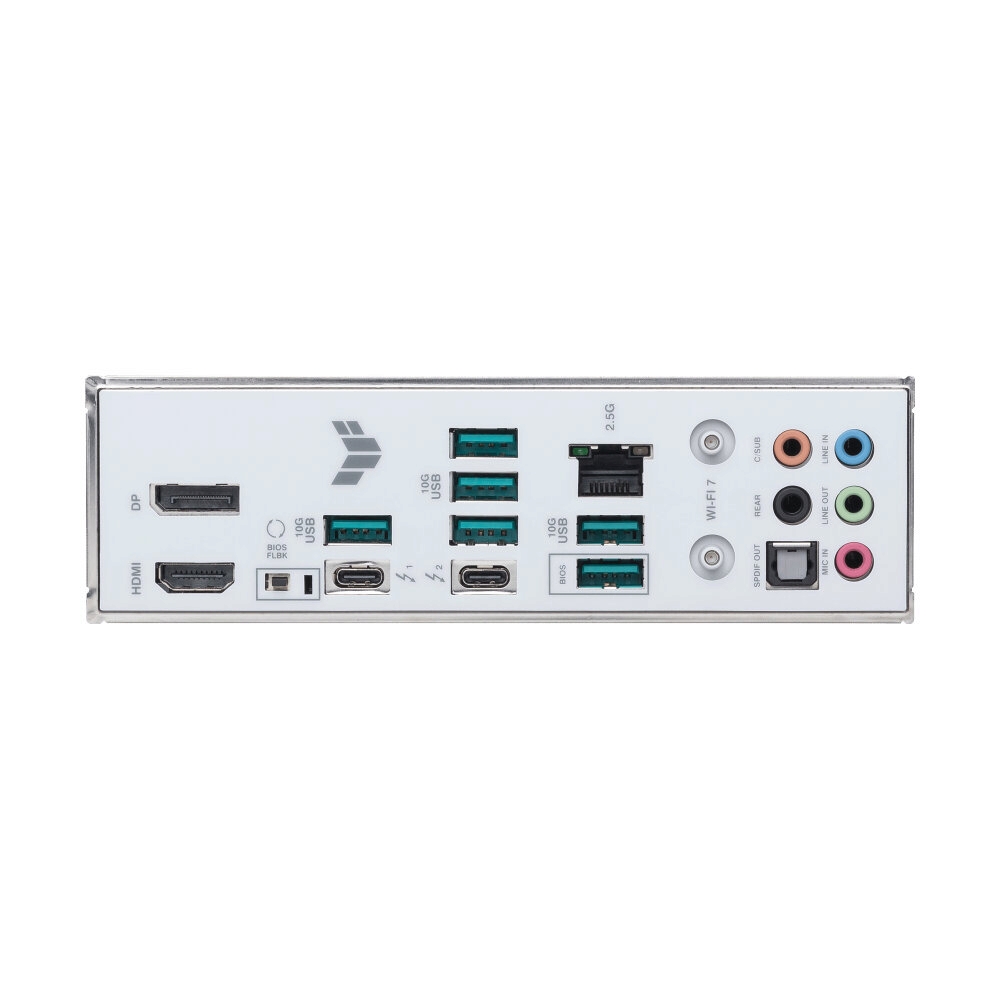

Back Panel Connectors 2 x Thunderbolt™ 4 USB Type-C® ports
6 x USB 10Gbps ports (6 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
LAN 1 x Intel® 2.5Gb Ethernet
TUF LANGuard
Wireless Data Network Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4***

*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require  24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor’s website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
Form Factor ATX
H/W Monitoring N/A
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Special Features ASUS TUF PROTECTION
– DIGI+ VRM (- Digital power design with DrMOS)
– ESD Guards
– TUF LANGuard
– Overvoltage protection
– SafeSlot
– Stainless-steel back I/O

ASUS Q-Design
– M.2 Q-Latch
– M.2 Q-Release
– M.2 Q-Slide
– Q-Release Slim (with PCIe SafeSlot)
– Q-Antenna
– Q-Dashboard
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot

ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
– VRM heatsink design

ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– CPU Socket lever protector
– ProCool
– Pre-mounted I/O shield
– SafeDIMM

Aura Sync
– Addressable Gen 2 headers

Front Panel USB 20Gbps with PD Fast Charge Support
– Support: up to 30W fast charging and USB Wattage Watcher
– Output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
– Compatible with PD3.0
Software Features ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– Power Saving
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
TUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)

UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
NPU Boost
Operating System Support Windows 11  (22H2 & later)
Package Contents 2 x SATA 6Gb/s cables
1 x ASUS WiFi Q-Antenna
1 x M.2 Q-Slide package
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x TUF GAMING sticker
1 x TUF GAMING removable nameplate
1 x Quick start guide
Package Dimension (W x D x H) : 27.00 x 35.00 x 6.50 cm
Gross Weight 2.30 KG
Volume 6,142.50 cm3
