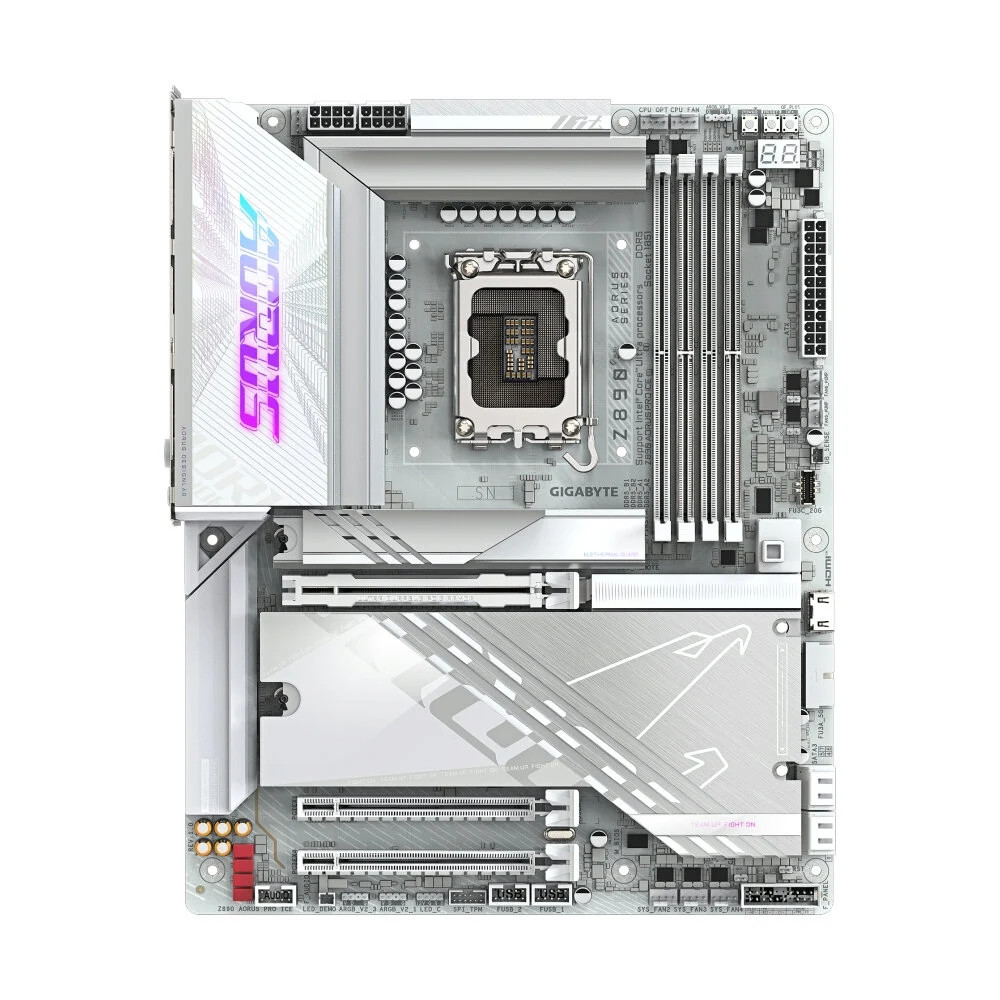

MAINBOARD (1851) GIGABYTE Z890 AORUS PRO ICE DDR5 (REV. 1.0)

฿18,750.00

  • Support CPU : Intel Core Ultra Processors (Series 2)
  • Form Factor : ATX
  • Chipset : Intel Z890 Chipset
  • Memory Channel : Dual Channel DDR5 4DIMM
  • Memory Support : up to 9500(O.C.)
  • Memory MAX : 256GB
  • M.2 Slot : 5 slots
  • SATA III 6G : 4 ports
  • PCIe 5.0×16 : 1 slot
  • Lan Port : 5 Gigabit LAN
  • Wireless : Wi-Fi 7
  • Digital twin 16+1+2 phases VRM solution
  • D5 Bionic Corsa for Infinite Memory Performance
  • AORUS AI SNATCH : Auto-Overclocking Software by AI models
  • Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
  • Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L
  • Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
  • Extended Connectivity : Dual THUNDERBOLT™ 4 Type-C with DP-Alt
  • High-Res Audio : ALC1220 & WIMA Audiophile Grade Capacitors
  • Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
  • PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: A0163634 หมวดหมู่: ,

คำอธิบาย

Brand GIGABYTE
Model Z890 AORUS PRO ICE Rev1.0 (DDR5)
CPU Support LGA1851 socket: Support for Intel® Core™ Ultra Processors
L3 cache varies with CPU

* Please refer to “CPU Support List” for more information.
CPU Brand Intel
Socket 1851
Chipset Intel Z890
Memory Support Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)
Maximum Memory Bus 9500
Graphics Integrated Graphics Processor-Intel® HD Graphics support:
– 2 x Intel® Thunderbolt™ 4 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs

When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120×2880@60 Hz with 24 bpp (single display output).
When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840×2160@240 Hz (single display output).

* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, “Back Panel Connectors,” for more information.)
* Support for DisplayPort 1.4 version and HDCP 2.3

– 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz
* Support for HDMI 1.4 version.

(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time
Multi Graphic Support N/A
Audio Realtek® ALC1220 CODEC
* The back panel line out jack supports DSD audio.

High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out
Expansion Slots CPU:
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)
Maximum PCIe Version PCIe 5.0
Storage CPU:
1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

Chipset:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
M.2 Storage Type Support NVMe, SATA
M.2 Slot 5
USB CPU:
2 x USB4® USB Type-C® ports on the back panel

Chipset:
1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Chipset+3 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
5 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x HDMI port (Note)
1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x noise detection header
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

(Note) Actual support may vary by CPU.

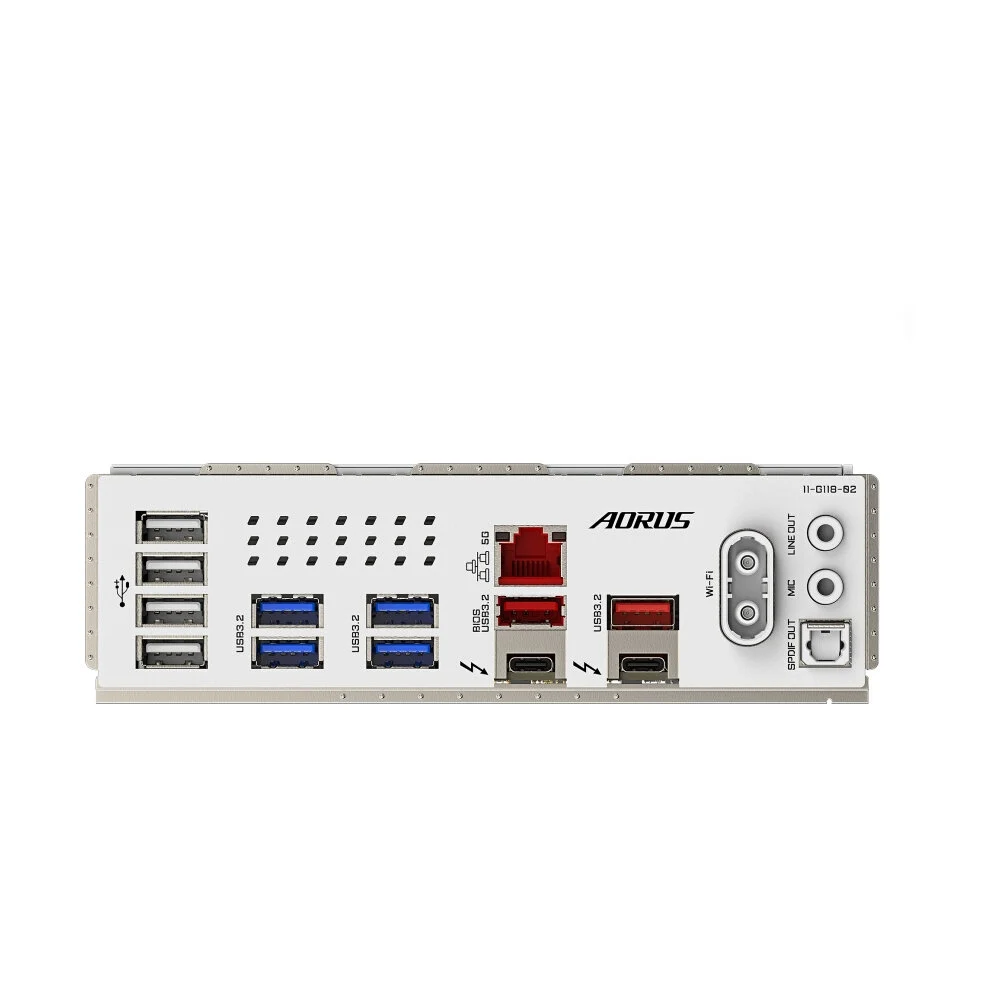

Back Panel Connectors 4 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
4 x USB 3.2 Gen 1 ports
2 x Thunderbolt™ 4 connectors (USB4® USB Type-C® ports)
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
LAN Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless Data Network Intel® Wi-Fi 7 BE200
– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.4
– Support for 11be 320MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)

** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations.
Form Factor ATX
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.

Noise detection
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Software Features Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System Support Support for Windows 11 64-bit
Package Contents N/A
Package Dimension (W x D x H) : 26.80 x 33.30 x 7.80 cm
Gross Weight 2.30 KG
Volume 6,961.03 cm3
