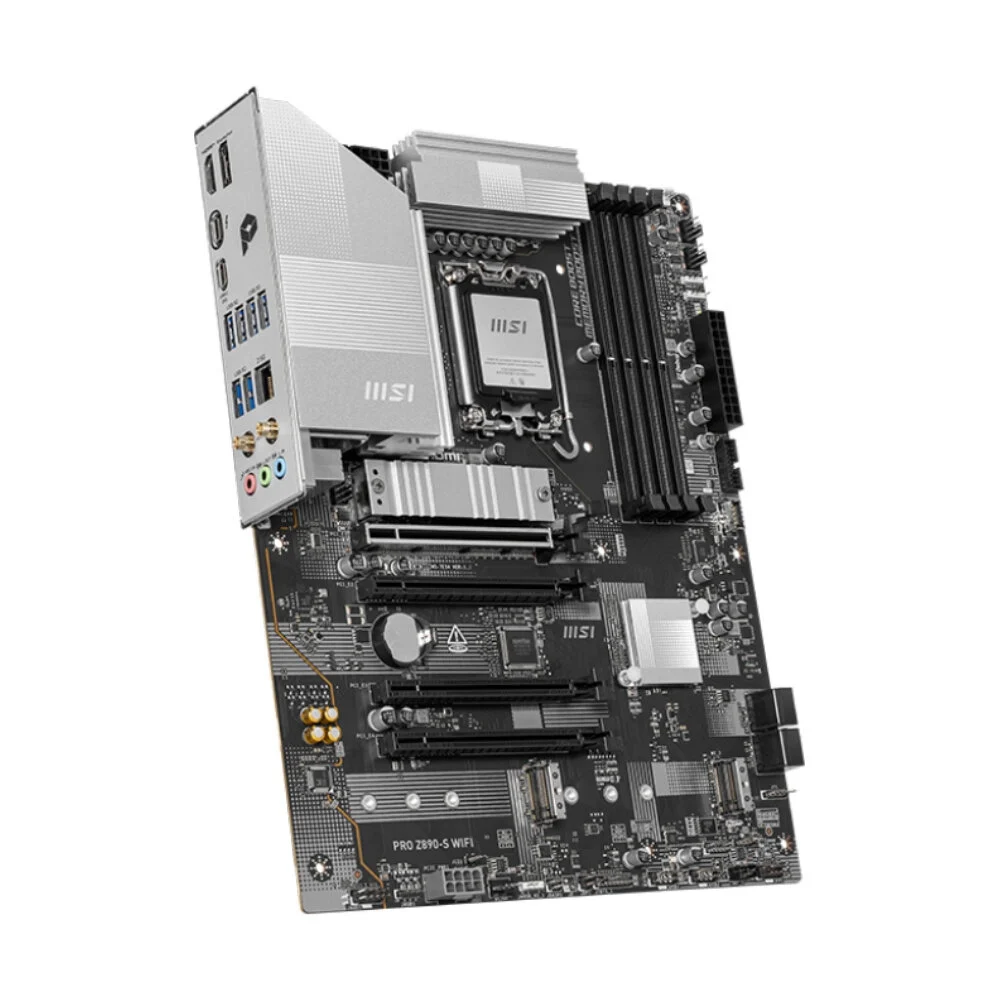

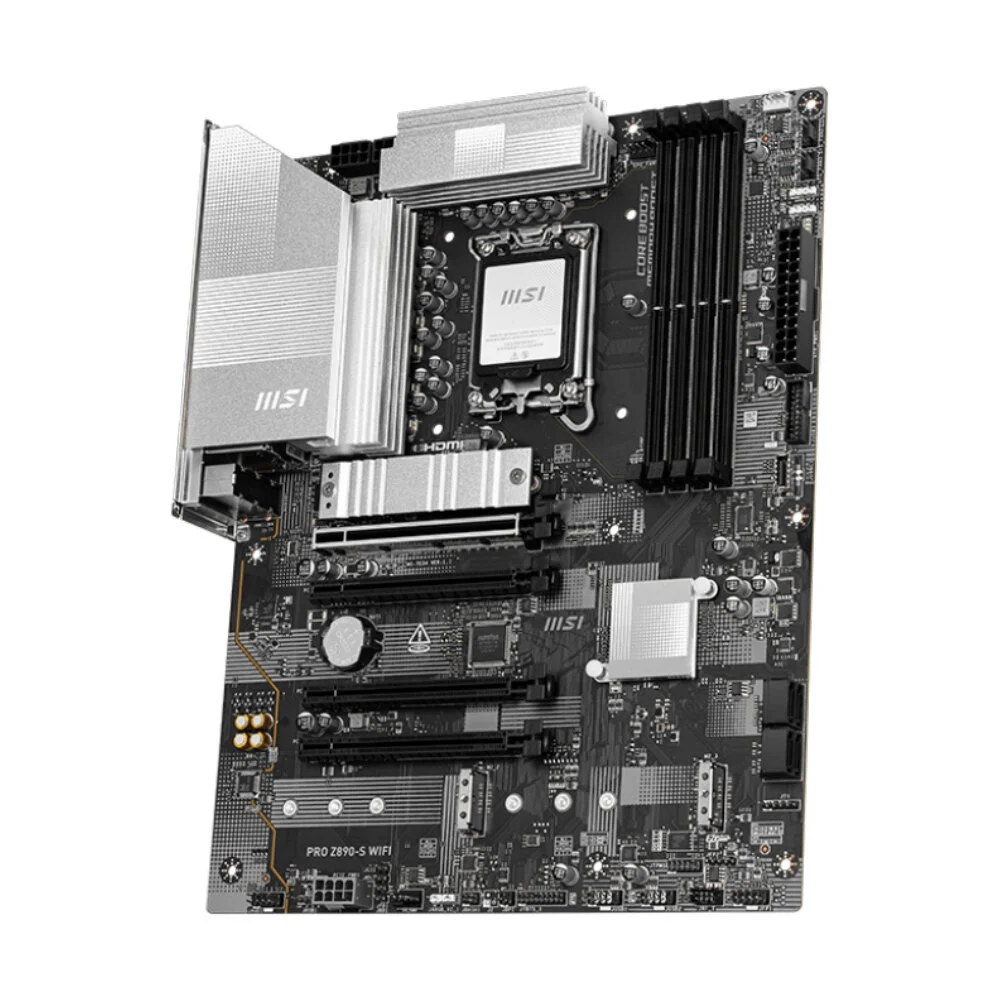

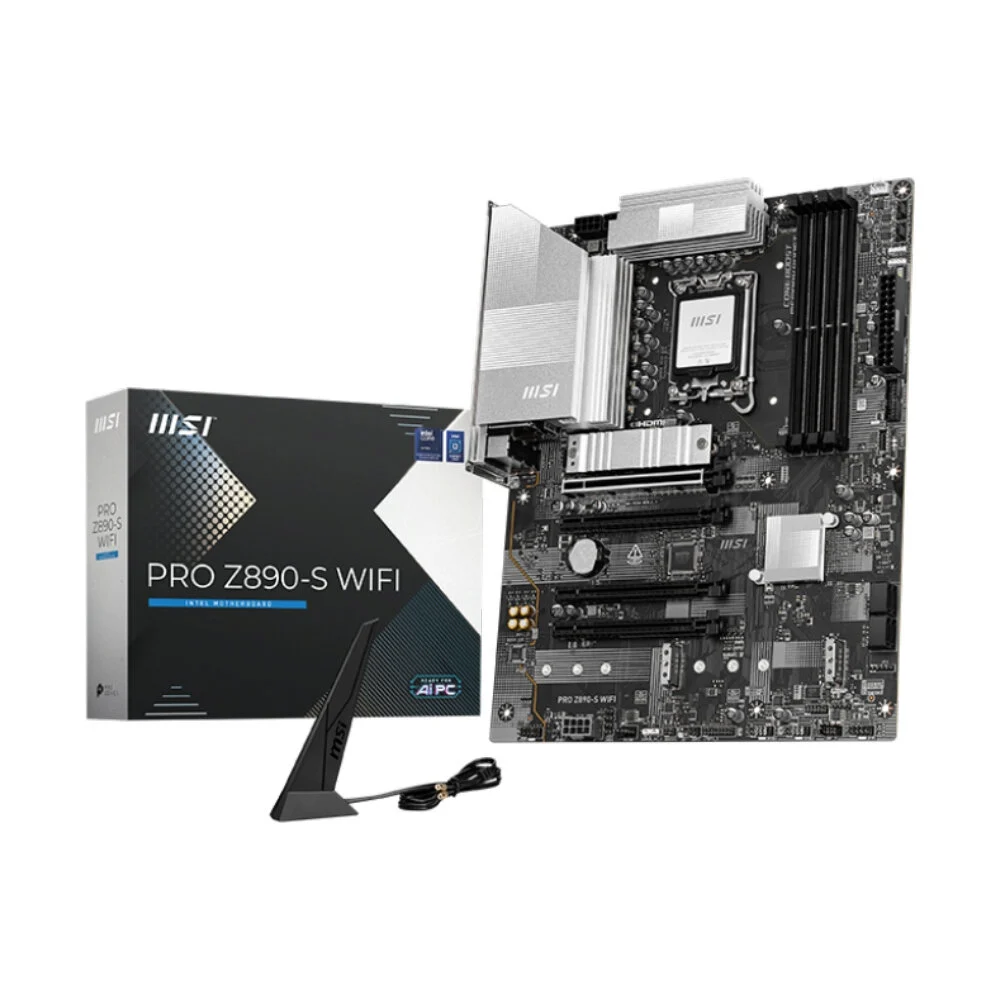

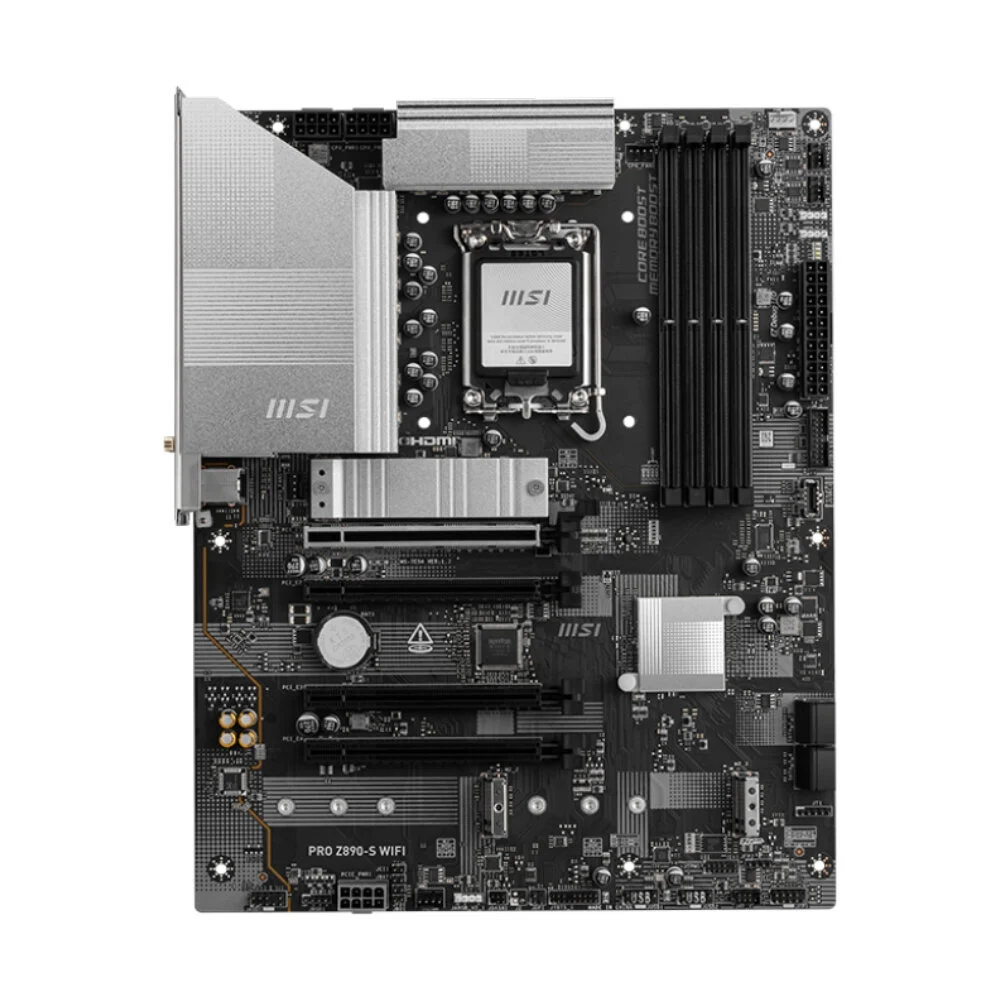

MAINBOARD (1851) MSI PRO Z890-S WIFI DDR5

฿10,250.00

  • Support CPU : Intel Core Ultra Processors (Series 2)
  • Form Factor : ATX
  • Chipset : Intel Z890 Chipset
  • Memory Channel : Dual Channel DDR5 4DIMM
  • Memory Support : up to 8600(O.C.)
  • Memory MAX : 256GB
  • M.2 Slot : 3 slots
  • SATA III 6G : 4 ports
  • PCIe 5.0×16 : 1 slot
  • Lan Port : 2.5 Gigabit LAN
  • Wireless : Wi-Fi 7
  • Enhanced Power Design: 12+1+1+1 Duet Rail Power System with P-PAK , dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
  • EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: A0164033 หมวดหมู่: ,

คำอธิบาย

Brand MSI
Model Z890-S WIFI (DDR5)
CPU Support Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
CPU Brand Intel
Socket 1851
Chipset Intel Z890
Memory Support 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 8600 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s

Max. overclocking frequency:
• 1DPC 1R Max speed up to 8600+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s

Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Maximum Memory Bus 8600
Graphics 1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*

1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*

1x Type-C DisplayPort
Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Multi Graphic Support N/A
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Expansion Slots 4 x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)
Maximum PCIe Version PCIe 5.0
Storage 3 x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G

*Please refer to the manual for M.2 SSD heatsink restrictions.
M.2 Storage Type Support NVMe, SATA
M.2 Slot 3
USB 4 x USB 2.0 (Front)
6 x USB 5Gbps Type A (Rear)
2 x USB 5Gbps Type A (Front)
1 x USB 20Gbps Type C (Rear)
1 x USB 20Gbps Type C (Front)
Internal I/O Connectors 1 x Thunderbolt5 card connector(JTBT5, support RTD3)
1 x Power Connector(ATX_PWR)
2 x Power Connector(CPU_PWR)
1 x Power Connector(PCIE_PWR 8pin)
1 x CPU Fan
1 x Combo Fan (Pump_Sys Fan)
4 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Tuning Controller connector(JDASH)
3 x Addressable V2 RGB LED connector (JARGB_V2)
1 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
4 x USB 2.0 ports
2 x USB 5Gbps Type A ports
1 x USB 20Gbps Type C ports

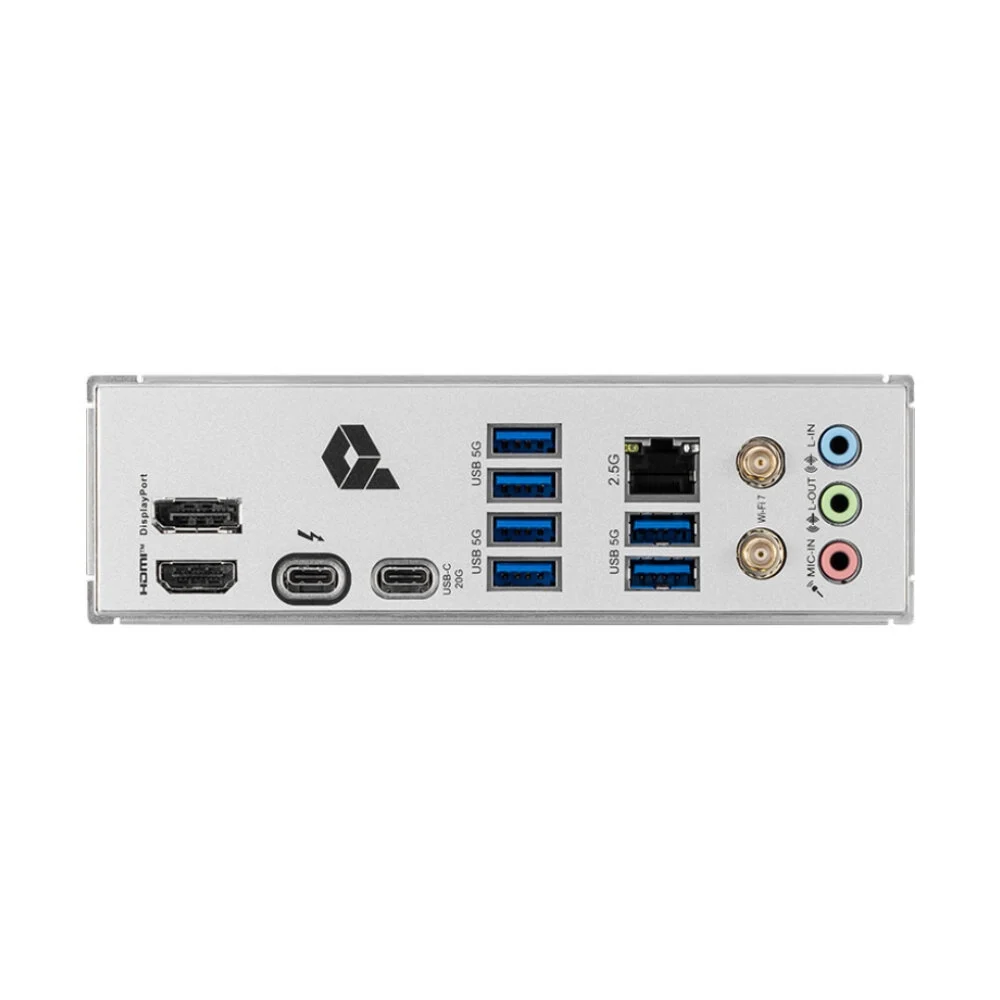

Back Panel Connectors 6 x USB 5Gbps Type-A
1 x USB 20Gbps Type-C
1 x Thunderbolt™ 4 40Gbps (Type-C)
1 x HDMI™
1 x DisplayPort
Audio Connectors
2.5G LAN
Wi-Fi / Bluetooth
LAN Realtek® 8125D 2.5Gbps LAN
Wireless Data Network Intel® Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
Form Factor ATX
H/W Monitoring N/A
BIOS N/A
Special Features LED FEATURE : 4x EZ Debug LED
Software Features N/A
Operating System Support Support for Windows® 11 64-bit
Package Contents N/A
Package Dimension (W x D x H) : 26.60 x 34.00 x 6.70 cm
Gross Weight 1.66 KG
Volume 6,059.48 cm3
