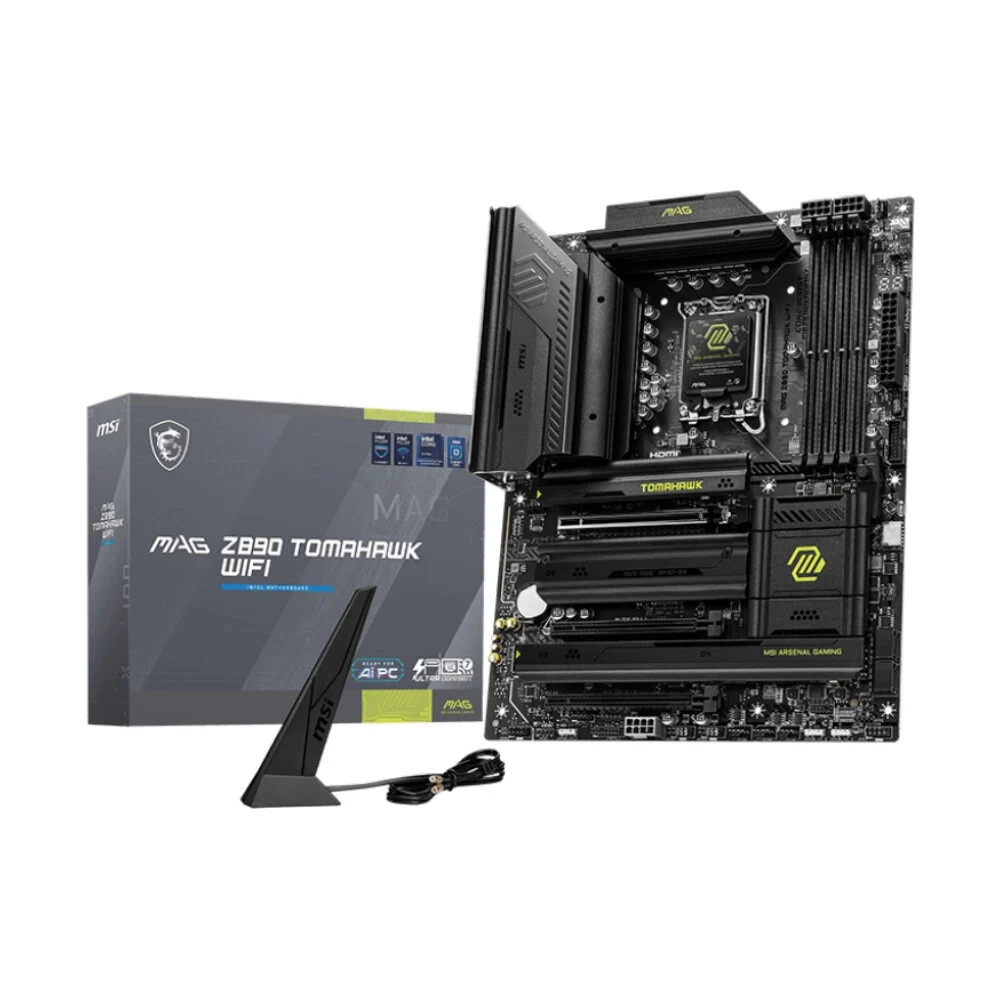

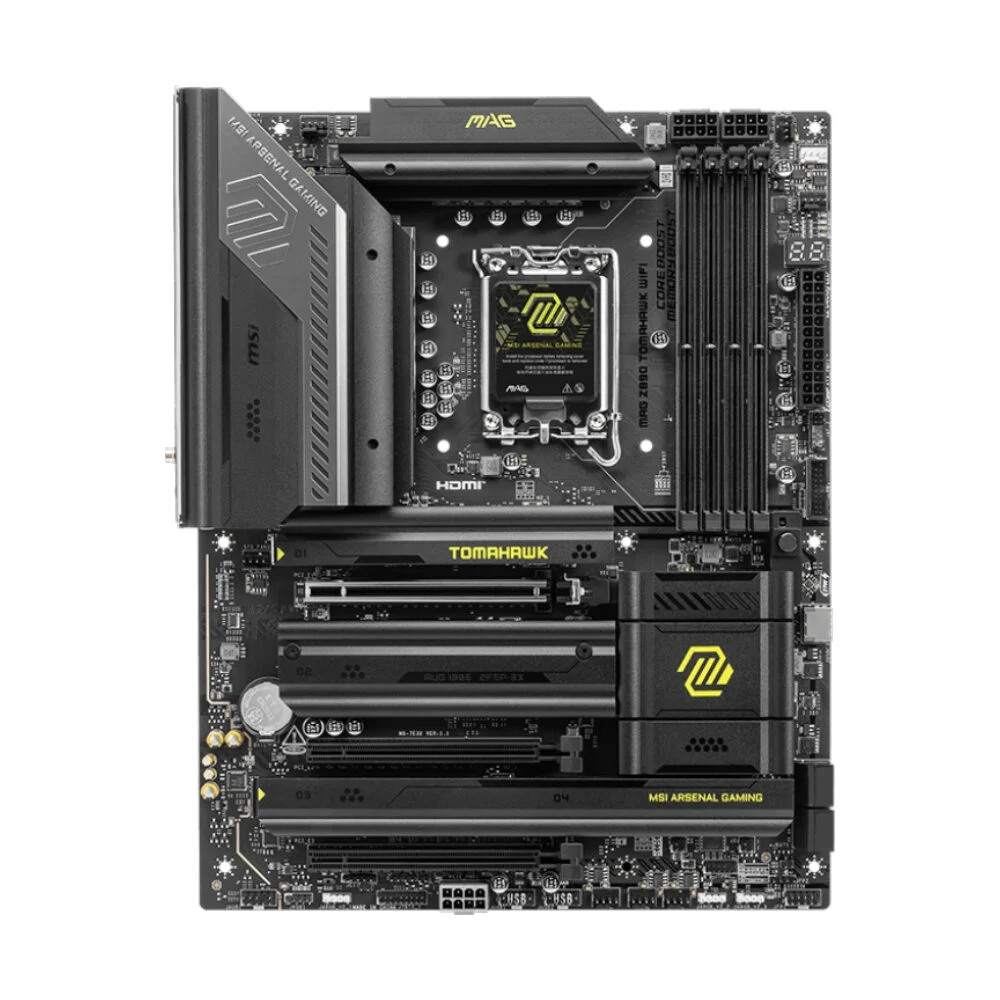

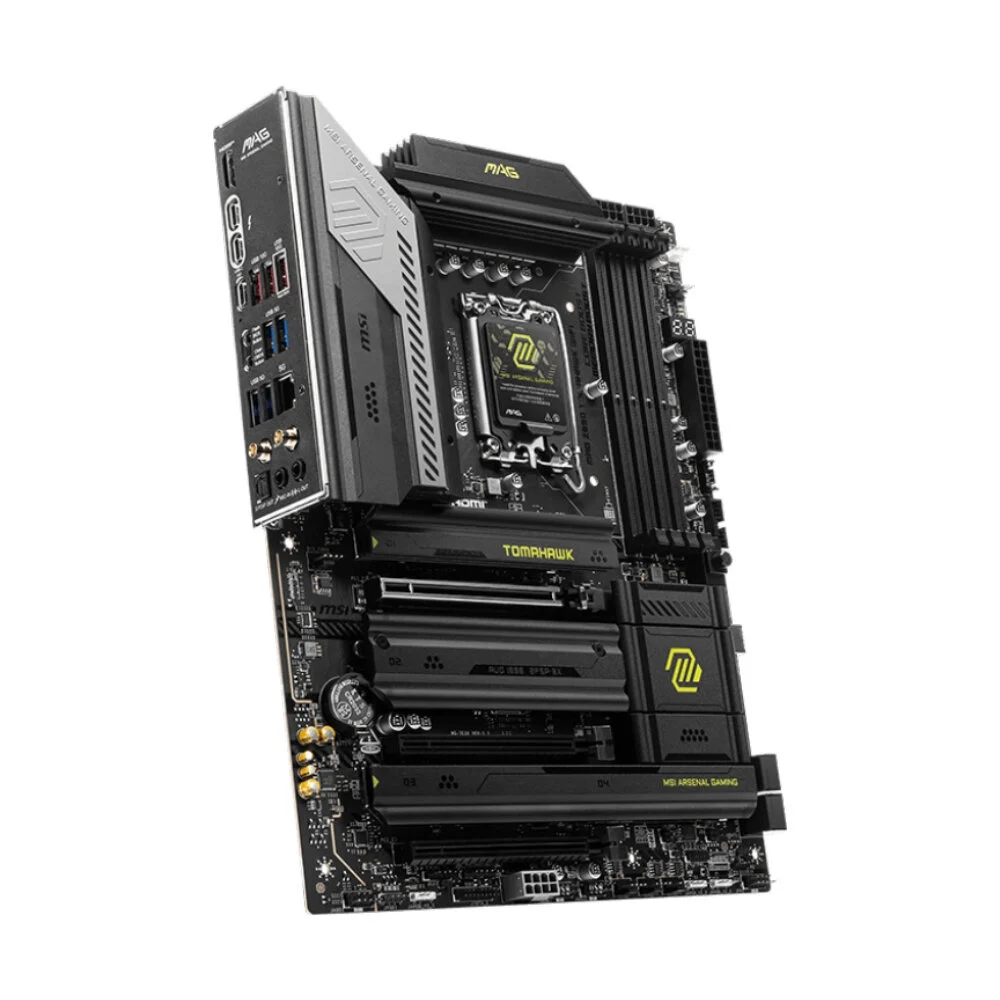

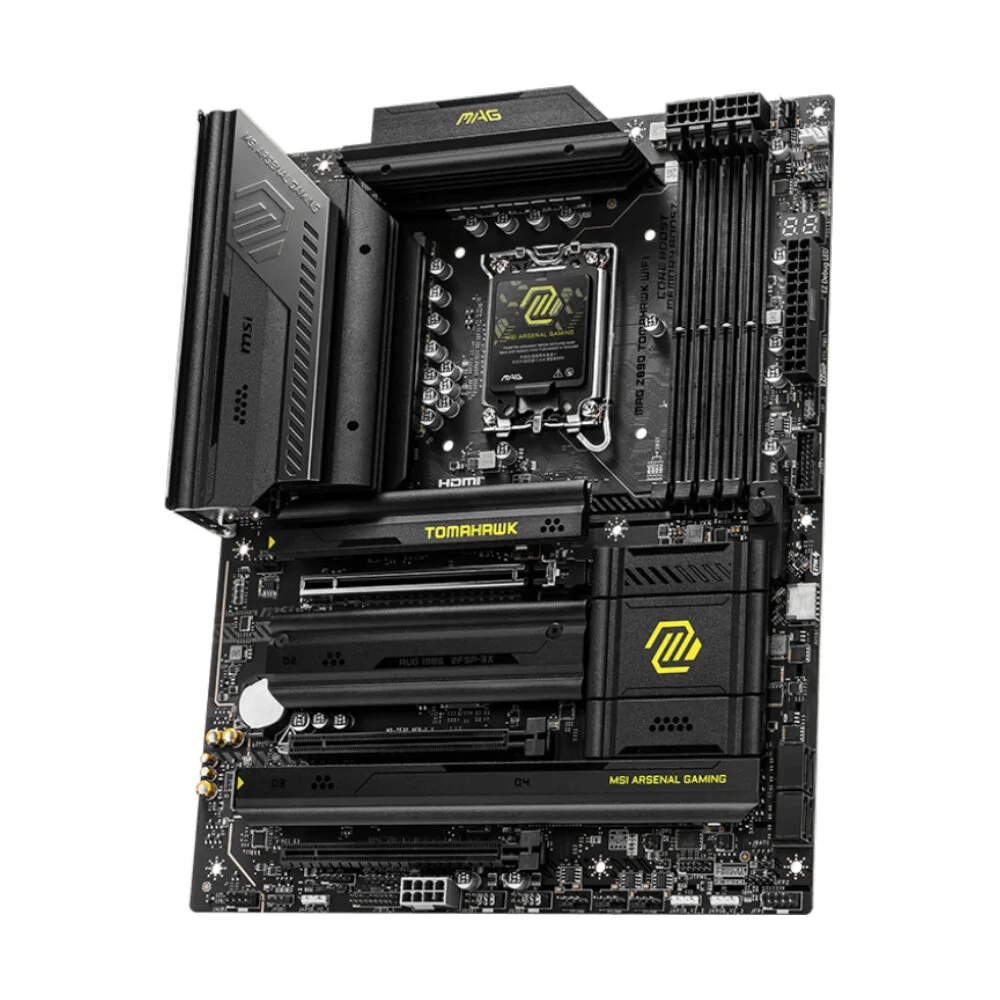

MAINBOARD (1851) MSI Z890 TOMAHAWK WIFI DDR5

฿14,850.00

  • Support CPU : Intel Core Ultra Processors (Series 2)
  • Form Factor : ATX
  • Chipset : Intel Z890 Chipset
  • Memory Channel : Dual Channel DDR5 4DIMM
  • Memory Support : up to 9200(O.C.)
  • Memory MAX : 256GB
  • M.2 Slot : 4 slots
  • SATA III 6G : 4 ports
  • PCIe 5.0×16 : 1 slot
  • Lan Port : 5 Gigabit LAN
  • Wireless : Wi-Fi 7
  • Ultra Performance : 16+1+1+1 Duet Rail Power System 90A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
  • EZ DIY : EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
  • Audio Boost 4 : Reward your ears with studio grade sound quality for the most immersive gaming experience

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: A0164028 หมวดหมู่: ,

คำอธิบาย

Brand MSI
Model Z890 TOMAHAWK WIFI (DDR5)
CPU Support Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
CPU Brand Intel
Socket 1851
Chipset Intel Z890
Memory Support 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s

Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s

Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

• The DIMM slots on this motherboard only have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Maximum Memory Bus 9200
Graphics 1 x HDMI™
Support HDMI™ 2.1 with FRL, maximum resolution of 4K 120Hz*

2 x Type-C DisplayPort
Thunderbolt™ 4 ports, supporting DisplayPort 1.4 over USB Type-C®, with a maximum resolution of 4K 120Hz / 8K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Multi Graphic Support N/A
Audio Realtek® ALC1220P Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Expansion Slots 3 x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Maximum PCIe Version PCIe 5.0
Storage 4 x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

4 x SATA 6G

*Please refer to the manual for M.2 SSD heatsink restrictions.

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
M.2 Storage Type Support NVMe, SATA
M.2 Slot 4
USB 4 x USB 2.0 (Front)
4 x USB 5Gbps Type A (Rear)
2 x USB 5Gbps Type A (Front)
3 x USB 10Gbps Type A (Rear)
1 x USB 10Gbps Type C (Rear)
1 x USB 20Gbps Type C (Front)
*USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
2 x Thunderbolt4 ports (Rear)
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display
Internal I/O Connectors 1 x Thunderbolt5 card connector(JTBT5, support RTD3)
1 x Power Connector(ATX_PWR)
2 x Power Connector(CPU_PWR)
1 x Power Connector(PCIE_PWR 8pin)
1 x CPU Fan
1 x Combo Fan (Pump_Sys Fan)
6 x System Fan
1 x EZ Conn-header (JAF_2)
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
3 x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
4 x USB 2.0 ports
2 x USB 5Gbps Type A ports
1 x USB 20Gbps Type C ports

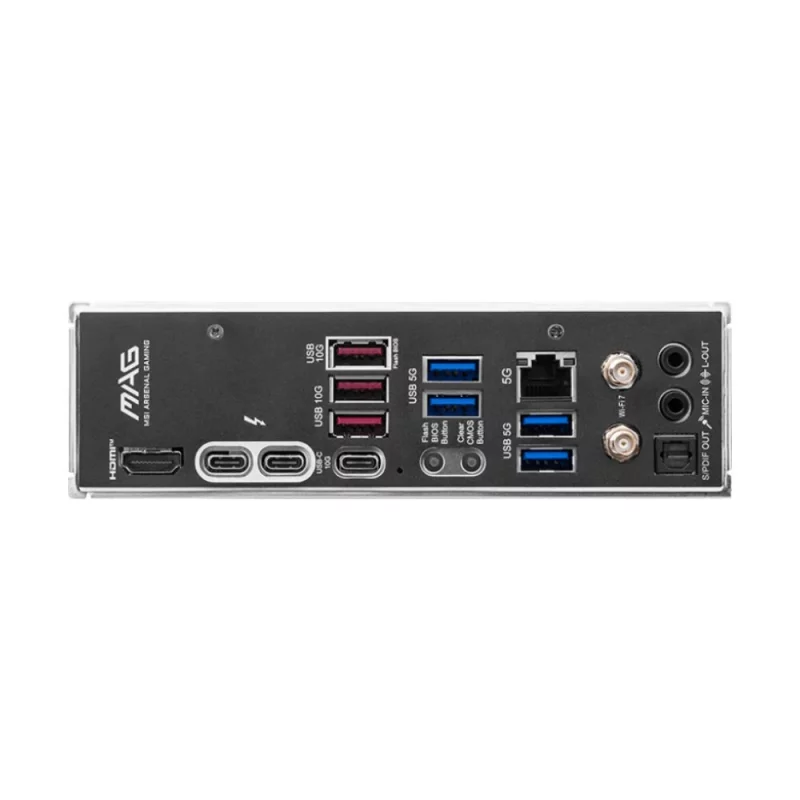

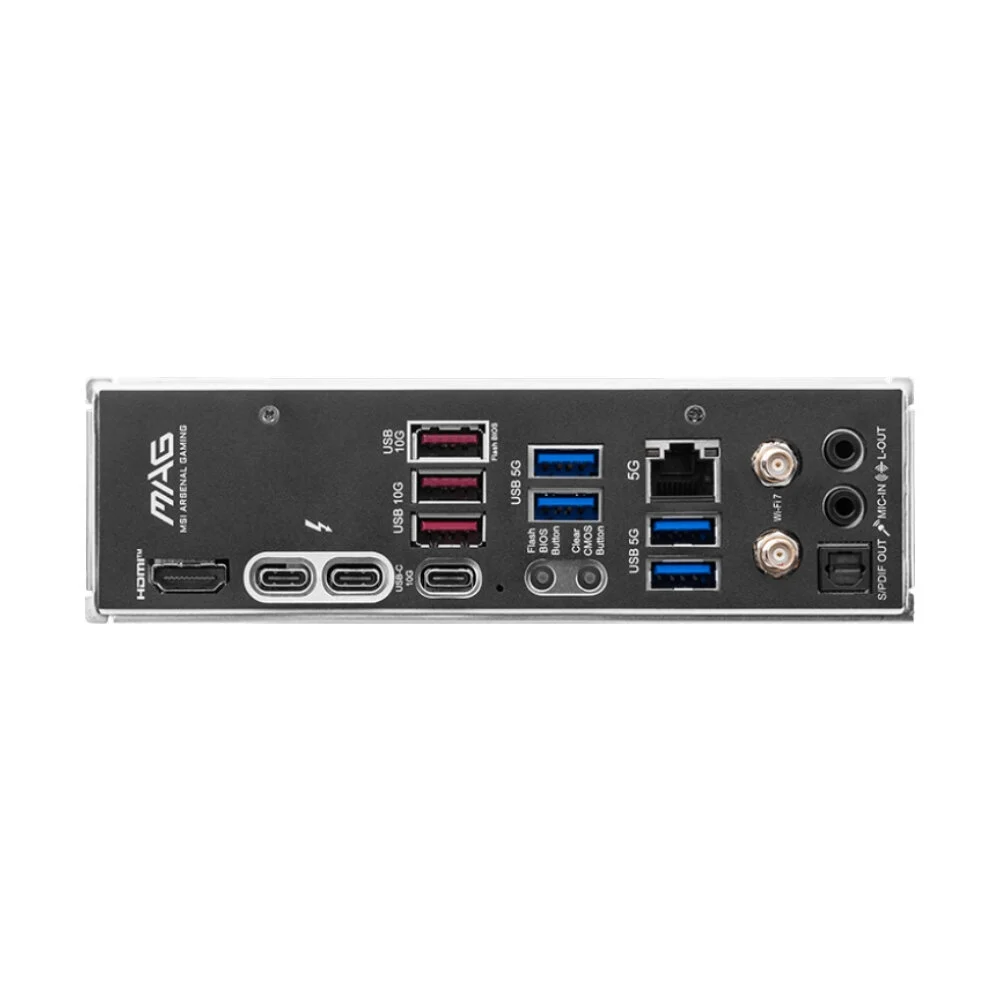

Back Panel Connectors 3 x USB 10Gbps Type-A
4 x USB 5Gbps Type-A
1 x HDMI™
2 x Thunderbolt™ 4 40Gbps (Type-C)
1 x USB 10Gbps Type-C
Audio Connectors
S/PDIF-OUT
5G LAN
Wi-Fi / Bluetooth
Flash BIOS Button
Clear CMOS Button
LAN Intel® Killer™ E5000 5Gbps LAN
Wireless Data Network Intel® Killer™ BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
Form Factor ATX
H/W Monitoring N/A
BIOS N/A
Special Features LED FEATURE
4 x EZ Debug LED
1 x EZ Digit Debug LED
Software Features N/A
Operating System Support Support for Windows® 11 64-bit
Package Contents N/A
Package Dimension (W x D x H) : 26.50 x 34.00 x 6.70 cm
Gross Weight 2.06 KG
Volume 6,036.70 cm3
