คำอธิบาย
| Brand | LONGWELL |
| Model | INTEL G31LMS |
| CPU Support | Intel® Celeron Intel® Celeron D Intel® Celeron Dual-Core Intel® Core 2 Duo Intel® Core 2 Quad Intel® Pentium 4 Intel® Pentium D Intel® Pentium Dual Core |
| CPU Brand | Intel |
| Socket | 775 |
| Chipset | Intel G31 Express North Bridge Intel ICH7 South Bridge chipsets |
| Memory Support | Dual Channel DDR2 Memory Technology 2 x DDR2 DIMM Slots Support DDR2 667/800 MHz Max.capacity up to 4GB Memory |
| Maximum Memory Bus | 800 |
| Graphics | N/A |
| Multi Graphic Support | N/A |
| Audio | Supports 6 channels sound input( ex: Realtek ALC662) Supports 16-bit ADC (Analog Digital Converter) Supports multipls stereo input mixer |
| FSB | processors with 800/1066/1333 MHz FSB |
| Expansion Slots | 1 x PCI Express 2.0 x16 (x16 mode) 1 x PCI Slot |
| Maximum PCIe Version | PCIe 2.0 |
| Storage | 4 x SATA2 Connector |
| M.2 Storage Type Support | None |
| M.2 Slot | None |
| USB | 4 x USB 2.0 Port 2 x F USB 2.0 Connector |
| Internal I/O Connectors | 1 x 24-pin EATX Power Connector 1 x 4-pin ATX 12V Power Connector 1 x CPU Fan Connector 2 x F USB 2.0 Connector 1 x Front Panel Audio Connector (AAFP) 1 x Speaker Connector 1 x System Panel Connector |

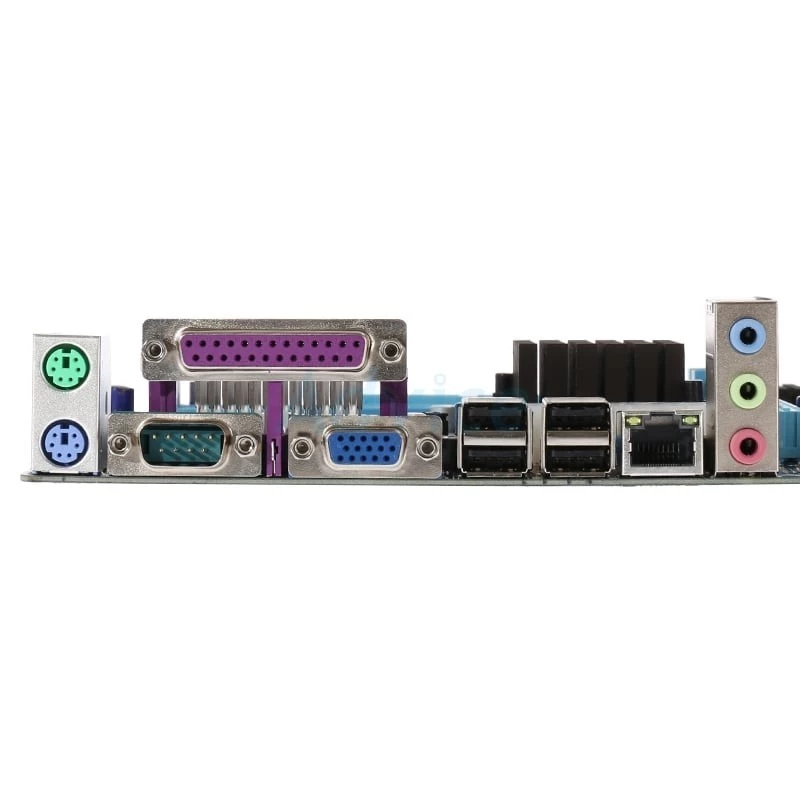

| Back Panel Connectors | 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 1 x VGA (D-Sub) Port 1 x Serial Port (Com1) 1 x Parallel Port (LPT) 4 x USB 2.0 Port 1 x RJ-45 LAN port with LED (ACT/LINK LED and SPEED LED) 3 x Audio Jacks: Line in / Speaker / Microphone |
| LAN | 10/100 Mb/s auto negotiation Half/Full duplex capability Realtek® RTL8105E |
| Wireless Data Network | None |
| Form Factor | Micro ATX |
| H/W Monitoring | N/A |
| BIOS | N/A |
| Special Features | N/A |
| Software Features | N/A |
| Operating System Support | Microsoft® Window® XP / Vista / 7 / 8 / 10 |
| Package Contents | N/A |
| Package Dimension | (W x D x H) : 23.00 x 18.00 x 5.50 cm |
| Gross Weight | 0.60 KG |
| Volume | 2,277.00 cm3 |
