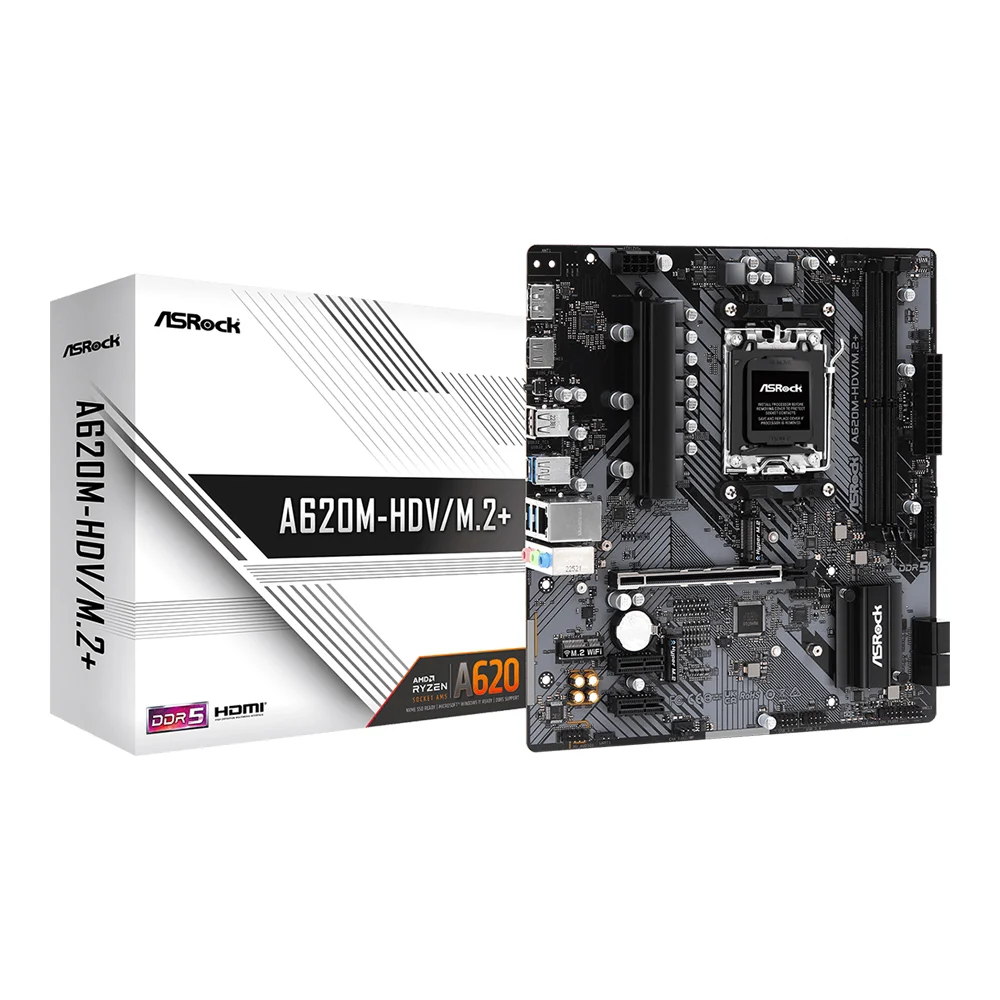

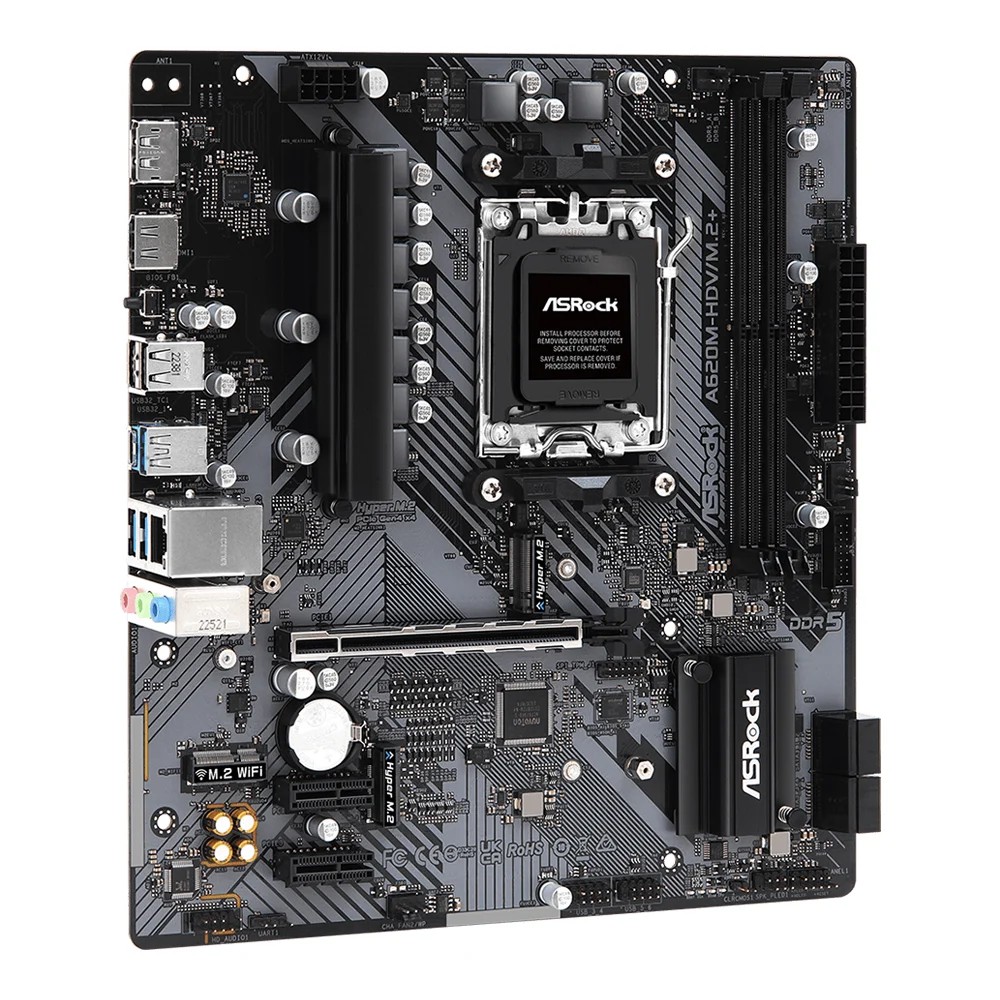

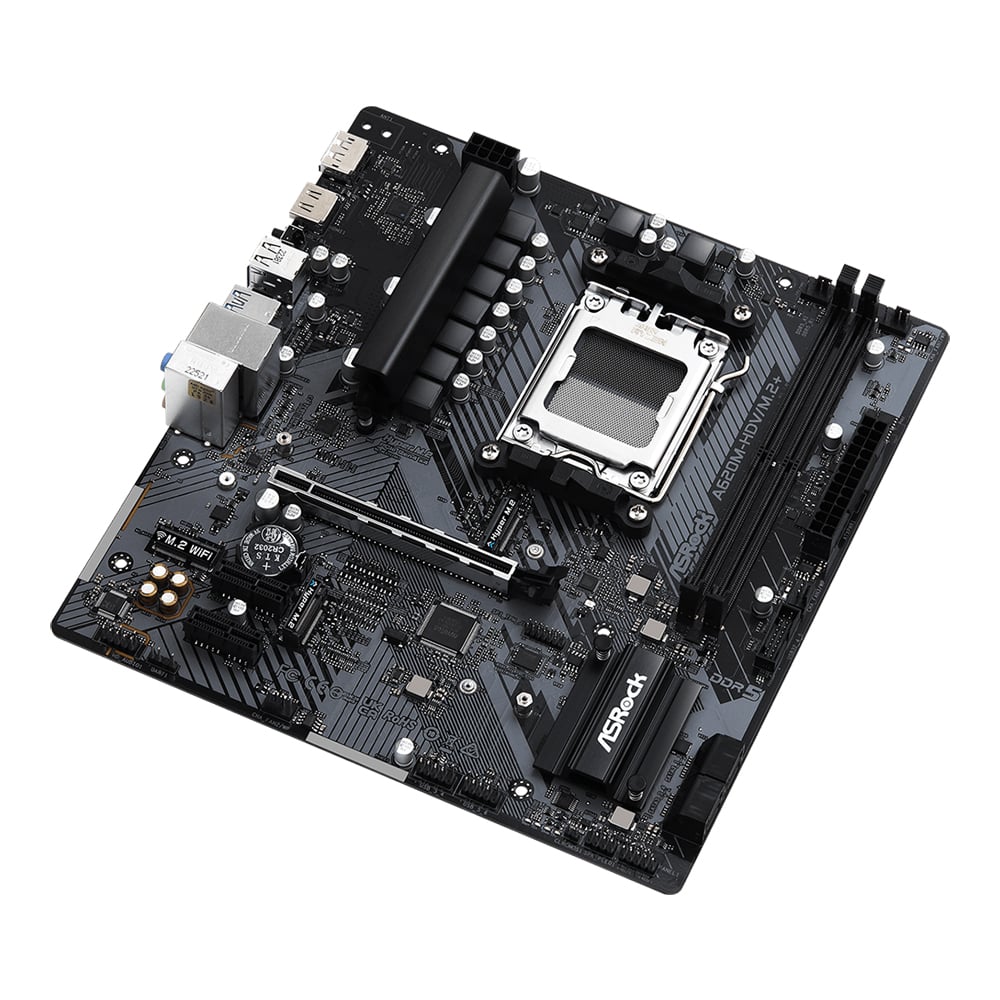

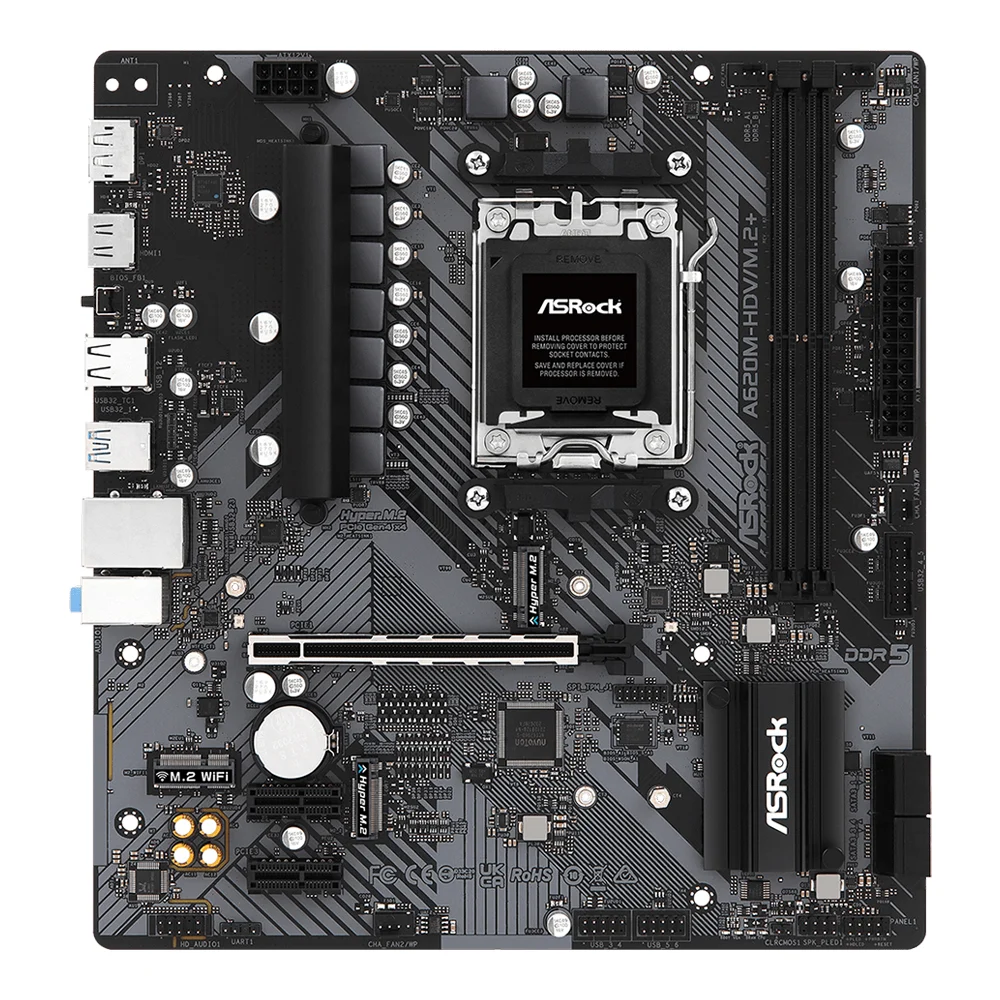

MAINBOARD (AM5) ASROCK A620M HDV/M.2+ DDR5

฿3,550.00

  • Support CPU : AMD Ryzen™ 7000 Series
  • Chipset : AMD® A620 Chipset
  • FromFactor : Micro ATX
  • Memory Channel : Dual Channel DDR5 2DIMM
  • Memory supports : up to 6400(O.C.)
  • Memory MAX 64GB
  • M.2 slot : 2  slot
  • SATA III 6G : 4 port
  • PCIe 4.0×16 : 1 slot
  • Lan port : Realtek® RTL8111H LAN controller

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: A0150886 หมวดหมู่: ,

คำอธิบาย

Brand ASROCK
Model A620M-HDV/M.2+
CPU Support

– Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
CPU Brand AMD
Socket AM5
Chipset  AMD A620
Memory Support – Dual Channel DDR5 Memory Technology
– 2 x DDR5 DIMM Slots
– Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)
– Max. capacity of system memory: 64GB
– Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Maximum Memory Bus 6400
Graphics Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)
– 1 x HDMI 2.1 TMDS / FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Multi Graphic Support N/A
Audio – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Nahimic Audio
Expansion Slots CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

– 15μ Gold Contact in VGA PCIe Slot (PCIE1)
*Supports NVMe SSD as boot disks
Maximum PCIe Version PCIe 4.0
Storage CPU:
– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
– 4 x SATA3 6.0 Gb/s Connectors
*Supports NVMe SSD as boot disks
M.2 Storage Type Support PCIe 4.0
M.2 Slot 2
USB – 1 x USB 3.2 Gen1 Type-C Port
– 3 x USB 3.2 Gen1 Type-A Ports
– 2 x USB 2.0 Ports
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Internal I/O Connectors – 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 3 x Chassis / Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

*CPU_FAN1 supports the fan power up to 1A (12W).

**CHA_FAN1~3 / WP support the fan power up to 2A (24W).
CHA_FAN1~3 / WP can auto detect if 3-pin or 4-pin fan is in use.

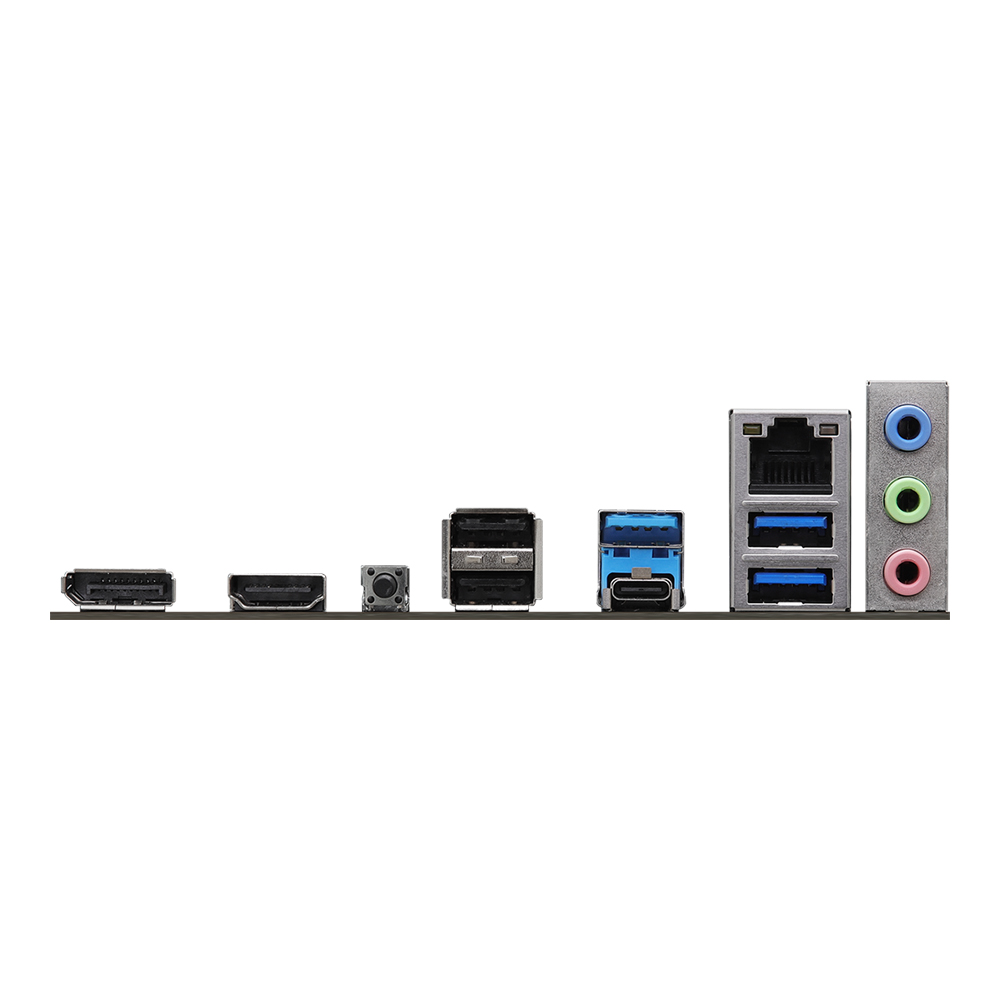

Back Panel Connectors – 2 x Antenna Mounting Points
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 1 x USB 3.2 Gen1 Type-C Port
– 3 x USB 3.2 Gen1 Type-A Ports
– 2 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– 1 x BIOS Flashback Button
– HD Audio Jacks: Line in / Front Speaker / Microphone
LAN – Gigabit LAN 10 / 100 / 1000 Mb / s
– Realtek 8111H
Wireless Data Network N/A
Form Factor Micro ATX
H/W Monitoring N/A
BIOS 256Mb AMI UEFI Legal BIOS with GUI support
Special Features Superb Productivity
– Dual Channel DDR5
Rock-Solid Durability
– 6+1+1 Power Phase, 50A Dr.MOS for VCore
EZ Update
– BIOS Flashback Button
– ASRock Auto Driver Installer
EZ Troubleshooter
– ASRock Post Status Checker< / a>
Software Features Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock XFast LAN
UEFI
– ASRock Full HD UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.
Operating System Support Microsoft Windows 10 64-bit / 11 64-bit
Package Contents – 1 x User Manual
– 1 x I / O Shield

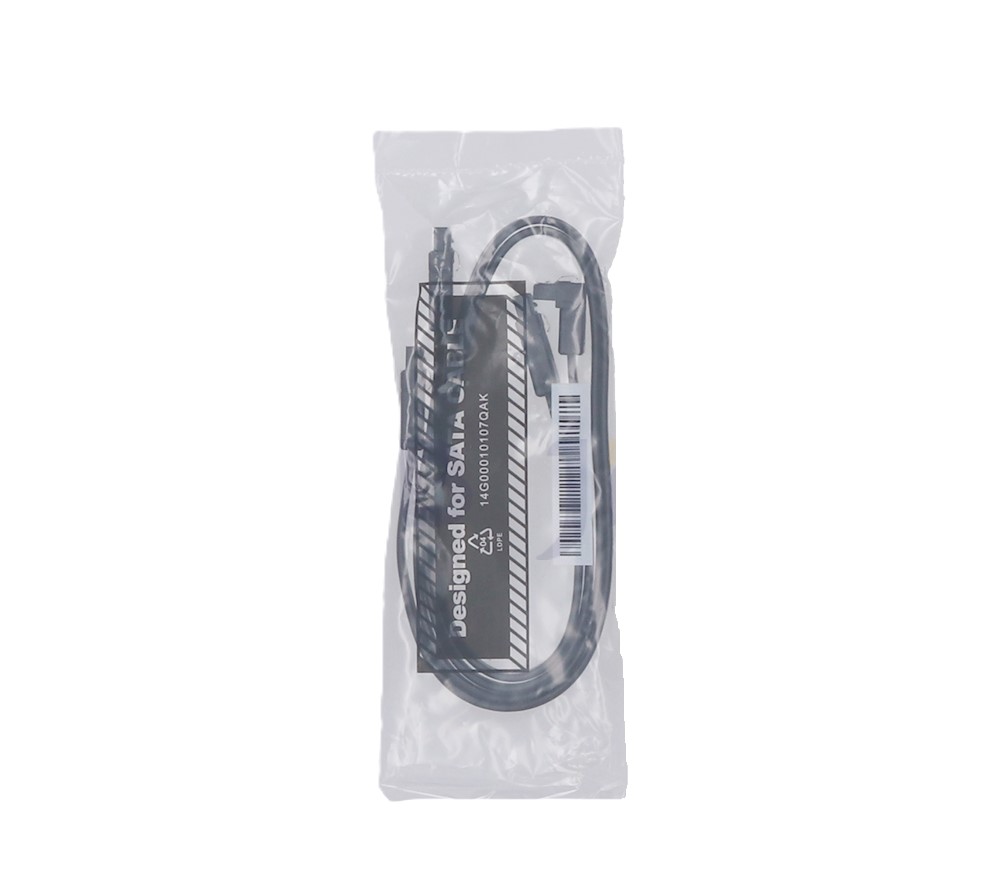

– 2 x SATA Data Cables
– 3 x Screws for M.2 Sockets
Package Dimension (W x D x H) : 28.00 x 26.00 x 6.00 cm
Gross Weight 2.16 KG
Volume 4,368.00 cm3
