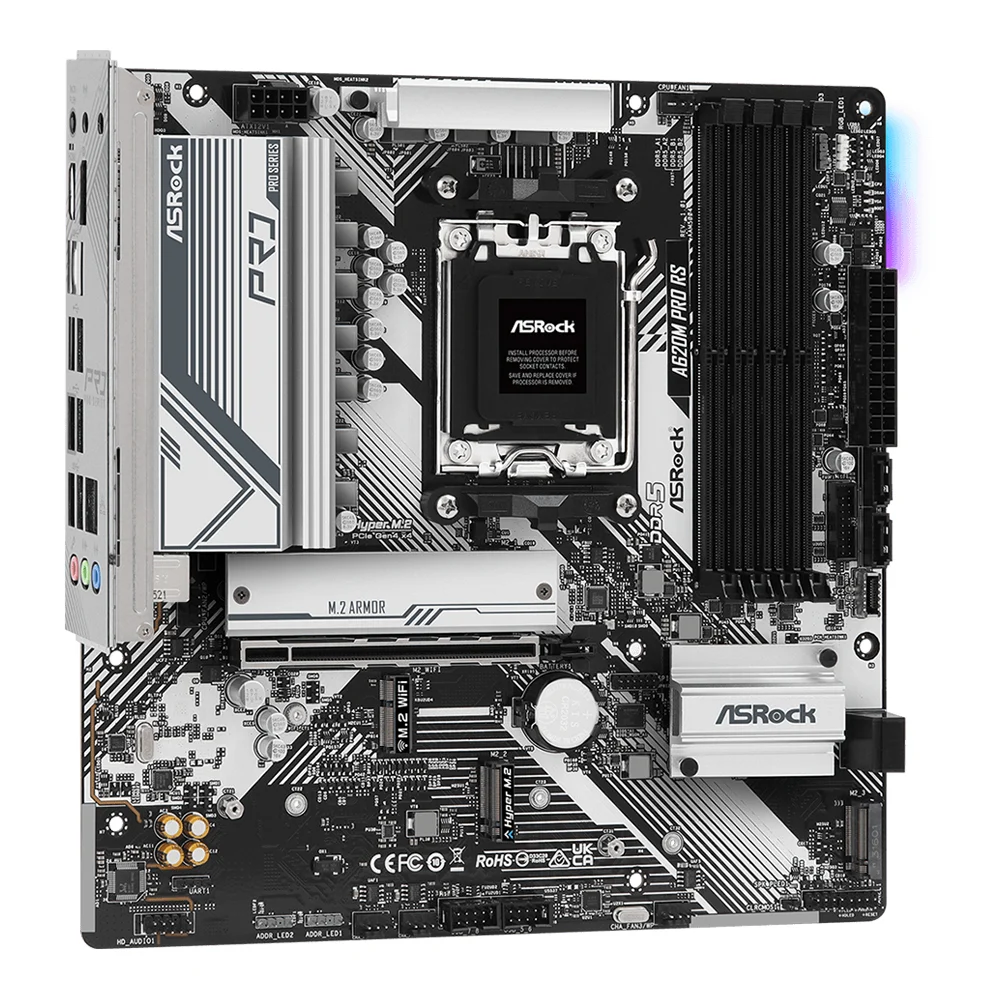

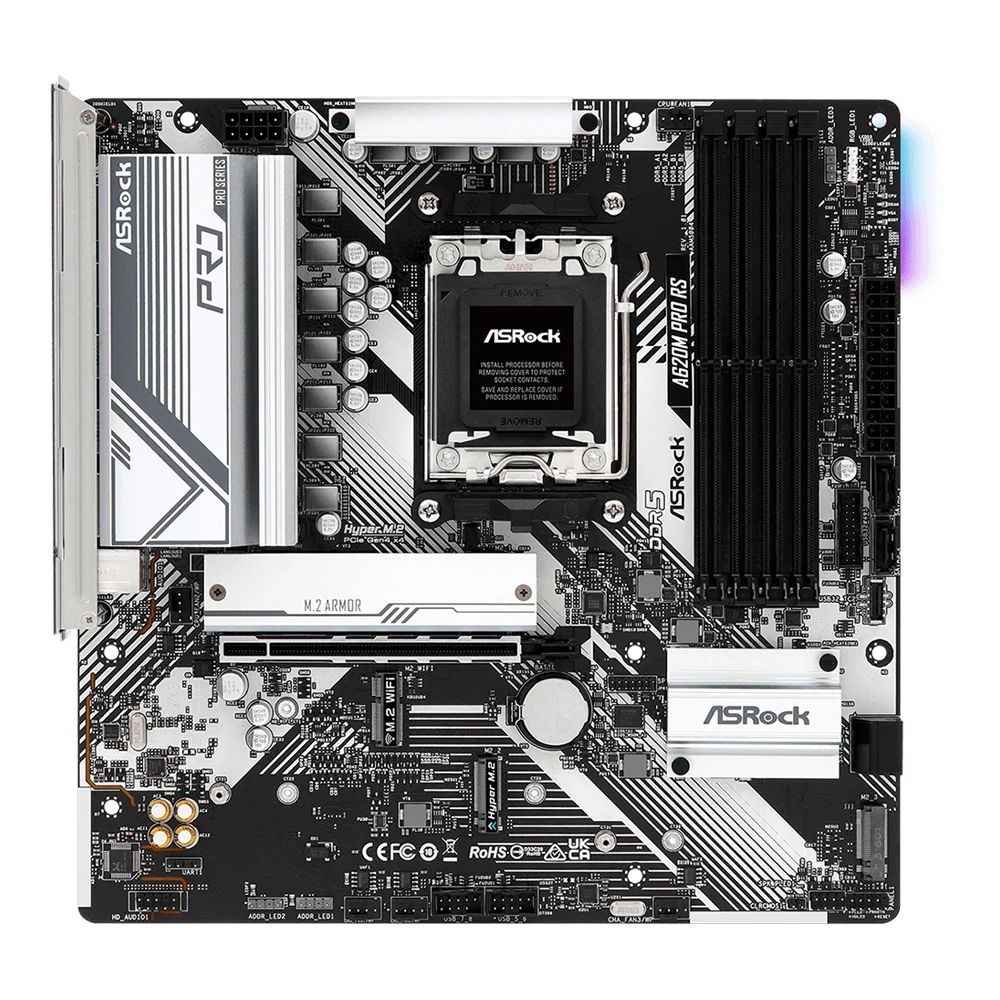

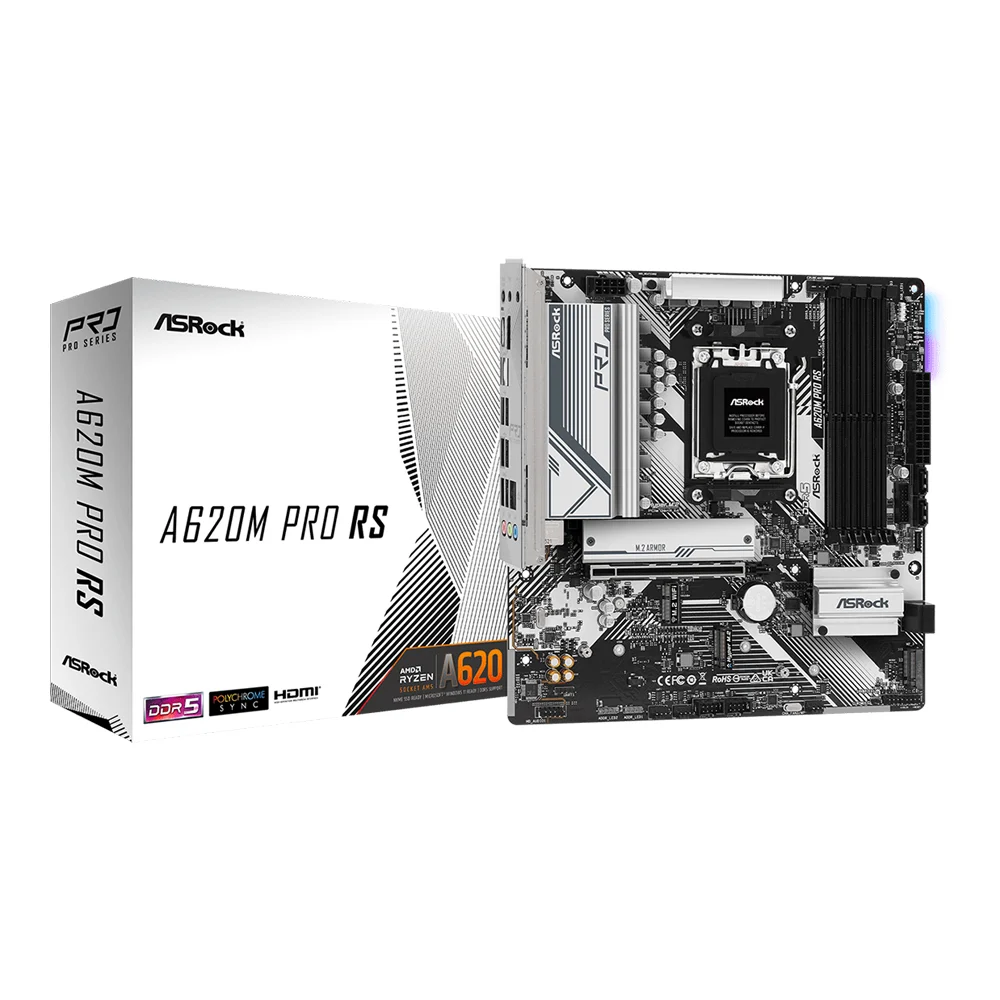

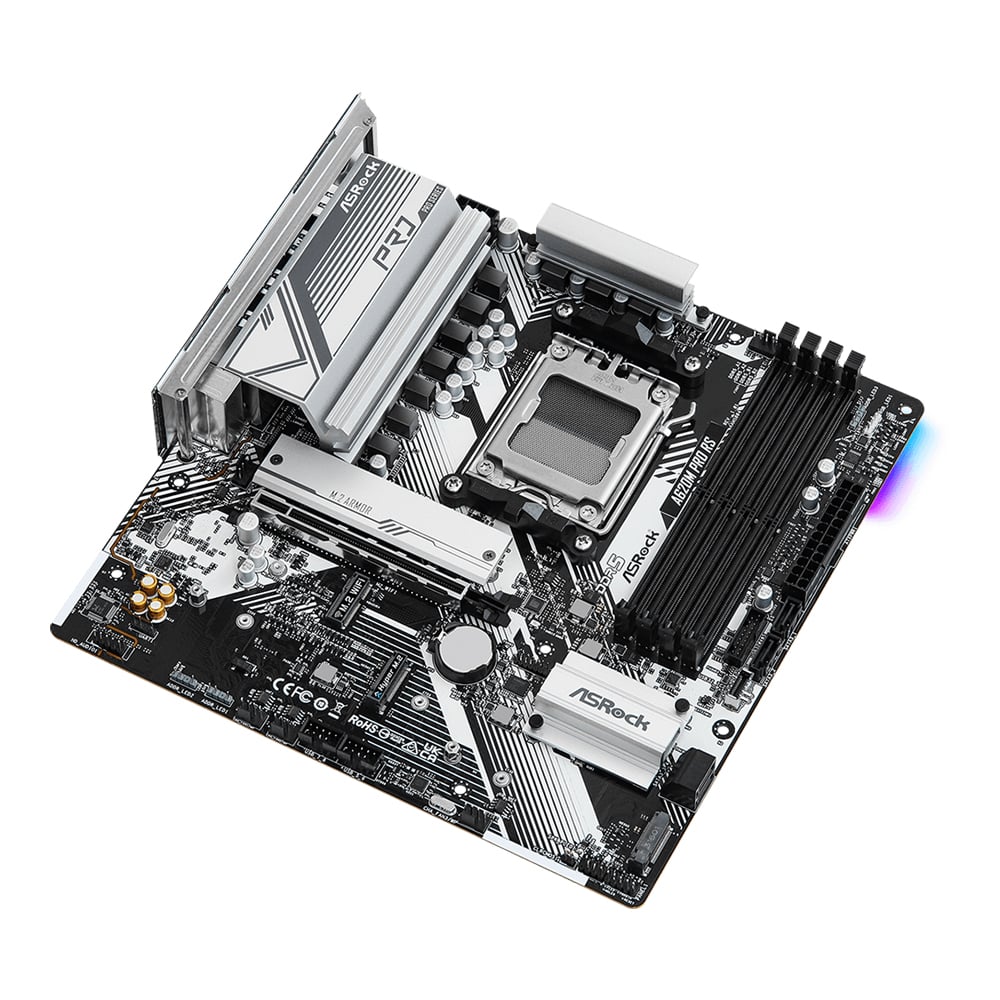

MAINBOARD (AM5) ASROCK A620M PRO RS DDR5

฿3,850.00

  • Support CPU : AMD Ryzen™ 7000 Series
  • Chipset : AMD® A620 Chipset
  • FromFactor : Micro ATX
  • Memory Channel : Dual Channel DDR5 4DIMM
  • Memory supports : up to 6000(O.C.)
  • Memory MAX 128GB
  • M.2 slot : 3  slot
  • SATA III 6G : 4 port
  • PCIe 4.0×16 : 1 slot
  • Lan port : Realtek® RTL8111H LAN controller

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: A0150884 หมวดหมู่: ,

คำอธิบาย

Brand ASROCK
Model A620M Pro RS
CPU Support Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
CPU Brand AMD
Socket AM5
Chipset AMD A620
Memory Support – Dual Channel DDR5 Memory Technology
– 4 x DDR5 DIMM Slots
– Supports DDR5 non-ECC, un-buffered memory up to 6000+(OC)
– Max. capacity of system memory: 128GB
– Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Maximum Memory Bus 6000
Graphics Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)
– 1 x HDMI 2.1 TMDS / FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Multi Graphic Support N/A
Audio – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Nahimic Audio
Expansion Slots CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
* Chipset:
– 1 x M.2 Socket (Key E), supports type 2230 WiFi / BT PCIe WiFi module
* Supports NVMe SSD as boot disks
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Maximum PCIe Version PCIe 4.0
Storage CPU:
– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260 / 2280 PCIe Gen4x4 (64 Gb / s) mode*
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260 / 2280 PCIe Gen4x4 (64 Gb / s) mode
* Chipset:
– 1 x M.2 Socket (M2_3, Key M), supports type 2260 / 2280 PCIe Gen3x2 (16 Gb / s) mode*
– 4 x SATA3 6.0 Gb / s Connectors
* Supports NVMe SSD as boot disks
M.2 Storage Type Support PCIe 4.0
M.2 Slot 3
USB – 3 x USB 3.2 Gen1 Type-A Ports
– 1 x USB 3.2 Gen1 Type-C Port
– 4 x USB 2.0 Ports
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen1 Header* Supports in total up to 12V / 3A, 36W LED
Internal I/O Connectors – 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 3 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU / Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 3 x Chassis / Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen1 Header* Supports in total up to 12V / 3A, 36W LED Strip** Support in total up to 5V / 3A, 15W LED Strip*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2 / WP supports the fan power up to 2A (24W).*
**** CHA_FAN1~3 / WP support the fan power up to 2A (24W).*
**** CPU_FAN2 / WP and CHA_FAN1~3 / WP can auto detect if 3-pin or 4-pin fan is in use.

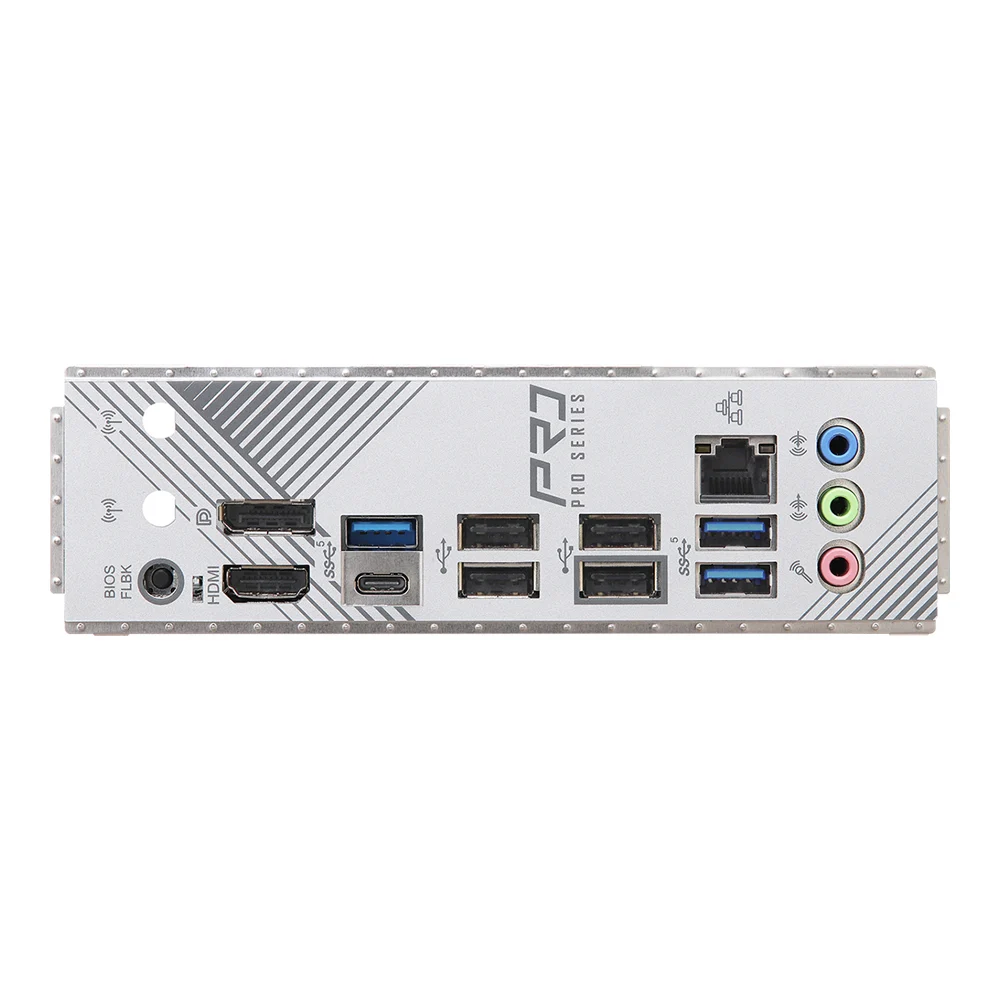

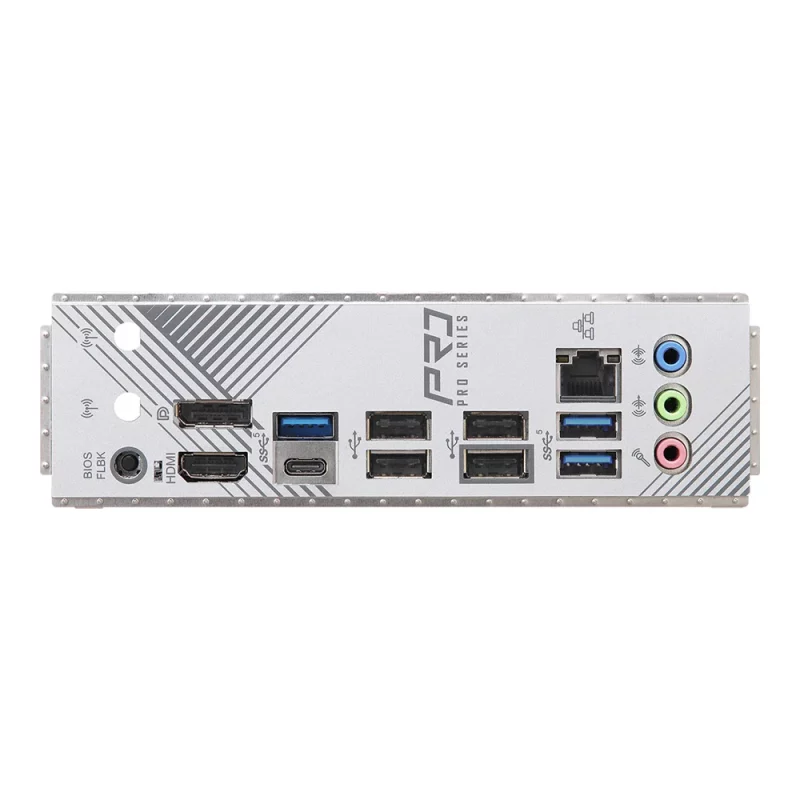

Back Panel Connectors – 2 x Antenna Mounting Points
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 3 x USB 3.2 Gen1 Type-A Ports
– 1 x USB 3.2 Gen1 Type-C Port
– 4 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– 1 x BIOS Flashback Button
– HD Audio Jacks: Line in / Front Speaker / Microphone
LAN – Gigabit LAN 10 / 100 / 1000 Mb / s
– Realtek 8111H
Wireless Data Network N/A
Form Factor Micro ATX
H/W Monitoring N/A
BIOS 256Mb AMI UEFI Legal BIOS with GUI support
Special Features Superb Productivity
– Dual Channel DDR5 Rock-Solid Durability
– 6+2+1 Power Phase, 50A Dr.MOS
– Pre-Installed I / O Shield EZ Update
– BIOS Flashback Button
– ASRock Auto Driver Installer EZ Troubleshooter
– ASRock Post Status Checker< / a>
Software Features Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock Polychrome SYNC
– ASRock XFast LAN
UEFI
– ASRock Full HD UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.
Operating System Support Microsoft Windows 10 64-bit / 11 64-bit
Package Contents 1 x User Manual

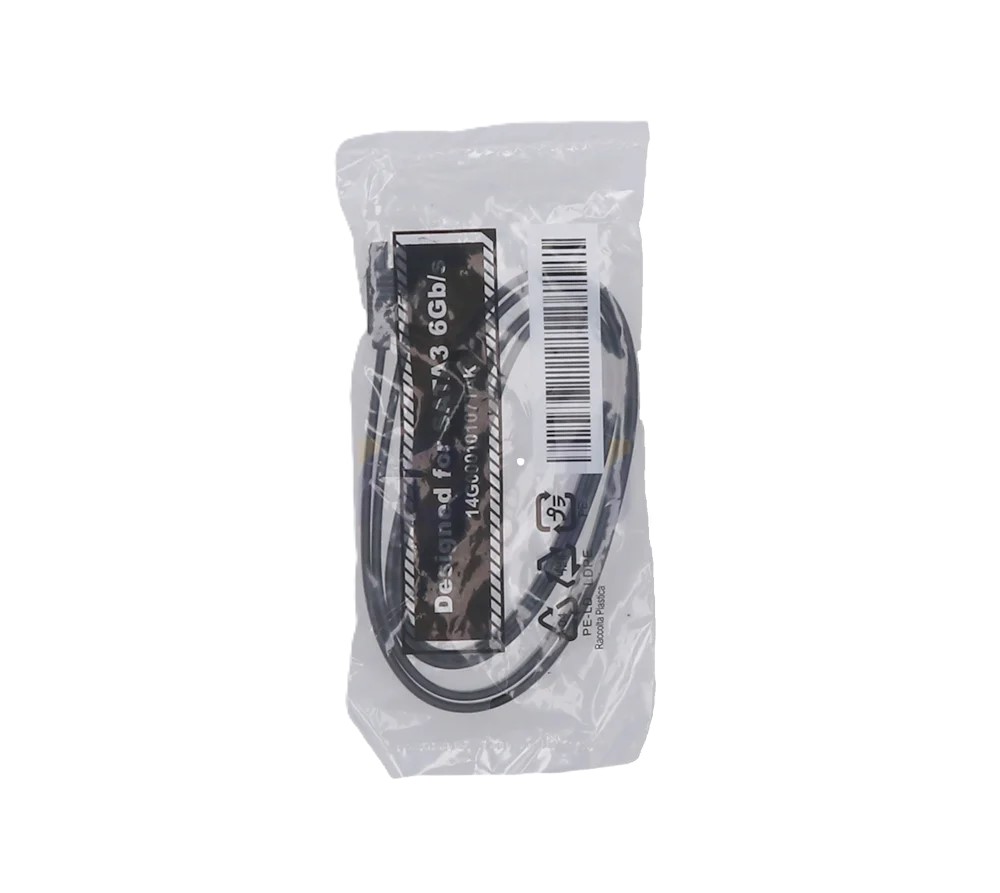

2 x SATA Data Cables
4 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket
Package Dimension (W x D x H) : 28.00 x 26.00 x 6.00 cm
Gross Weight 2.56 KG
Volume 4,368.00 cm3
