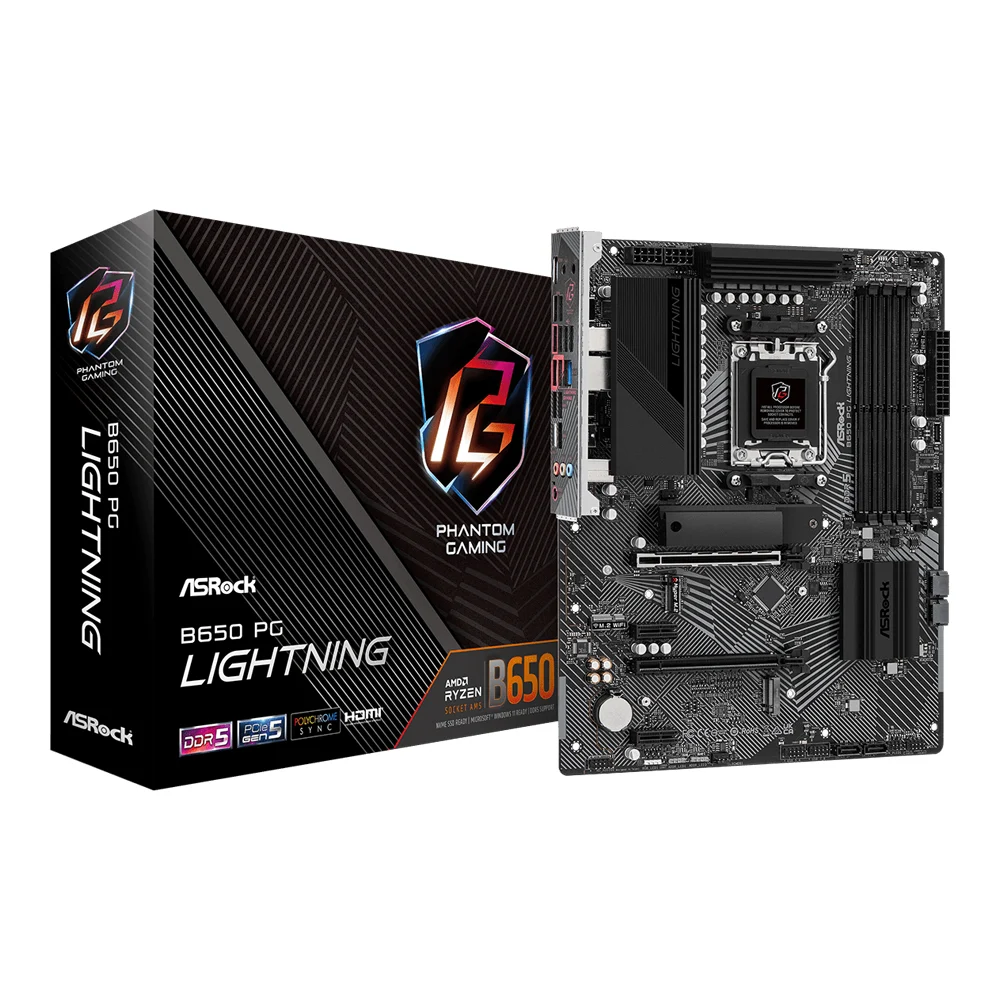

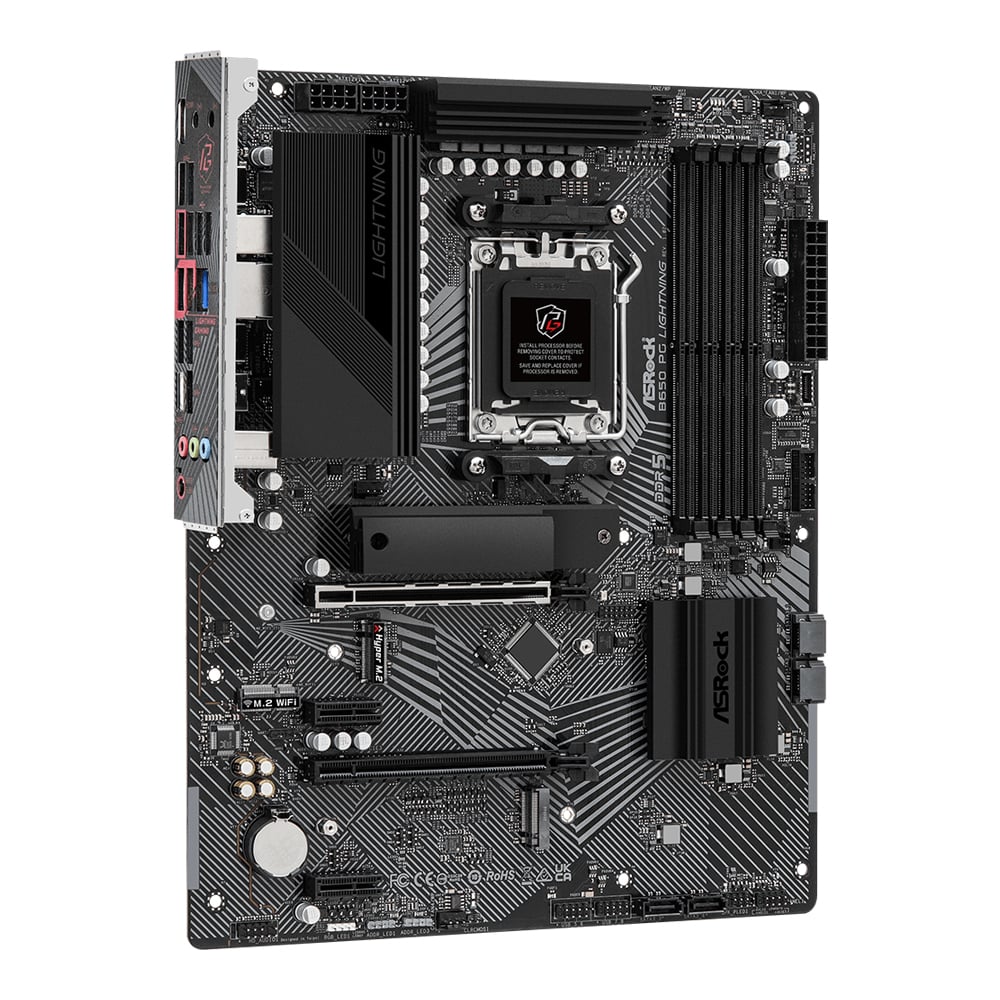

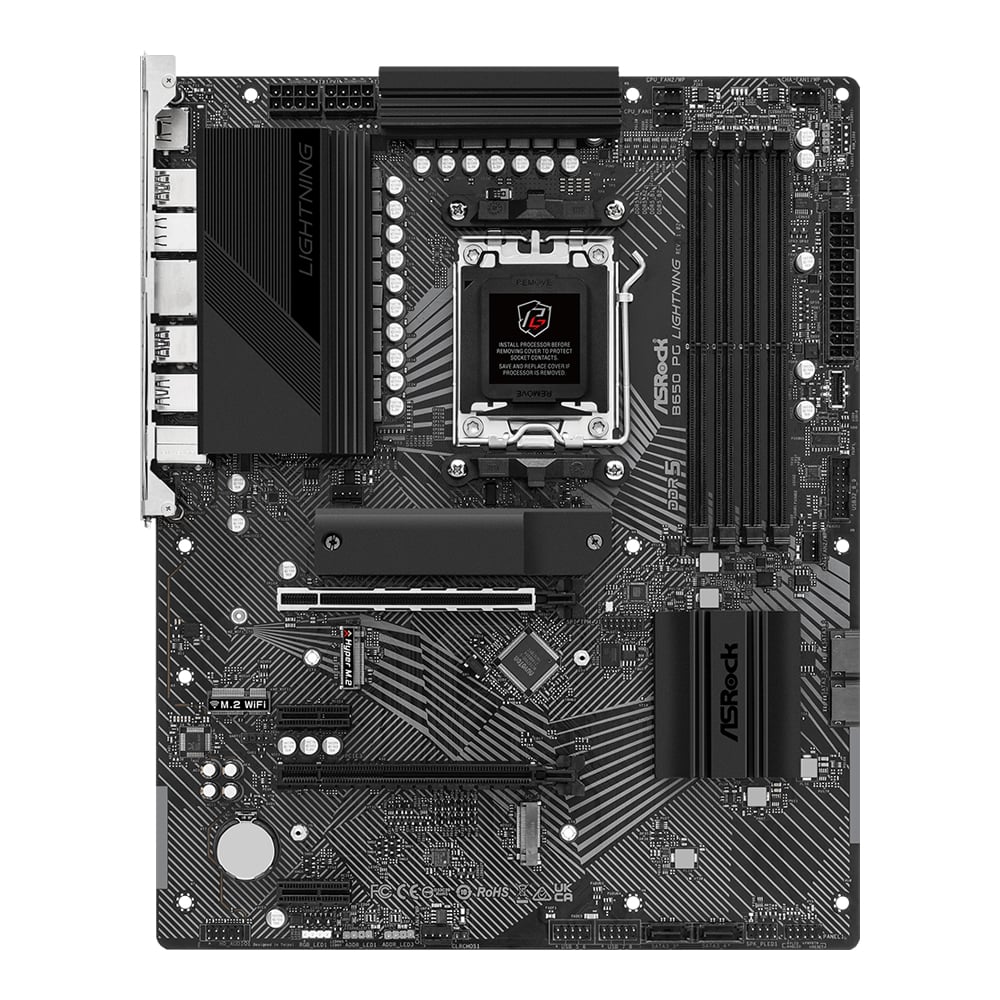

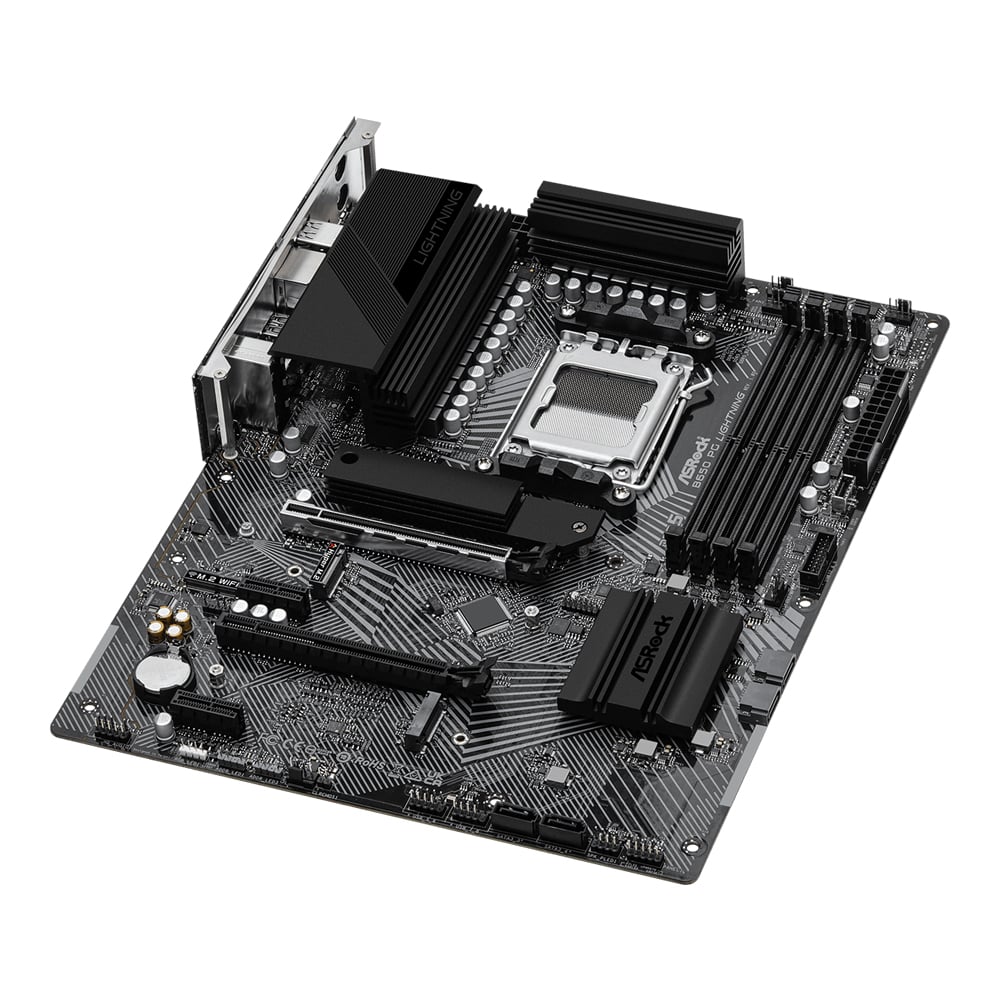

MAINBOARD (AM5) ASROCK B650 PG LIGHTNING DDR5

฿7,350.00

  • Support CPU : Ryzen 7000 Series Processors
  • From Factor : ATX
  • Memory Channel : Dual Channel DDR5 4DIMM
  • Memory Support : up to 7200(O.C.)
  • Memory MAX : 192GB
  • M.2 Slot : 3 slots
  • SATA III 6G : 4 ports
  • PCIe 4.0×16 : 1 slot
  • Lan Port : 2.5 Gigabit LAN
  • 14+2+1 Phase Power Design, SPS
  • Graphics Output Options: 1 HDMI
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
  • 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen4x2), 4 SATA3

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: A0146720 หมวดหมู่: ,

คำอธิบาย

Brand ASROCK
Model B650 PG Lightning
CPU Support Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
CPU Brand AMD
Socket AM5
Chipset AMD B650
Memory Support – Dual Channel DDR5 Memory Technology
– 4 x DDR5 DIMM Slots
– Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)*
– Max. capacity of system memory: 128GB*
– Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Maximum Memory Bus 7200
Graphics Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)
– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
Multi Graphic Support N/A
Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio
Expansion Slots CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 1 x PCIe 4.0 x16 Slot (PCIE3), supports x2 mode*
– 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE4)*
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)
*Supports NVMe SSD as boot disks
Maximum PCIe Version PCIe 4.0
Storage CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
– 1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode*
– 4 x SATA3 6.0 Gb/s Connectors
*Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
M.2 Storage Type Support NVMe
M.2 Slot 3
USB – 1 x USB 3.2 Gen2x2 Type-C (Rear)
– 1 x USB 3.2 Gen2 Type-C (Front)
– 9 x USB 3.2 Gen1 (7 Rear, 2 Front)
– 8 x USB 2.0 (4 Rear, 4 Front)
*All USB ports support ESD Protection
Internal I/O Connectors – 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 3 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
– 1 x 24 pin ATX Power Connector
– 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen2 Header (ReDriver)
*Supports in total up to 12V/3A, 36W LED Strip

**Support in total up to 5V/3A, 15W LED Strip

***CPU_FAN1 supports the fan power up to 1A (12W).

****CPU_FAN2/WP supports the fan power up to 2A (24W).

*****CHA_FAN1~4/WP support the fan power up to 2A (24W).
CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

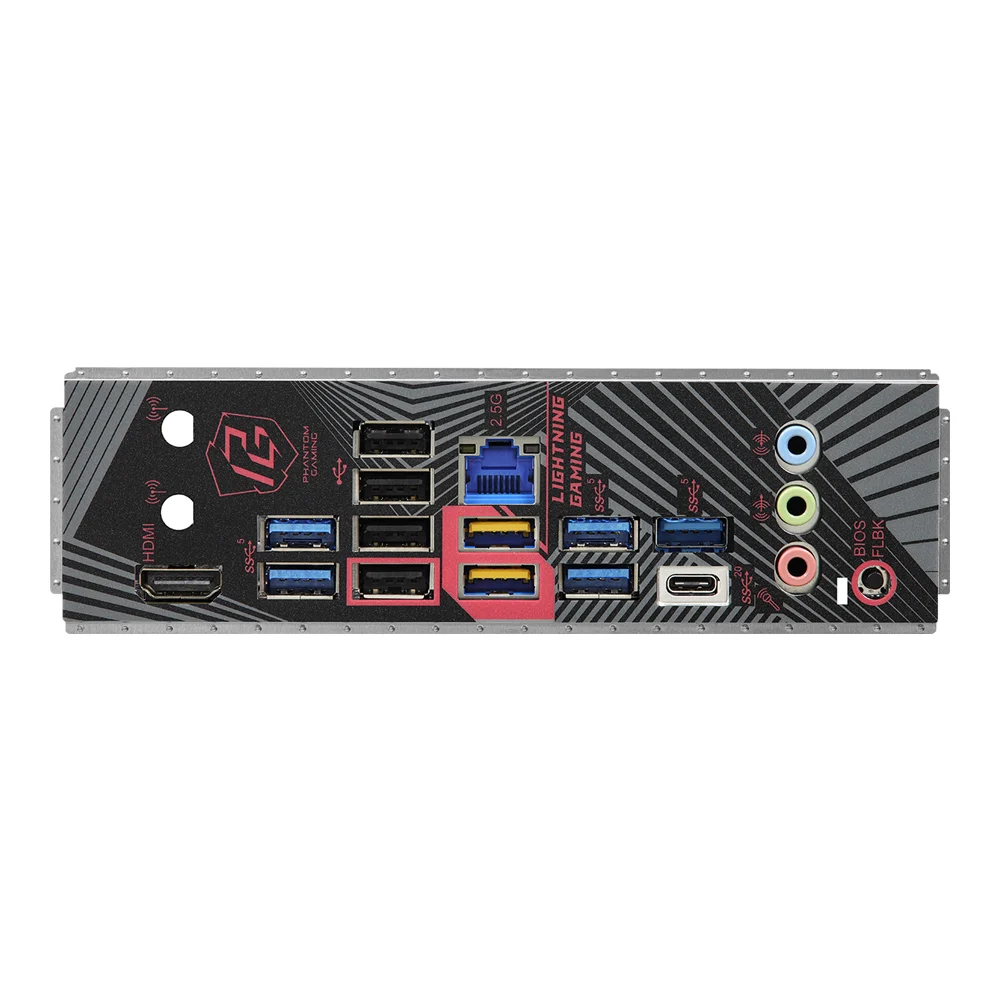

Back Panel Connectors – 2 x Antenna Mounting Points
– 1 x HDMI Port
– 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (ReDriver)
– 7 x USB 3.2 Gen1 Ports (USB32_34 are Lightning Gaming Ports) (USB32_12 and USB32_56 are from ASMedia ASM1074 hub)
– 4 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– 1 x BIOS Flashback Button
– HD Audio Jacks: Line in / Front Speaker / Microphone
LAN – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Phantom Gaming LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User Friendly UI
– Visual Network Usage Statistics
– Optimized Default Setting for Game, Browser, and Streaming Modes
– User Customized Priority Control
Wireless Data Network None
Form Factor – ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– 8 Layer PCB
H/W Monitoring N/A
BIOS N/A
Special Features Superb Productivity
– PCIe Gen5 (M.2)
– Dual Channel DDR5
Rock-Solid Durability
– 14+2+1 Power Phase, 60A SPS
– Pre-Installed I/O Shield
Ultrafast Connectivity
– 2.5G LAN
– ASRock Lightning Gaming Ports
EZ Update
– BIOS Flashback Button
– ASRock Auto Driver Installer
EZ Troubleshooter
– ASRock Post Status Checker
Software Features Software
– ASRock Motherboard Utility (Phantom Gaming Tuning)
– ASRock Phantom Gaming LAN Software
– ASRock Polychrome SYNC*
UEFI
– ASRock Full HD UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Operating System Support Microsoft® Windows® 10 64-bit / 11 64-bit
Package Contents 1 x User Manual

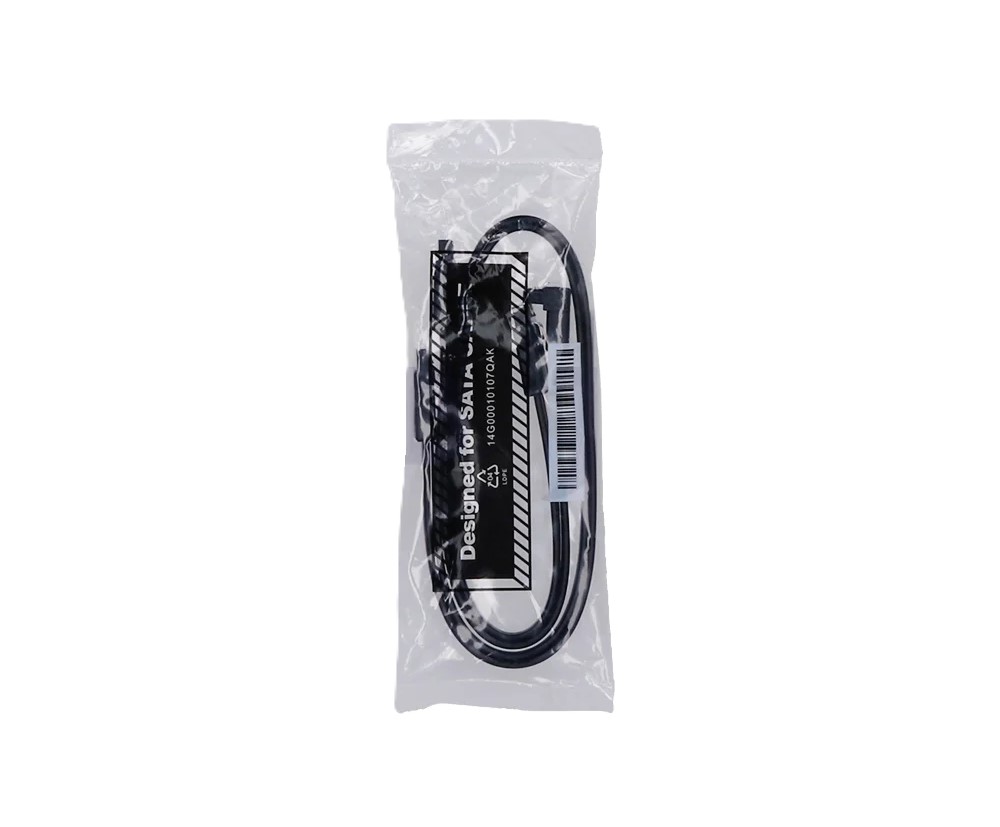

2 x SATA Data Cables
3 x Screws for M.2 Sockets
Package Dimension (W x D x H) : 30.00 x 36.00 x 7.00 cm
Gross Weight 1.70 KG
Volume 7,560.00 cm3
