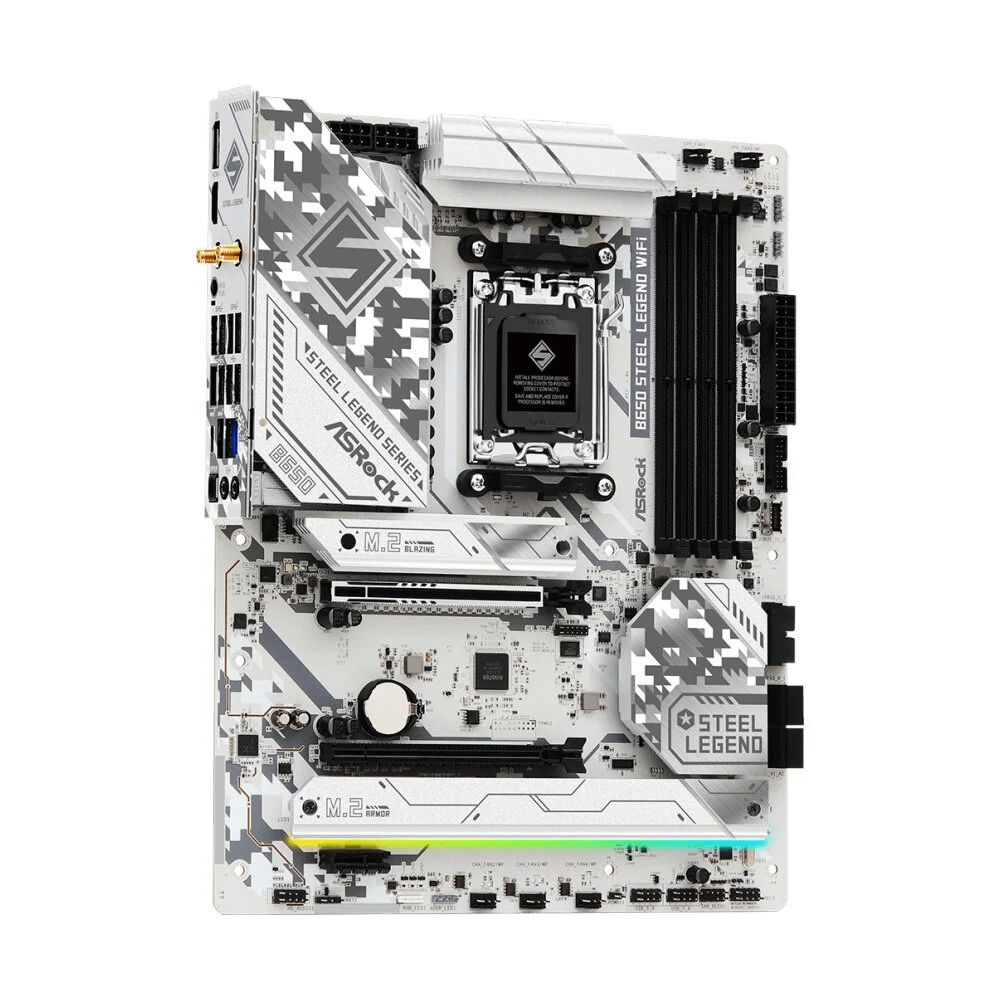

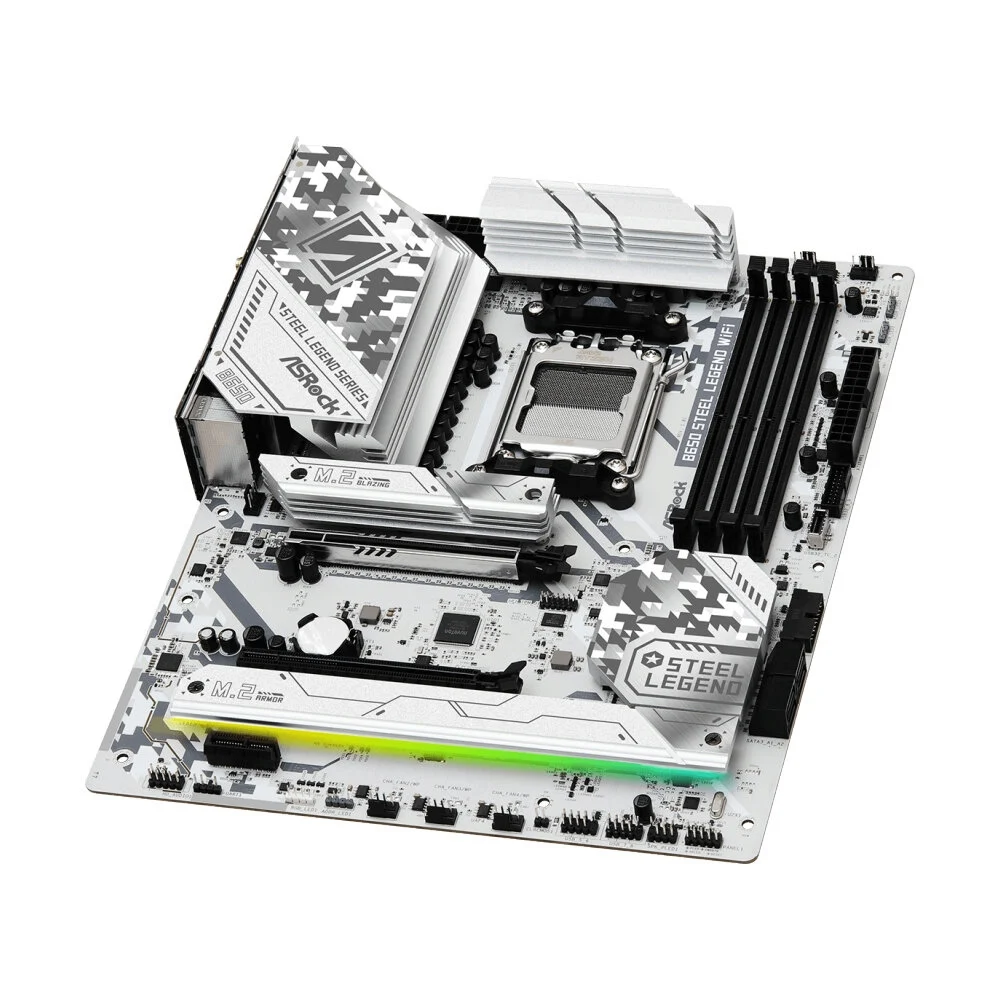

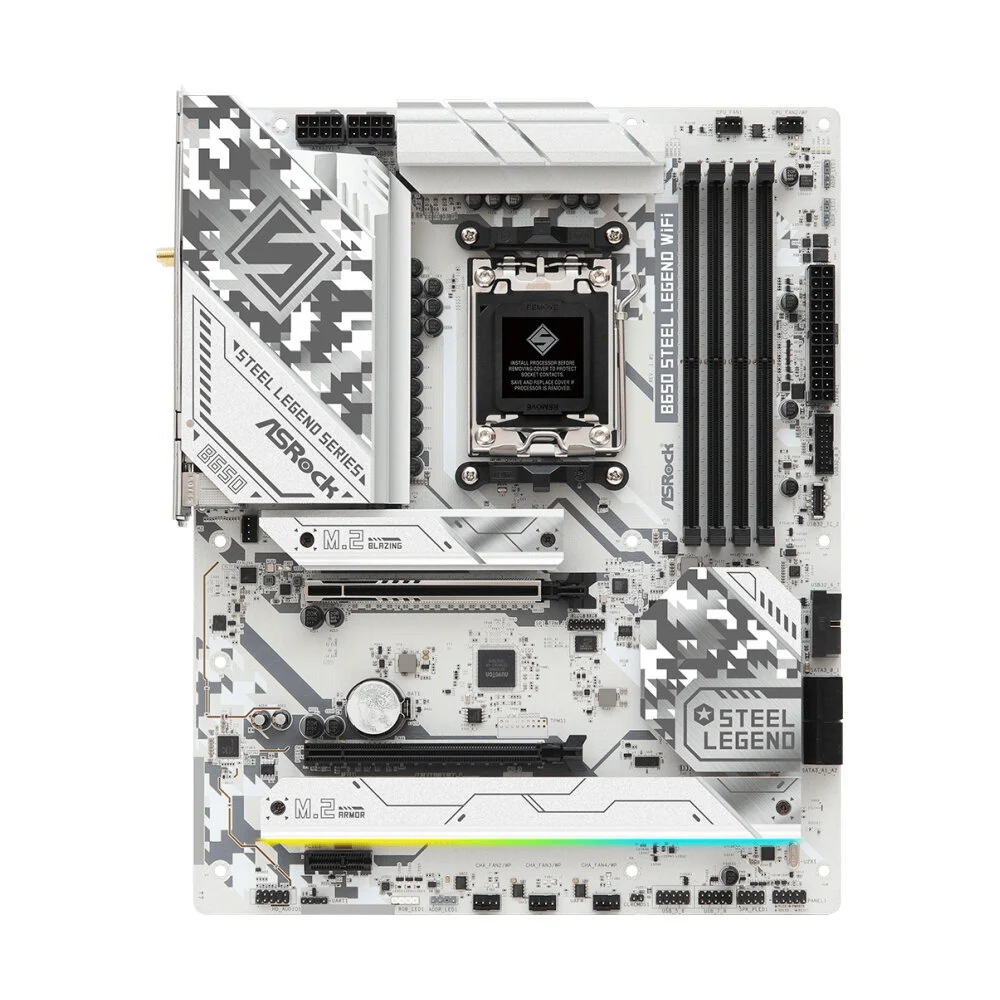

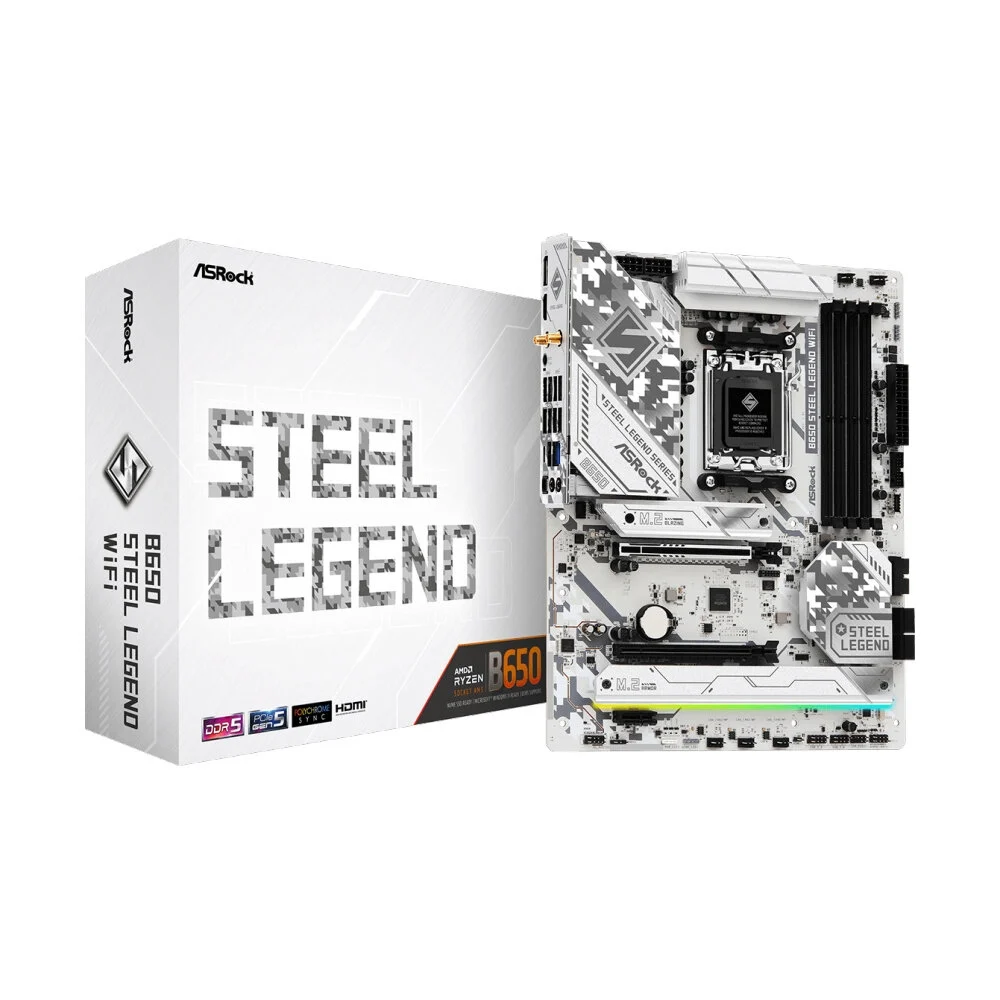

MAINBOARD (AM5) ASROCK B650 STEEL LEGEND WIFI DDR5

฿9,250.00

  • Support CPU : AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
  • Form Factor : ATX
  • Chipset : AMD B650 Chipset
  • Memory Channel : Dual Channel DDR5 4DIMM
  • Memory Support : up to 7200(O.C.)
  • Memory MAX : 192GB
  • M.2 Slot : 3 slots
  • SATA III 6G : 4 ports
  • PCIe 5.0×16 : 1 slot
  • Lan Port : 2.5 Gigabit LAN
  • Wireless : Wi-Fi 6E
  • 14+2+1 Power Phase, 80A Dr.MOS for Vcore
  • Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
  • Supports ASRock Auto Driver Installer, BIOS Flashback

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: A0161150 หมวดหมู่: ,

คำอธิบาย

Brand ASROCK
Model B650 STEEL LEGEND WIFI (DDR5)
CPU Support Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*

*The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
CPU Brand AMD
Socket AM5
Chipset AMD B650
Memory Support Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)
Max. capacity of system memory: 192GB
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Maximum Memory Bus 7200
Graphics Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Multi Graphic Support N/A
Audio 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
Individual PCB Layers for R/L Audio Channel
Impedance Sensing on Rear Out port
Nahimic Audio
Expansion Slots CPU:
– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:
– 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
– 1 x PCIe 4.0 x1 Slot (PCIE3)*
– 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
– Supports AMD CrossFire™
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)

* Supports NVMe SSD as boot disks
If SATA3_0 and SATA3_1 are occupied, PCIE2 will downgrade to x2 mode.
Maximum PCIe Version PCIe 5.0
Storage CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 2 x SATA3 6.0 Gb/s Connectors**

ASMedia ASM1061:
– 2 x SATA3 6.0 Gb/s Connectors

* Supports NVMe SSD as boot disks
** If SATA3_0 and SATA3_1 are occupied, PCIE2 will downgrade to x2 mode.

RAID
– Supports RAID 0 and RAID 1 for SATA storage devices
– Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

* Requires additional M.2 NVMe expansion cards to support RAID 10
M.2 Storage Type Support NVMe
M.2 Slot 3
USB 1 x USB 3.2 Gen2 Type-A (Rear)
2 x USB 3.2 Gen1 Type-A (2 Rear (USB32_12)) Chipset:
1 x USB 3.2 Gen2x2 Type-C (Rear)
1 x USB 3.2 Gen1 Type-C (Front)
6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_34), 4 Front)
8 x USB 2.0 (4 Rear, 4 Front)

* All USB ports support ESD Protection
Internal I/O Connectors 1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header

* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP supports the fan power up to 2A (24W).
***** CHA_FAN1~4/WP support the fan power up to 2A (24W).
***** CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

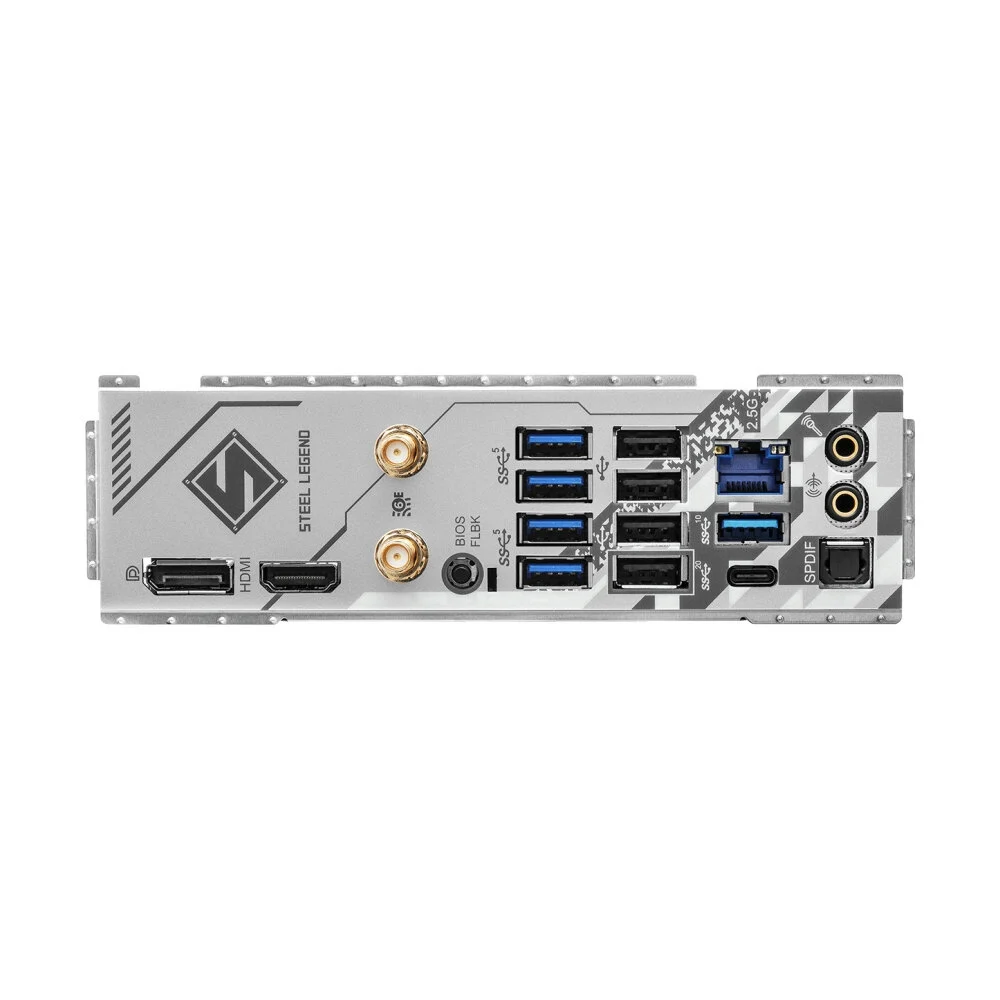

Back Panel Connectors 2 x Antenna Ports
1 x HDMI Port
1 x DisplayPort 1.4
1 x Optical SPDIF Out Port
1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
4 x USB 3.2 Gen1 Type-A Ports (USB32_34 support Ultra USB Power.)
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
1 x Line Out Jack (Gold Audio Jack)
1 x Microphone Input Jack (Gold Audio Jack)
LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control
Wireless Data Network 802.11axe Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax/axe
Supports Dual-Band 2×2 with extended 6GHz band* support
2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth 5.2 + High speed class II
Supports MU-MIMO

* Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.
Form Factor ATX
H/W Monitoring N/A
BIOS N/A
Special Features Superb Productivity
– PCIe Gen5 (Graphics, M.2)
– Dual Channel DDR5

Rock-Solid Durability
– 14+2+1 Power Phase, 80A Dr.MOS with Enlarged Heatsink Armor
– Flexible Integrated I/O Shield
– 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)

Ultrafast Connectivity
– 2.5G LAN, 802.11axe Wi-Fi 6E Module

EZ Update
– BIOS Flashback Button
– ASRock Auto Driver Installer

EZ Troubleshooter
– ASRock Post Status Checker
Software Features Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock Dragon 2.5G LAN Software
– ASRock Polychrome SYNC*

UEFI
– ASRock Full HD UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.
Operating System Support Microsoft Windows® 10 64-bit / 11 64-bit
Package Contents 1 x User Manual
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
3 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket
