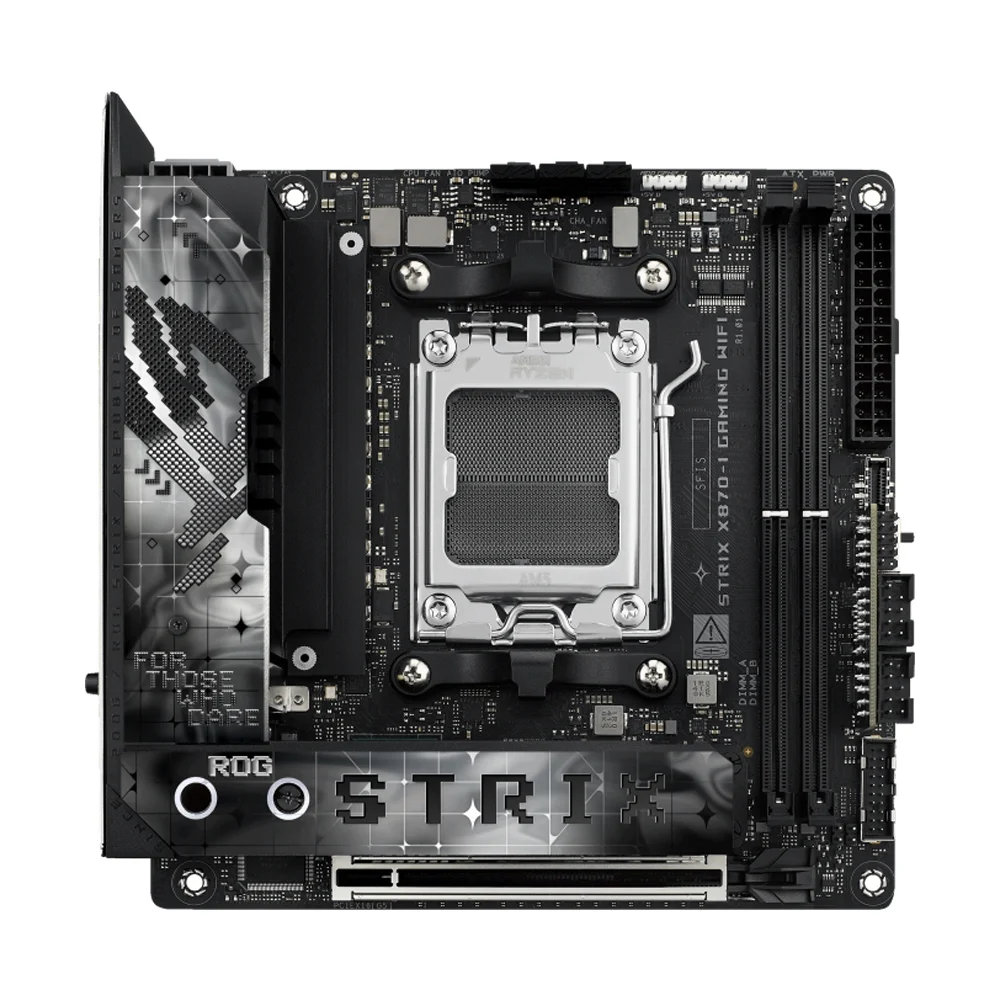

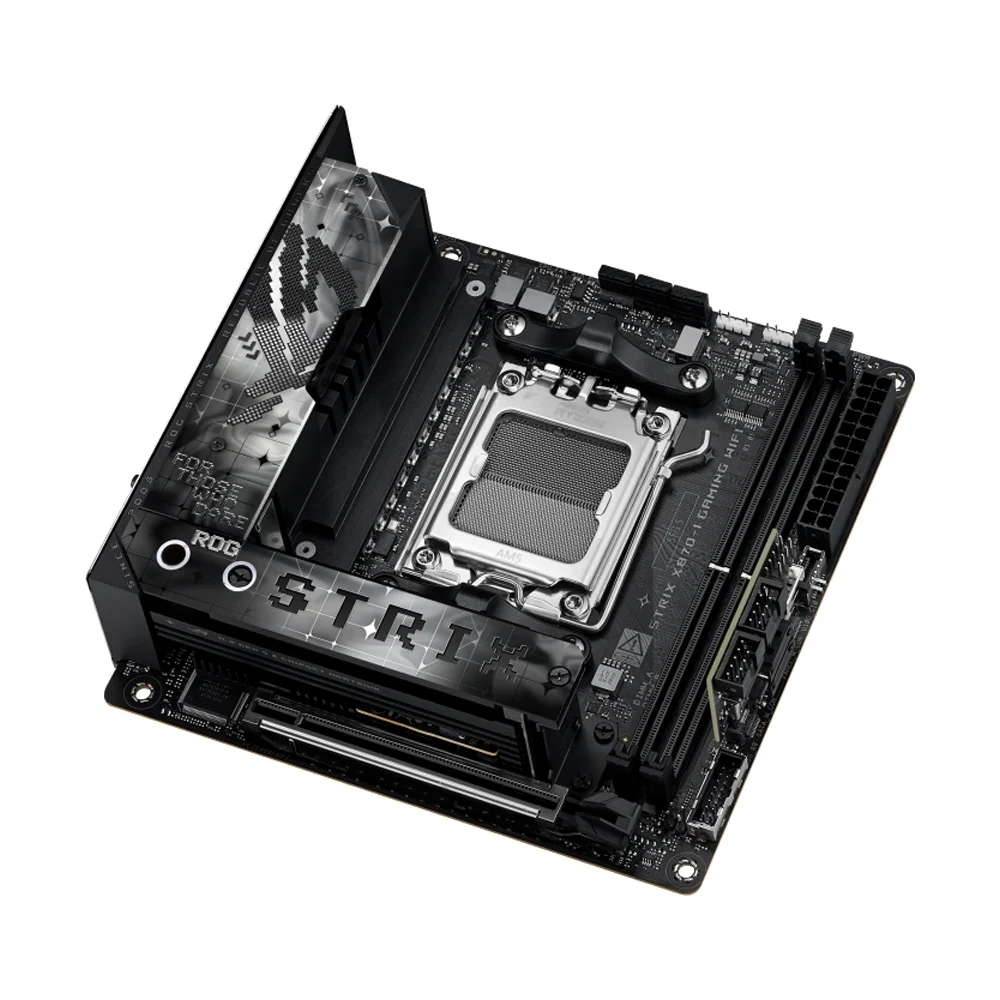

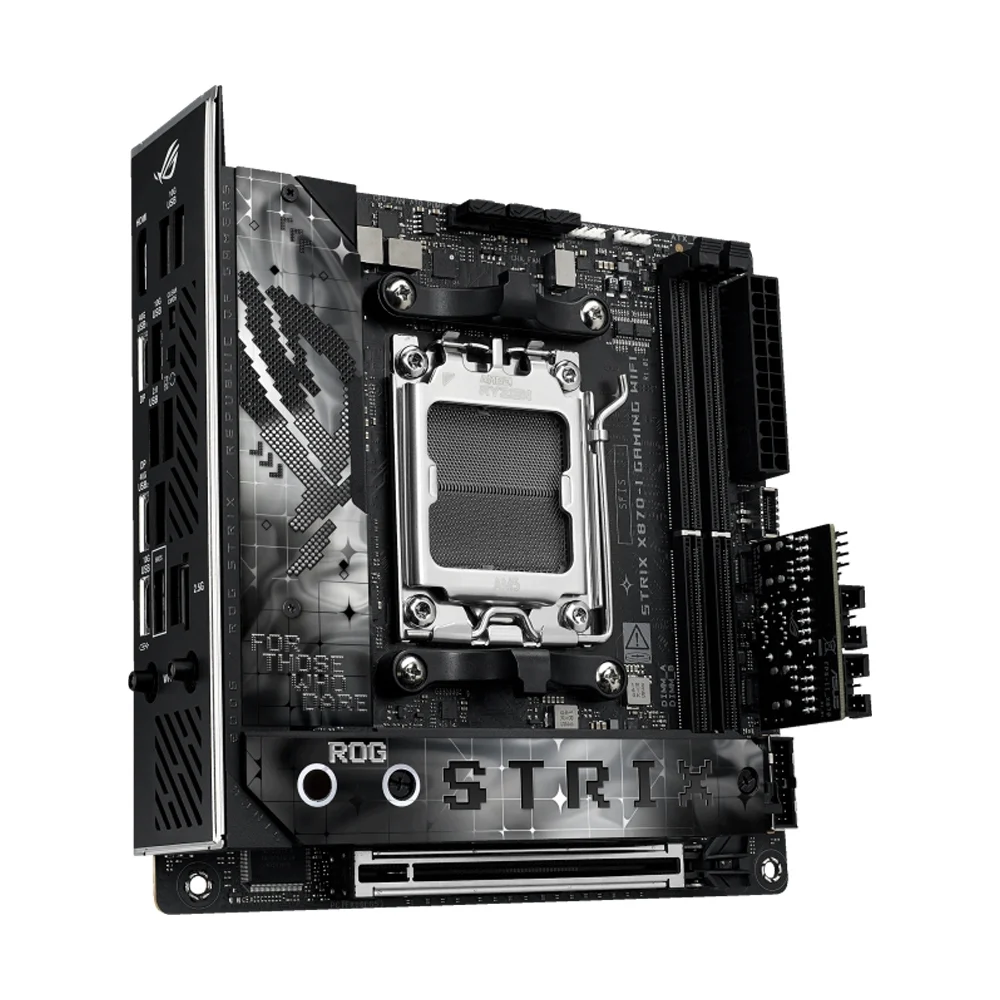

MAINBOARD (AM5) ASUS ROG STRIX X870-I GAMING WIFI DDR5

฿24,100.00

  • Support CPU : AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
  • Form Factor : Mini ITX
  • Chipset : AMD X870 Chipset
  • Memory Channel : Dual Channel DDR5 2DIMM
  • Memory Support : up to 8600(O.C.)
  • Memory MAX : 128GB
  • M.2 Slot : 2 slots
  • SATA III 6G : 2 ports
  • PCIe 5.0×16 : 1 slot
  • Lan Port : 2.5 Gigabit LAN
  • Wireless : Wi-Fi 7
  • The ROG Strix X870-I Gaming WiFi integrates cutting-edge technology into a sleek mini-ITX form factor, enhanced by the ROG Strix Hive II for streamlined control.
  • It features PCIe 5.0 slots for graphics and storage, dual-channel DDR5 slots and robust power delivery for top-tier gaming and heavy workloads.
  • Meanwhile, advanced cooling solutions maintain peak performance, and WiFi 7 ensures ultra-fast connectivity.
  • This platform delivers the power and connectivity that advanced AI PC applications demand.

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: A0166411 หมวดหมู่: ,

คำอธิบาย

Brand ASUS
Model ROG STRIX X870-I GAMING WIFI (DDR5)
CPU Support AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

* Refer to https://www.asus.com/support/download-center/ for CPU support list.
CPU Brand AMD
Socket AM5
Chipset AMD X870
Memory Support 2 x DIMM slots, max. 128GB, DDR5

Supports up to
8400+MT/s(OC) with Ryzen™ 9000 Series Processors,
8600+MT/s(OC) with Ryzen™ 8000 Series Processors,
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,

ECC and Non-ECC Un-buffered DIMM*”
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory
configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Maximum Memory Bus 8600
Graphics 1 x HDMI™ port**
2 x USB4® (40Gbps) ports support USB Type-C® display outputs***

* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a
**** VGA resolution support depends on processors’ or graphic cards’ resolution.
Multi Graphic Support N/A
Audio ROG Strix Hive II Audio Features
– ROG Hyper-Grounding Technology
– ESS® SABRE9260Q DAC
– Silver-plated audio jacks
– Dedicated audio PCB layers
Expansion Slots AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot

AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)*

* Specifications vary by CPU types.
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Maximum PCIe Version PCIe 5.0
Storage Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*

AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode)

AMD Ryzen™ 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)

AMD X870 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
2 x SATA 6Gb/s ports***

* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1
*** Install ROG FPS Card to support 2 x SATA 6Gb/s ports.
M.2 Storage Type Support NVMe
M.2 Slot 2
USB Rear USB (Total 10 ports)
2 x USB4® (40Gbps) port(s)(2 x USB Type-C®)
5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®)
3 x USB 2.0 port(s) (3 x Type-A)

Front USB (Total 3 ports)
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
* USB Type-C® power delivery output: max. 5V/3A

ROG STRIX HIVE II(Total 2 ports)
2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®)

ROG FPS Card (Total 3 ports)
2 x USB 2.0 headers additional 3 USB 2.0 ports
Internal I/O Connectors Fan and Cooling Related
1 x 4-pin CPU Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x 4-pin Chassis Fan header(s)

Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector

Storage Related
2 x M.2 slots (Key M)

USB
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header support(s) 2 additional USB 5Gbps ports

Miscellaneous
2 x Addressable Gen 2 headers
1 x 2-pin Power Button header
1 x Thermal Sensor header
2 x USB Type-C® connectors to install ROG FPS card

ROG FPS card
2 x SATA 6Gb/s ports
1 x CPU Over Voltage jumper
1 x Front Panel header
1 x Alteration PCIe Mode switch
2 x USB 2.0 headers support 3 additional USB 2.0 ports

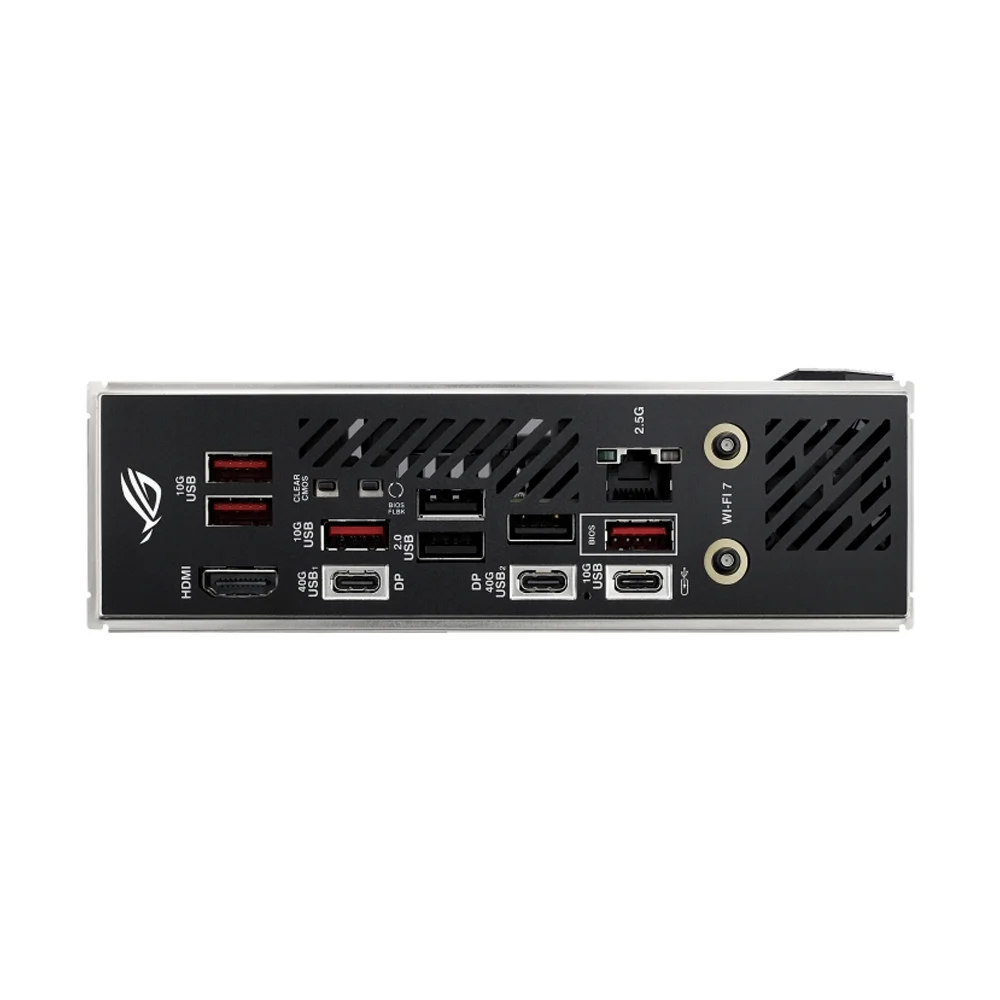

Back Panel Connectors 2 x USB4® (40Gbps)(2 x USB Type-C®)
5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®, 1 port supports ROG STRIX HIVE II)
3 x USB 2.0 port(s) (2 x Type-A)
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
LAN 1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless Data Network Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.
Bluetooth® v5.4***

*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor’s website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.”
Form Factor Mini ITX
H/W Monitoring N/A
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Special Features ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release Slim (with PCIe SafeSlot)
– Q-Antenna
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot

ASUS Thermal Solution
– M.2 heatsink
– Aluminum backplate

ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Clear CMOS button
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM

Aura Sync
– Addressable Gen 2 header(s)

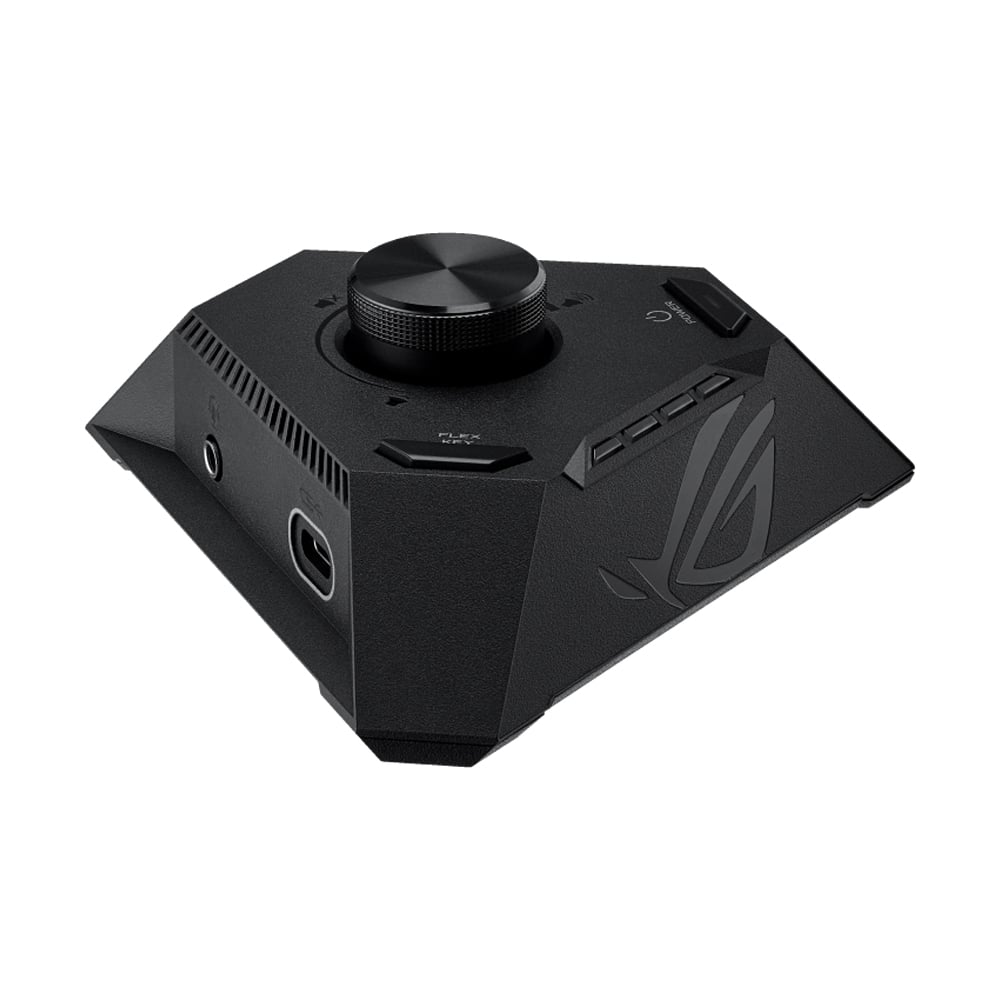

ROG STRIX HIVE II
1 x USB Type-C® connects to motherboard
2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®)
1 x Headphone jack with mic in
1 x Power button
1 x FlexKey button
1 x Volume control knob with mute button Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Software Features ROG Exclusive Software
– ROG CPU-Z
– Dolby Atmos

ASUS Exclusive Software
Armoury Crate
– AIDA64 (60 days free trial)
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– GameFirst
– HWiNFO
– Power Saving
ASUS Driver Hub
ASUS GlideX
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)

UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI
BIOS EZ Mode
– ASUS
MyHotkey
FlexKey
Dynamic OC Switcher
Operating System Support Windows 11 64-bit

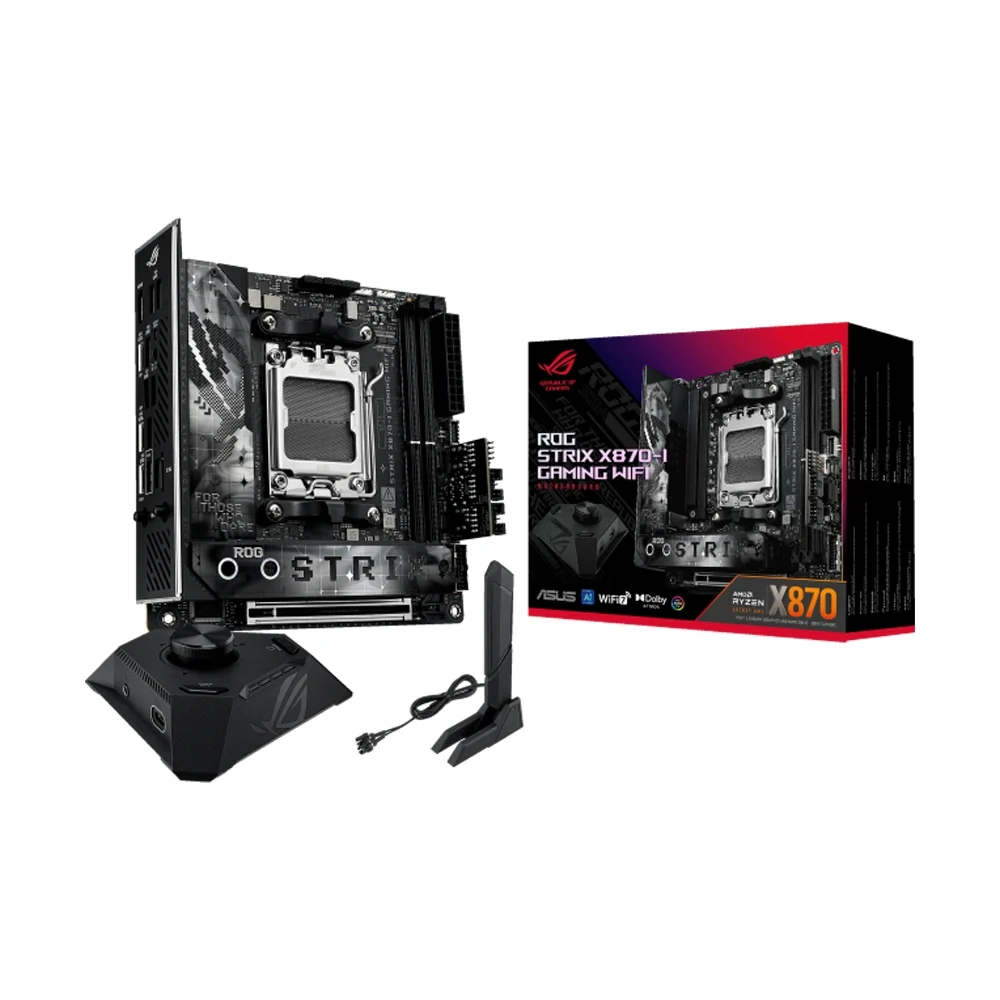

Package Contents 1 x Panel cable
1 x ROG USB2.0 splitter cable
2 x SATA 6Gb/s cables
1 x ROG FPS Card
1 x ROG STRIX HIVE II
1 x USB Type-C® power connection cable
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package(s)
1 x ROG key chain
1 x ROG Strix stickers
1 x M.2 rubber package(s)
1 x Quick start guide
