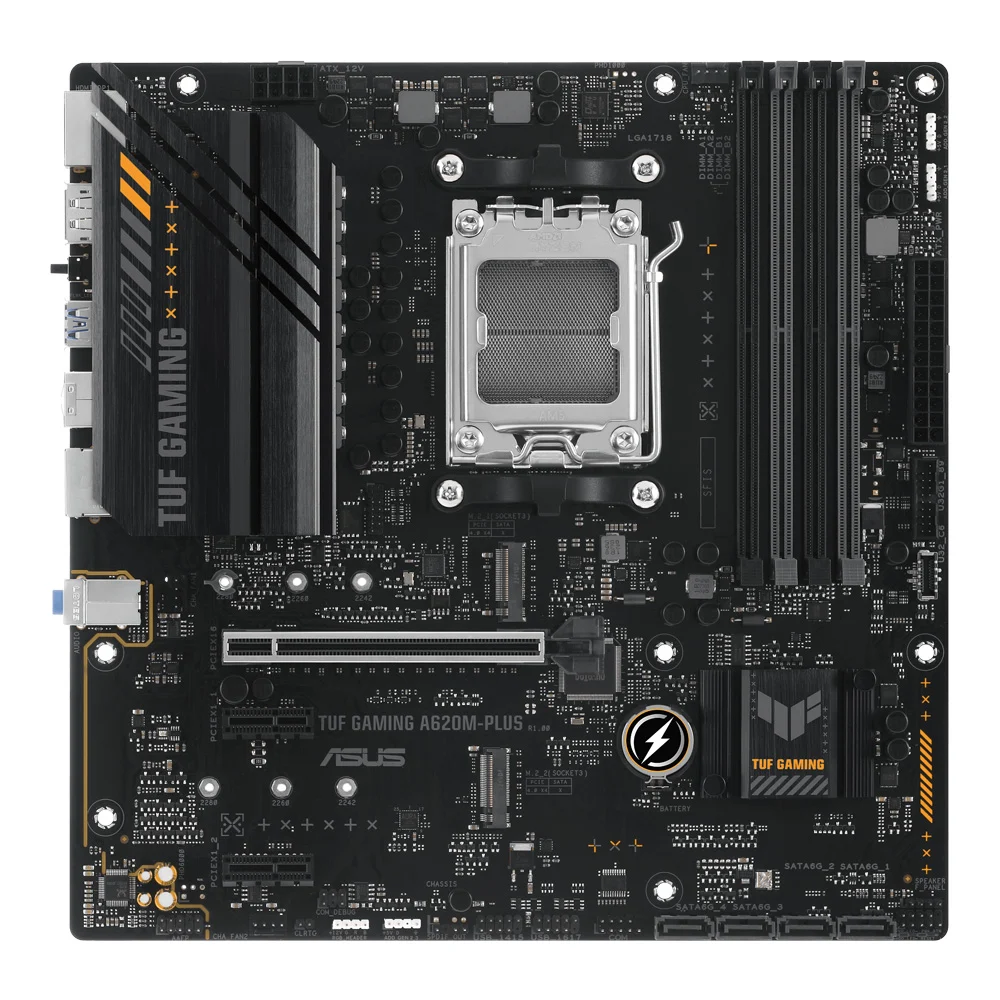

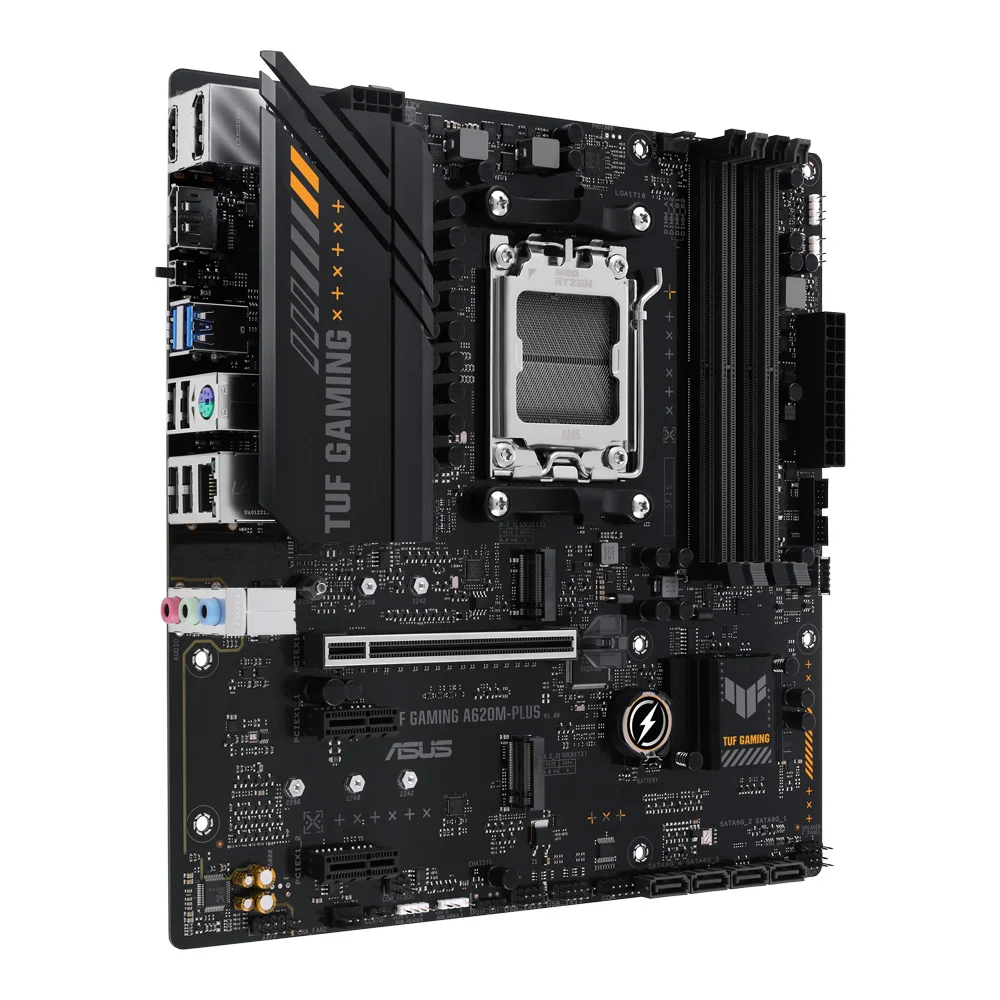

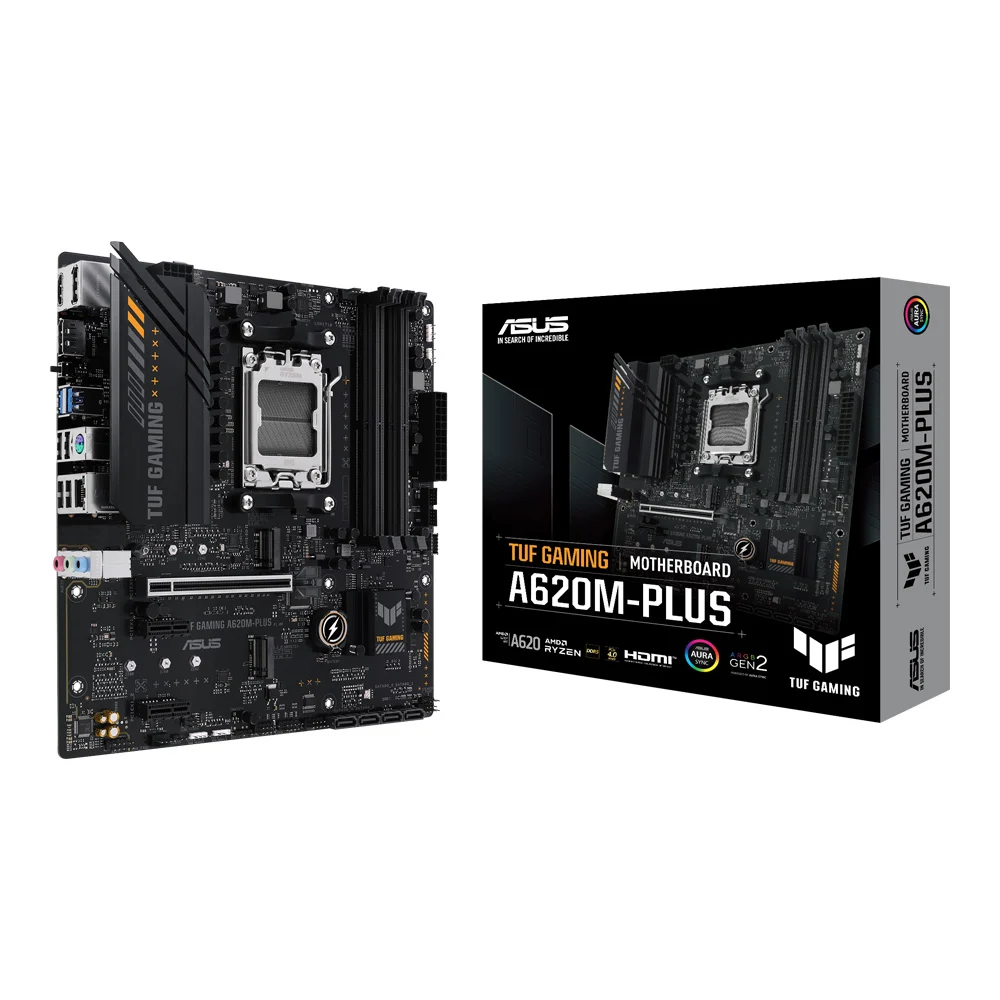

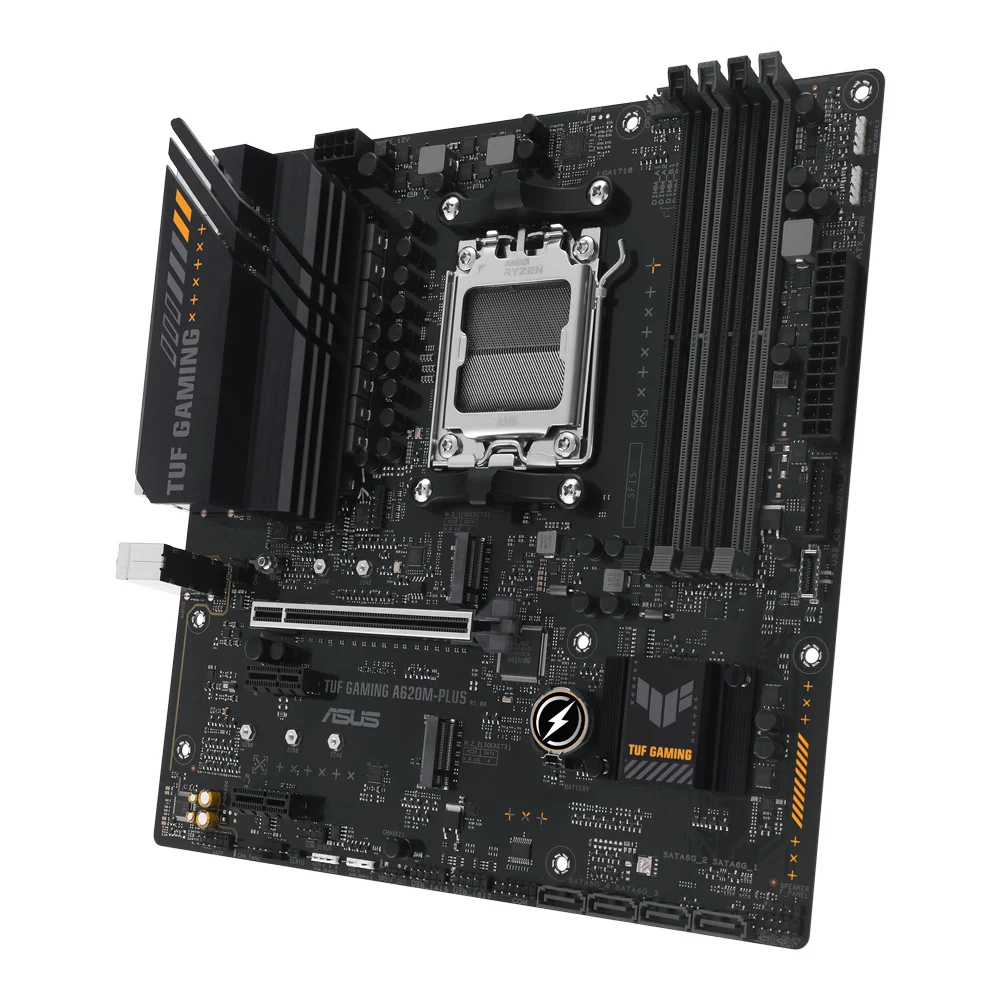

MAINBOARD (AM5) ASUS TUF GAMING A620M PLUS DDR5

฿3,850.00

  • Support CPU : AMD Ryzen™ 7000 Series Desktop Processors
  • Chipset : Intel® A620 Chipset
  • FromFactor : Micro ATX
  • Memory Channel : Dual Channel DDR5 4DIMM
  • Memory supports : up to 6400(O.C.)
  • Memory MAX : 128GB
  • M.2 slot : 2 slot
  • SATA III 6G : 4 port
  • PCIe 4.0×16 : 1 slot
  • Lan port : Realtek 2.5Gb Ethernet

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: A0152865 หมวดหมู่: ,

คำอธิบาย

Brand ASUS
Model TUF GAMING A620M PLUS
CPU Support AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*

* Refer to www.asus.com for CPU support list.
CPU Brand AMD
Socket AM5
Chipset AMD A620 Chipset
Memory Support 4 x DIMM slots, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Maximum Memory Bus 6400
Graphics 2 x DisplayPort**
1 x HDMI™ port***

* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Support max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Multi Graphic Support None
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback

Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots AMD Ryzen™ 7000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot

AMD A620 Chipset
2 x PCIe 3.0 x1 slots

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of  supported peripherals.
Maximum PCIe Version PCIe 4.0
Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*

AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

AMD A620 Chipset
4 x SATA 6Gb/s ports

* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
M.2 Storage Type Support NVMe
M.2 Slot 2
USB Rear USB (Total 6 ports)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Internal I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header

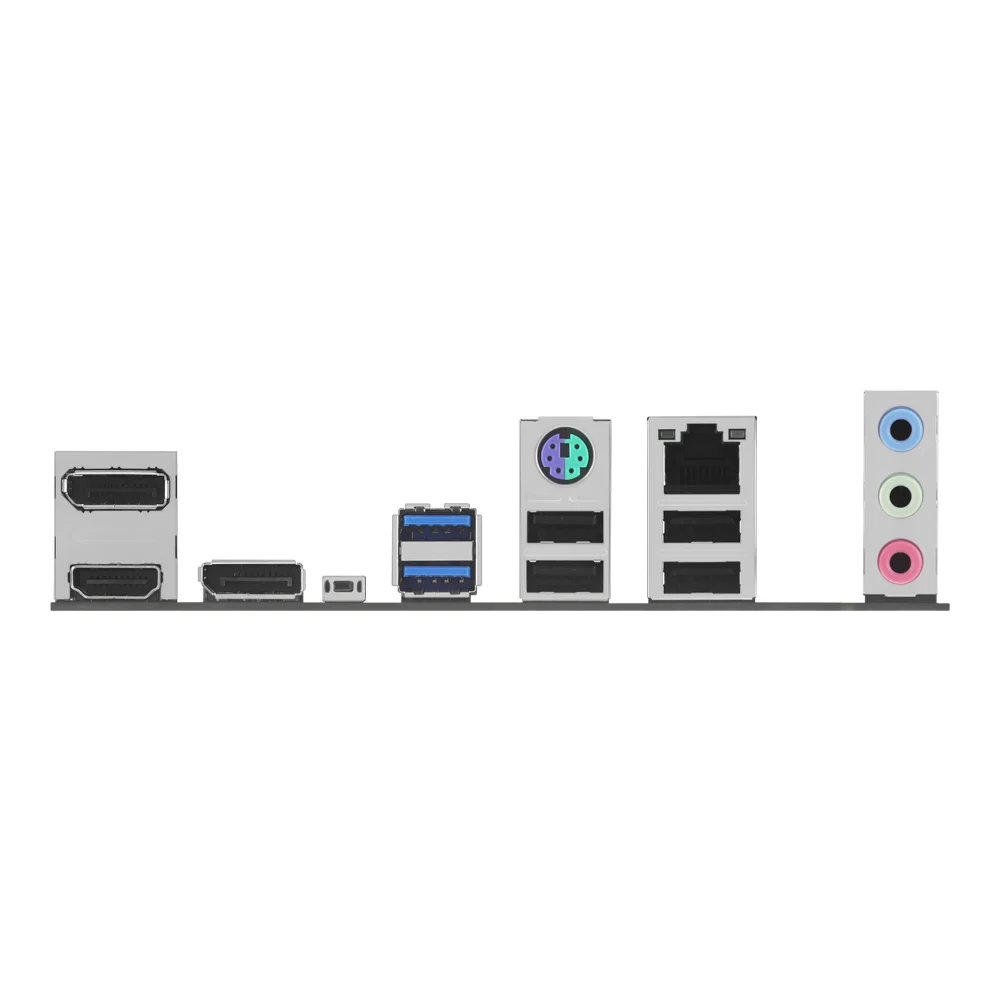

Back Panel Connectors 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
2 x DisplayPort
1 x HDMI™ port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
1 x PS/2 Keyboard/Mouse combo port
LAN 1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Wireless Data Network None
Form Factor

Micro ATX
H/W Monitoring WOL by PME, PXE
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Special Features ASUS TUF PROTECTION
– DIGI+ VRM
– ESD Guards
– TUF LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O

ASUS Q-Design
– M.2 Q-Latch
– Q-DIMM
– Q-LED Core
– Q-Slot

ASUS Thermal Solution
– VRM heatsink design

ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED

Aura Sync
– Aura RGB header
– Addressable Gen 2 headers
Software Features ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 2+
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
– TurboV EVO
– DIGI+ VRM
– PC Cleaner
TUF GAMING CPU-Z
Norton 360 for Gamers (60 Days Free Trial)
WinRAR

UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
Operating System Support Windows® 11, Windows® 10 64-bit
Package Contents 2 x SATA 6Gb/s cables
1 x I/O Shield
1 x TUF Gaming sticker
1 x Screw package for M.2 SSD
1 x TUF Certification card
1 x User guide
Package Dimension (W x D x H) : 28.00 x 27.50 x 7.00 cm
Gross Weight 1.30 KG
Volume 5,390.00 cm3
