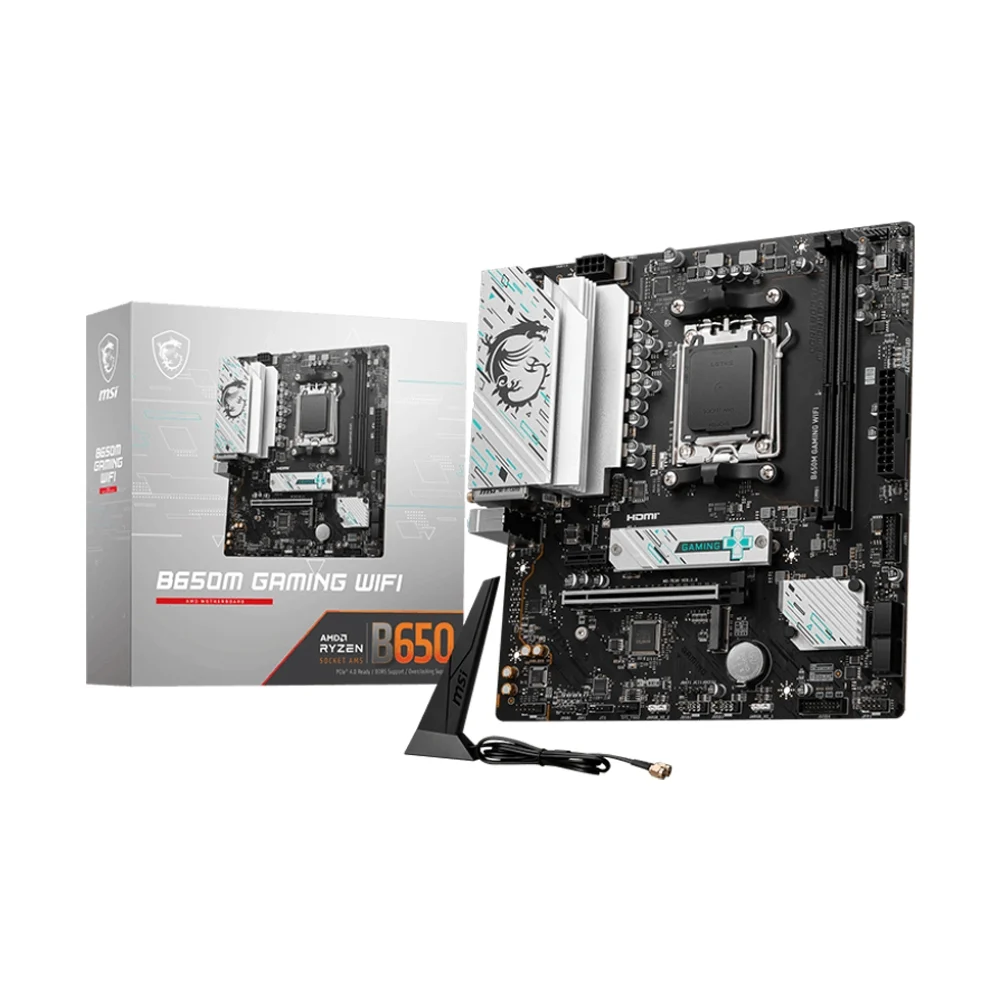

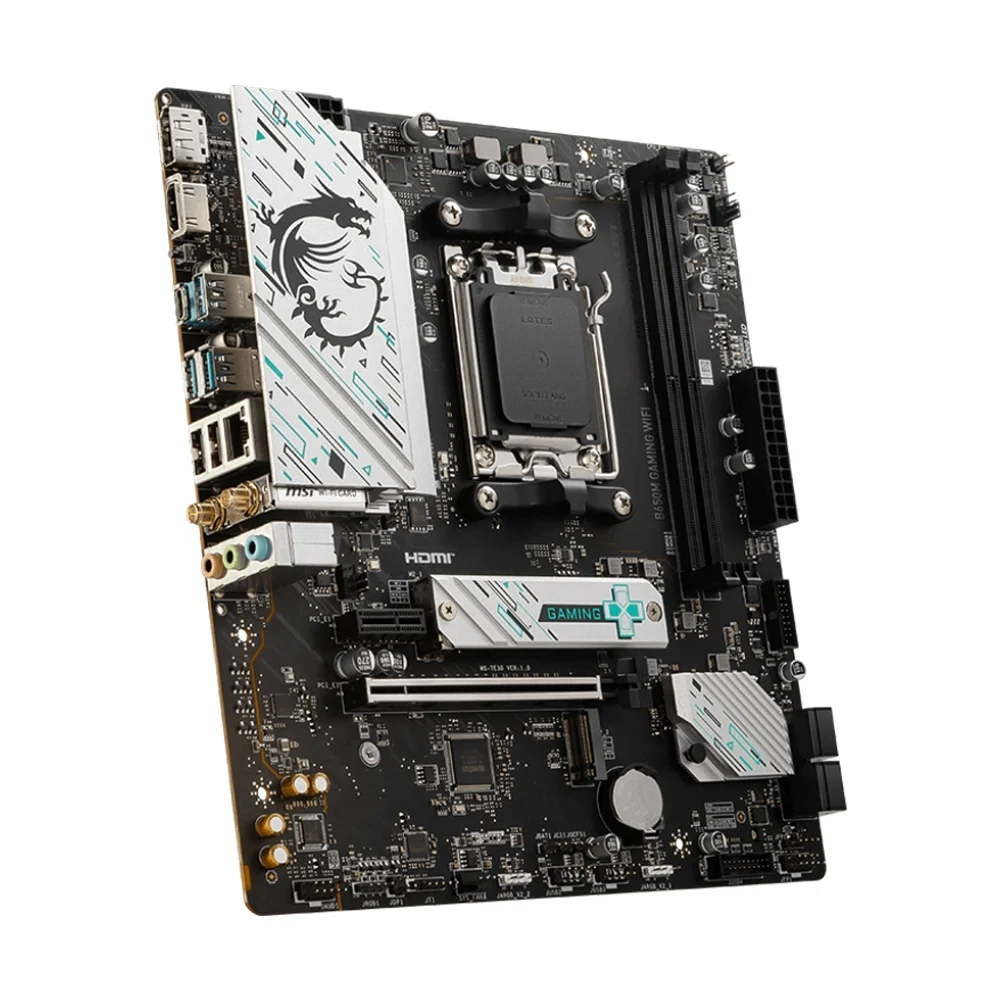

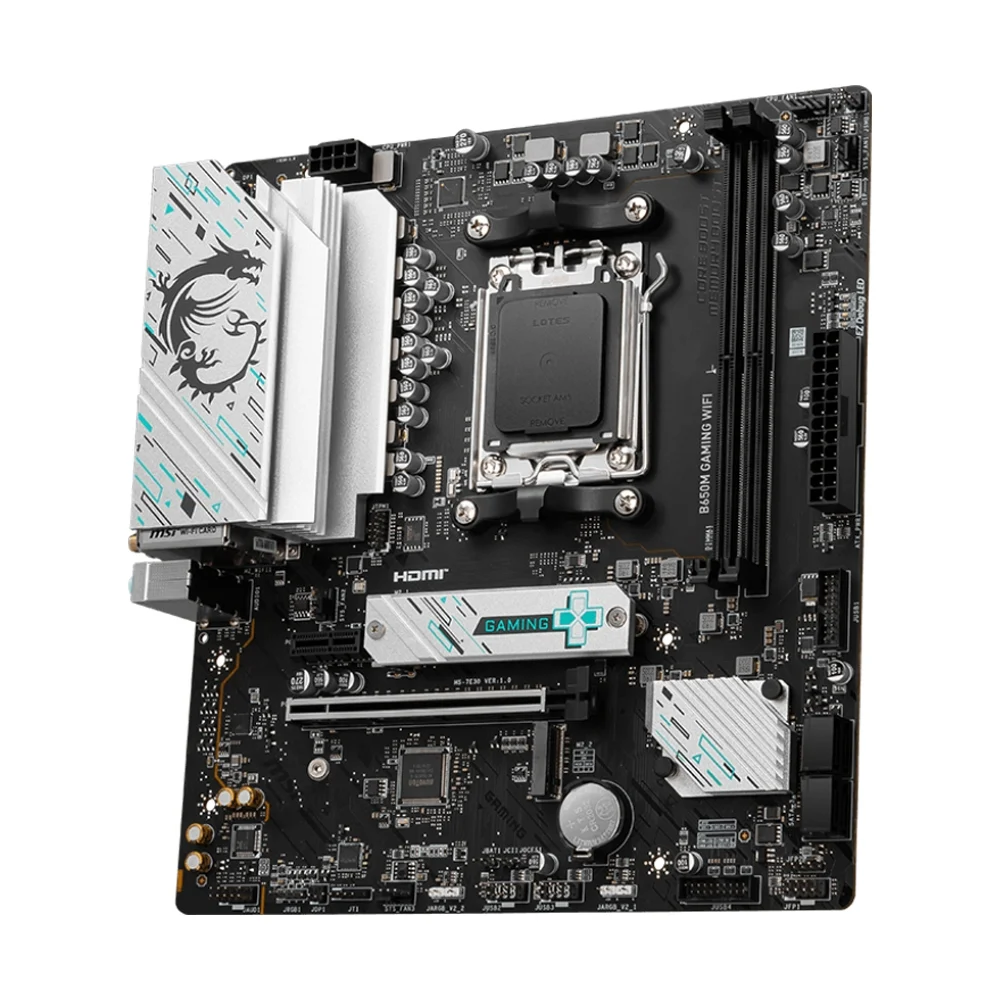

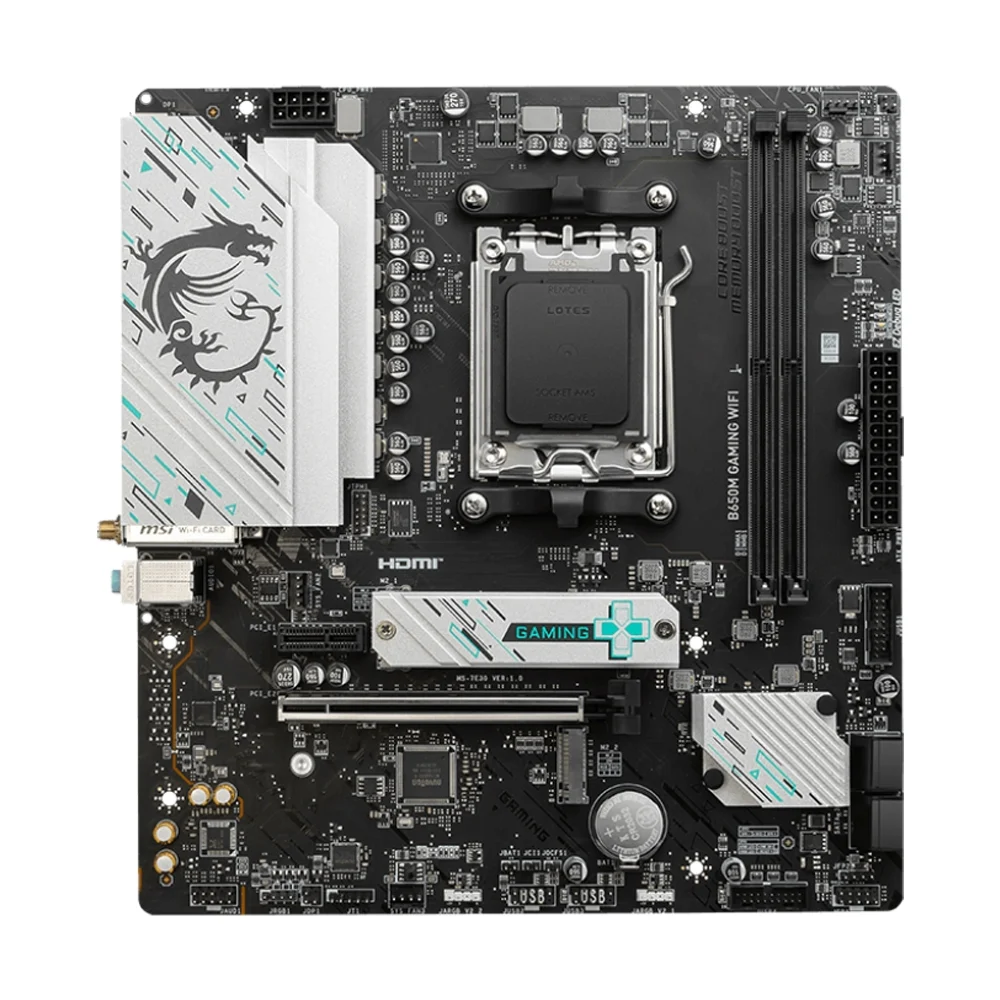

MAINBOARD (AM5) MSI B650M GAMING WIFI DDR5

฿5,580.00

  • Support CPU : AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
  • Form Factor : Micro ATX
  • Chipset : AMD B650 Chipset
  • Memory Channel : Dual Channel DDR5 2DIMM
  • Memory Support : up to 7800(O.C.)
  • Memory MAX : 128GB
  • M.2 Slot : 2 slots
  • SATA III 6G : 4 ports
  • PCIe 4.0×16 : 1 slot
  • Lan Port : 2.5 Gigabit LAN
  • Wireless : Wi-Fi 6E
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost : Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Steel Armor : Protecting VGA cards against bending and EMI for better performance, stability and strength
  • AUDIO BOOST : Reward your ears with studio grade sound quality for the most immersive gaming experience
  • High Quality PCB : 6-layer PCB made by 2oz thickened copper

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: A0166576 หมวดหมู่: ,

คำอธิบาย

Brand MSI
Model B650M GAMING WIFI (DDR5)
CPU Support Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
CPU Brand AMD
Socket AM5
Chipset AMD B650
Memory Support 2x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™
Maximum Memory Bus 7800
Graphics 1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*

1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Multi Graphic Support N/A
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Expansion Slots 1x PCI-E x16 slot (Qty)

Supports x16/x1
• Supports x16/x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports x8/x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports x4/x4 (For Ryzen™ 8500/ 8300 Series processors)

1x PCI-E x1 slot (Qty)
PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
Maximum PCIe Version PCIe 4.0
Storage 2 x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices

4 x SATA 6G (Qty)

• The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor

RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
M.2 Storage Type Support NVMe
M.2 Slot 2
USB 2 x USB 2.0 (Rear)
4 x USB 2.0 (Front)
3 x USB 5Gbps Type A (Rear)
1 x USB 5Gbps Type C (Rear)
4 x USB 5Gbps Type A (Front)
Internal I/O Connectors 1 x Power Connector(ATX_PWR)
1 x Power Connector(CPU_PWR)
1 x CPU Fan
3 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
2 x Addressable V2 RGB LED connector (JARGB_V2)
1 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
4 x USB 2.0 ports
4 x USB 5Gbps Type A ports

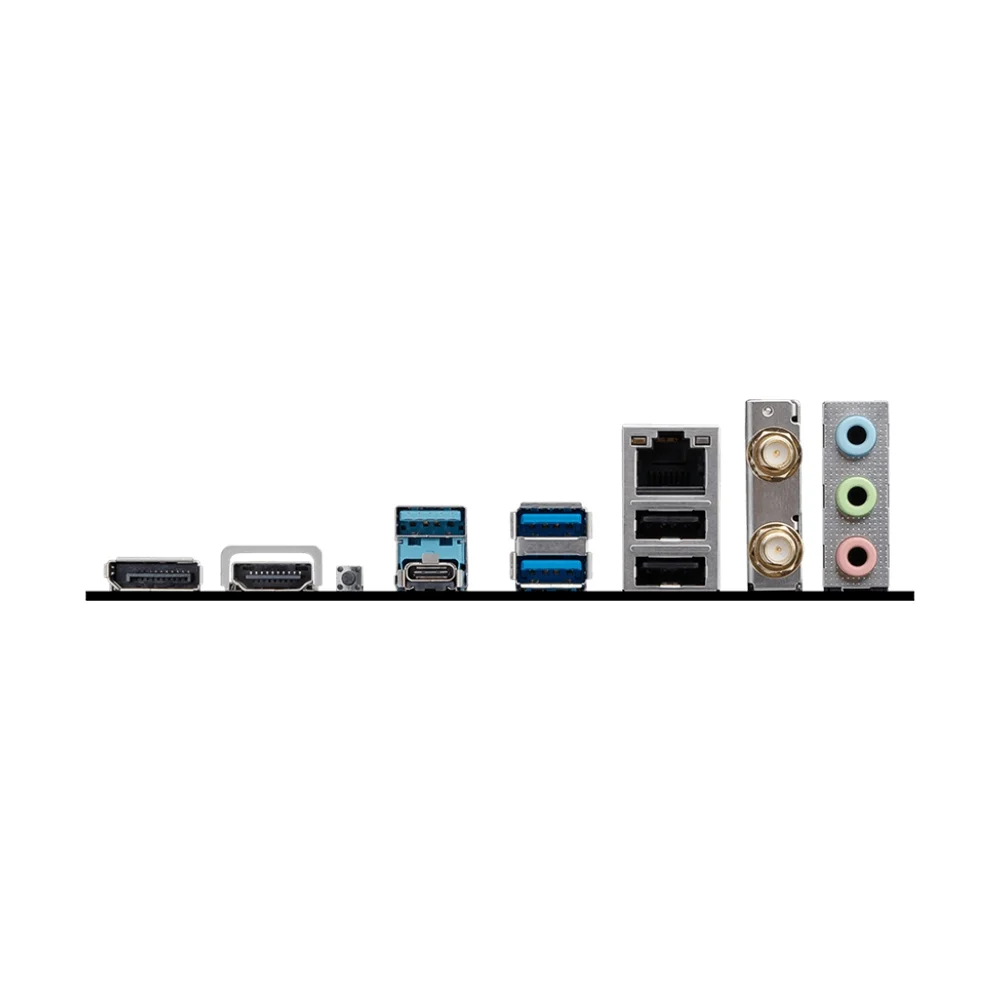

Back Panel Connectors 2 x USB 2.0
3 x USB 3.2 Gen 1 5Gbps (Type-A)
1 x USB 3.2 Gen 1 5Gbps (Type-C)
1 x DisplayPort
1 x HDMI™
Audio connectors
2.5G LAN
Wi-Fi / Bluetooth
Flash BIOS Button
LAN Realtek® RTL8125BG 2.5Gbps LAN
Wireless Data Network Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Form Factor Micro ATX
H/W Monitoring N/A
BIOS N/A
Special Features LED FEATURE : 4x EZ Debug LED
Software Features N/A
Operating System Support Support for Windows® 11 64-bit, Windows® 10 64-bit
Package Contents N/A
