MAINBOARD (AM5) MSI PRO B650M-A WIFI DDR5

฿5,750.00

  • Support CPU : AMD Ryzen™ 7000 Series Desktop Processors
  • From Factor : Micro ATX
  • Chipset : AMD B650 Chipset
  • Memory Channel : Dual Channel DDR5 4DIMM
  • Memory Support : up to 7200(O.C.)
  • Memory MAX : 192GB
  • M.2 Slot : 2 slots
  • SATA III 6G : 4 ports
  • PCIe 4.0×16 : 1 slot
  • Lan Port : 2.5 Gigabit LAN
  • Wireless : Wi-Fi 6E
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: A0147683 หมวดหมู่: ,

คำอธิบาย

Brand MSI
Model B650M-A WIFI
CPU Support Supports AMD Ryzen™ 7000 Series Desktop Processors
Socket AM5
CPU Brand AMD
Socket AM5
Chipset AMD B650
Memory Support 4x DDR5, Maximum Memory Capacity 192GB

Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
Maximum Memory Bus 7200
Graphics 1x HDMI™
1x DisplayPort
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
Supports DP1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Multi Graphic Support N/A
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Expansion Slots 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
Maximum PCIe Version PCIe 4.0
Storage 2x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G port
M.2 Storage Type Support NVMe
M.2 Slot 2
USB 4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
4x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
Internal I/O Connectors 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C

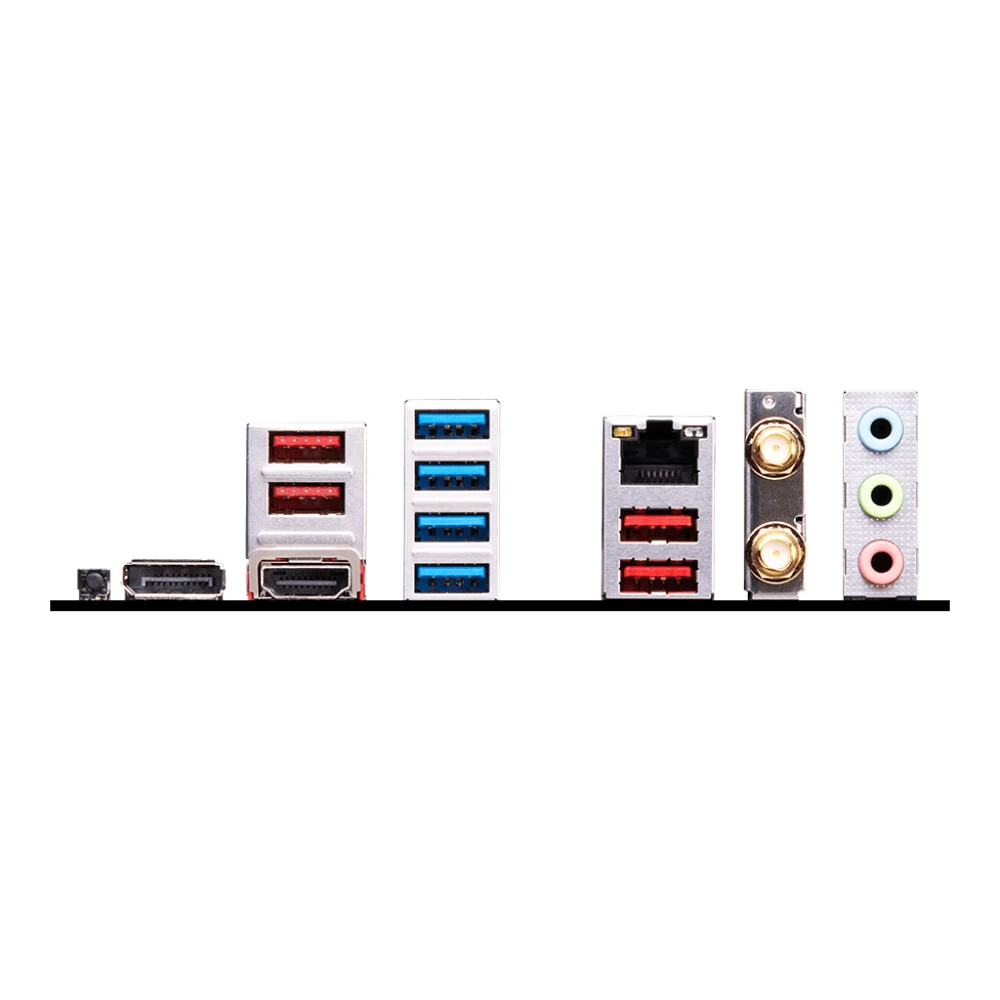

Back Panel Connectors USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 1 5Gbps (Type-A)
2.5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
DisplayPort
HDMI™
USB 3.2 Gen 2 10Gbps (Type-A)
LAN Realtek® 8125BG 2.5G LAN
Wireless Data Network AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.2**
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
Form Factor Micro ATX
H/W Monitoring N/A
BIOS N/A
Special Features N/A
Software Features N/A
Operating System Support Support for Windows® 11 64-bit, Windows® 10 64-bit
Package Contents N/A
Package Dimension (W x D x H) : 27.00 x 28.00 x 7.00 cm
Gross Weight 1.50 KG
Volume 5,292.00 cm3
