คำอธิบาย
| Brand | Longwell |

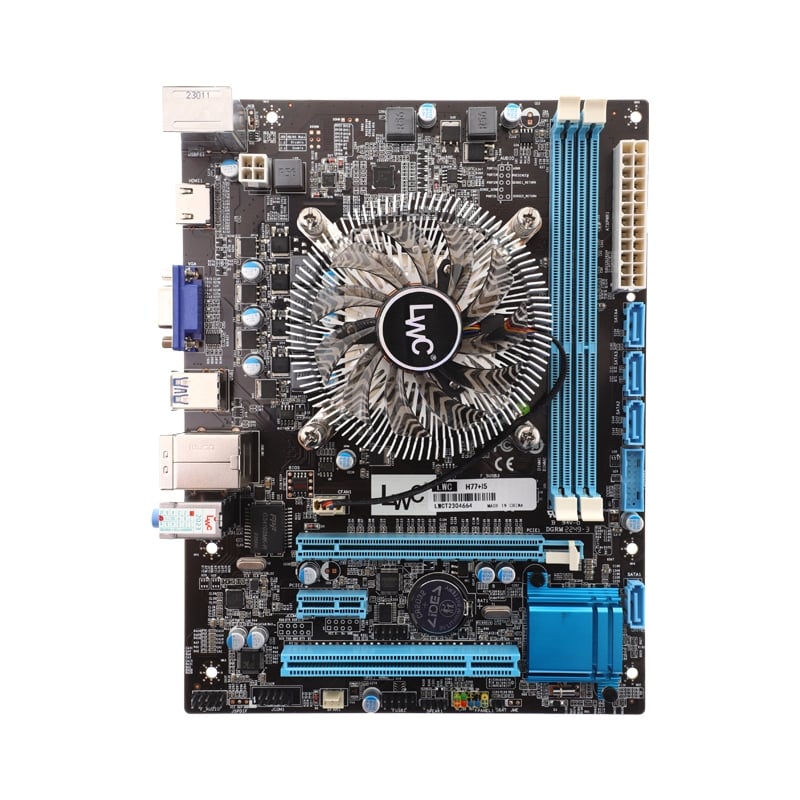

| Model | Mainboard H77+i5(2.5G)+Fan |
| CPU Support | Intel Core i5 2.5G (Installed) |
| CPU Brand | Intel |
| Socket | 1155 |
| Chipset | Intel H77 |
| Memory Support | Dual Channel DDR3 Memory Technology 2 x DDR3 DIMM Slots Support DDR3 1600 /1333/1066 MHz Non-ECC, Un-Buffered Max.capacity up to 32GB Memory |
| Maximum Memory Bus | 1600 |
| Graphics | N/A |
| Multi Graphic Support | N/A |
| Audio | Realtek@ ALC 662 CODEC |
| Expansion Slots | 1 x PCI Express 2.0 x16 1 x PCI Express 2.0 x1 1 X PCI |
| Maximum PCIe Version | PCIe 2.0 |
| Storage | 3 x SATA II Connector 1 x SATA III Connector |
| M.2 Storage Type Support | None |
| M.2 Slot | None |
| USB | 4 x USB 2.0 Ports 2 x USB 3.0 Ports 1 x USB 3.0 Connector 1 x F USB 2.0 Connector |
| Internal I/O Connectors | 1 x 24-pin EATX Power Connector 1 x 4-pin ATX 12V Power Connector 4 x SATA Connector 1 x 4-PIN CPU Fan Connector 1 x 3-PIN System Fan Connector 1 x USB 3.0 Connector 1 x F USB 2.0 Connector 1 x Front Panel Audio Connector (AAFP) 1 x Speaker Connector 1 x System Panel Connector |

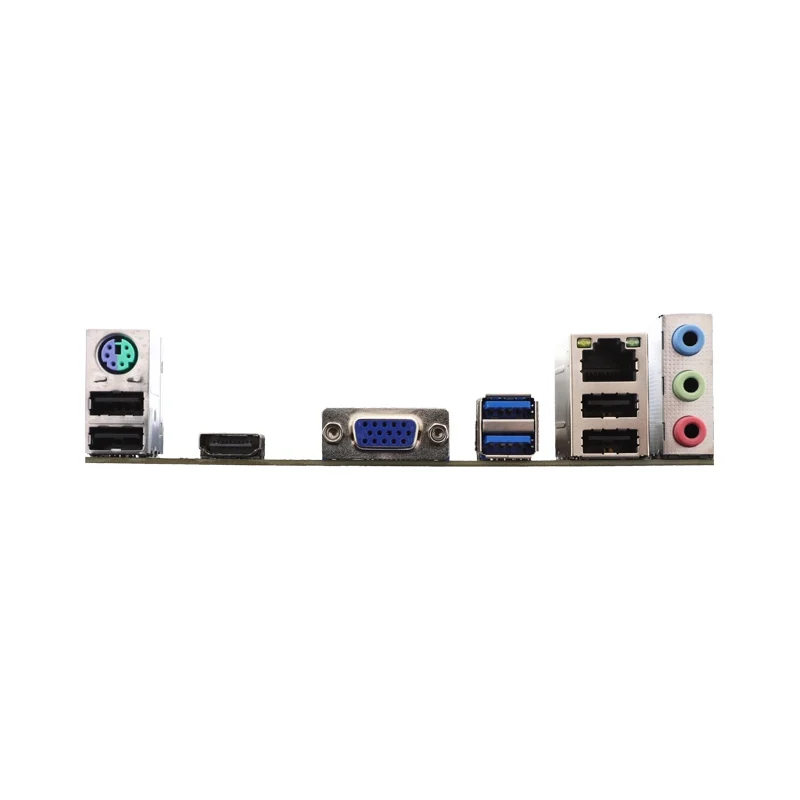

| Back Panel Connectors | 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x VGA (D-Sub) Port 4 x USB 2.0 Ports 2 x USB 3.0 Ports 1 x LAN port with LED (ACT/LINK LED and SPEED LED) 3 x Audio Jacks: Line in / Speaker / Microphone |
| LAN | 10/100/1000 Mb/s auto negotiation Half/Full duplex capability Realtek@ RTL8111 |
| Wireless Data Network | None |
| Form Factor | Micro ATX |
| H/W Monitoring | N/A |
| BIOS | N/A |
| Special Features | N/A |
| Software Features | N/A |
| Operating System Support | Microsoft@ Window@ XP / Vista/7/8/10 |
| Package Contents | 1 x SATA cable 1 x 1/O Rear Panel 1 x User Manual 1 x CD Driver |
| Package Dimension | (W x D x H) : 23.00 x 28.00 x 5.50 cm |
| Gross Weight | 0.80 KG |
| Volume | 3,542.00 cm3 |
