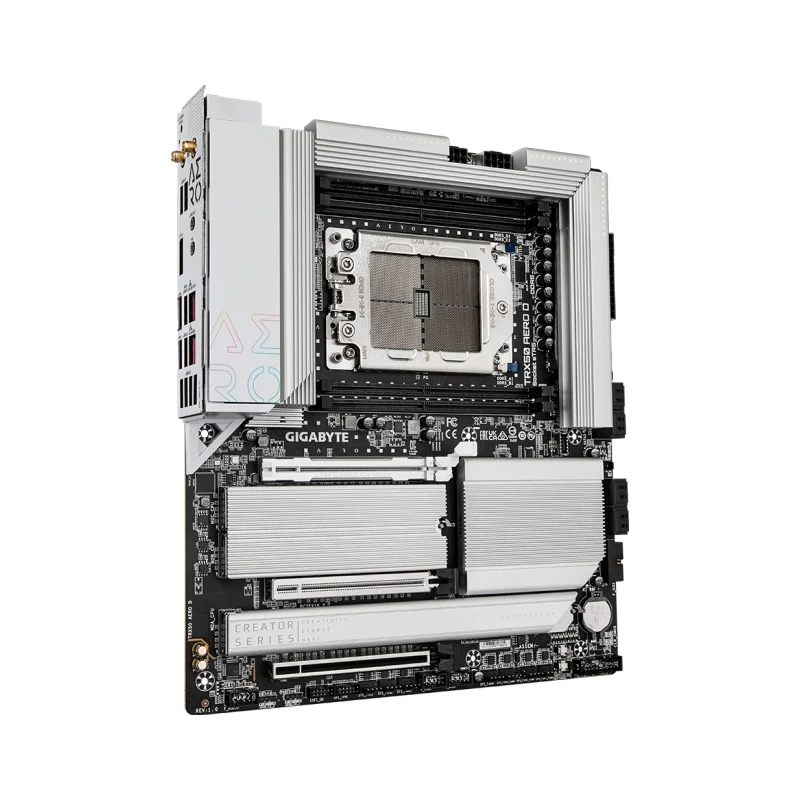

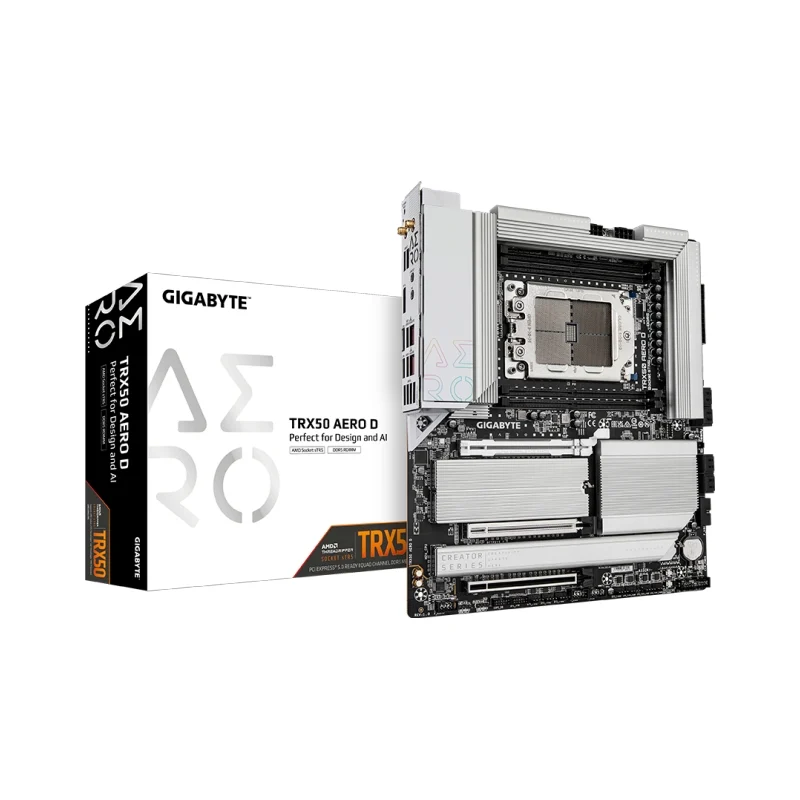

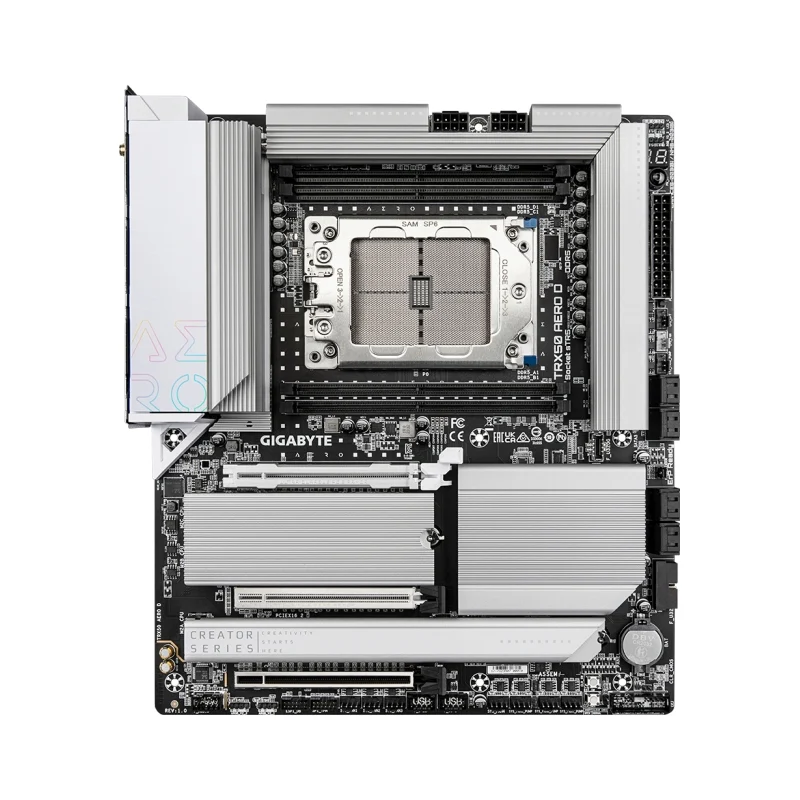

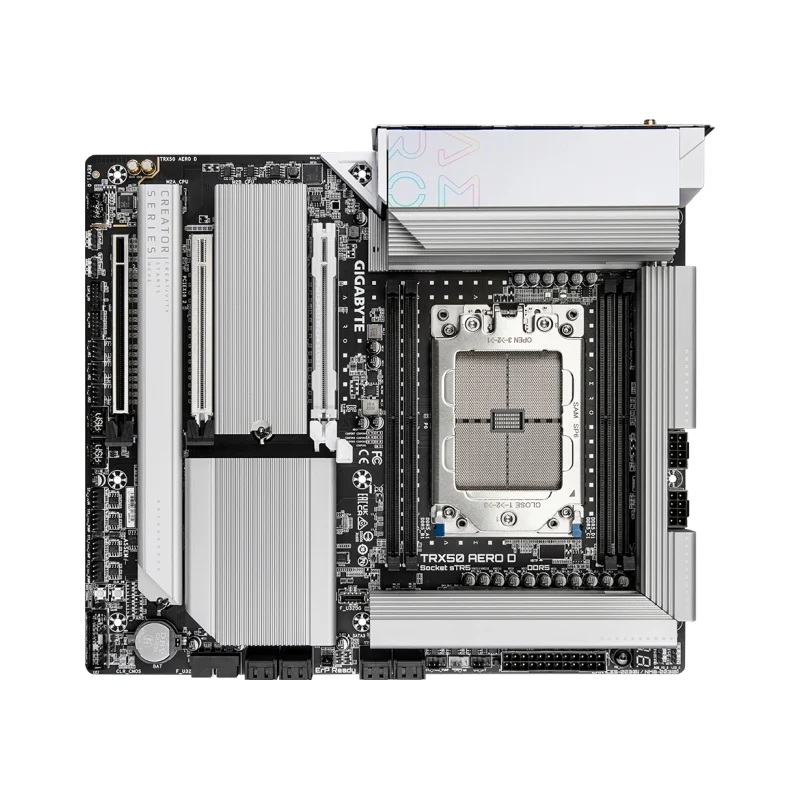

MAINBOARD (TRX50) GIGABYTE TRX50 AERO D (REV. 1.1)

฿28,050.00

  • Support CPU : AMD Ryzen Threadripper 7000 / PRO 7000 Series Desktop Processors
  • From Factor : E-ATX
  • Chipset : AMD TRX50 Chipset
  • Memory Channel : Quad Channel DDR5 4DIMM
  • Memory Support : up to 7800(O.C.)
  • Memory MAX : 1TB
  • M.2 Slot : 4 slots
  • SATA III 6G : 8 ports
  • PCIe 5.0×16 : 2 slots
  • PCIe 4.0×16 : 1 slot
  • Lan Port : 2.5 Gigabit LAN + 10 Gigabit LAN
  • Wireless : Wi-Fi 7
  • Breakthrough Performance : 16+8+4 Phases Digital VRM Solution
  • Quad Channel DDR5 : 4*SMD R-DIMMs with AMD EXPO & Intel XMP Memory Module Support
  • Reinforced Overall Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
  • Ultimate Scalibility : 3*PCIe x16 slots for Multi-GPU and 4*PCIe x4 M.2 slots
  • Hi-Fi Audio with DTS:X® Ultra : ALC4080+ALC897 CODEC
  • UC BIOS : User-Centred intuitive UX with Quick Access function

**โปรดตรวจสอบราคาและจำนวนสินค้ากับพนักงานขายก่อนทุกครั้งที่ทำการสั่งซื้อ เนื่องจากระบบ Stock อาจมีการ Update ล่าช้ากว่าปัจจุบัน และบริษัทฯขอสงวนสิทธิ์ในการเปลี่ยนแปลงข้อมูลสินค้า และราคาโดยมิต้องแจ้งให้ทราบล่วงหน้า

รหัสสินค้า: A0156561 หมวดหมู่: ,

คำอธิบาย

Brand GIGABYTE
Model TRX50 AERO D
CPU Support AMD Socket sTR5, support for:
AMD Ryzen™ Threadripper™ PRO 7000 processors / AMD Ryzen™ Threadripper™ 7000 Series processors

(Go to GIGABYTE’s website for the latest CPU support list.)
CPU Brand AMD
Socket sTR5
Chipset AMD TRX50
Memory Support Support for DDR5

7800(O.C.)/7600(O.C.)/7200(O.C.)/7000(O.C)/6800(O.C.)/6400(O.C.)/6000(O.C.)/5600(O.C.)/5200/4800/4400 MT/s ECC Registered memory modules (RDIMM/RDIMM-3DS)

4 x DDR5 DIMM sockets supporting up to 1TB (256 GB single DIMM capacity) of system memory
Quad channel memory architecture

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
Maximum Memory Bus 7800
Graphics N/A
Multi Graphic Support N/A
Audio Realtek® ALC4080 CODEC (rear panel audio)
– Support for DTS:X® Ultra
– High Definition Audio
– 2-channel
Realtek® ALC897 CODEC (front panel audio)
Expansion Slots CPU:
– 2 x PCI Express x16 slots, supporting PCIe 5.0 and running at x16 (PCIEX16_1/PCIEX16_2)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.

– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16(PCIEX16_3)
Maximum PCIe Version PCIe 5.0
Storage CPU:
– 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
– 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU/M2B_CPU)
– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2D_CPU)

CPU+Chipset:
– 8 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
M.2 Storage Type Support NVMe
M.2 Slot 4
USB CPU:
– 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+Intel® JHL8540 USB4® controller:
– 2 x USB4® USB Type-C® ports on the back panel

Chipset:
– 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header
– 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
– 2 x USB 3.2 Gen 1 ports available through the internal USB header

CPU+USB 3.2 Gen 1 Hub:
– 4 x USB 3.2 Gen 1 ports on the back panel

Chipset+USB 2.0 Hub:
– 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
4 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
8 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x power button
1 x Clear CMOS button
1 x reset button
1 x reset jumper
2 x temperature sensor headers
1 x Clear CMOS jumper

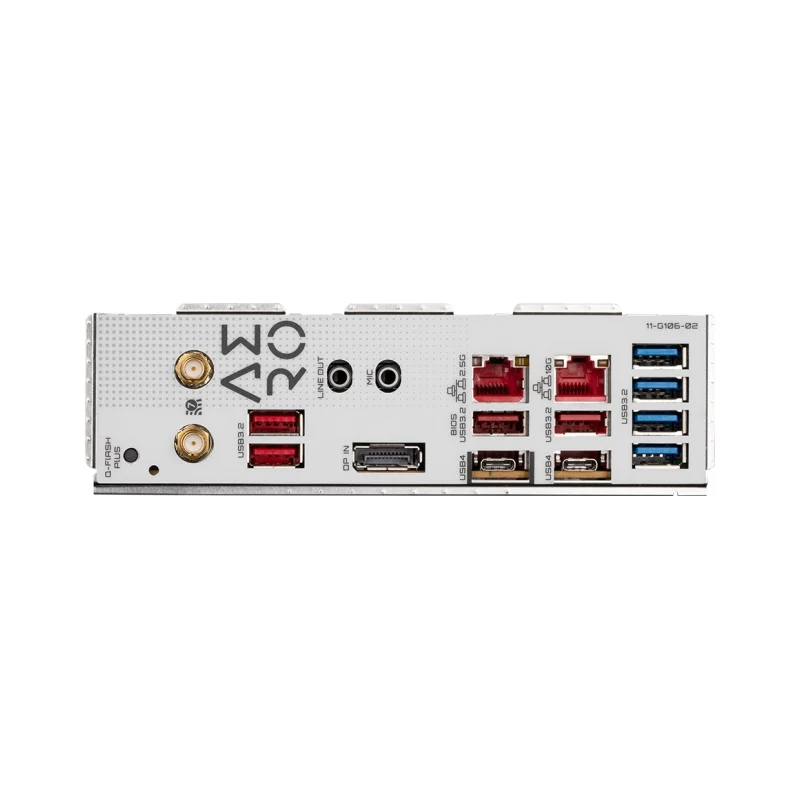

Back Panel Connectors 1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)
1 x DisplayPort In port
1 x USB4® USB Type-C® port (DisplayPort)
1 x USB4® USB Type-C® port
4 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
2 x RJ-45 ports
2 x audio jacks
LAN Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN)
Wireless Data Network Qualcomm® Wi-Fi 7 QCNCM865
– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
– BLUETOOTH 5.3
– Support for 11be 320MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

Note:
Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10)
Wi-Fi 7 channels on 6GHz band availability depends on individual country’s regulations.
Form Factor E-ATX
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

Noise detection
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Special Features Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Q-Flash Plus
Software Features Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System Support Support for Windows 11 64-bit
Package Contents N/A
